Vertical Curve Bypass Tool

📏 Vertical Curve Avoidance Tool

Avoid vertical curves by using simple grade breaks.

This spreadsheet helps civil engineers and designers approximate points along a curve without using complex equations. By replacing curves with evenly spaced grade transitions, you can simplify grading design and stay within slope constraints.

✅ What It Does:

Approximates points along a curve using parabolic math and linear segments

Calculates how many segments are needed based on your inputs

Generates station and elevation points using a clean, editable table

Rounds elevations to the nearest 0.05 ft for real-world grading

Warns you when a true vertical curve is required

📊 Included:

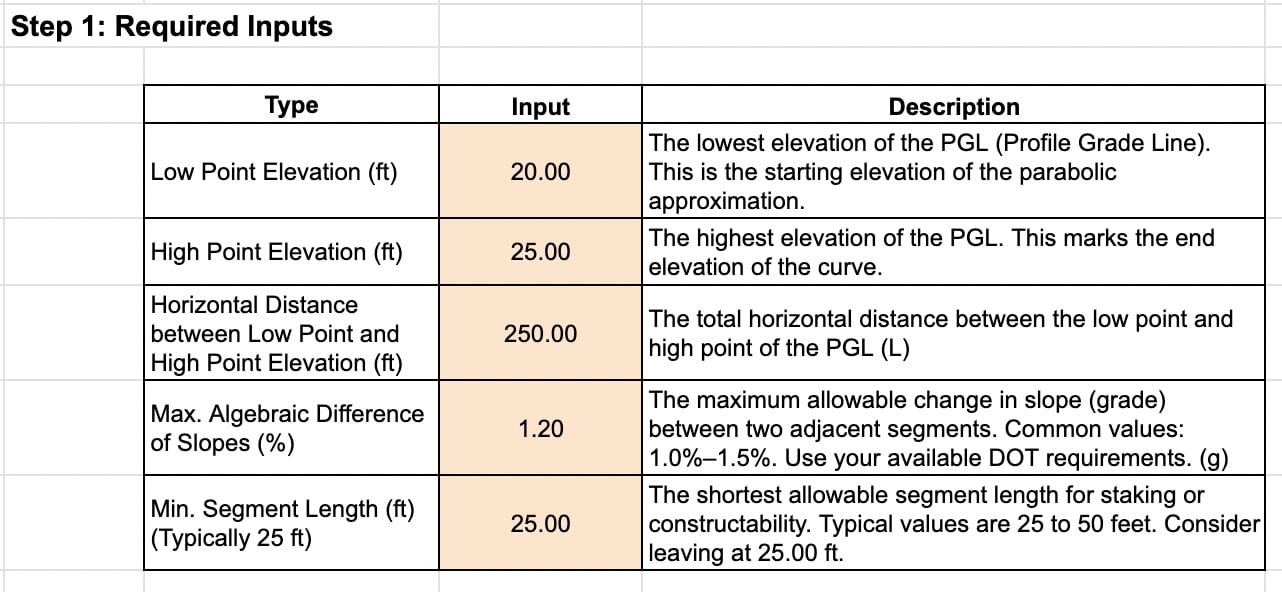

Editable input section for elevation, distance, slope constraints

Automated point/station/elevation table

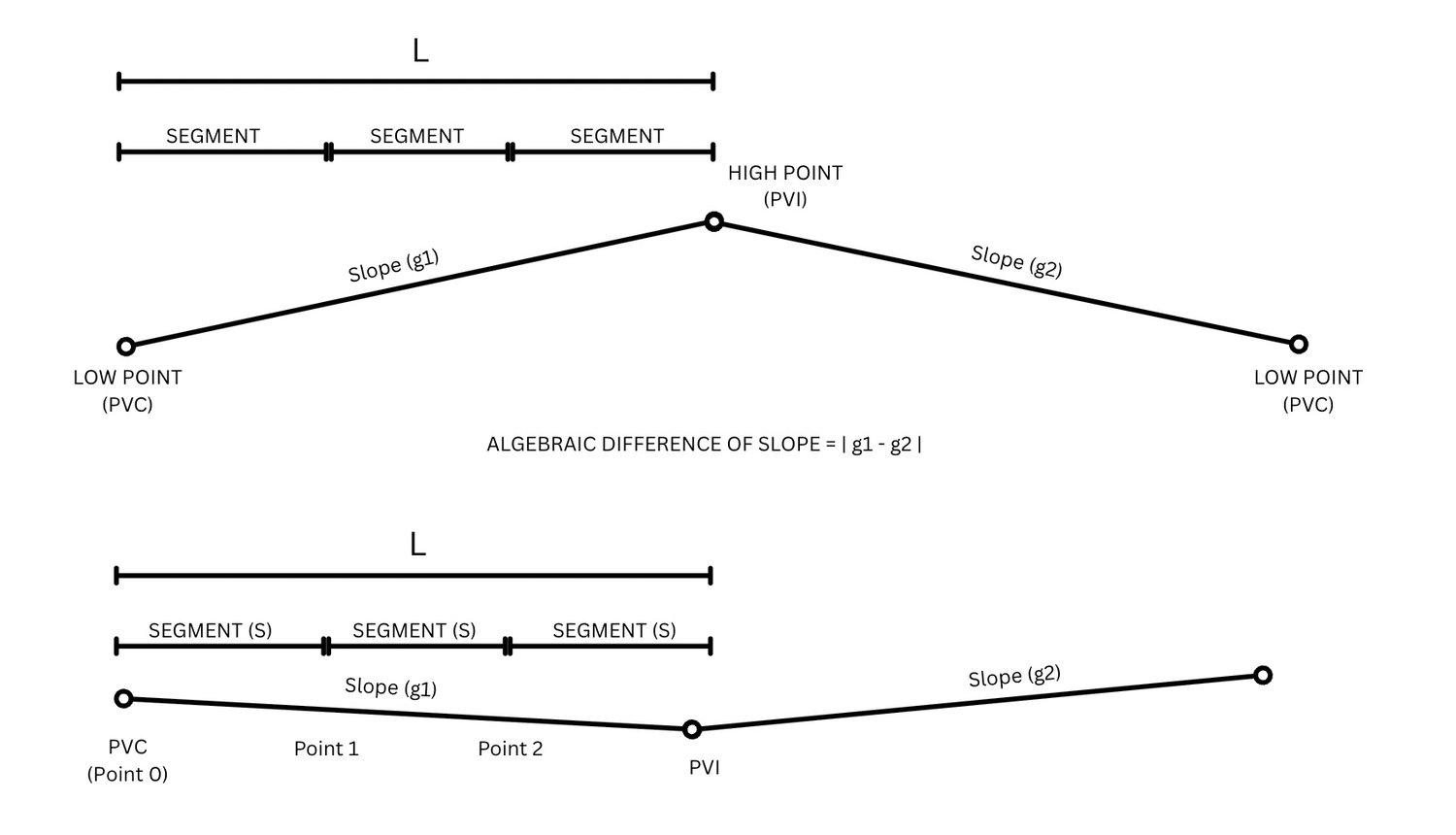

Built-in diagram and step-by-step instructions

All cells unlocked and easy to follow

💡 Use This Tool To:

Avoid vertical curve design when slope changes are small

Disclaimer:

This tool was developed independently from scratch using general engineering knowledge, public-domain formulas, and personal experience. It does not use any proprietary materials or confidential resources. Use of this spreadsheet is at the discretion of the user, who is responsible for verifying all calculations and assumptions.

All units are Imperial [US].
