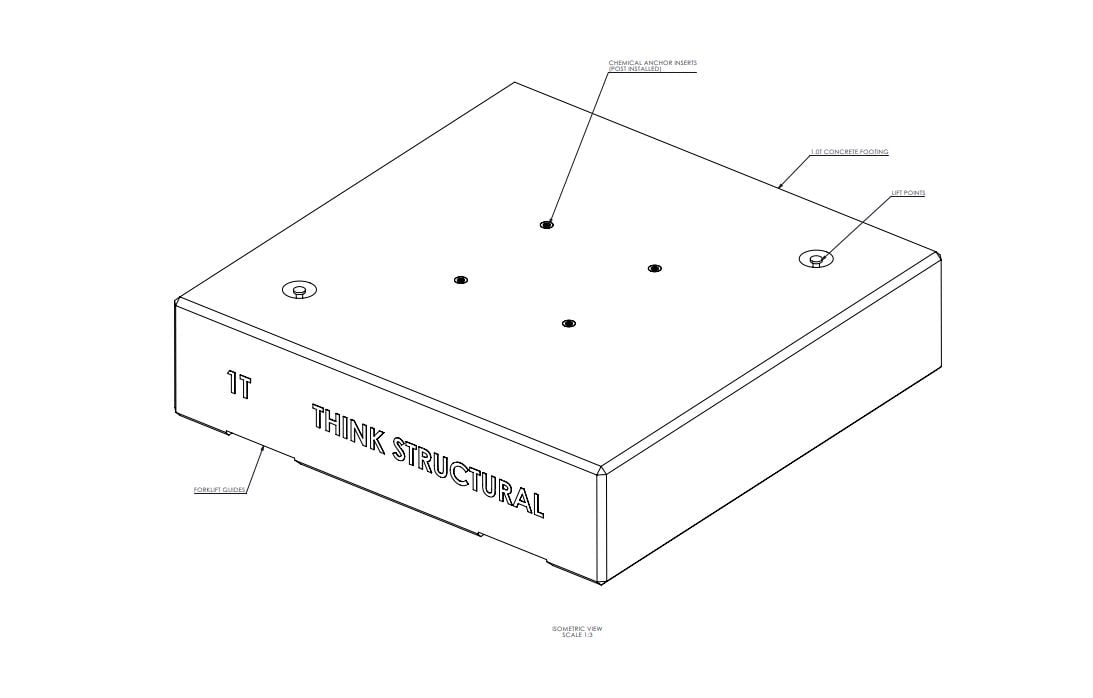

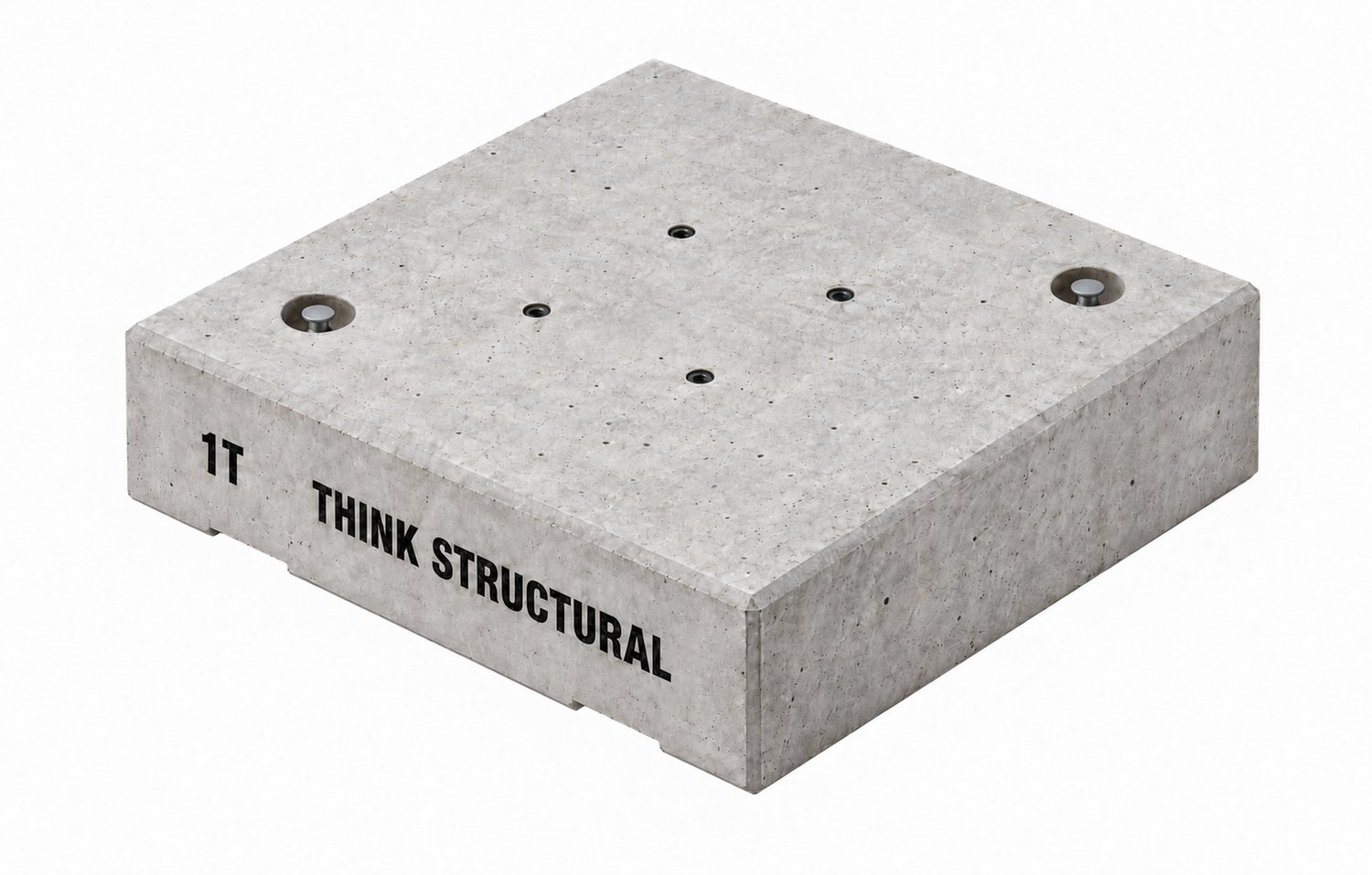

1t Footing Design Template

The features of the 1.0t footing design template include;

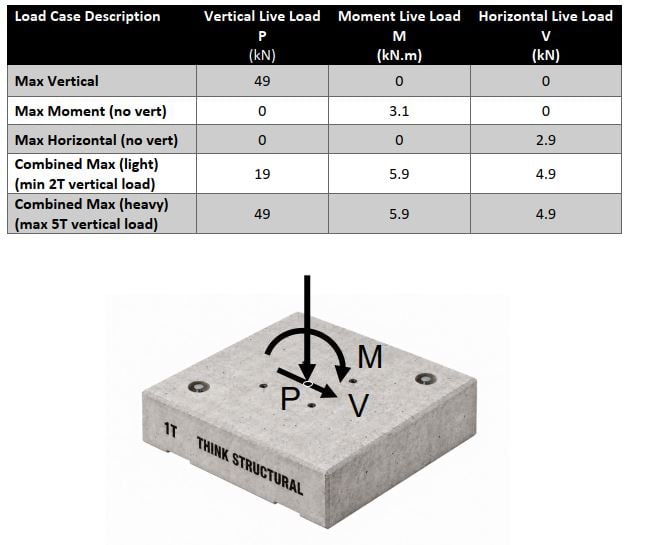

• Rated for 5T of vertical payload #
• Overturning capacity of 3.1kN.m *

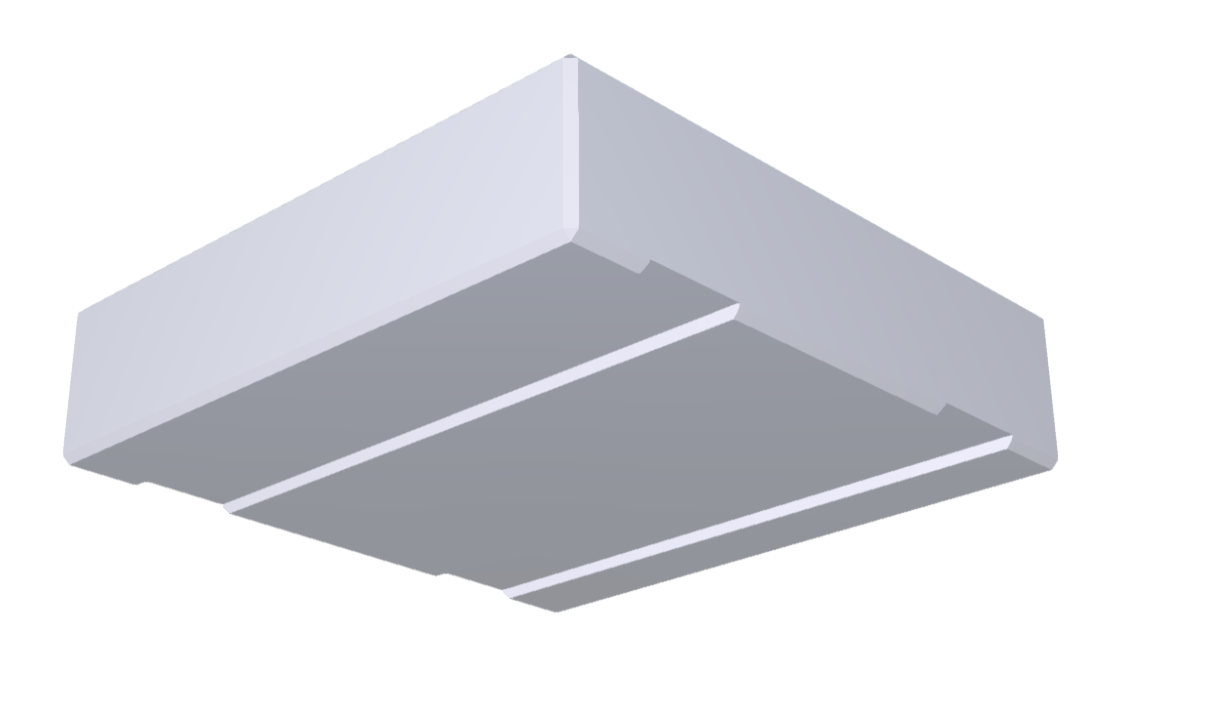

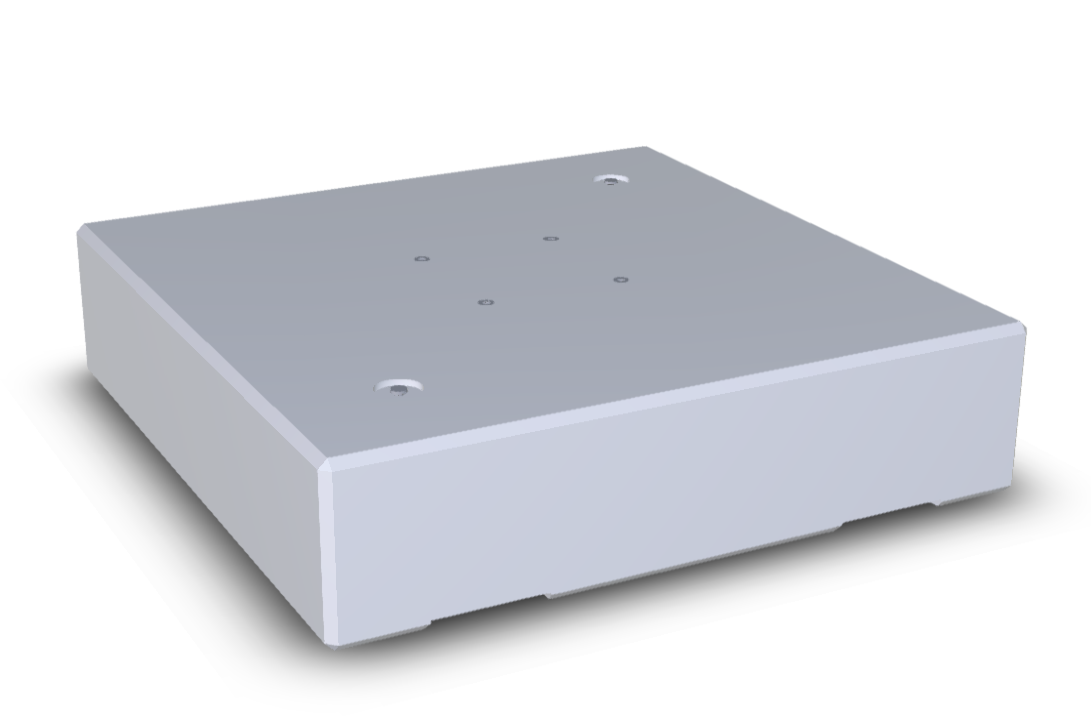

• Footing Dimensions- 1.2m x 1.2m x 0.3m
• Footing Weight - Approx 1.0t
• Designed for 2-point lift

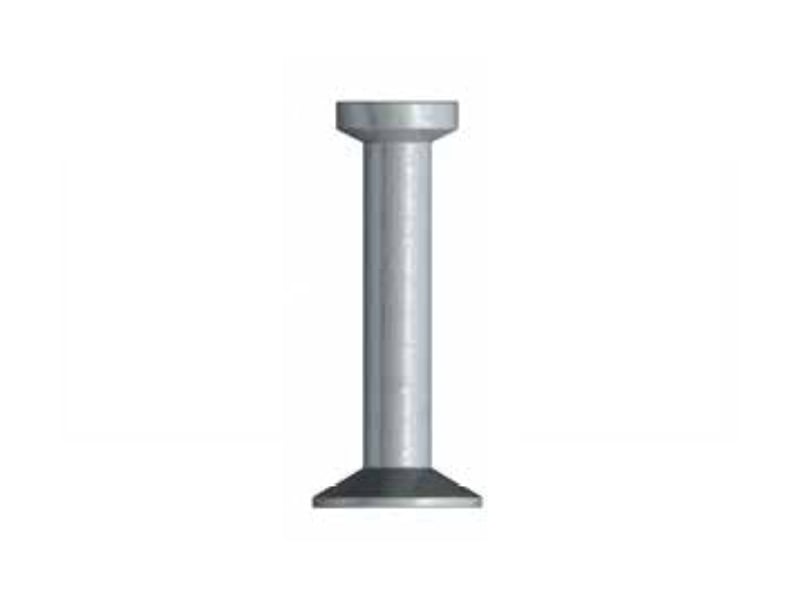

• Swift Lift anchor points
• Design report included
• Fully compliant to AS 3600 - Concrete Structures
• Adjustable anchor spacings to suit required base plate

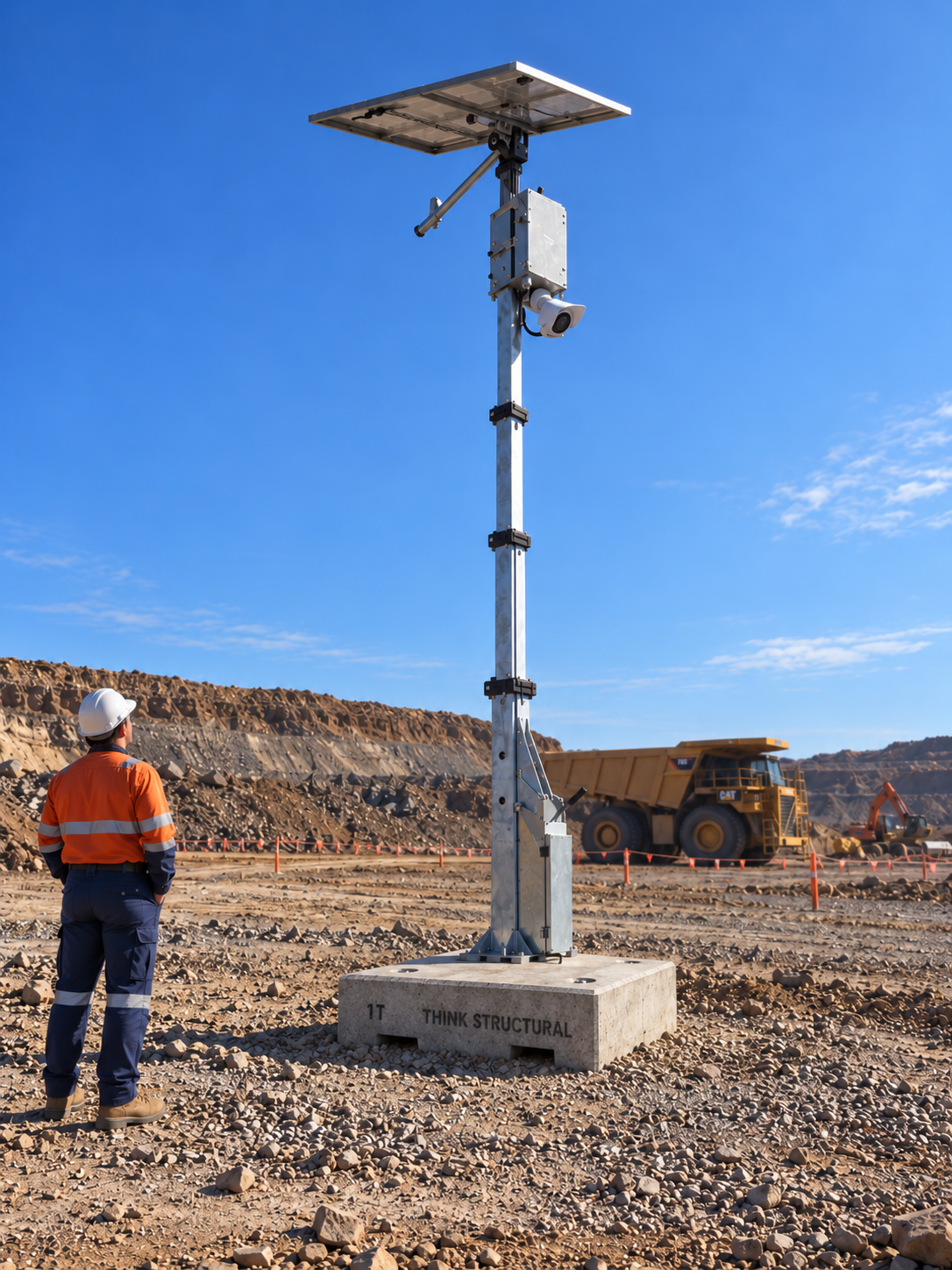

• Applicable for building, mining, oil & gas and marine industry in Australia
• Design package includes;
• GA Drawing (PDF)
• Detail Drawing (PDF)
• Calculation Report (PDF)
• 3D Model (STEP)

# Applied at the centre of footing. Eccentric load cases available upon request. Footing placed on level, compacted ground with min 200 kPa allowable bearing pressure.

* Overturning capacity can increase to 5.9kN.m with minimum 2T of permanent load. Enquire for specific load cases.

Note: This is for design template only. Actual footing not included.
