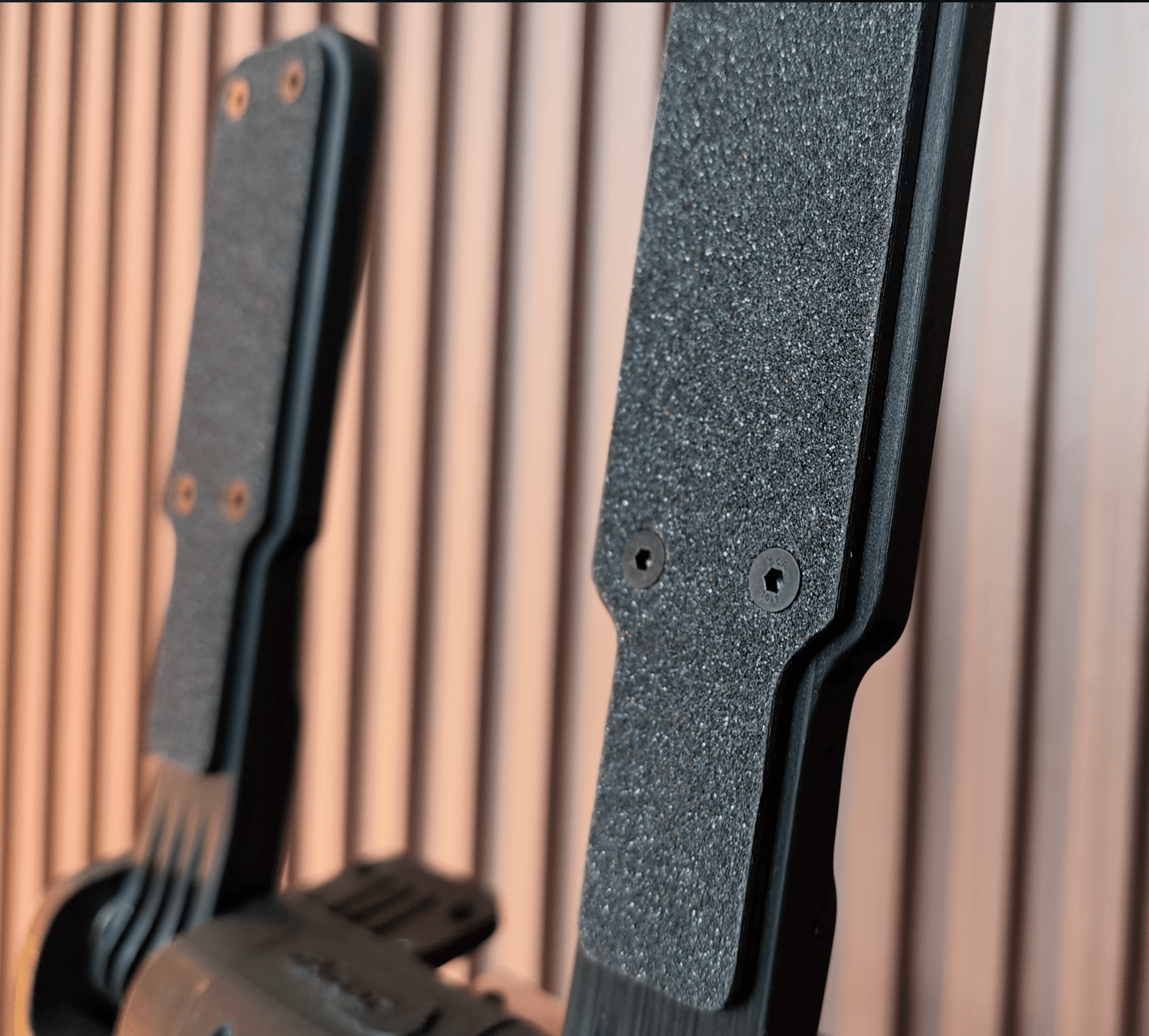

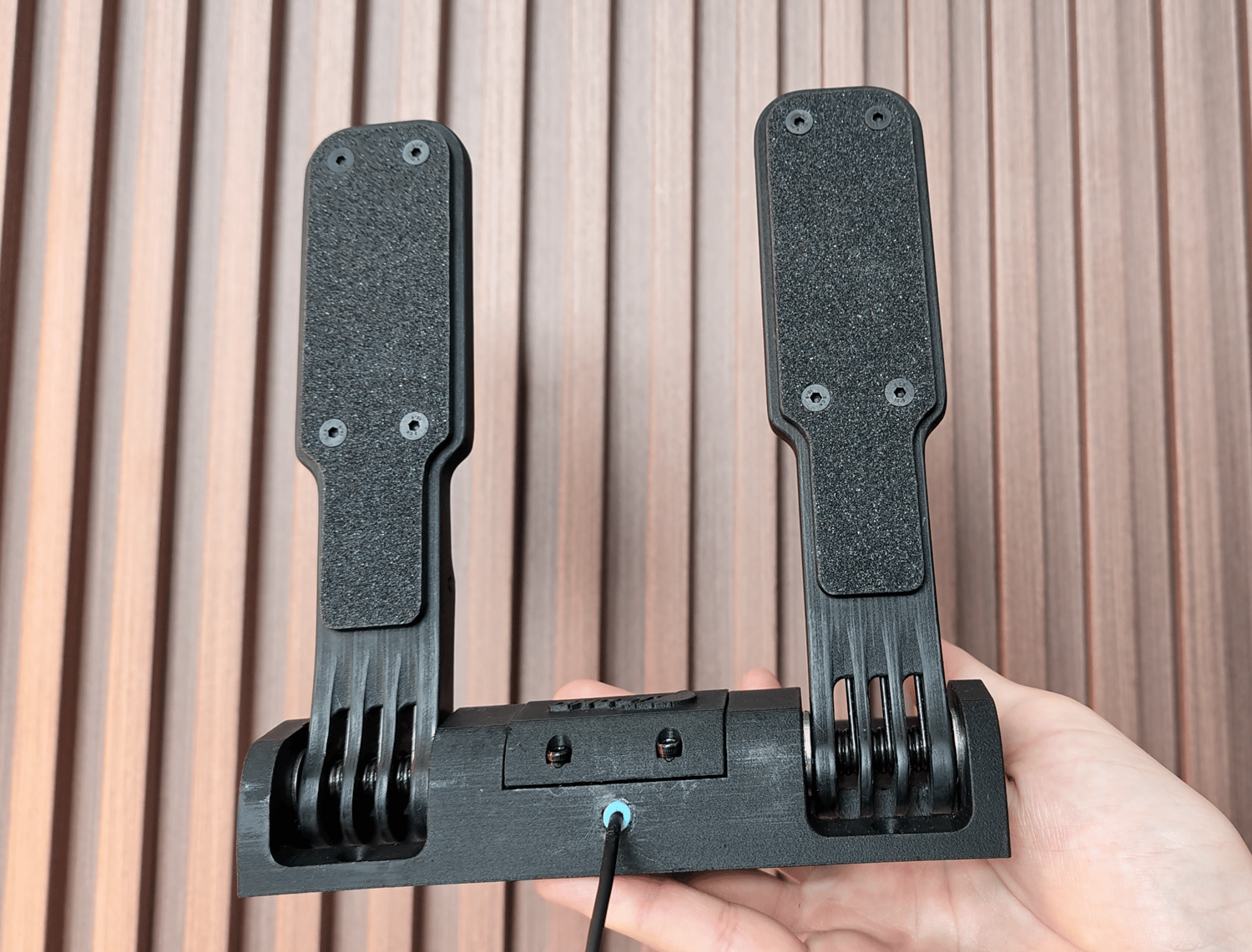

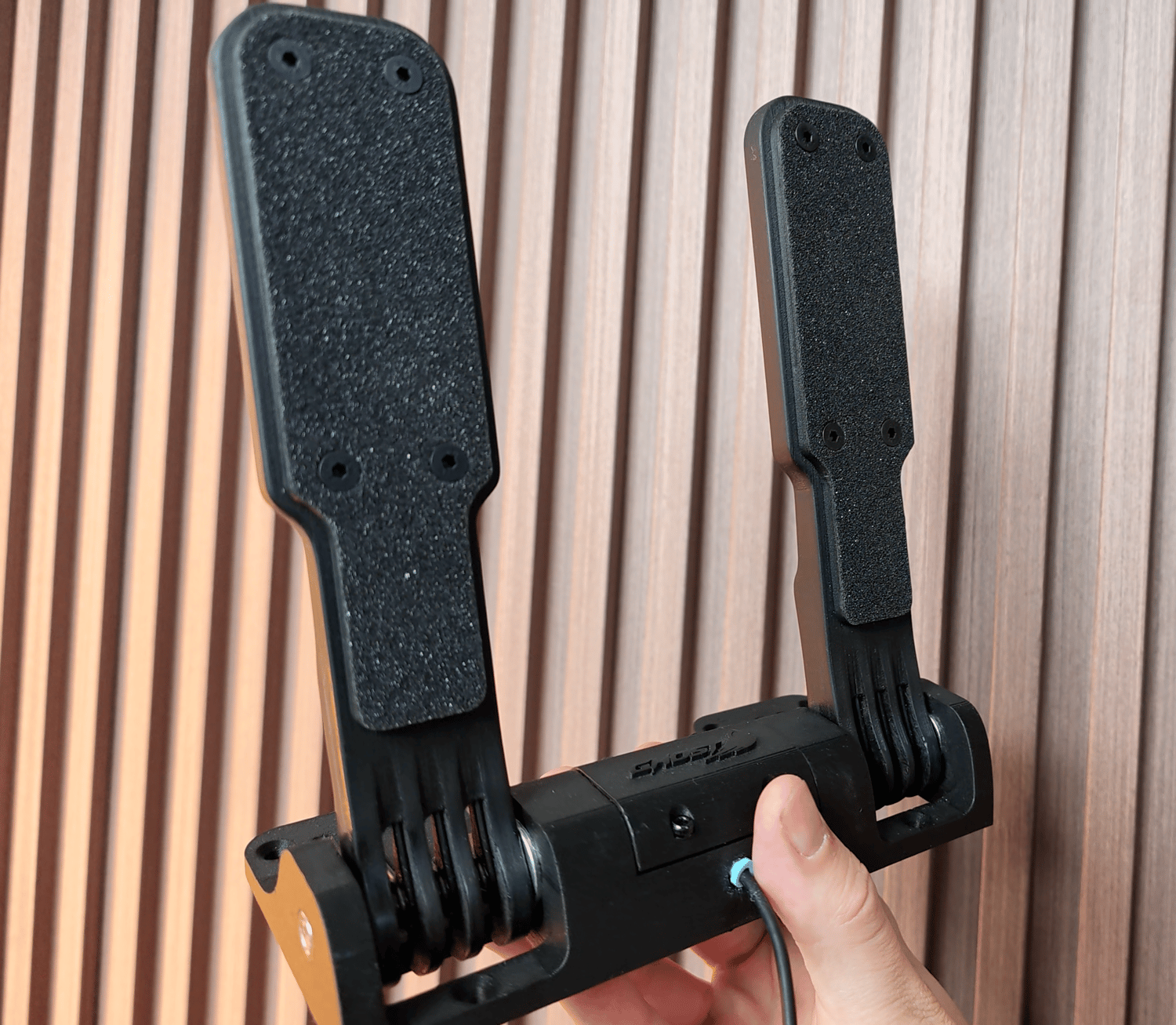

GHOST Pedals - DIY Sim Pedal Build Pack
Dual SIM pedals with contactless magnetic sensors. Print them, wire them, Use them for as little as $12 in parts.
The GHOST Pedals use two AS5600 12-bit magnetic encoders - the same contactless sensor technology in high-end commercial pedals - driven by a Waveshare ESP32-S3-Zero on dual independent I2C buses. No potentiometers to wear out. No multiplexer needed. Output goes anywhere: PC, flight controller, another ESP32 but may need additional coding

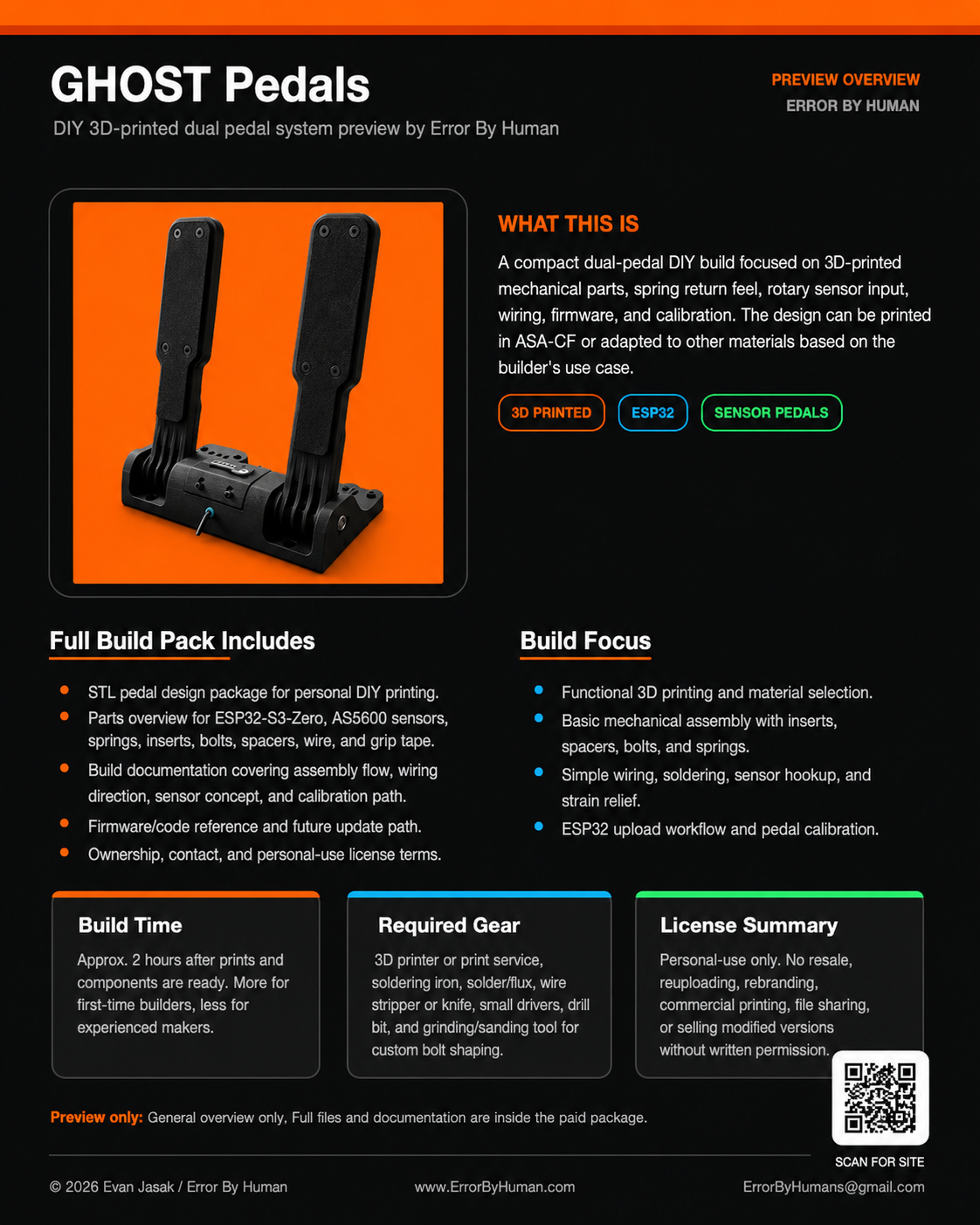

WHAT YOU GET

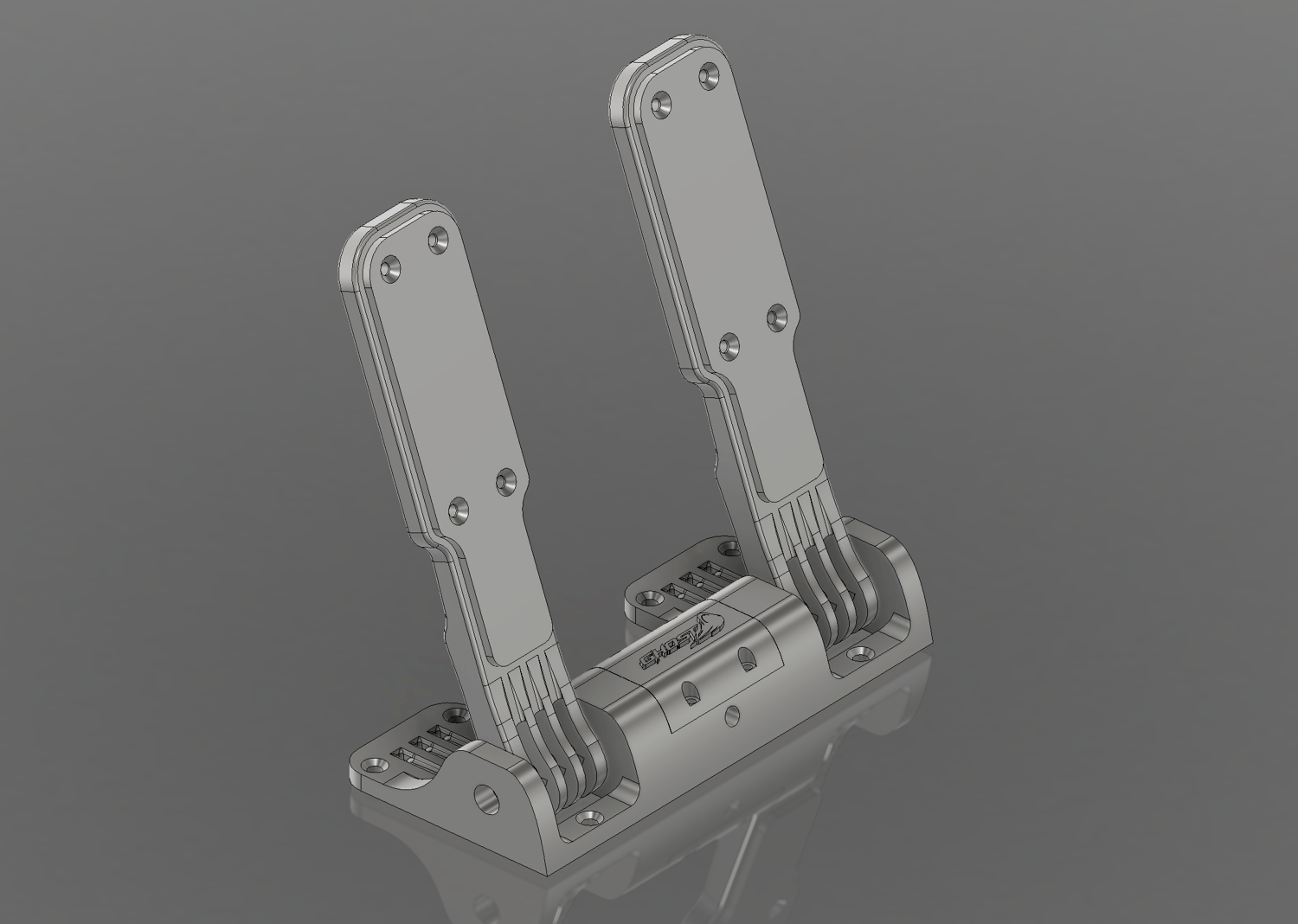

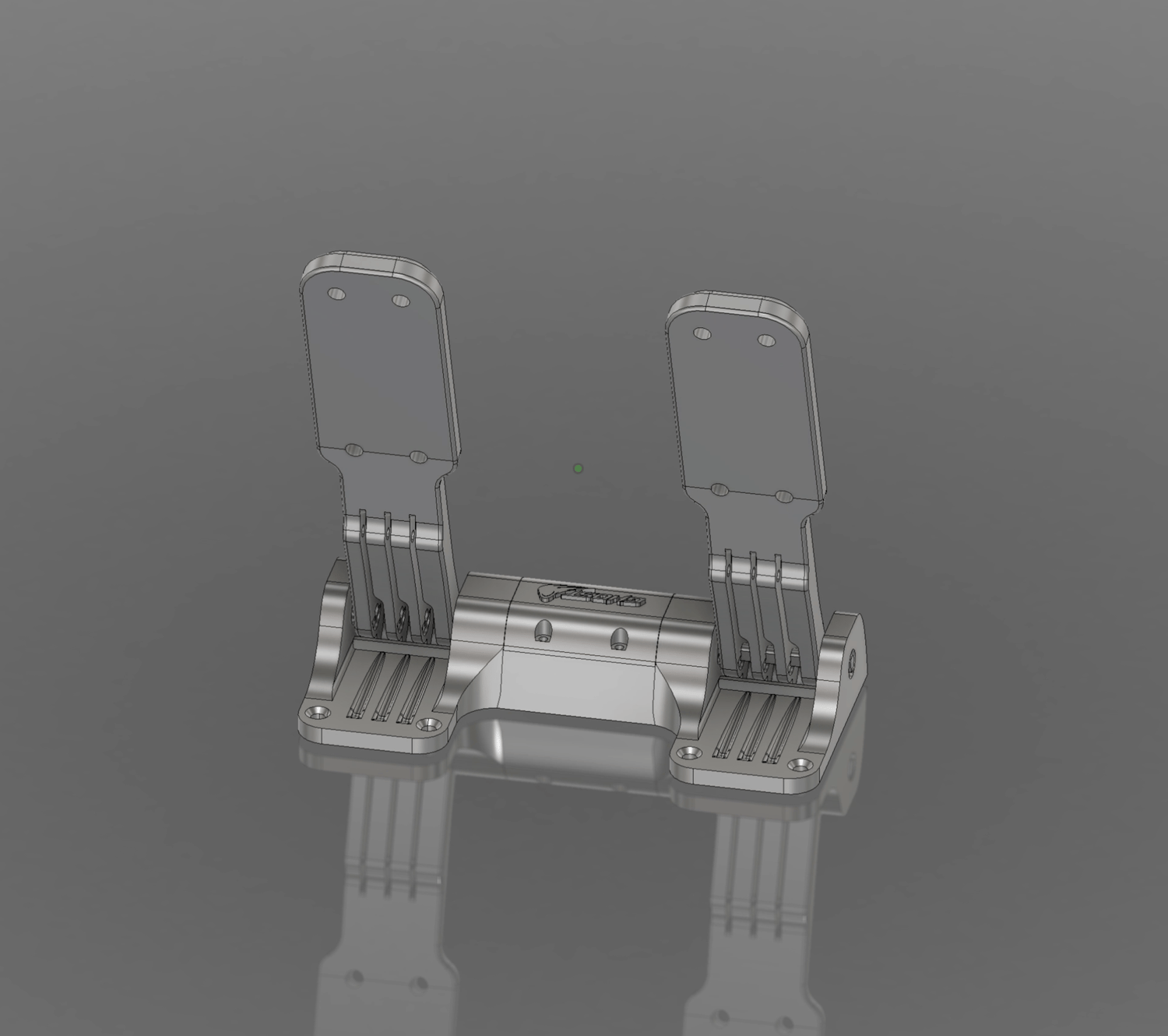

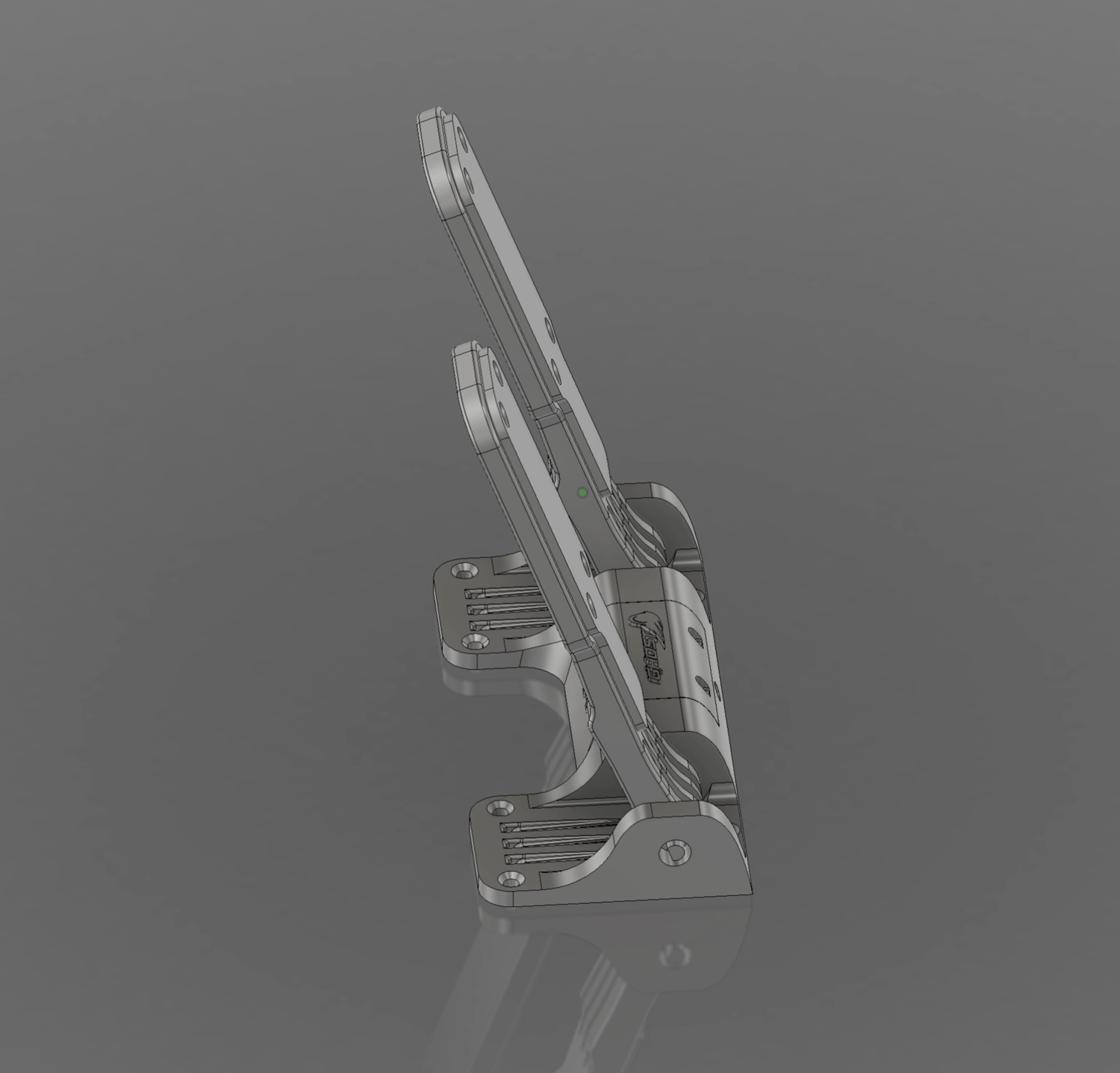

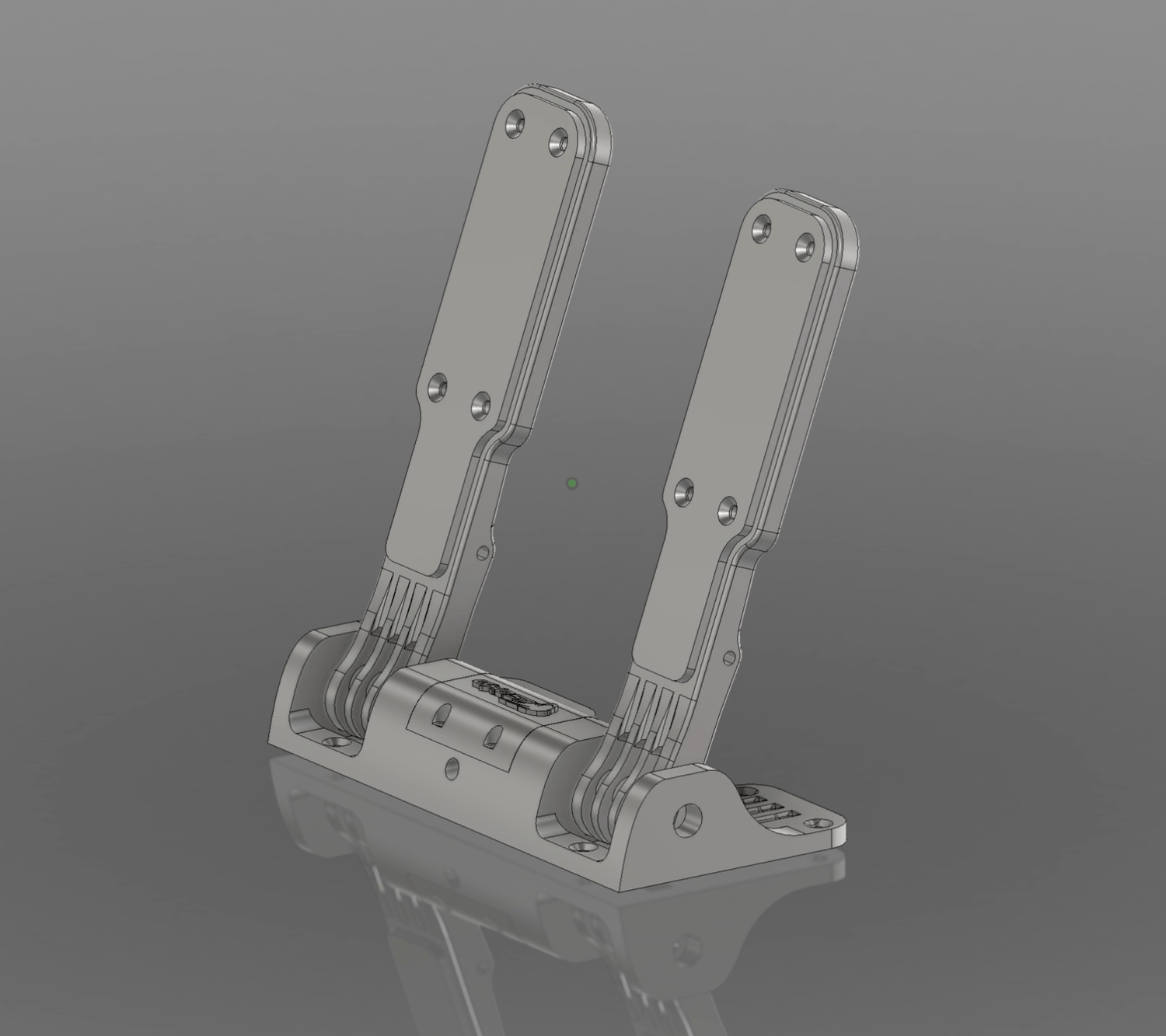

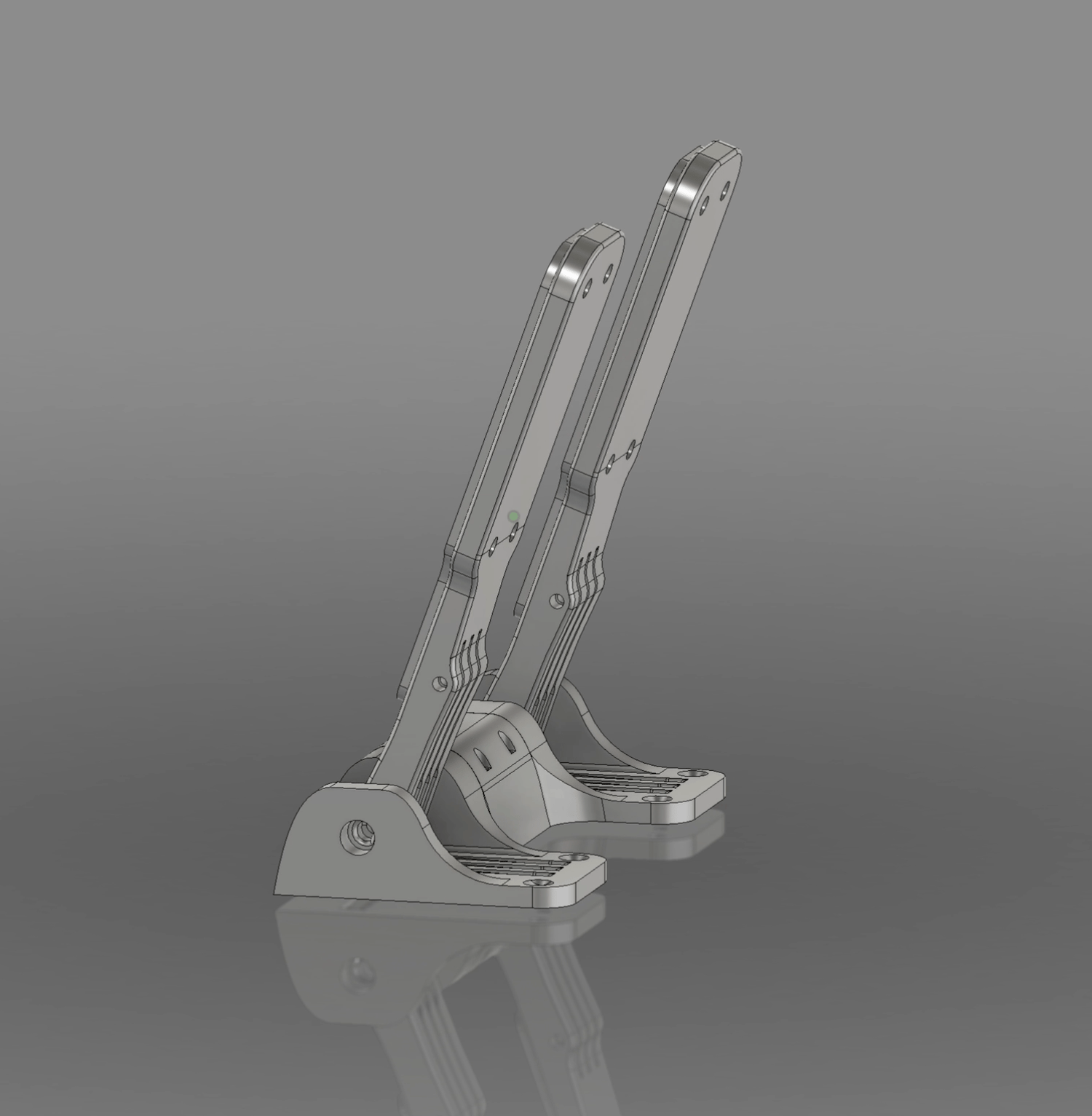

- All STLs with exact fastener callouts and the pivot-pin grinding spec
- Full ESP32-S3 firmware - source + precompiled basic binary
- Professional Bill of Materials (PDF) with specs and price estimates
- One-click Amazon parts list
- Wiring notes and a step-by-step build video
- All future updates included, free
THE BUILD
- Parts cost: $12–65 depending on what you already own
- Build time: ~2 hours after printing
- Skill level: first real hardware project friendly - if you can solder 8 wires, you can build this
- Print in any material - ASA-CF is the reference spec, PETG works fine
WHAT YOU NEED 3D printer access, a soldering iron, a rotary tool (or a local shop for one 5-minute grinding job), and a computer + USB-C cable.
Personal use license. Files may not be redistributed or resold — see LICENSE.txt.
→ Want the joystick too? The bundle gets you both for $99 — save $51.
non refundable
Original Design Notice
The GHOST Pedals, GHOST Joystick, related design files, documentation, graphics, firmware structure, branding, and build materials are original works by Evan Jasek / Error By Human, unless otherwise stated. All rights reserved.
