Residential Closet & Storage Designer Pro

Residential Closet & Storage Designer Pro v1.0

Plan organized residential storage directly inside AutoCAD with Residential Closet & Storage Designer Pro.

This AutoLISP and DCL program helps CAD drafters create modular concept layouts for closets, pantries, and laundry storage using hanging, shelving, and drawer modules.

Features:

• Enter overall closet width and depth
• Set cabinet depth, cabinet height, and a clear-aisle target
• Add modules to back, left, and right storage runs
• Choose single hanging, double hanging, shelving, or drawer modules
• Customize module widths and quantities
• Enter shelf or drawer-front counts

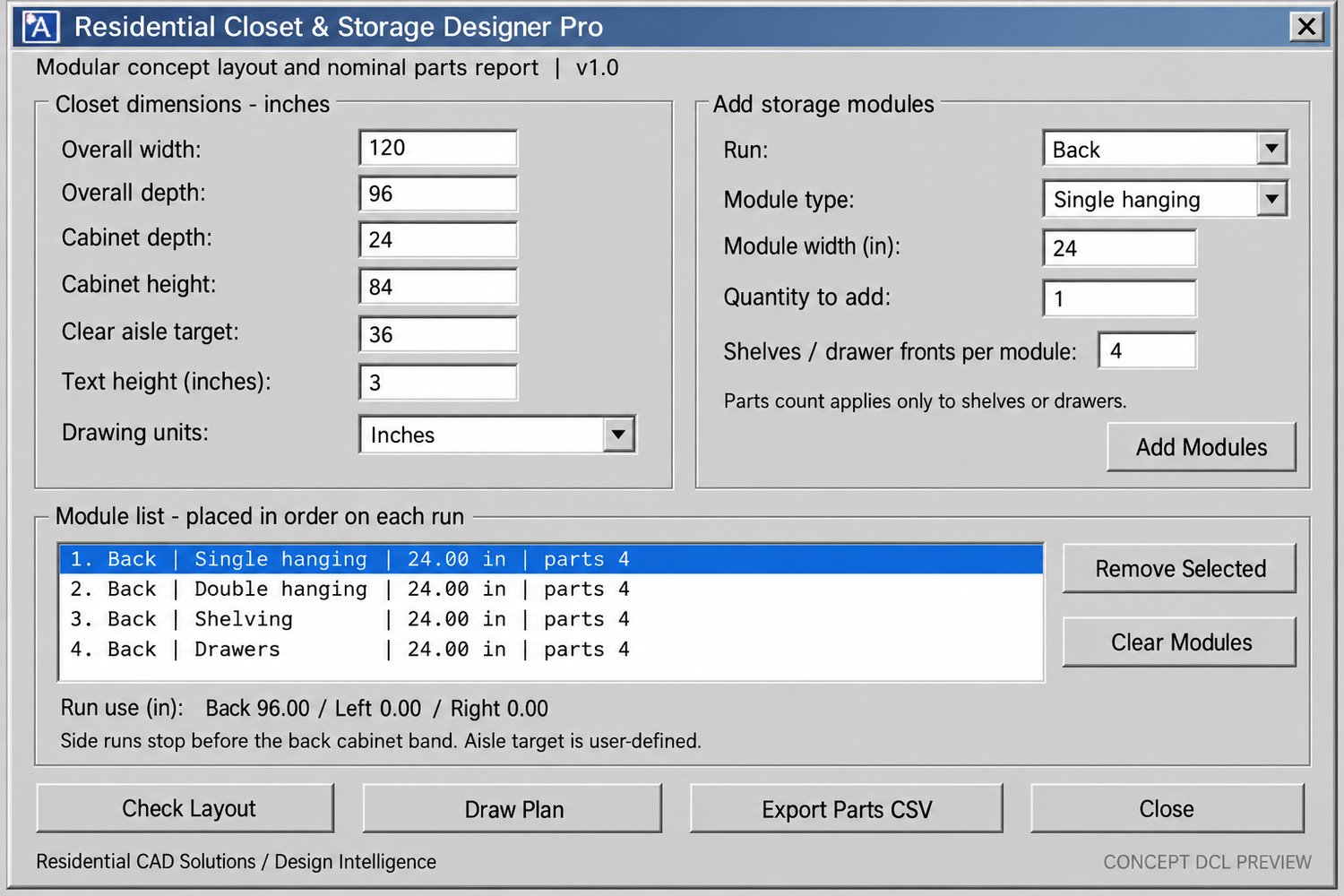

• Review, remove, or clear modules through the DCL interface
• Check whether modules fit within each run
• Receive a warning when conservative clear space falls below your aisle target
• Draw labeled module outlines and a layout summary
• Export nominal panel quantities, shelf counts, drawer-front counts, and rod lengths to CSV
• Scale drawing output for inches, feet, millimeters, or meters
• Place and rotate the layout using two picked points

Your download includes:

• Residential Closet & Storage Designer Pro LISP file
• Matching DCL interface
• Installation and usage instructions
• Example parts-report CSV
• Validation notes

Command:

CLOSETPRO — Opens the closet and storage designer interface.

Compatibility:

Designed using AutoCAD 2002-era AutoLISP, Visual LISP, ActiveX, and DCL functions for Windows AutoCAD. Live AutoCAD compatibility and interface testing remain pending.

Important notice:

This tool produces preliminary plan layouts and nominal parts quantities. It does not generate fabrication-ready cut lists, detailed cabinet elevations, or associative dimensions. Material thickness deductions, joinery, cabinet backs, drawer boxes, hardware, waste, and sheet nesting are excluded. Aisle targets are user-defined planning values and do not certify accessibility or code compliance. Verify dimensions and construction details before fabrication or installation.

Developed by Residential CAD Solutions / Design Intelligence.
