Abbey Courtyard 01 - 12 Detailed Scenery STL Files + Editable Source

VERSION 1.1: corrected editable CAD sources and compiler comparisons; original STL meshes unchanged. Price unchanged.

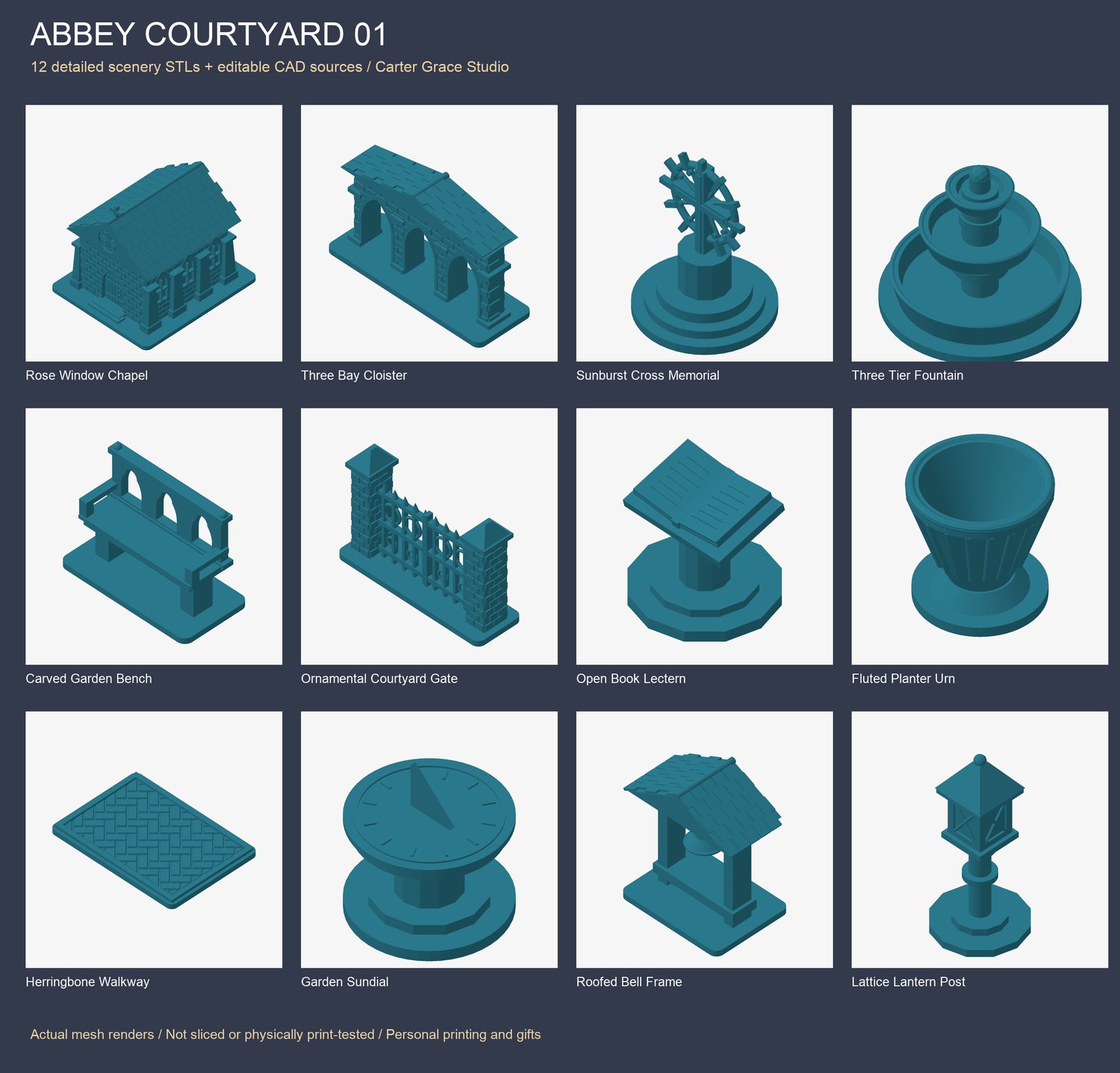

12 original detailed scenery models: Rose Window Chapel, Three Bay Cloister, Sunburst Cross Memorial, Three Tier Fountain, Carved Garden Bench, Ornamental Courtyard Gate, Open Book Lectern, Fluted Planter Urn, Herringbone Walkway, Garden Sundial, Roofed Bell Frame, Lattice Lantern Post. Includes 12 STLs, 12 editable OpenSCAD sources, a size-reference guide, exact dimensions and README.

Christian-inspired architectural miniature scenery with individually modeled roof tiles, masonry courses, pointed-arch openings and recesses, rose-window tracery, fluting, lattice and other small fittings. Chapel is a solid exterior with a fixed roof and recessed door/windows. Cloister has three open bays. Gate, bell, fountain, book, sundial and all other assemblies are fixed decorative models. No usable building interiors, movable parts, lights, water system or functional equipment. Sundial is decorative and uncalibrated; fountain and urn are not tested for holding water. No figures, painted finish, texture maps, supports, printer profiles or G-code.

DETAILS

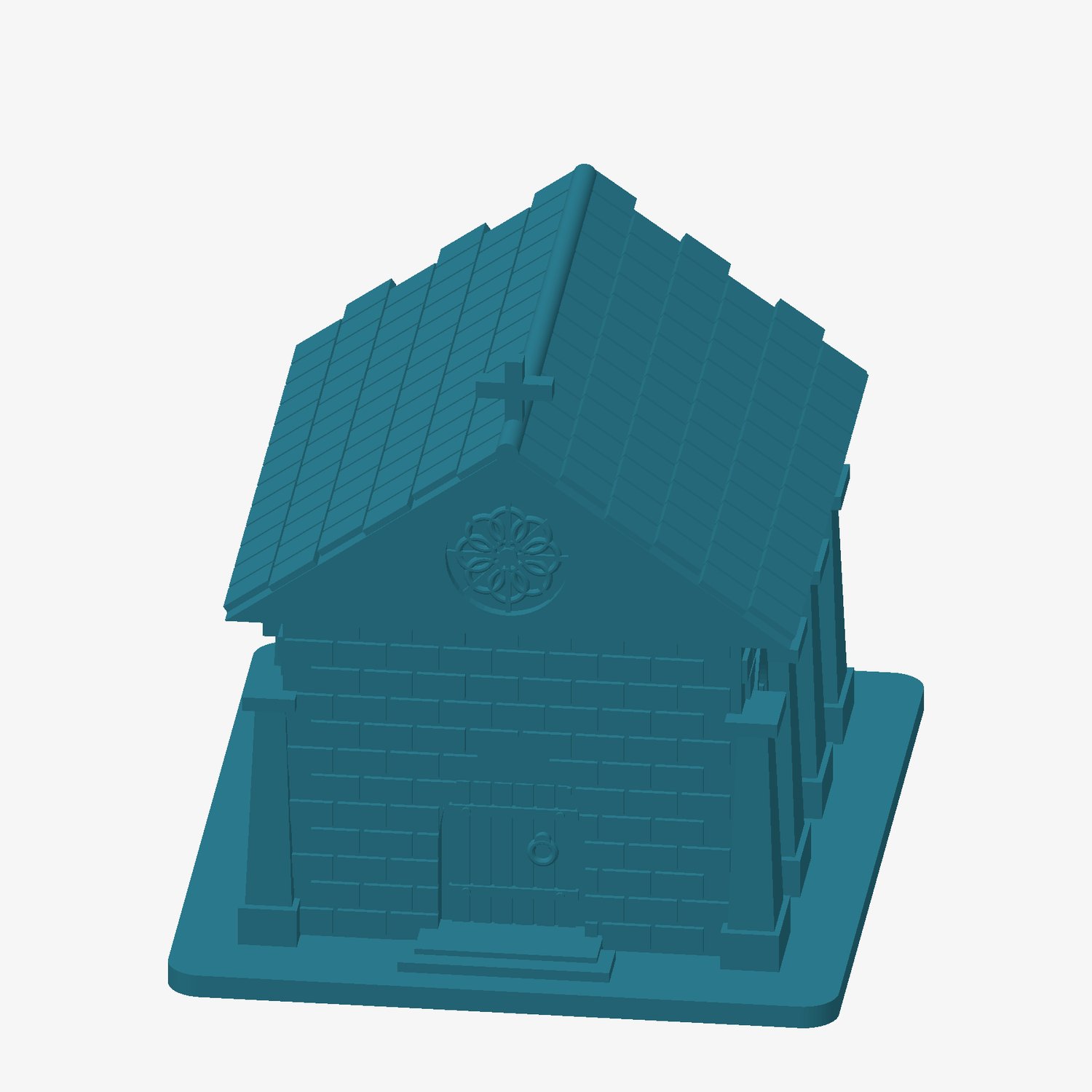

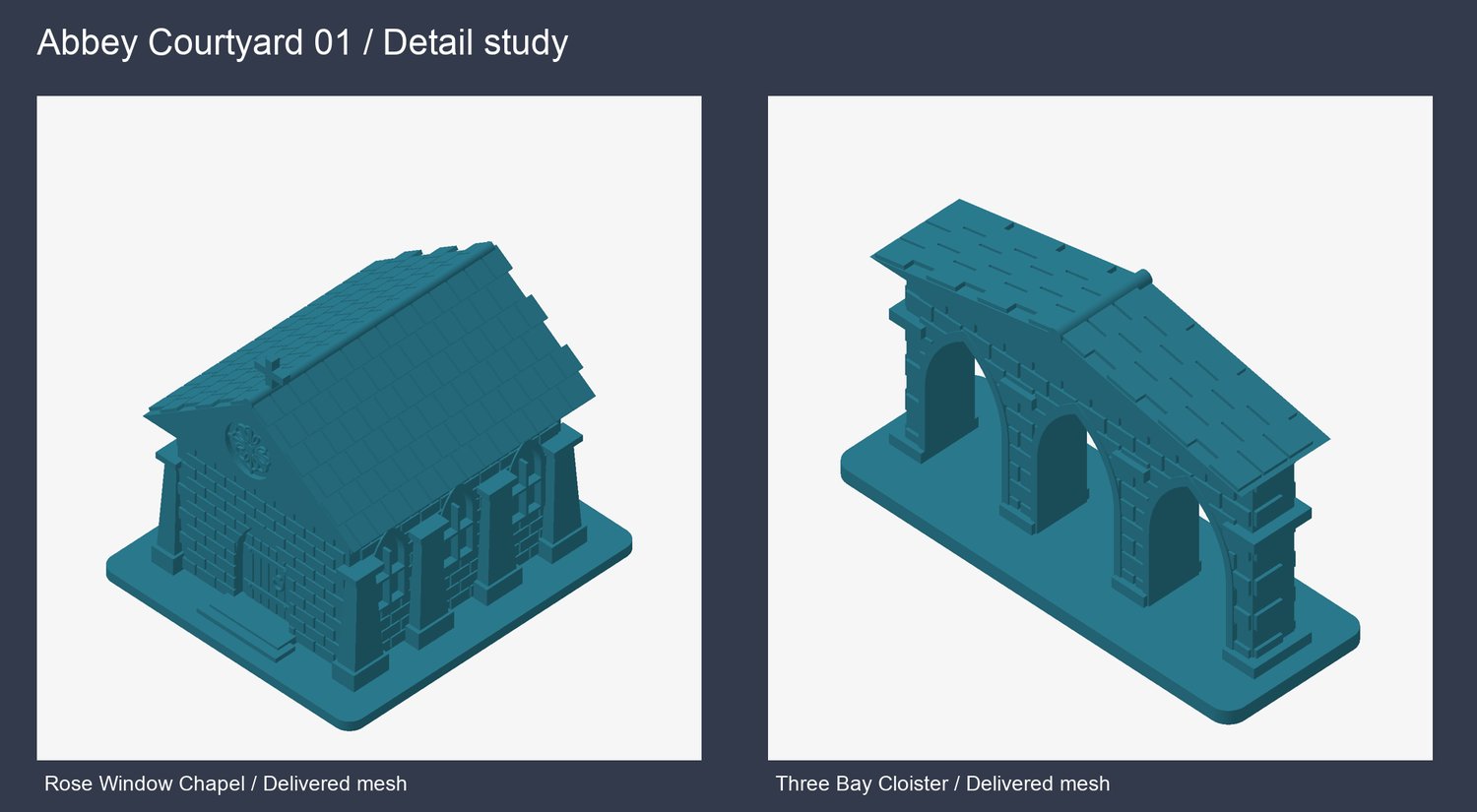

Rose Window Chapel: Individual slate-style roof tiles, staggered masonry, eight buttresses, six pointed side windows, recessed planked door with straps and ring handle, eight-petal rose tracery and ridge cross. Solid building exterior; fixed roof.

Three Bay Cloister: Three open pointed arches, front/back arch moldings, masonry relief, column capitals and feet, and individually tiled roof.

Sunburst Cross Memorial: Stepped circular plinth, faceted pedestal, raised cross relief, ring halo, twelve rays, twelve spokes and twelve small beads.

Three Tier Fountain: Three open tapered basins, raised rim rings, central column with collars and fluting, and a top finial. Dry decorative scenery, no water circulation.

Carved Garden Bench: Stone-style bench with three open pointed backrest cutouts, rounded lobes, armrests, cap rails and corner finials.

Ornamental Courtyard Gate: Two masonry piers with tapered caps, fixed barred gate, spear tips, ring scrolls, rails and hinge blocks. Gate does not open.

Open Book Lectern: Faceted stepped pedestal, sloped book rest and two angled page blocks with recessed line motifs, page-edge grooves and central spine. No readable text or moving pages.

Fluted Planter Urn: Stepped foot, tapered open bowl, twenty modeled ribs and rounded rim. No drainage holes; water-use performance unverified.

Herringbone Walkway: Raised beveled herringbone domino-brick pattern clipped to a rectangular field, with a continuous border on a rounded base.

Garden Sundial: Faceted pedestal, round dial, raised perimeter ring, twelve radial markers and triangular gnomon. Decorative only; not calibrated for timekeeping.

Roofed Bell Frame: Two posts, cross beams and diagonal braces, tiled roof, hollow open-bottom bell with rim bands, fixed clapper and post bolts. Bell does not swing.

Lattice Lantern Post: Stepped base, collared post, bracing, four recessed backed panels with crossed lattice ribs, tapered roof and finial. Solid decorative lantern; no lights or usable interior.

VERIFICATION

Previews render the actual delivered meshes, not photographs of prints. STLs passed closed-surface, consistent-winding, positive-volume, one-connected-body and flat-base-at-Z0 checks. Nonempty horizontal sections checked every 0.2 mm. These geometric checks do not establish printability. Some details expand above preceding layers and supports may be required. Thin bars, tile edges, handles, threads and small fittings may be fragile or disappear when scaled down. NOT SLICED OR PHYSICALLY TEST-PRINTED. Printability, adhesion, surface quality, strength, dimensional accuracy and fit are unverified. No scale compatibility with any game system is promised. Included sources compiled and compared within recorded tolerances; see the included report. No functional mechanisms are included.

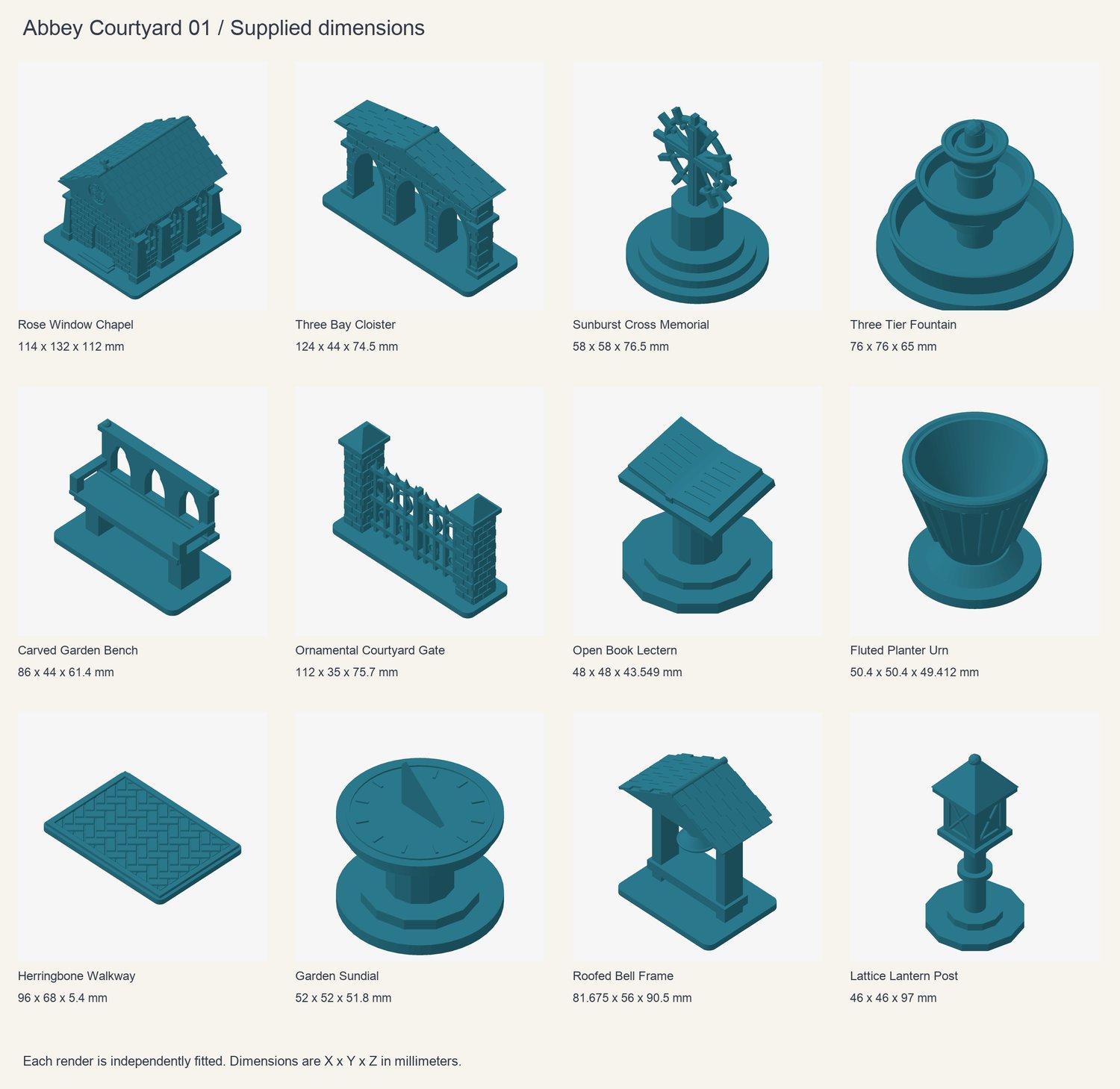

Millimeters, 100% scale, supplied base at Z=0. A 124 x 132 mm area fits any one model; tallest item 112 mm. Review every slicer layer and supports, then trial print. Digital files only. Personal printing and gifts; no physical-print sales or digital redistribution. No physical products, figures or paint.

SOURCE VERIFICATION

All 12 included editable sources compiled in official OpenSCAD 2026.10.25

development snapshot, macOS universal, using Manifold. Compiled meshes passed

surface and connected-body checks and comparisons against delivered STLs.

Comparison limits: bounding-coordinate error 0.02 mm, relative volume error

0.5%, symmetric-difference solid volume 1%. These tolerance comparisons are

not byte identity or an exact-shape equivalence proof. Other compiler versions,

backends and edited variants untested. See the hash-bearing JSON report.

Physical printing, fine-feature survival, support removal, strength, surface

quality, dimensions and fit remain unverified. No physical prints, G-code or

printer profiles are supplied.

CURRENT DOWNLOAD: Use Abbey-Courtyard-v1.1-Download.zip for corrected editable sources and the verification report. The earlier archive is a historical version with unverified sources and adds no unique models.
