Drawing Set PDF Assembler — AutoLISP + DCL

Combine your plotted drawing sheets into one multi-page PDF that clients, architects, and contractors can scroll through easily.

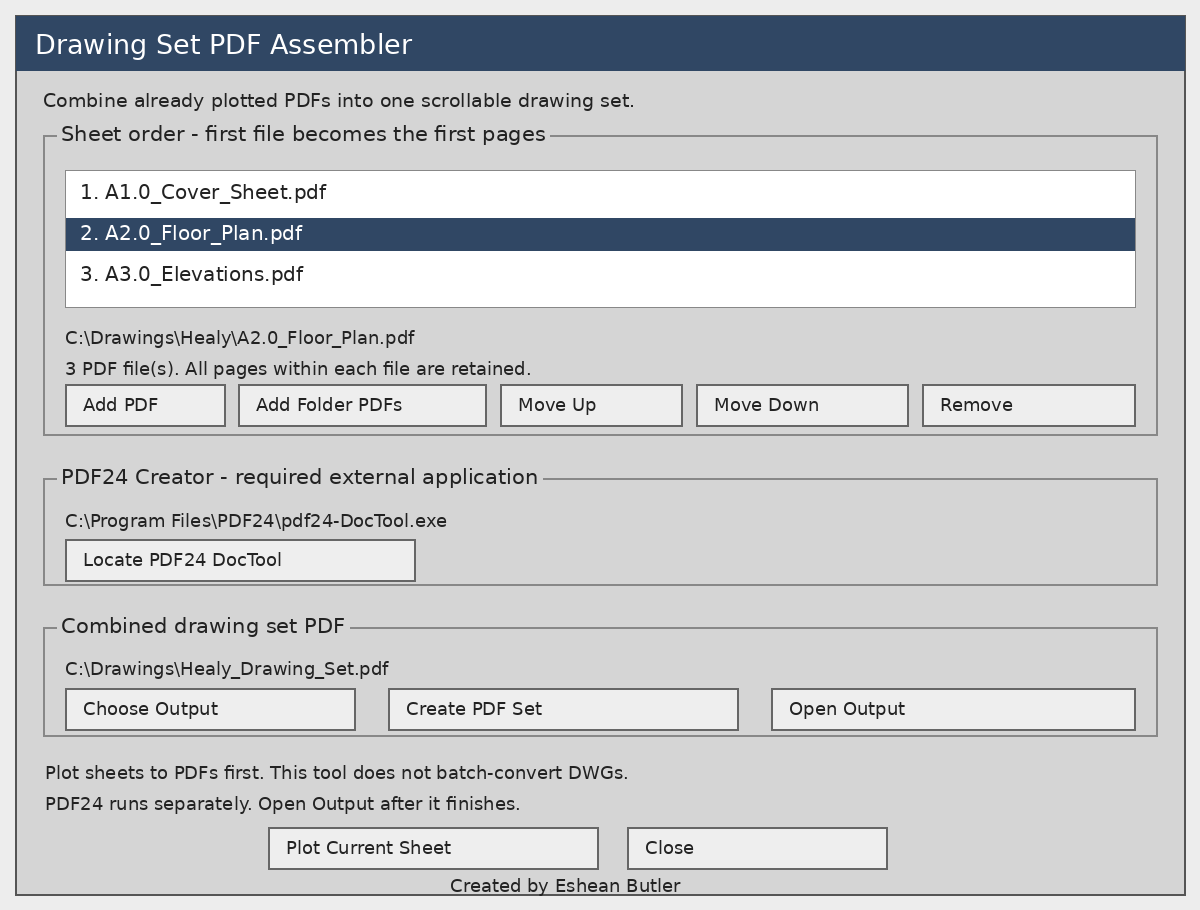

Add your existing PDFs, arrange the sheet order, and launch PDF24 to create a complete drawing set—all from a simple AutoCAD dialog.

Features

• Add individual PDFs or all PDFs from a folder.
• Move sheets up or down to set the page order.
• Remove unwanted files from the list.
• Combine files into one multi-page PDF.
• Retain all pages within each input PDF.
• Open the finished drawing set.
• Access AutoCAD’s plot dialog with Plot Current Sheet.
• Protect existing PDFs by requiring a new output filename.

Your download includes

• AutoLISP routine and matching DCL dialog.
• Gray DCL preview image.
• Installation and operating instructions.
• Official PDF24 Creator 11.31.0 Windows 64-bit installer.

Easy setup: Extract the ZIP, install PDF24 from the Third_Party folder, load the LISP with APPLOAD, and type PDFSET.

Please note: This tool combines PDFs that have already been plotted. It does not automatically batch-plot DWGs or multiple layouts. PDF24 performs the merge separately; wait for it to finish before opening the output.

Designed for Windows AutoCAD 2002. Source and dialog checks completed; the AutoCAD/PDF24 workflow has not yet been tested.

PDF24 Creator is separate, free third-party software. The product price is for the AutoLISP/DCL organizer.

Created by Eshean Butler — Residential CAD Solutions

Digital download, approximately 376 MB. No physical product.
