Long Mitre Saw Bench Plans – 3600 mm Full DIY Plans with Continuous Wings & Storage pdf download

Build a proper long mitre saw bench that actually supports full-length boards.

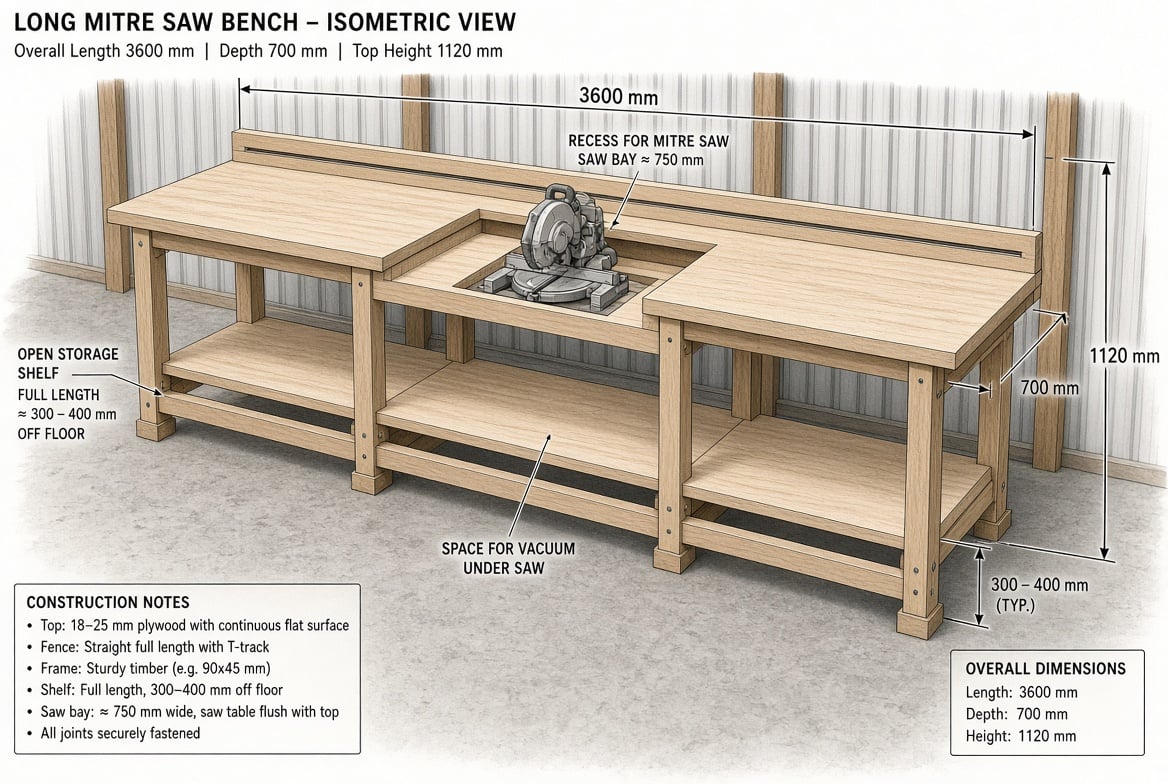

These complete DIY plans show you how to build a sturdy 3600 mm mitre saw station with continuous support wings on both sides of the saw, a recessed centre bay so the saw table sits perfectly flush, and a full-length storage shelf underneath.

Designed for a real workshop wall and written entirely in millimetres.

What you get (instant PDF download – 6 pages):

Clear cover with key dimensions

Project overview and features

Full materials list (timber, plywood & hardware)

Detailed cut list for every part

Multi-view technical drawings (isometric, front elevation & top plan)

8 step-by-step build instructions

Variations (change length, add drawers, make it mobile, lower the height)

Safety tips and final notes

Finished size:

3600 mm long × 700 mm deep × 1120 mm high

(Easily adjustable)

Skill level: Intermediate

Estimated build time: 1–2 weekends

Why these plans work well:

Continuous full-length support both sides of the saw – no more balancing long boards

Saw table sits flush with the wings for accurate cuts

Useful storage shelf the full length of the bench

Space left under the saw for a vacuum or dust extractor

Designed to be lag-bolted to wall posts for maximum rigidity

All measurements in mm – easy to buy materials in the UK & Europe

Important note:

The plans use a top height of 1120 mm. Many people prefer a slightly lower working height (900–950 mm). A simple formula is included so you can set the exact height that suits you and your saw.

Download instantly and start building this weekend.

Happy building!
