solar LED wall light Kit

Description

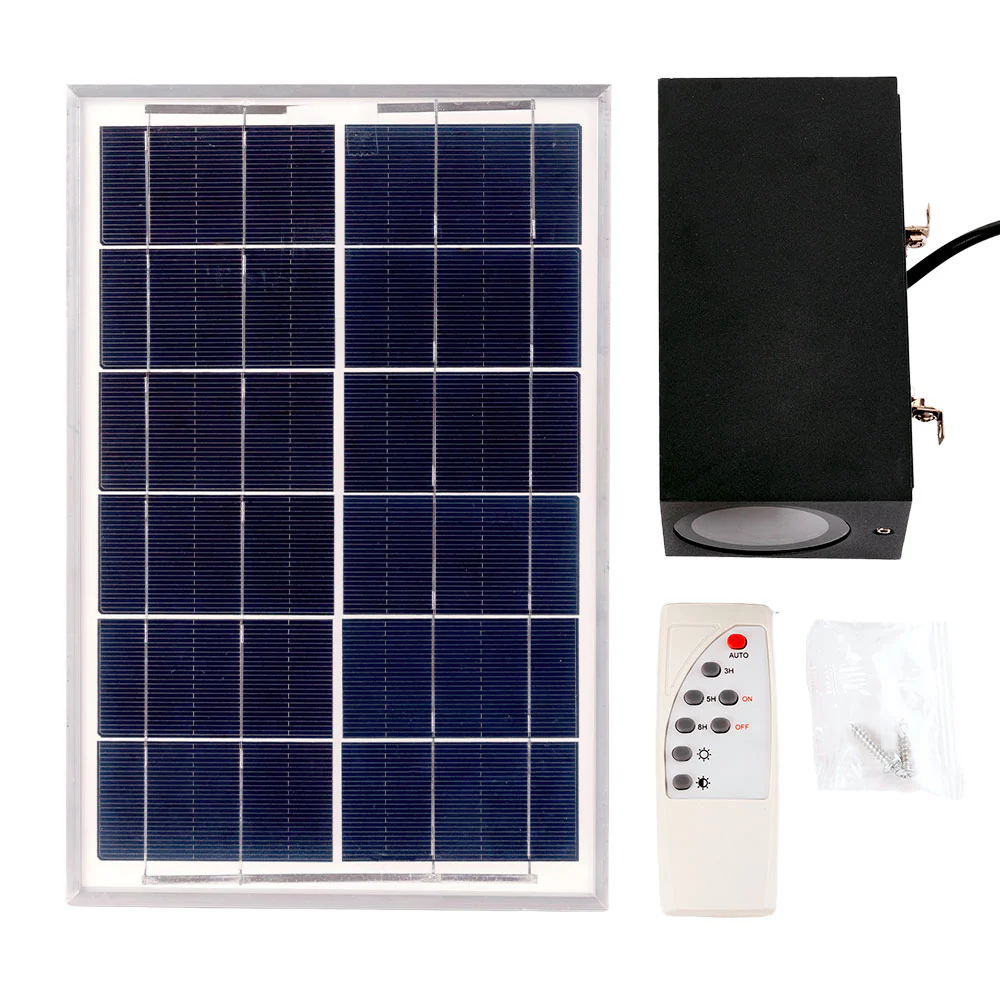

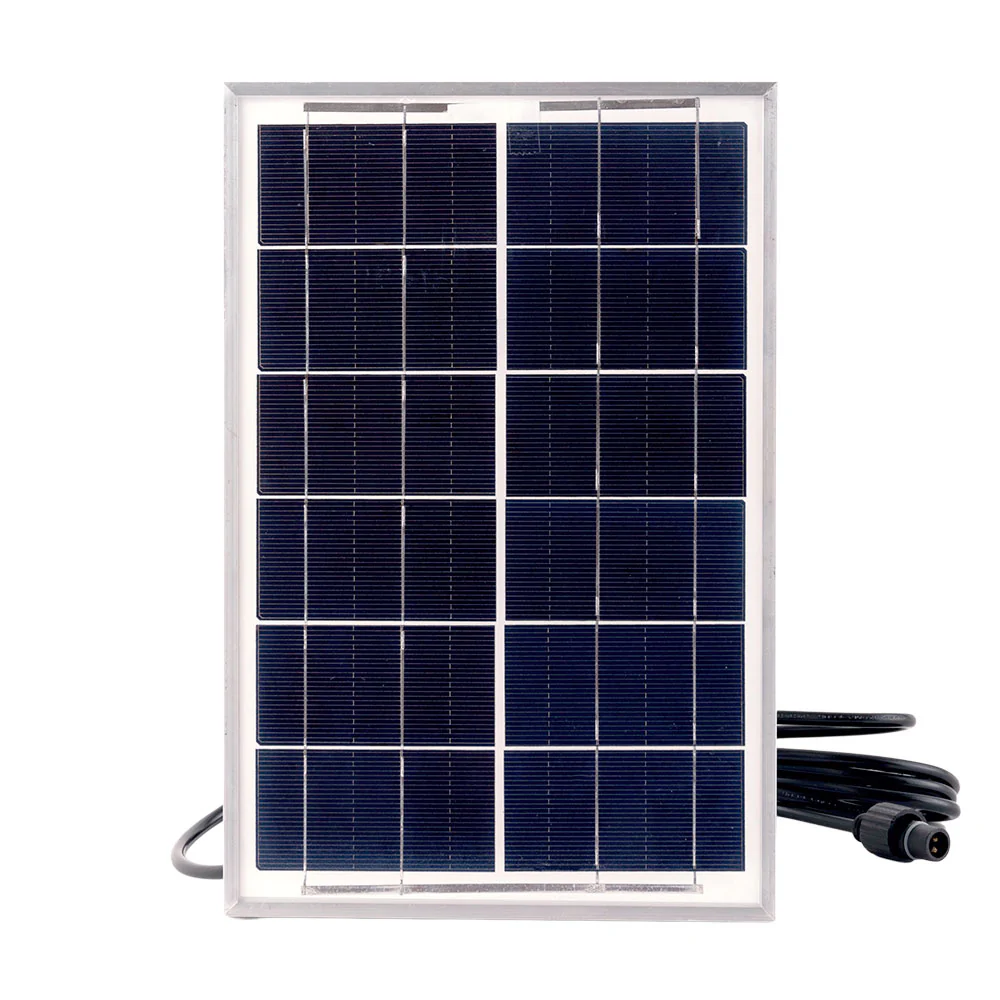

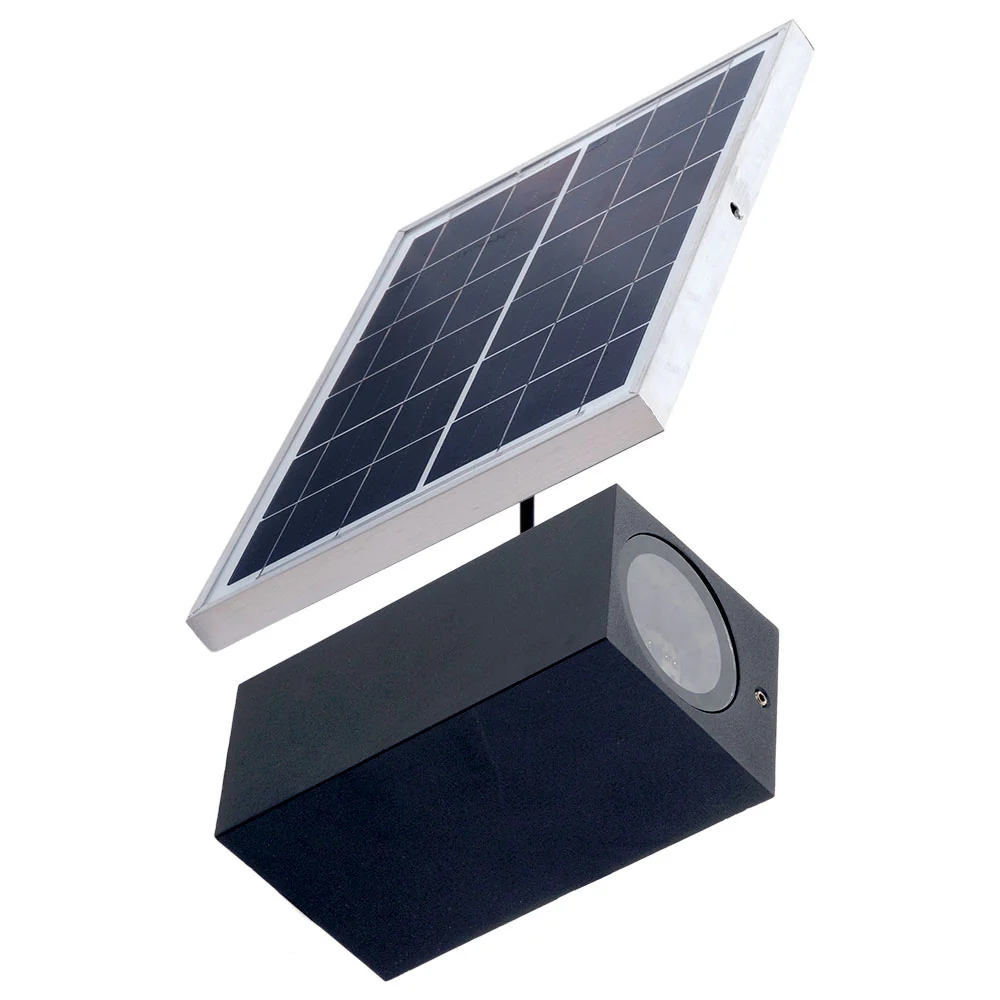

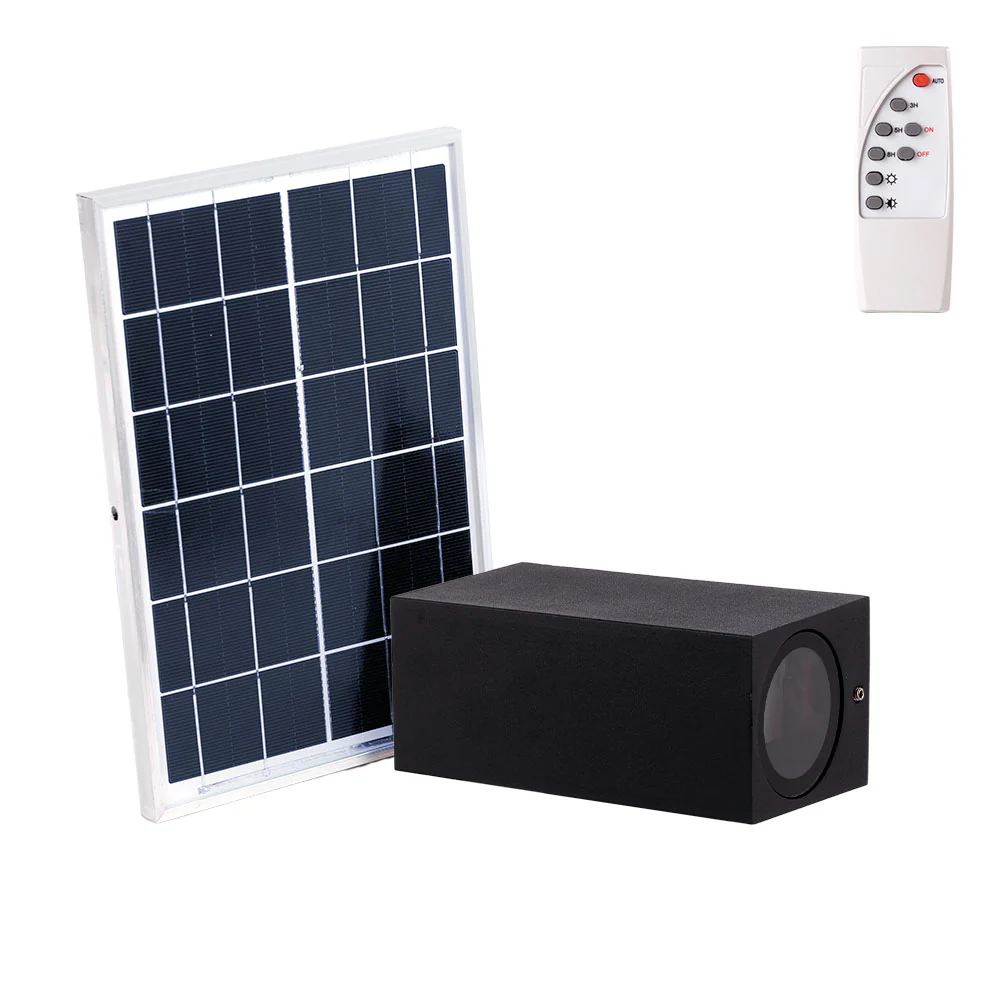

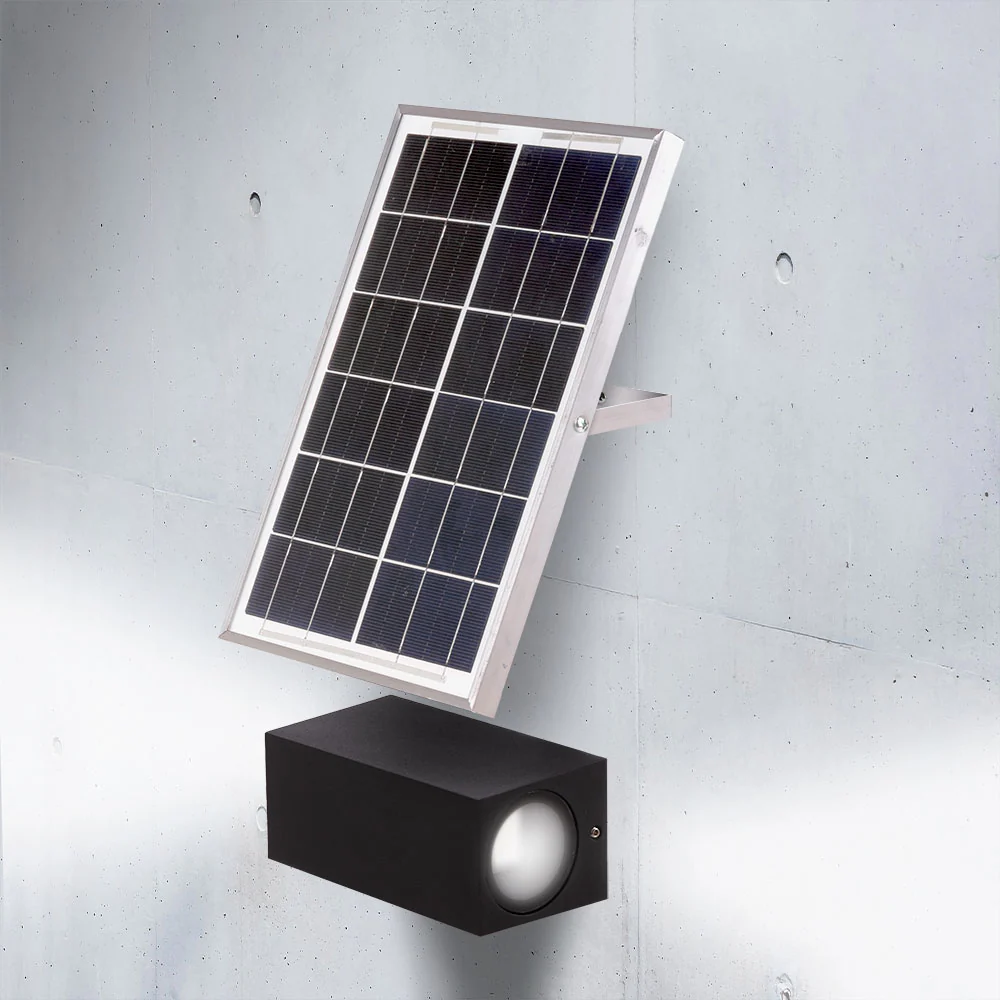

Kit including solar LED wall light with integrated high-power lithium battery, solar panel, remote control, and installation hardware. Incorporates light sensors. Ideal for automatically lighting any outdoor area without the need for electricity.

Operation

You can use the LED wall light connected to the solar panel or independently. In the latter case, it does not operate in automatic mode and must be turned on or off using the remote control.

• Automatic Mode: Only possible with the solar panel permanently connected. In this mode, the LED wall light turns on only when it detects brightness below 50 lux; otherwise, it remains off. It turns on automatically at night and off during the day.
• Manual Mode: By pressing the ON/OFF button, the LED wall light turns on; pressing it again turns it off, regardless of ambient light.

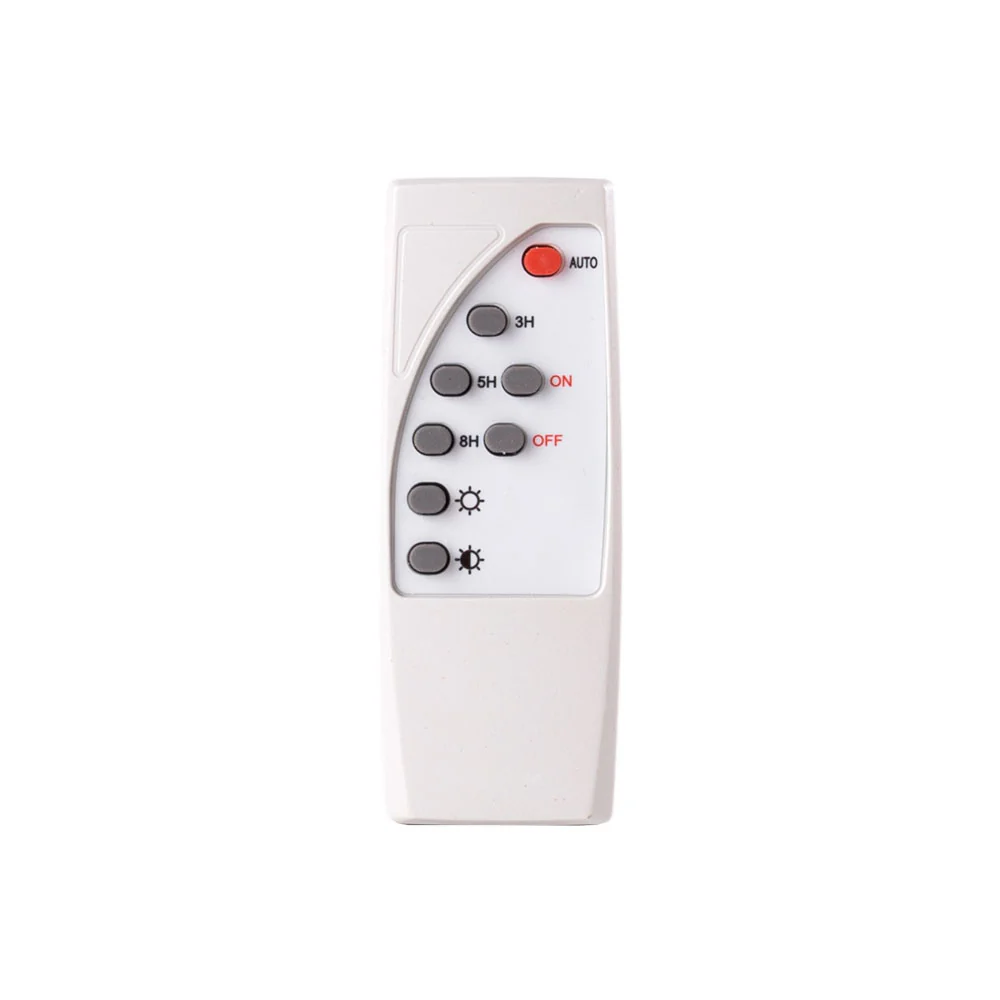

Remote Control

• ON/OFF Button: Turns the LED wall light on or off, regardless of ambient brightness.
• OFF Button: Enables/disables light sensor mode.
• 3H Button: Activates the LED wall light for 3 continuous hours and repeats this process daily.
• 5H Button: Activates the LED wall light for 5 continuous hours and repeats this process daily.
• 8H Button: Activates the LED wall light for 8 continuous hours and repeats this process daily.
• Max Brightness Button: Increases brightness in 20% steps up to 100%.
• Min Brightness Button: Decreases brightness in 20% steps down to 20%.

*Battery autonomy: 10 hours after full charge.

*Solar panel cable length: 4 meters.

Technical File

Product Code: LM-036

Light Temperature: Neutral White

Kelvin (K): 2700

Power (W): 6.0

LED Type and Quantity: SMD3030

Construction: ABS

Beam Angle (°): 120

Installation: IP67

IK Protection Rating: IK07

Voltage: 6V / 3.2V 2000mAh

Dimmable: With remote control

Certifications: CE / ROHS / ISO9001

Connector: Terminal

Energy Consumption (kWh/1000h): 6.0

Directional: Non-directional

CCT Type: Single

CCT Value: 2700
