Advanced Relay Module with Real-Time Current Monitoring – Complete KiCad Project

Advanced Relay Module – KiCad Project

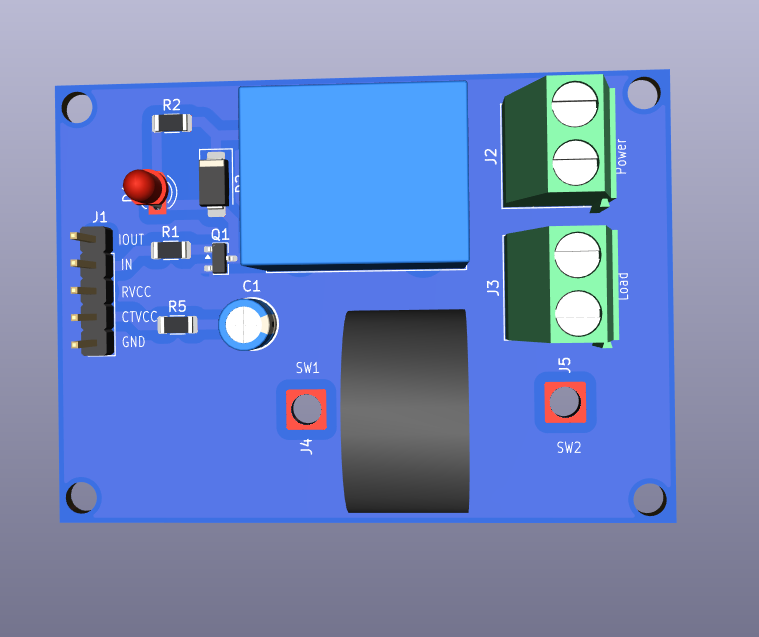

Get the complete KiCad project files for an advanced relay module featuring load control and real-time current monitoring. The package includes the complete schematic and professionally designed PCB layout, ready to edit, customize, and use for PCB manufacturing.

Includes:

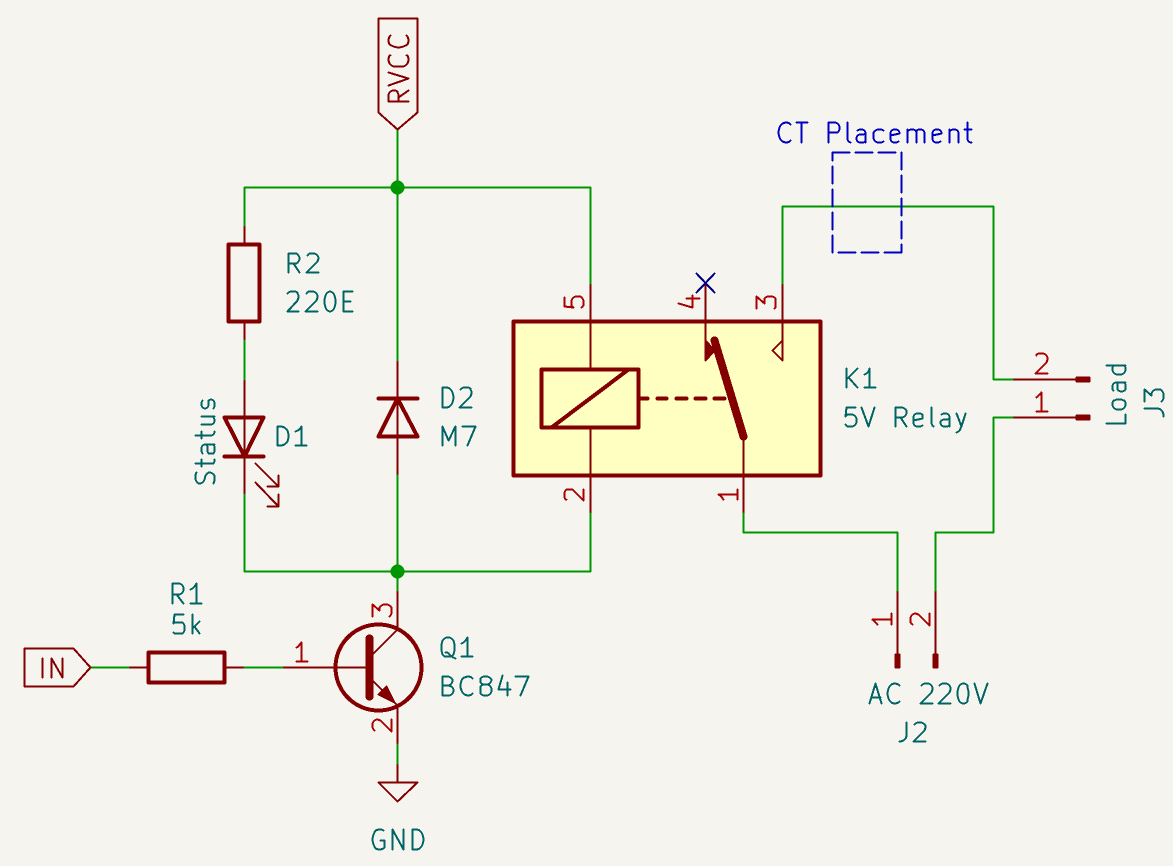

• Complete KiCad schematic

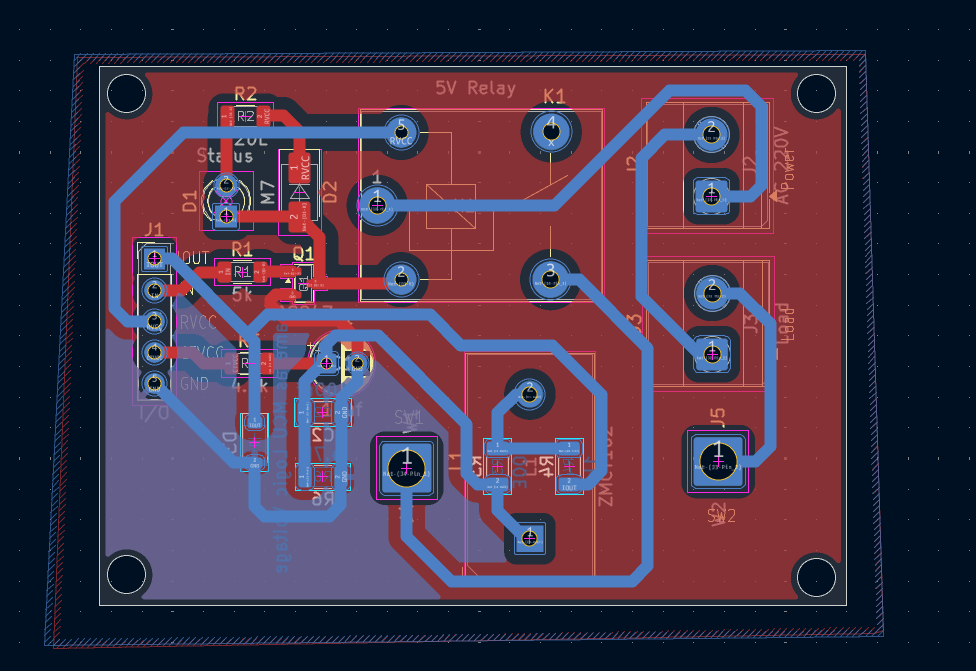

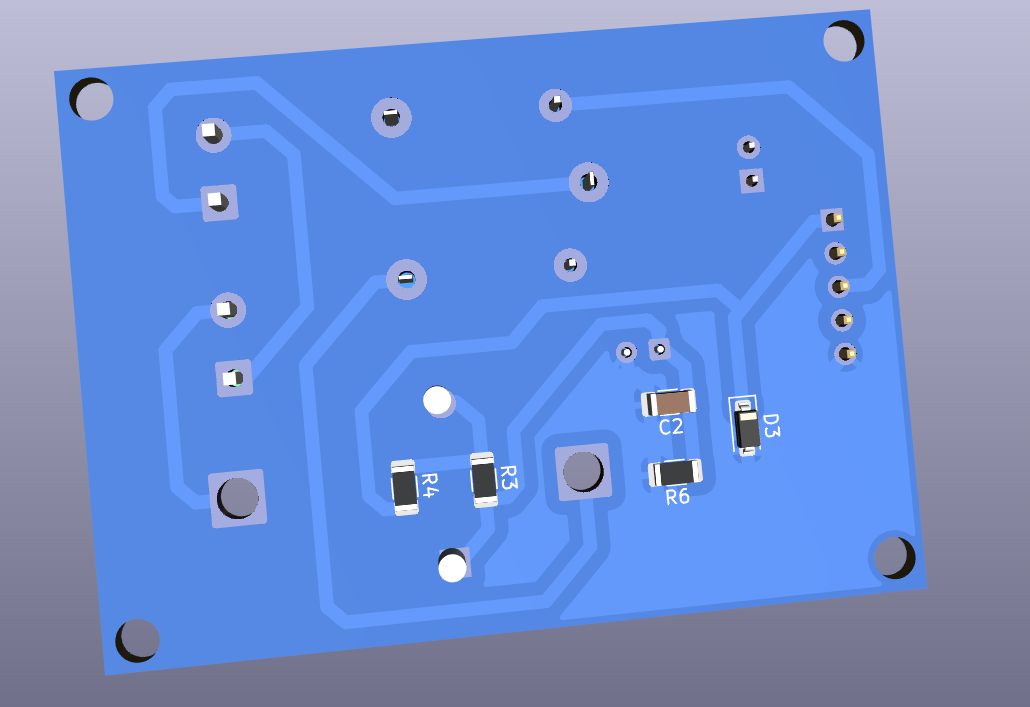

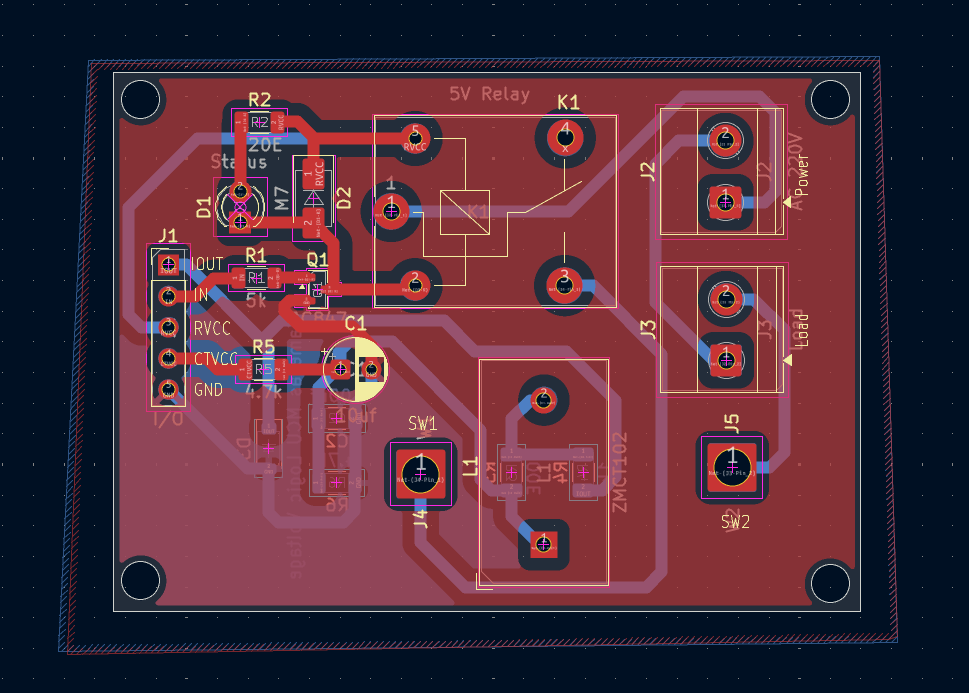

• Designed PCB layout
• Current transformer interface
• Relay-based load control

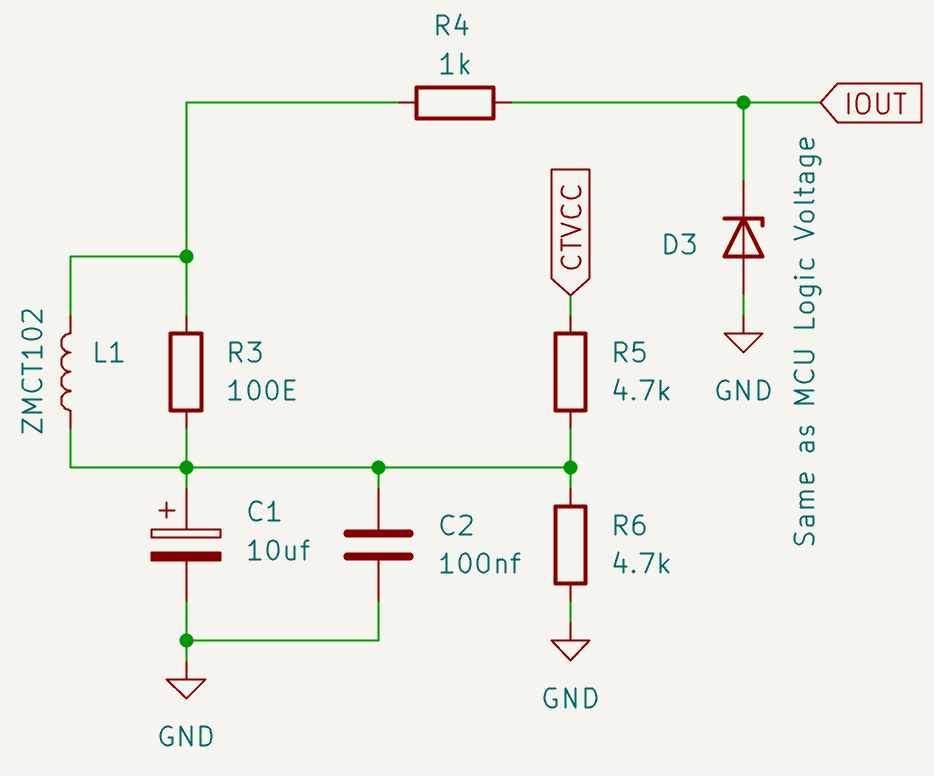

• Real-time current monitoring circuit
• Fully editable KiCad project files
• Ready for customization and fabrication
