Mini loader, first redesign

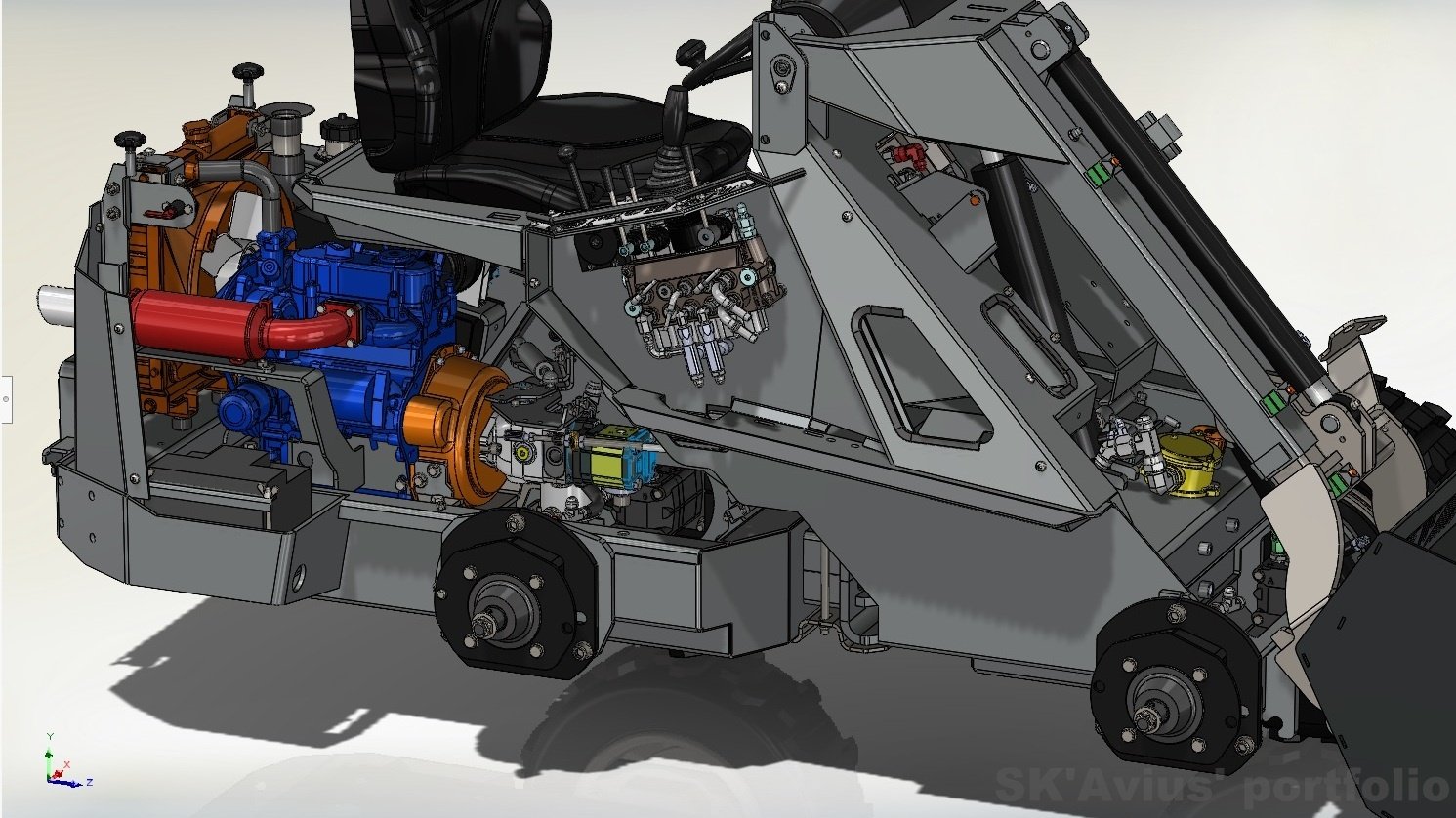

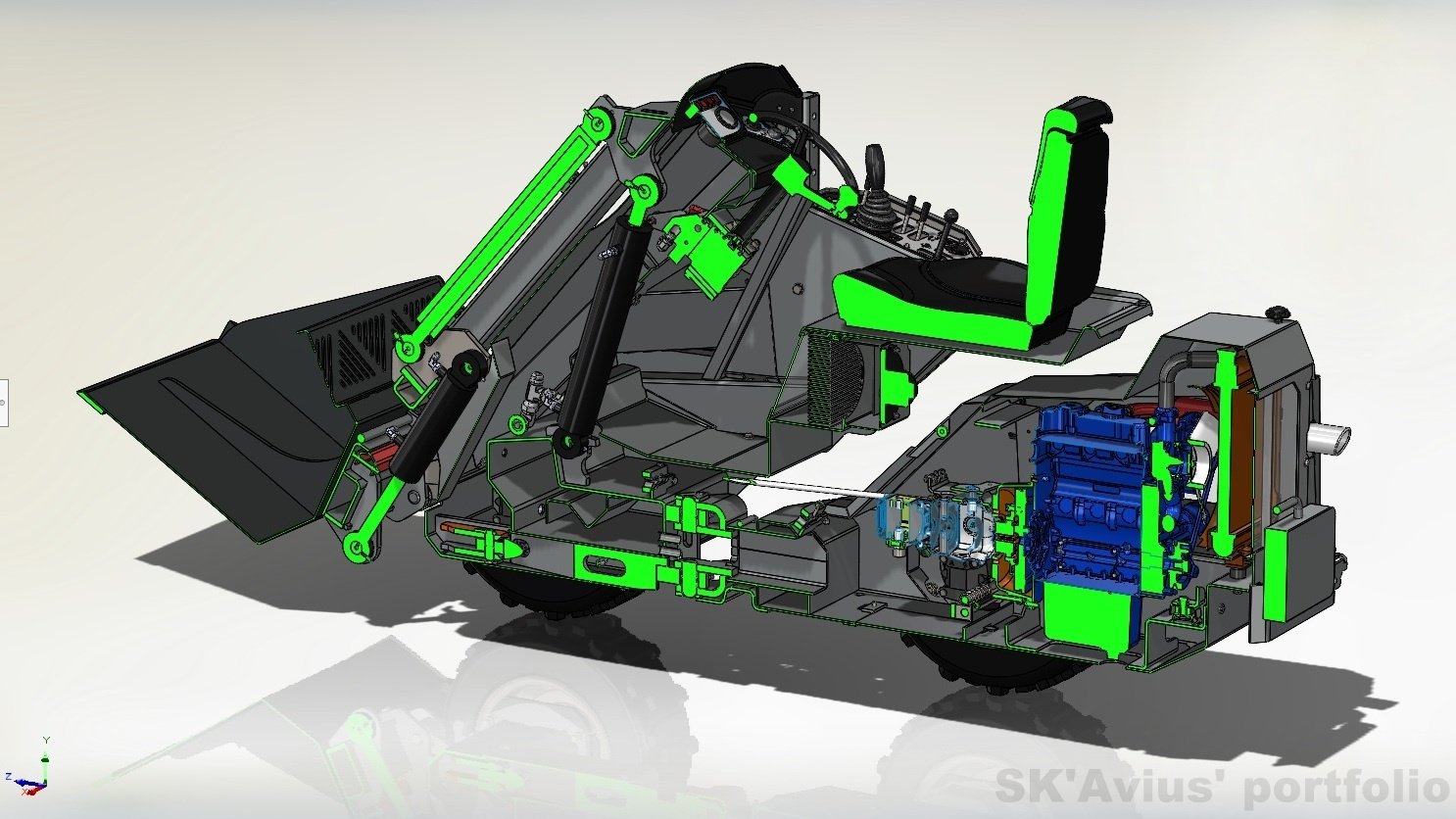

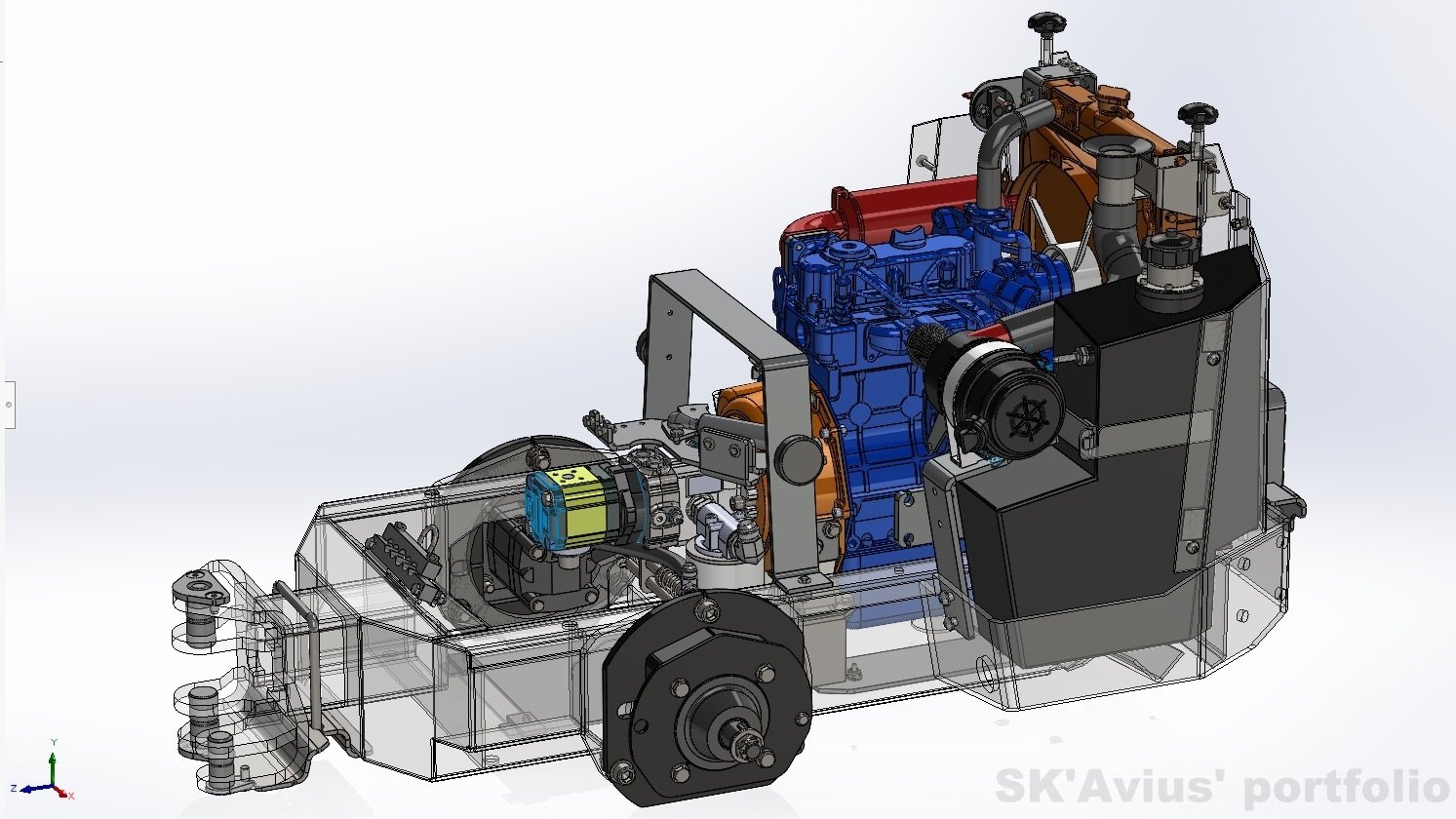

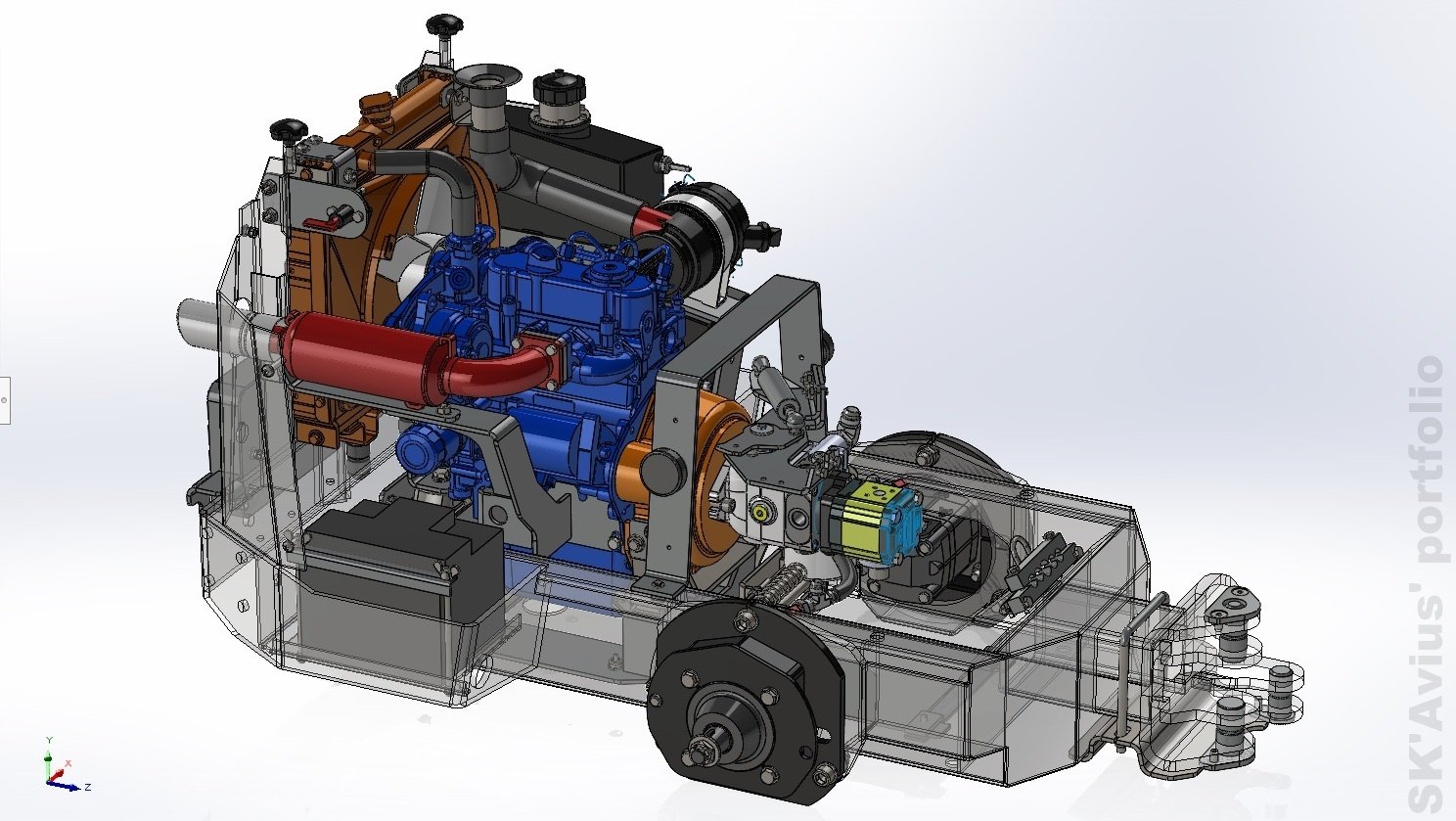

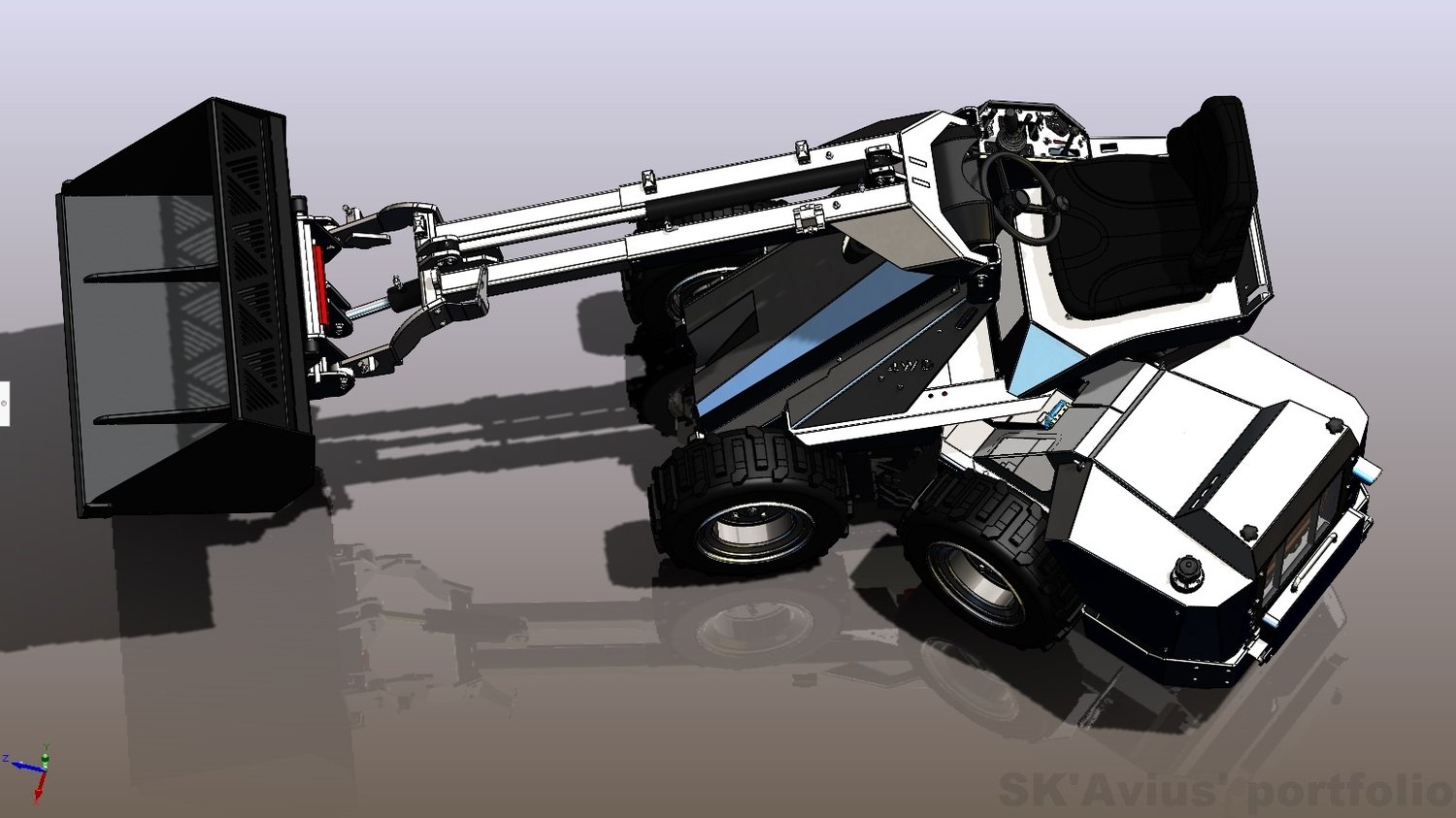

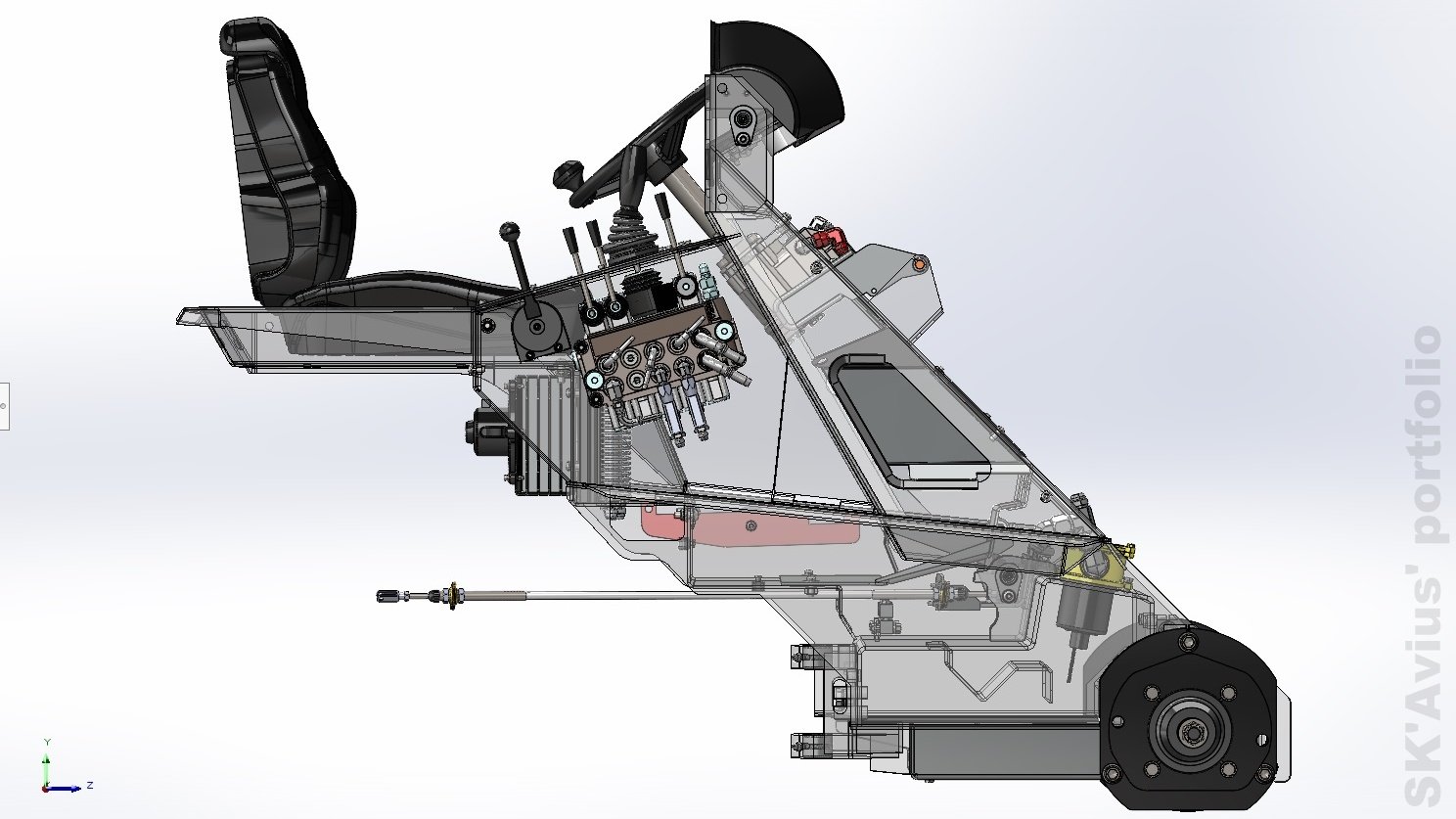

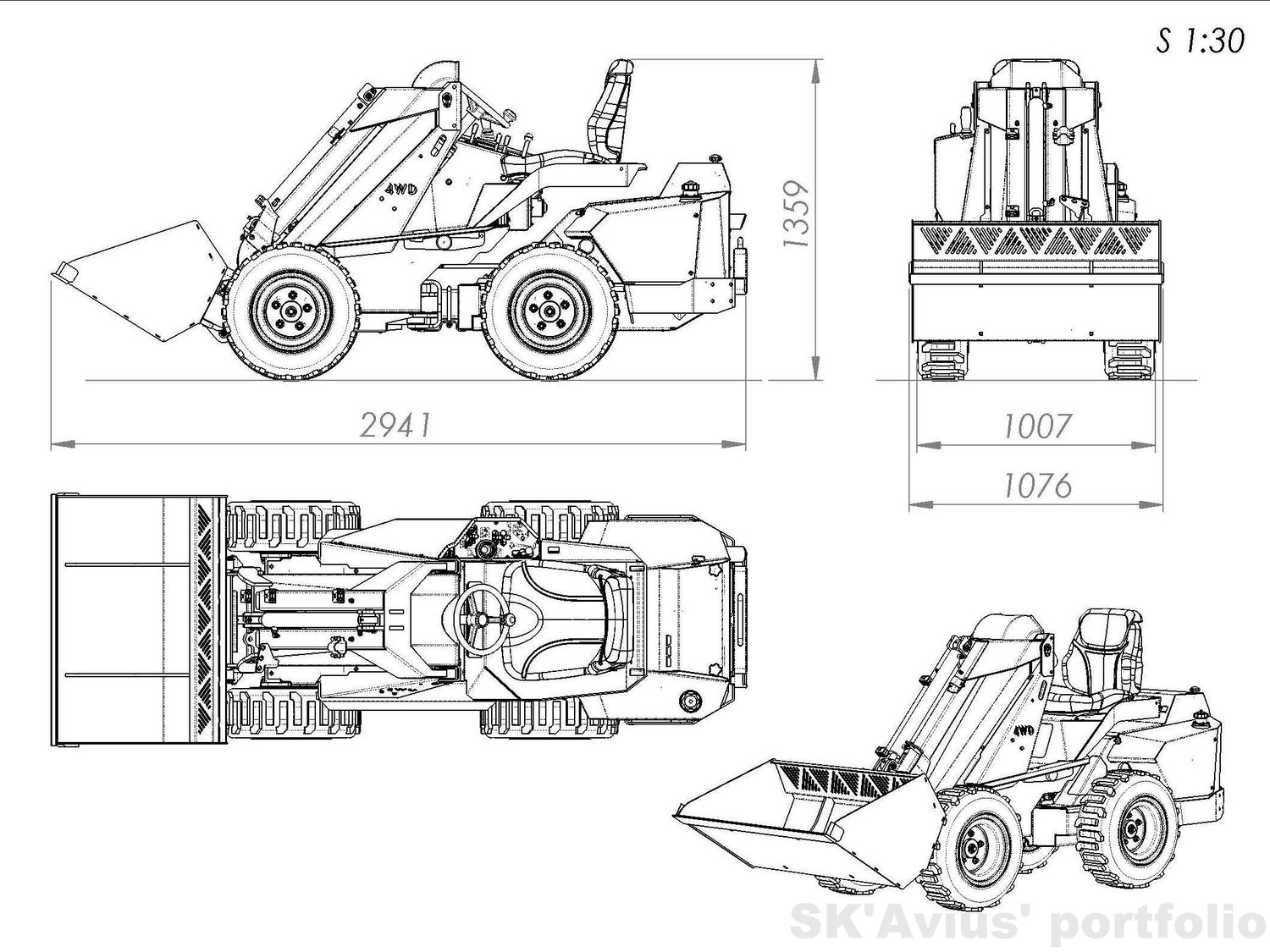

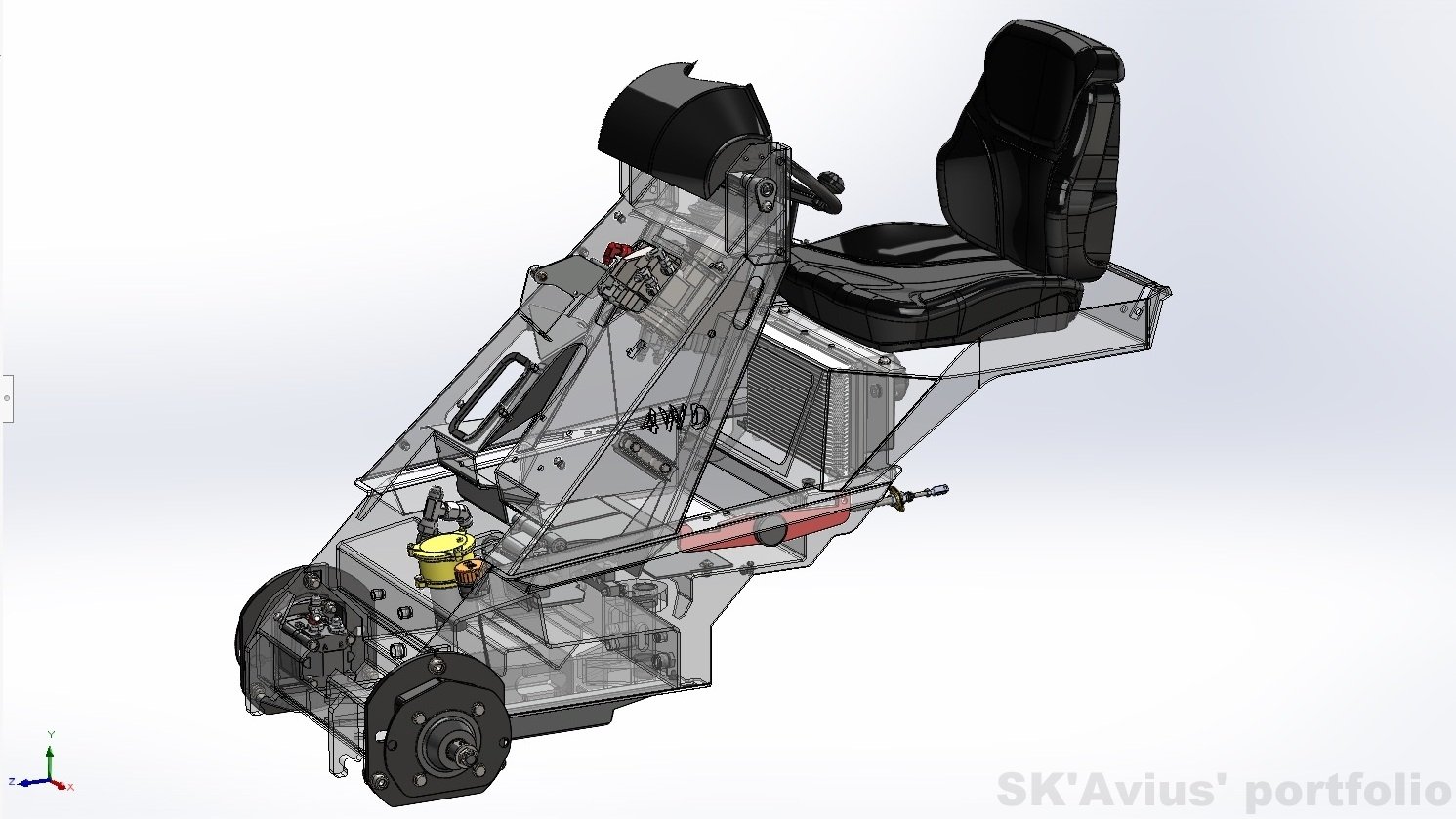

I redesigned this mini loader for my client and posted it in my portfolio. This is a 3D model of the previous version of the mini loader, which I created in 2016. Today I would make it better (like simple bucket for FREE download). However, using this 3D model, manufacturers built a working mini loader.
Here you can download STEP and Parasolid files.
Important!!! The entire 3D model is a bit complicated, most of it isn't translated into English. At the request of the client, I created it in a hurry.
I invite those interested to support my work, redesign this mini loader and prepare a new 3D model and manufacturing drawings for a cheaper price and for cheaper and easier manufacturing. 🙂
This project is expensive to develop, but it could be cheaper for everyone to have a dozen buyers. I invite everyone to contribute! You can also read detailed information about this campaign with more visual material in my portfolio post. 😉
These files can be opened with most CAD programs, but their editing capabilities are very limited. If you open them with SolidWorks, you will need an additional feature to convert folded sheet parts to flatten and export DXF files. Tabs, slots and other improvements would be made by yourself. You will also need to make your own manufacturing drawings if you are going to make it. The 3D model includes the hydraulic components, but no hoses are routed.
