Dimension String Check & Repair Pro

Dimension String Check & Repair Pro

Find dimension-chain discrepancies before they reach your finished drawings. This AutoLISP and DCL tool compares selected linear or aligned dimensions with an overall dimension, a manual target, or the selected chain’s span.

Features:

• Compare segment totals with the overall dimension.
• Identify gaps, overlaps, and duplicate coverage.
• Highlight suspect dimensions for review.
• Detect numeric text overrides that differ from measured values.
• Restore measured text on selected or flagged dimensions.
• Preserve custom notes and dimension geometry.
• Undo the last text repair.
• Export an audit report to CSV.

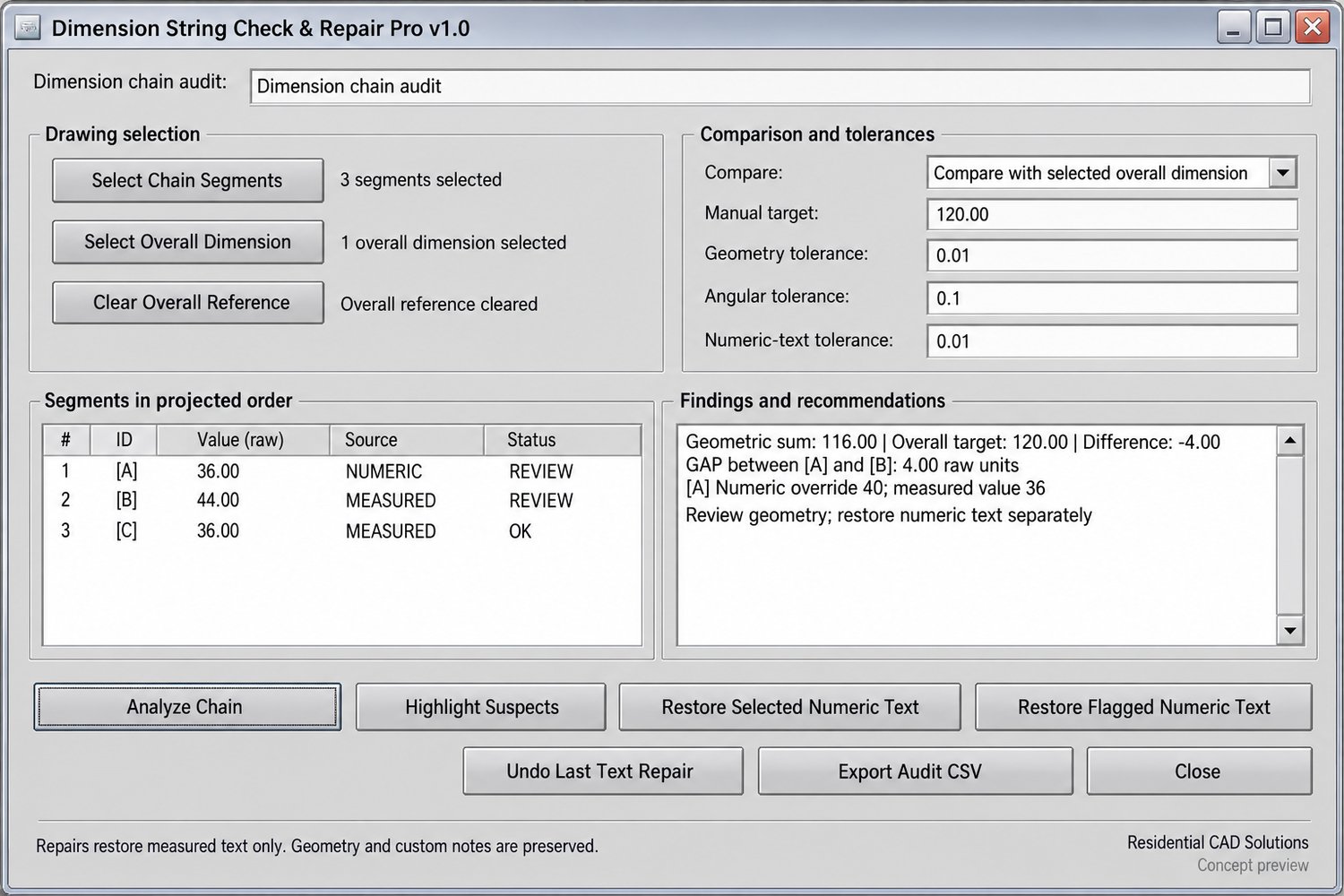

• Organize results in a classic gray DCL interface.

Your download includes:

• AutoLISP program and matching DCL interface.
• Installation and usage instructions.
• Sample drawing and expected results.
• Validation notes.

Command: DIMCHAINPRO

Important: Automatic repairs restore measured dimension text. Geometry discrepancies require manual review, and a total mismatch alone cannot identify which segment is incorrect. Designed for Windows AutoCAD with AutoLISP, ActiveX, and DCL support; native AutoCAD compatibility testing is still required.
