Shepherd Industrial DMM Troubleshooting Collection

Complete 3-PDF Professional Technician Package

Shepherd Manuals

By Keith B. Shepherd

Bundle Price

$49.95

Individual value: $69.85

Bundle savings: $19.90

Build stronger industrial electrical troubleshooting skills with the complete Shepherd Industrial DMM Troubleshooting Collection.

This three-PDF package combines DMM fundamentals, industrial troubleshooting applications, diagnostic flowcharts, printable worksheets, and quick-reference field cards into one practical technician resource.

OBSERVE → MEASURE → COMPARE → ISOLATE → PROVE → VERIFY

Complete Bundle — 3 Digital Publications

PDF #1

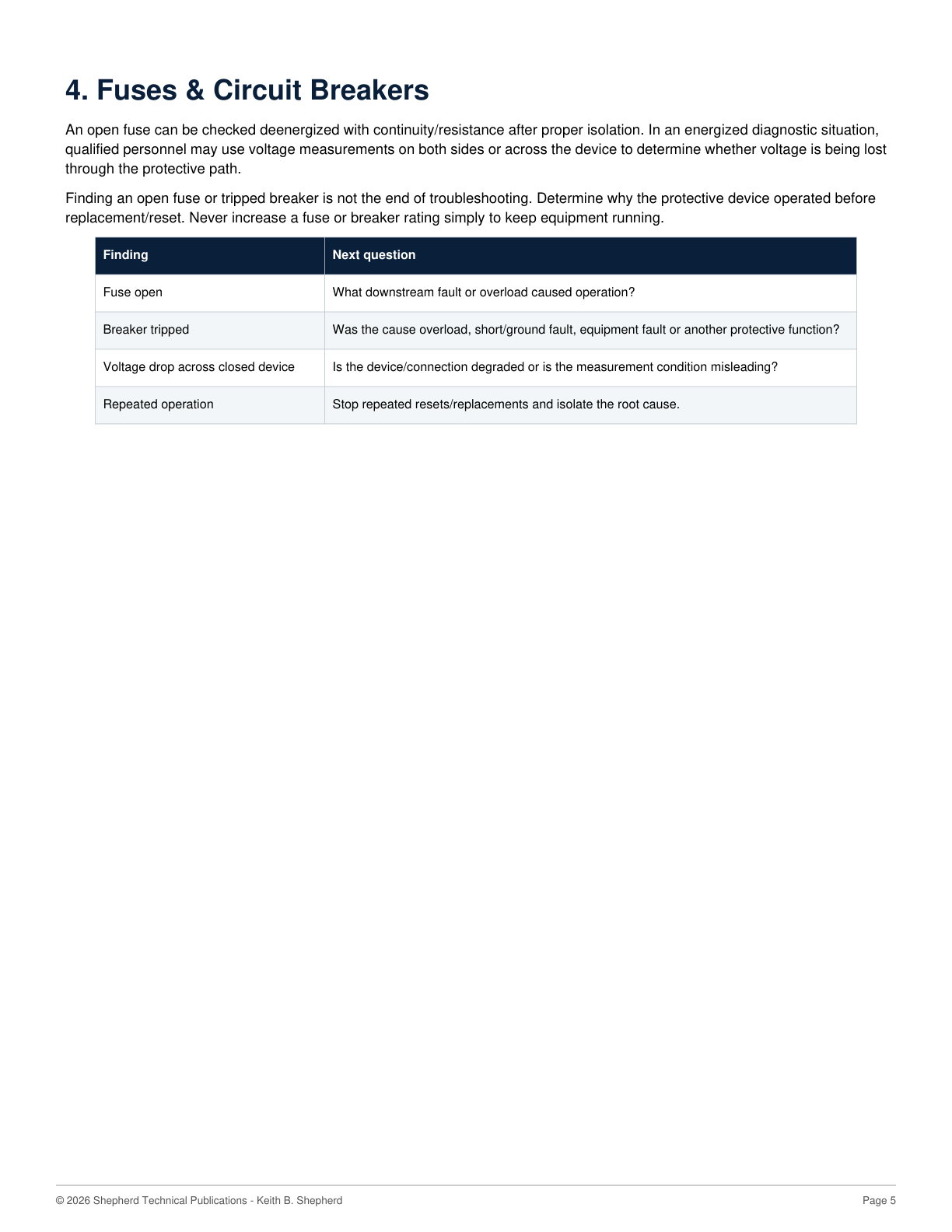

Industrial Digital Multimeter Field Guide & Troubleshooting System

A comprehensive industrial DMM reference covering safe meter practices, measurement fundamentals, and practical troubleshooting applications.

Topics include:

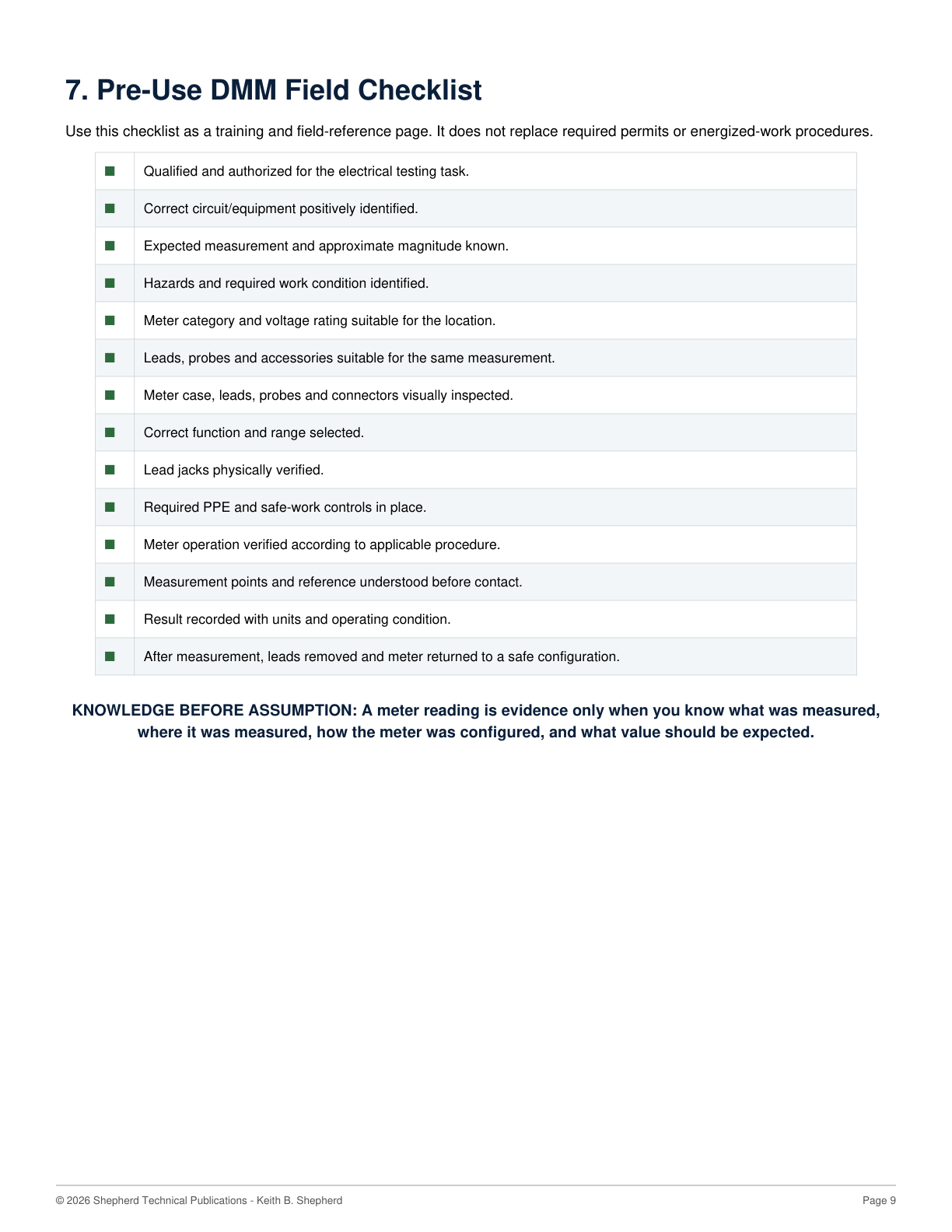

• DMM safety and measurement preparation
• CAT II, CAT III, and CAT IV environments
• Test leads, probes, jacks, and meter fuses
• AC and DC voltage
• Resistance and continuity
• Current measurement
• Frequency, capacitance, and diode functions
• Autoranging, resolution, and accuracy
• Three-phase electrical systems
• Motors and contactors
• Fuses and circuit breakers
• 24 VDC controls
• PLC inputs and outputs
• Industrial sensors
• 4–20 mA process loops
• 0–10 V analog signals
• Voltage-drop troubleshooting
• Open circuits
• Short circuits
• High-resistance connections
• VFD measurement considerations

The emphasis is not merely on operating a meter.

It is on using measurements to systematically isolate and prove industrial faults.

PDF #2

DMM Troubleshooting Flowcharts & Field Workbook

Includes:

12 industrial troubleshooting flowcharts

covering:

• No control power
• Contactor will not pull in
• Three-phase motor will not start
• PLC input OFF
• PLC output ON but load OFF
• Blown fuse or tripped breaker
• 24 VDC solenoid inactive
• Industrial sensor not switching
• 4–20 mA loop problems
• 0–10 V analog problems
• High-resistance connections
• VFD motor problems

Plus:

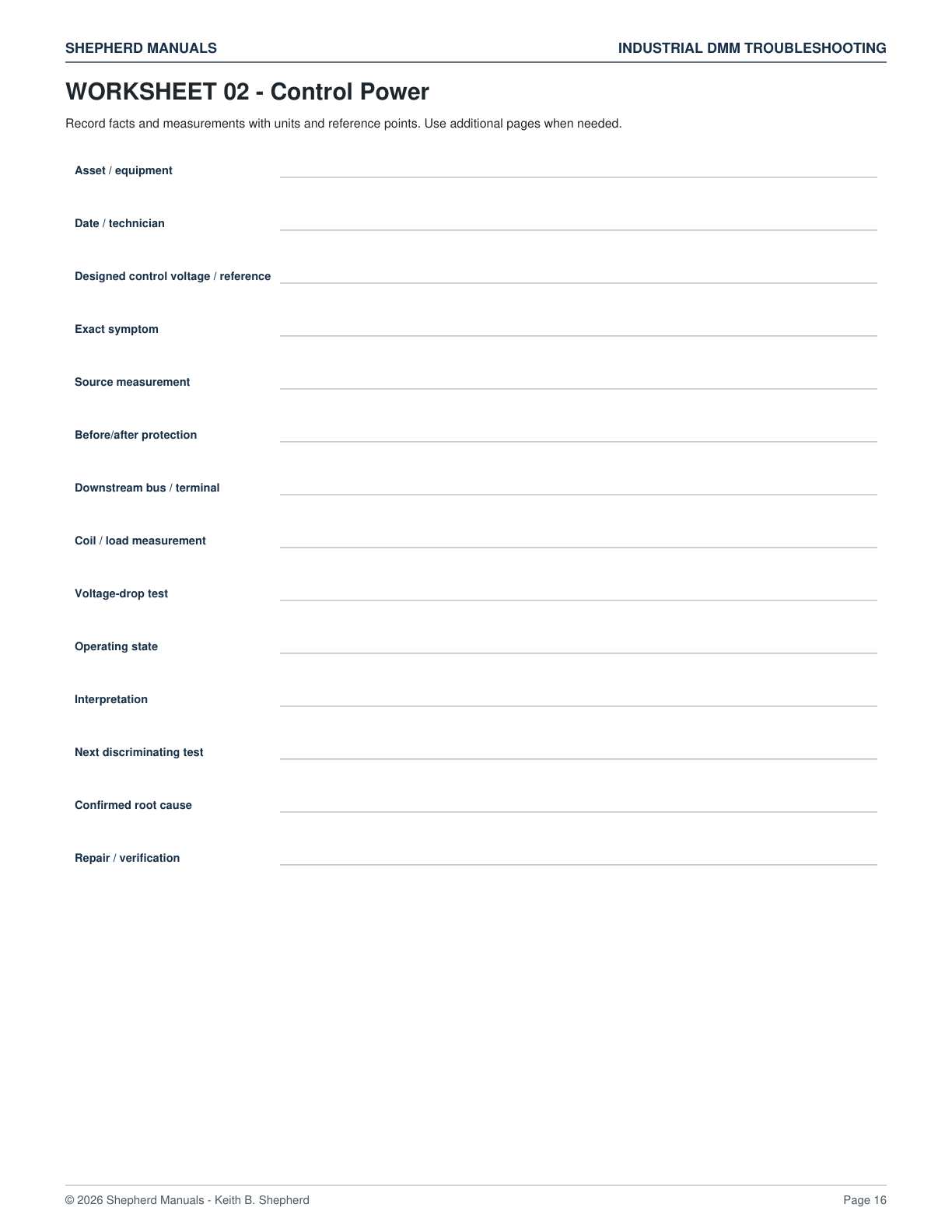

6 printable diagnostic worksheets

for documenting symptoms, measurements, test points, operating conditions, interpretations, root causes, repairs, and post-repair verification.

PDF #3

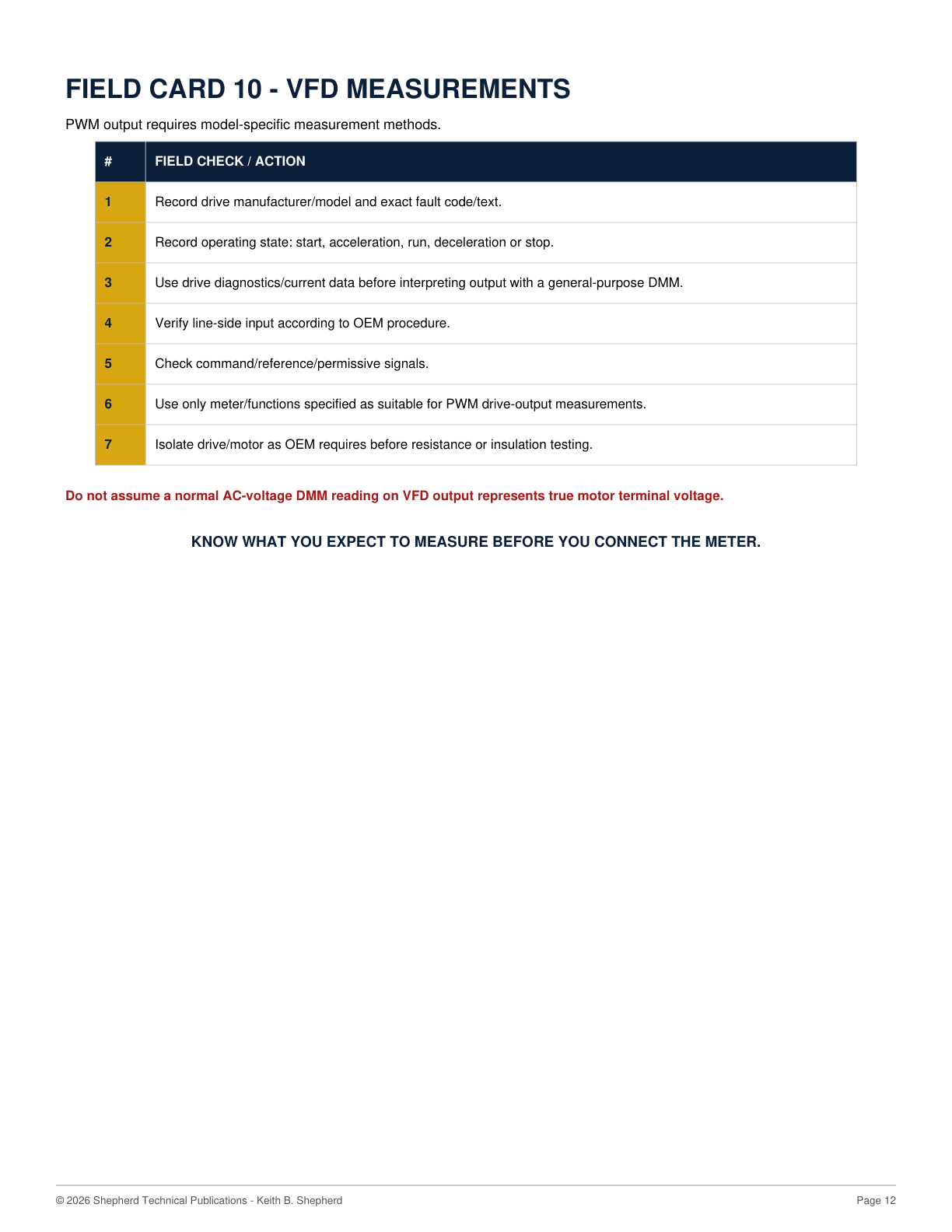

Industrial DMM Quick-Reference Field Cards

Includes 12 dedicated technician field cards plus a pre-test safety reference.

Quick-reference subjects include:

• DMM functions
• Input-jack discipline
• Three-phase electrical measurements
• Motors and contactors
• 24 VDC and PLC I/O
• Industrial sensors
• 4–20 mA
• 0–10 V
• Voltage-drop testing
• VFD measurements
• Opens, shorts, and high-resistance faults
• Professional measurement documentation

Designed for quick reference at the machine, in the maintenance shop, or during technical training.

The Shepherd Troubleshooting Method

Industrial troubleshooting should not begin with:

“What part should I replace?”

It should begin with:

“What do I know?”

“What should I expect?”

“What measurement will separate the possible causes?”

The Shepherd method follows six steps:

OBSERVE

Understand the actual symptom.

MEASURE

Obtain useful electrical evidence.

COMPARE

Compare the reading with expected values, equivalent circuits, drawings, OEM information, or known-good conditions.

ISOLATE

Use measurements to reduce the possible fault area.

PROVE

Confirm the failure whenever practical before replacing components.

VERIFY

After repair, operate and measure the system again to verify that the original problem has been corrected.

Knowledge Before Assumption

A DMM reading is useful only when the technician understands:

• What was measured
• Where it was measured
• What meter function was used
• What reference point was used
• What operating condition existed
• What value was expected
• What the difference means

Instead of random probing and unnecessary component replacement, this collection teaches a measurement-driven troubleshooting process.

Who Is This Collection For?

Designed for:

• Industrial maintenance technicians
• Industrial electricians
• Controls technicians
• Multi-craft technicians
• Reliability technicians
• Electrical apprentices
• Maintenance supervisors
• Technical instructors
• Industrial technology students
• Manufacturing facilities
• Industrial maintenance training departments

It can be used for:

Field troubleshooting

Technician development

Classroom instruction

Apprenticeship training

Maintenance department reference

Self-study

What You Receive

Your purchase includes three downloadable PDF publications:

1. Industrial Digital Multimeter Field Guide & Troubleshooting System

2. DMM Troubleshooting Flowcharts & Field Workbook

3. Industrial DMM Quick-Reference Field Cards

All three are digital PDF products.

No physical books or cards will be shipped.

Important Safety Notice

These publications are educational and diagnostic references.

They do not authorize energized electrical work or replace employer electrical-safety procedures, lockout/tagout requirements, manufacturer instructions, applicable codes or standards, required PPE, formal training, or the judgment of qualified personnel.

Electrical testing must be performed only by appropriately qualified and authorized personnel using test equipment and accessories suitable for the circuit and environment.

Bundle Value

Purchased separately:

DMM Field Guide — $29.95

Flowcharts & Workbook — $24.95

Quick-Reference Field Cards — $14.95

Total individual value: $69.85

Complete Collection Price

$49.95

Save $19.90

Approximately 28% less than purchasing all three separately.

Payhip.com/shepherdmanuals

Shepherd Industrial DMM Troubleshooting Collection — Complete 3-PDF Technician Package
