Drawing Recovery & Troubleshooting Assistant.

Drawing Recovery & Troubleshooting Assistant

Bring common AutoCAD troubleshooting tools together in one convenient dialog. Designed for architects, engineers, and drafters, this LISP and DCL utility provides guided recovery steps and quick access to drawing maintenance commands.

Features include:

• Copy BAK and SV$ backup files to a new DWG filename while preserving the source.
• Launch AutoCAD’s RECOVER command to check a drawing copy.
• Run AUDIT with confirmation before fixing errors.
• Access PURGE, REGENALL, and the Xref Manager.
• Save a diagnostic report containing drawing information and selected settings.
• Follow troubleshooting guides for drawings that won’t open, missing references, slow performance, and display or plotting issues.

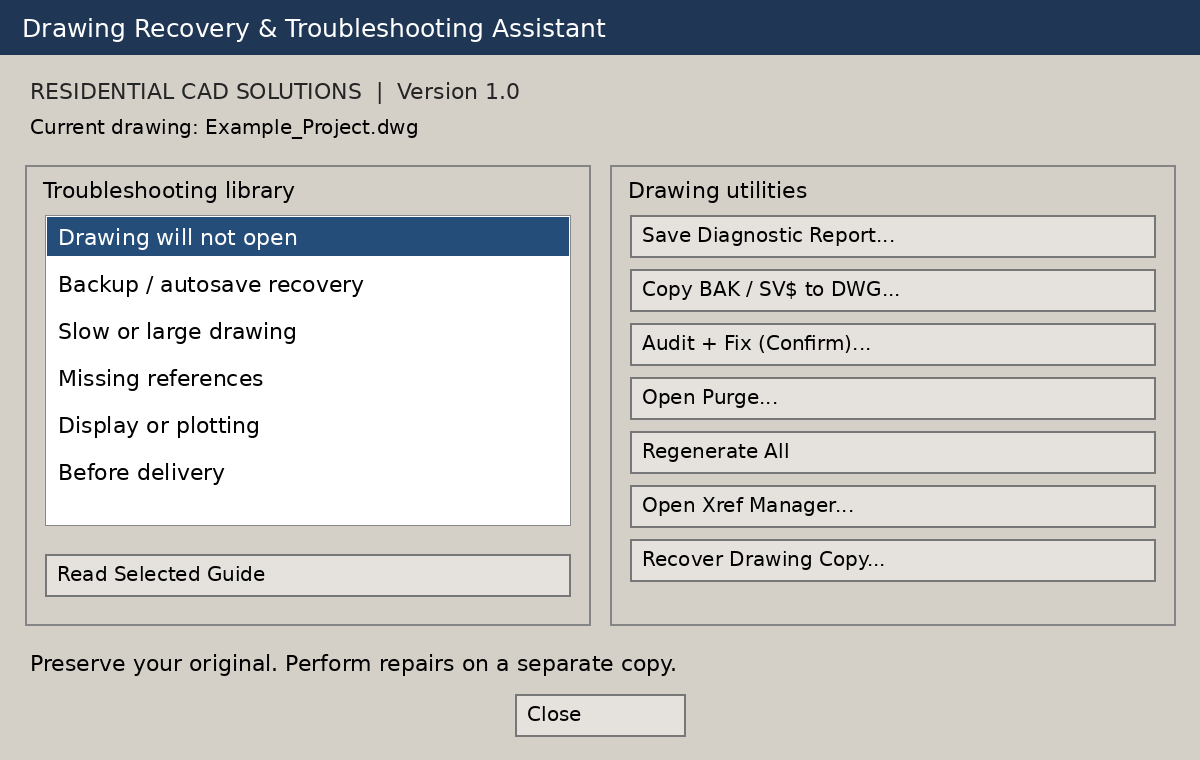

Download includes: AutoLISP program, DCL dialog, installation instructions, Payhip cover, and dialog preview.

Command: DWGHELP

Designed for full Windows AutoCAD 2002 and later with AutoLISP, Visual LISP, and DCL support. Runtime compatibility testing is still needed. Recovery results depend on the condition of the drawing; successful recovery is not guaranteed. Always work on a separate drawing copy.
