Shure MXA310 Plugin v1.1.1 Draw coverage with EzSVG (Unofficial)
Q-SYS plugin Shure MXA310 Plugin v1.1.1 Draw coverage with EzSVG Unofficial
----------------------------------------------------------------------------
v1.1.1 bug fix 2024/11/08
・Fixed an issue where the connection was not reconnecting
after being disconnected from the device.
----------------------------------------------------------------------------
v1.1.0

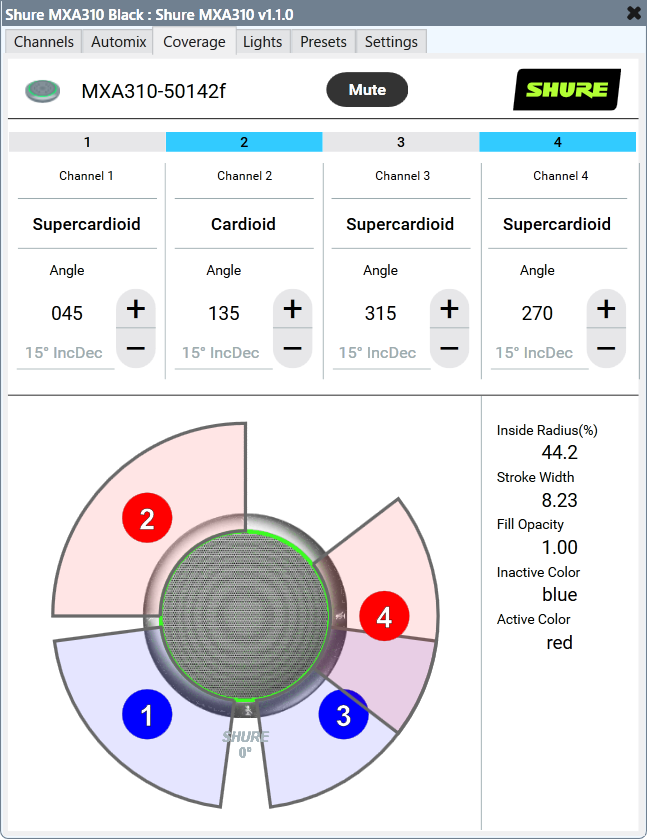

・Added Draw coverage with EzSVG
----------------------------------------------------------------------------
・Known issue
If you remove coverage on any channel, the coverage on the erased channel will remain depicted. This is because there is no command to notify that the coverage has been erased.
When the channel number of the coverage is toroid or omni, the number moves to the center, but when there are multiple identical polar patterns, the number of the later selection comes on top. I could not think of a way to avoid the overlap.
The meter display of the automix is awkward.
This is a problem with Shure commands.
----------------------------------------------------------------------------
--Controls
Active Color ( Coverage Active Color ) ( String )
Angle 1 ( Coverage Angle 1 ) ( String )
Angle 2 ( Coverage Angle 2 ) ( String )
Angle 3 ( Coverage Angle 3 ) ( String )
Angle 4 ( Coverage Angle 4 ) ( String )
Angle Dec 1 ( Coverage Angle Gain Dec 1 ) ( Boolean )
Angle Dec 2 ( Coverage Angle Gain Dec 2 ) ( Boolean )
Angle Dec 3 ( Coverage Angle Gain Dec 3 ) ( Boolean )
Angle Dec 4 ( Coverage Angle Gain Dec 4 ) ( Boolean )
Angle Inc 1 ( Coverage Angle Gain Inc 1 ) ( Boolean )
Angle Inc 2 ( Coverage Angle Gain Inc 2 ) ( Boolean )
Angle Inc 3 ( Coverage Angle Gain Inc 3 ) ( Boolean )
Angle Inc 4 ( Coverage Angle Gain Inc 4 ) ( Boolean )
Audio Gateway ( Settings Audio Gateway ) ( String )
Audio IP Address ( Settings Audio IP Address ) ( String )
Audio Subnet ( Settings Audio Subnet Mask ) ( String )

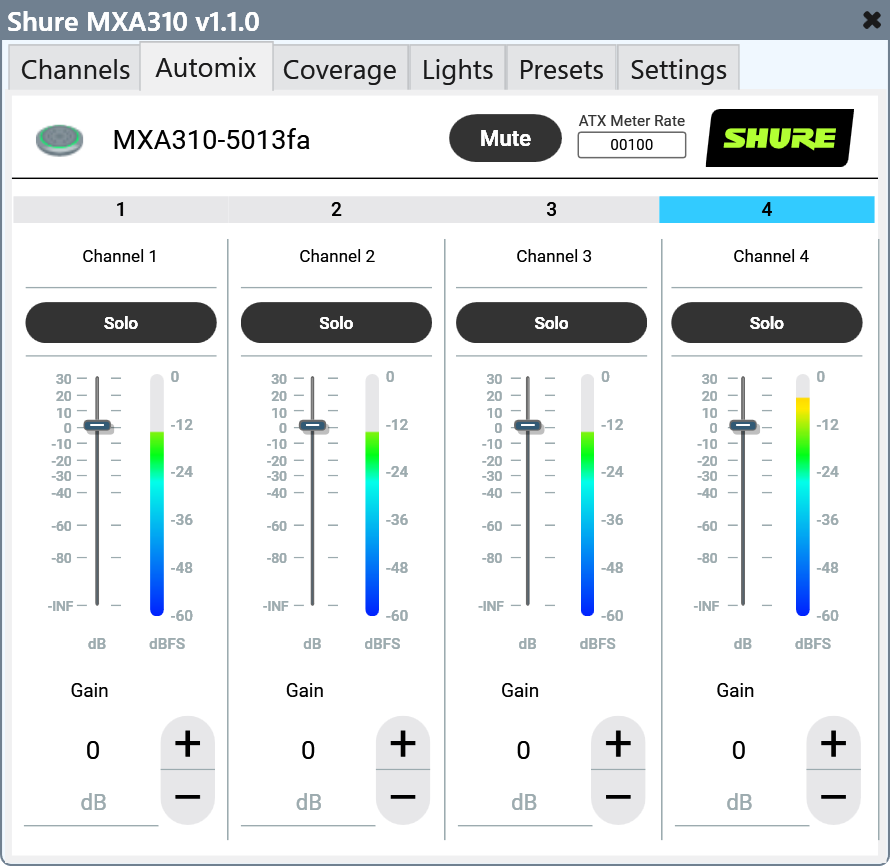

AutoMXR Dec 1 ( Automix AutoMixer Gain Dec 1 ) ( Boolean )
AutoMXR Dec 2 ( Automix AutoMixer Gain Dec 2 ) ( Boolean )
AutoMXR Dec 3 ( Automix AutoMixer Gain Dec 3 ) ( Boolean )
AutoMXR Dec 4 ( Automix AutoMixer Gain Dec 4 ) ( Boolean )
AutoMXR Gain 1 ( Automix AutoMixer Gain 1 ) ( Float )
AutoMXR Gain 2 ( Automix AutoMixer Gain 2 ) ( Float )
AutoMXR Gain 3 ( Automix AutoMixer Gain 3 ) ( Float )
AutoMXR Gain 4 ( Automix AutoMixer Gain 4 ) ( Float )
AutoMXR Gain Text 1 ( Automix AutoMixer Gain Text 1 ) ( Float )
AutoMXR Gain Text 2 ( Automix AutoMixer Gain Text 2 ) ( Float )
AutoMXR Gain Text 3 ( Automix AutoMixer Gain Text 3 ) ( Float )
AutoMXR Gain Text 4 ( Automix AutoMixer Gain Text 4 ) ( Float )
AutoMXR Inc 1 ( Automix AutoMixer Gain Inc 1 ) ( Boolean )
AutoMXR Inc 2 ( Automix AutoMixer Gain Inc 2 ) ( Boolean )
AutoMXR Inc 3 ( Automix AutoMixer Gain Inc 3 ) ( Boolean )
AutoMXR Inc 4 ( Automix AutoMixer Gain Inc 4 ) ( Boolean )
AutoMXR Label 1 ( Channels Dante Out Name 1 ) ( String )
AutoMXR Label 2 ( Channels Dante Out Name 2 ) ( String )
AutoMXR Label 3 ( Channels Dante Out Name 3 ) ( String )
AutoMXR Label 4 ( Channels Dante Out Name 4 ) ( String )
AutoMXR Label 5 ( Channels Dante Out Name 5 ) ( String )
AutoMXR LED 1 ( Gate Out Status 1 ) ( Boolean )
AutoMXR LED 2 ( Gate Out Status 2 ) ( Boolean )
AutoMXR LED 3 ( Gate Out Status 3 ) ( Boolean )
AutoMXR LED 4 ( Gate Out Status 4 ) ( Boolean )
AutoMXR Meter 1 ( Automix AutoMixer Meter 1 ) ( Float )
AutoMXR Meter 2 ( Automix AutoMixer Meter 2 ) ( Float )
AutoMXR Meter 3 ( Automix AutoMixer Meter 3 ) ( Float )
AutoMXR Meter 4 ( Automix AutoMixer Meter 4 ) ( Float )
AutoMXR Meter Rate ( Automix AutoMixer Meter Rate ) ( String )
AutoMXR Solo 1 ( Automix SOLO 1 ) ( Boolean )
AutoMXR Solo 2 ( Automix SOLO 2 ) ( Boolean )
AutoMXR Solo 3 ( Automix SOLO 3 ) ( Boolean )
AutoMXR Solo 4 ( Automix SOLO 4 ) ( Boolean )
Convert Mute to Color ( Convert Mute to Color ) ( Boolean )
Coverage ( Coverage ) ( Boolean )

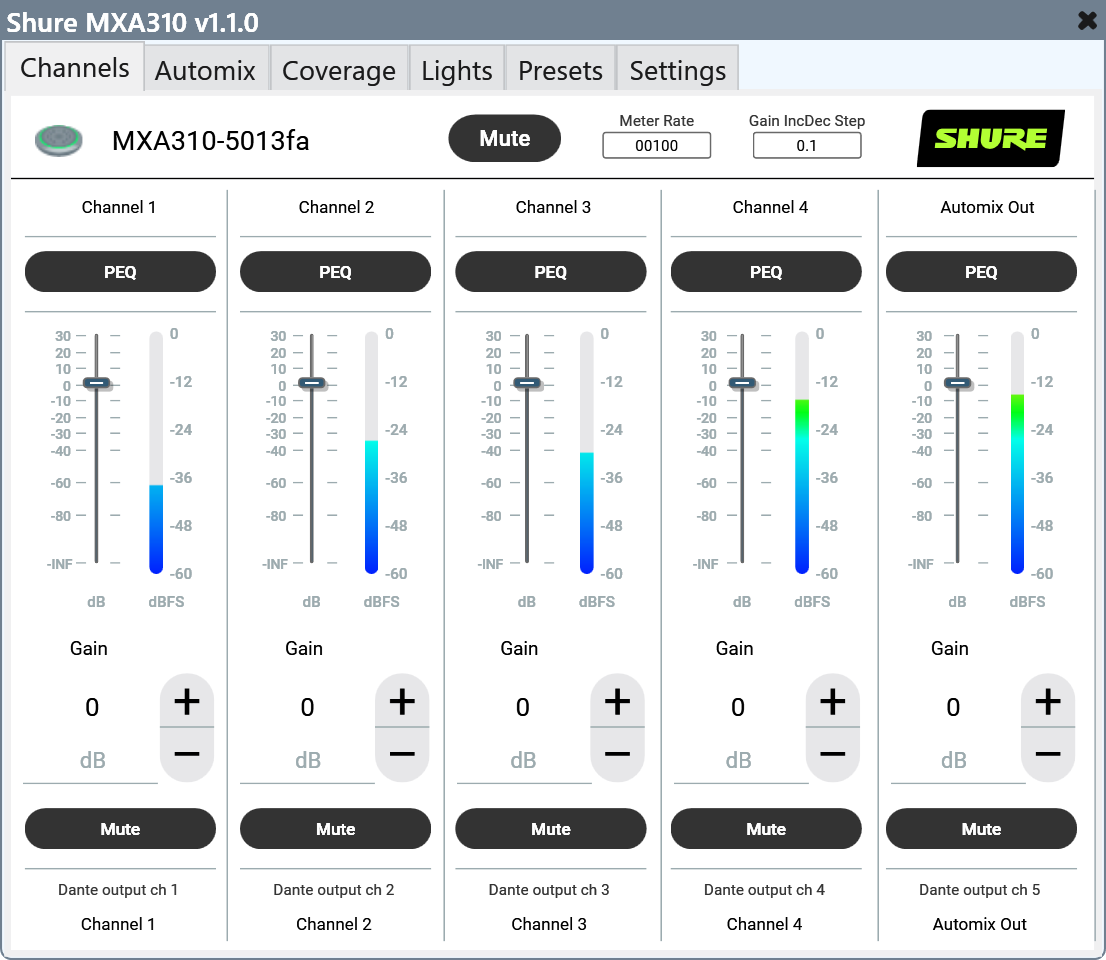

Dec 1 ( Channels Gain Dec 1 ) ( Boolean )
Dec 2 ( Channels Gain Dec 2 ) ( Boolean )
Dec 3 ( Channels Gain Dec 3 ) ( Boolean )
Dec 4 ( Channels Gain Dec 4 ) ( Boolean )
Dec 5 ( Channels Gain Dec 5 ) ( Boolean )
Device ID ( Device Name ) ( String )
Device id ( Settings Device Name ) ( String )
Device Mute ( Device Mute ) ( Boolean )
Device Name ( Settings Dante Device Name ) ( String )
Disable ( Disable ) ( Boolean )
Discover ( Settings Discover ) ( Boolean )
Fill Opacity ( Coverage Fill Opacity ) ( Float )
Firmware Ver ( Settings Firmware Ver ) ( String )
Flash ( Idntify ) ( Boolean )
Gain 1 ( Channels Gain 1 ) ( Float )
Gain 2 ( Channels Gain 2 ) ( Float )
Gain 3 ( Channels Gain 3 ) ( Float )
Gain 4 ( Channels Gain 4 ) ( Float )
Gain 5 ( Channels Gain 5 ) ( Float )
Gain Text 1 ( Channels Gain Text 1 ) ( Float )
Gain Text 2 ( Channels Gain Text 2 ) ( Float )
Gain Text 3 ( Channels Gain Text 3 ) ( Float )
Gain Text 4 ( Channels Gain Text 4 ) ( Float )
Gain Text 5 ( Channels Gain Text 5 ) ( Float )
Inactive Color ( Coverage Inactive Color ) ( String )
Inc 1 ( Channels Gain Inc 1 ) ( Boolean )
Inc 2 ( Channels Gain Inc 2 ) ( Boolean )
Inc 3 ( Channels Gain Inc 3 ) ( Boolean )
Inc 4 ( Channels Gain Inc 4 ) ( Boolean )
Inc 5 ( Channels Gain Inc 5 ) ( Boolean )
Inside Radius ( Coverage Inside Radius ) ( Float )
IP ( Settings IP Adress ) ( String )
IP List ( Settings IP List ) ( String )
Label 1 ( Input Channel Name 1 ) ( String )
Label 2 ( Input Channel Name 2 ) ( String )
Label 3 ( Input Channel Name 3 ) ( String )
Label 4 ( Input Channel Name 4 ) ( String )
Label 5 ( Input Channel Name 5 ) ( String )

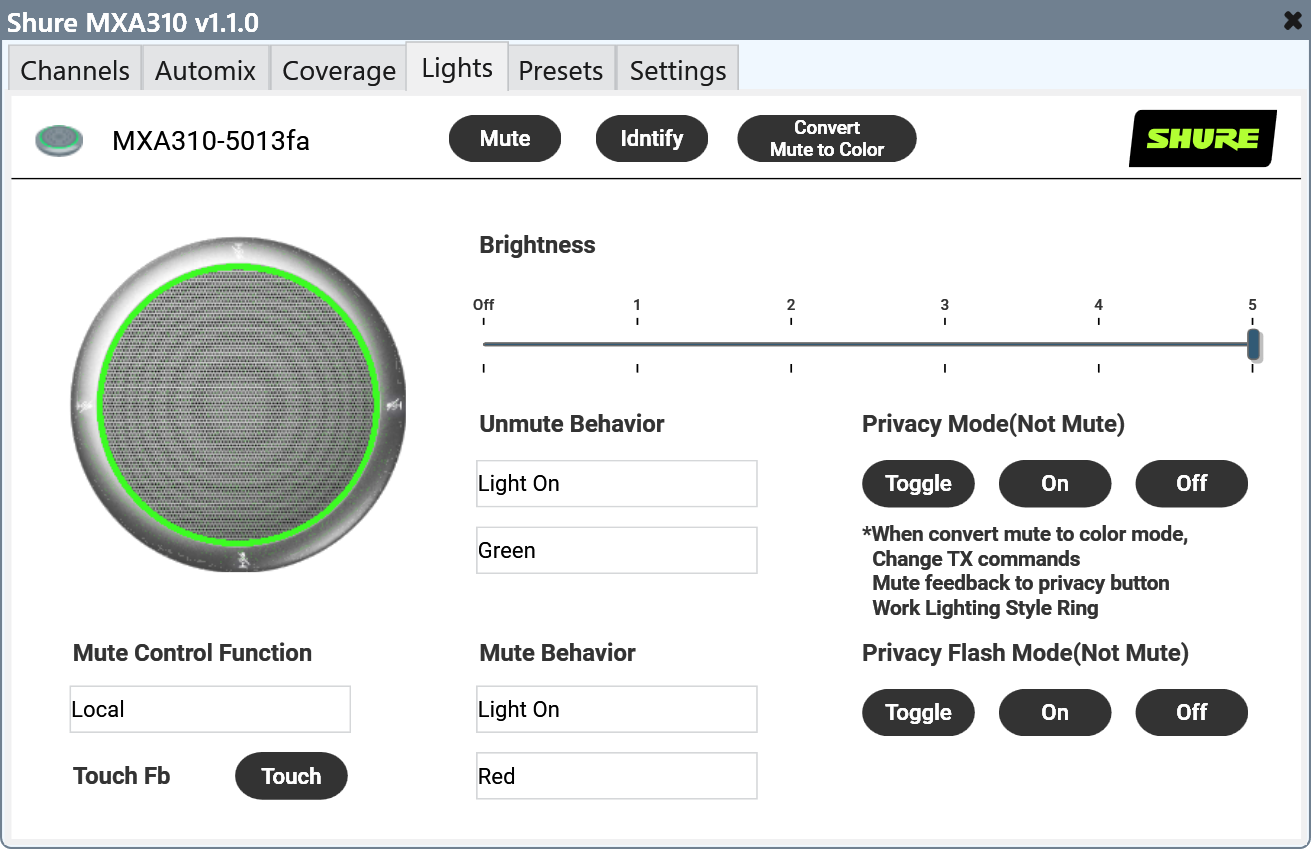

LED Brightness ( Lights LED Brightness ) ( Integer )
LED Mute ( Lights LED Mute Behavior ) ( String )
LED Mute Color ( Lights LED Mute Color ) ( String )
LED Preview ( Lights LED Preview ) ( Boolean )
LED Unmute ( Lights LED Unmute Behavior ) ( String )
LED Unmute Color ( Lights LED Unmute Color ) ( String )
MAC Address ( Settings MAC Address ) ( String )
Meter 1 ( Channels Meter 1 ) ( Float )
Meter 2 ( Channels Meter 2 ) ( Float )
Meter 3 ( Channels Meter 3 ) ( Float )
Meter 4 ( Channels Meter 4 ) ( Float )
Meter 5 ( Channels Meter 5 ) ( Float )
Meter Rate ( Channels Meter Rate ) ( String )
Model ( Settings Model ) ( String )
Mute 1 ( Channels Mute 1 ) ( Boolean )
Mute 2 ( Channels Mute 2 ) ( Boolean )
Mute 3 ( Channels Mute 3 ) ( Boolean )
Mute 4 ( Channels Mute 4 ) ( Boolean )
Mute 5 ( Channels Mute 5 ) ( Boolean )
Mute Cont Func ( Lights Mute Control Function ) ( String )
MXA Touch Feedback ( Lights MXA Touch Feedback ) ( Boolean )
PEQ 1 ( Channels PEQ 1 ) ( Boolean )
PEQ 2 ( Channels PEQ 2 ) ( Boolean )
PEQ 3 ( Channels PEQ 3 ) ( Boolean )
PEQ 4 ( Channels PEQ 4 ) ( Boolean )
PEQ 5 ( Channels PEQ 5 ) ( Boolean )
Polar Block 1 ( Automix AutoMixer Polar Block 1 ) ( Trigger )
Polar Block 2 ( Automix AutoMixer Polar Block 2 ) ( Trigger )
Polar Block 3 ( Automix AutoMixer Polar Block 3 ) ( Trigger )
Polar Block 4 ( Automix AutoMixer Polar Block 4 ) ( Trigger )
Polar Pattern 1 ( Coverage Polar Pattern 1 ) ( String )
Polar Pattern 2 ( Coverage Polar Pattern 2 ) ( String )
Polar Pattern 3 ( Coverage Polar Pattern 3 ) ( String )
Polar Pattern 4 ( Coverage Polar Pattern 4 ) ( String )

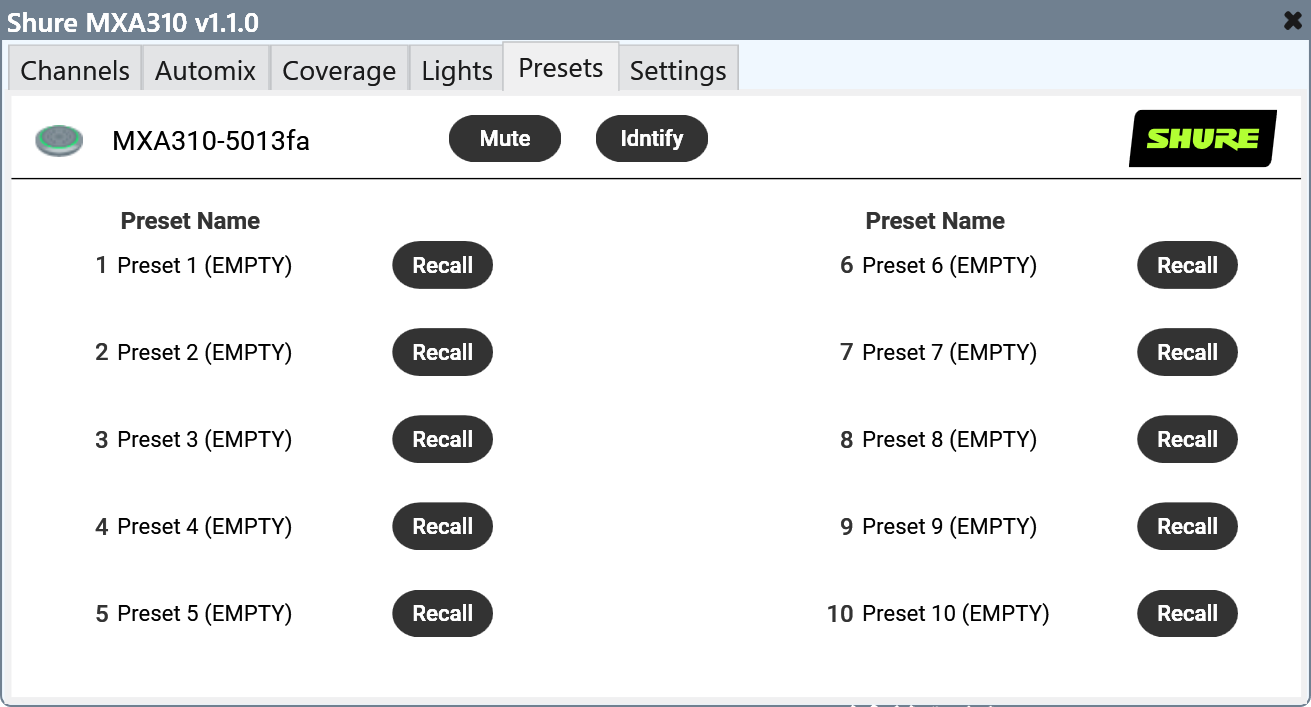

Preset 1 ( Presets Preset Recall 1 ) ( Boolean )
Preset 2 ( Presets Preset Recall 2 ) ( Boolean )
Preset 3 ( Presets Preset Recall 3 ) ( Boolean )
Preset 4 ( Presets Preset Recall 4 ) ( Boolean )
Preset 5 ( Presets Preset Recall 5 ) ( Boolean )
Preset 6 ( Presets Preset Recall 6 ) ( Boolean )
Preset 7 ( Presets Preset Recall 7 ) ( Boolean )
Preset 8 ( Presets Preset Recall 8 ) ( Boolean )
Preset 9 ( Presets Preset Recall 9 ) ( Boolean )
Preset 10 ( Presets Preset Recall 10 ) ( Boolean )
Preset Label 1 ( Presets Preset Name 1 ) ( String )
Preset Label 2 ( Presets Preset Name 2 ) ( String )
Preset Label 3 ( Presets Preset Name 3 ) ( String )
Preset Label 4 ( Presets Preset Name 4 ) ( String )
Preset Label 5 ( Presets Preset Name 5 ) ( String )
Preset Label 6 ( Presets Preset Name 6 ) ( String )
Preset Label 7 ( Presets Preset Name 7 ) ( String )
Preset Label 8 ( Presets Preset Name 8 ) ( String )
Preset Label 9 ( Presets Preset Name 9 ) ( String )
Preset Label 10 ( Presets Preset Name 10 ) ( String )
Privacy ( Lights Privacy Mode Toggle ) ( Boolean )
Privacy Flash ( Lights Privacy Mode Flash Toggle ) ( Boolean )
Privacy Flash Tri 1 ( Lights Privacy Mode Flash On ) ( Trigger )
Privacy Flash Tri 2 ( Lights Privacy Mode Flash Off ) ( Trigger )
Privacy Tri 1 ( Lights Privacy Mode On ) ( Trigger )
Privacy Tri 2 ( Lights Privacy Mode Off ) ( Trigger )

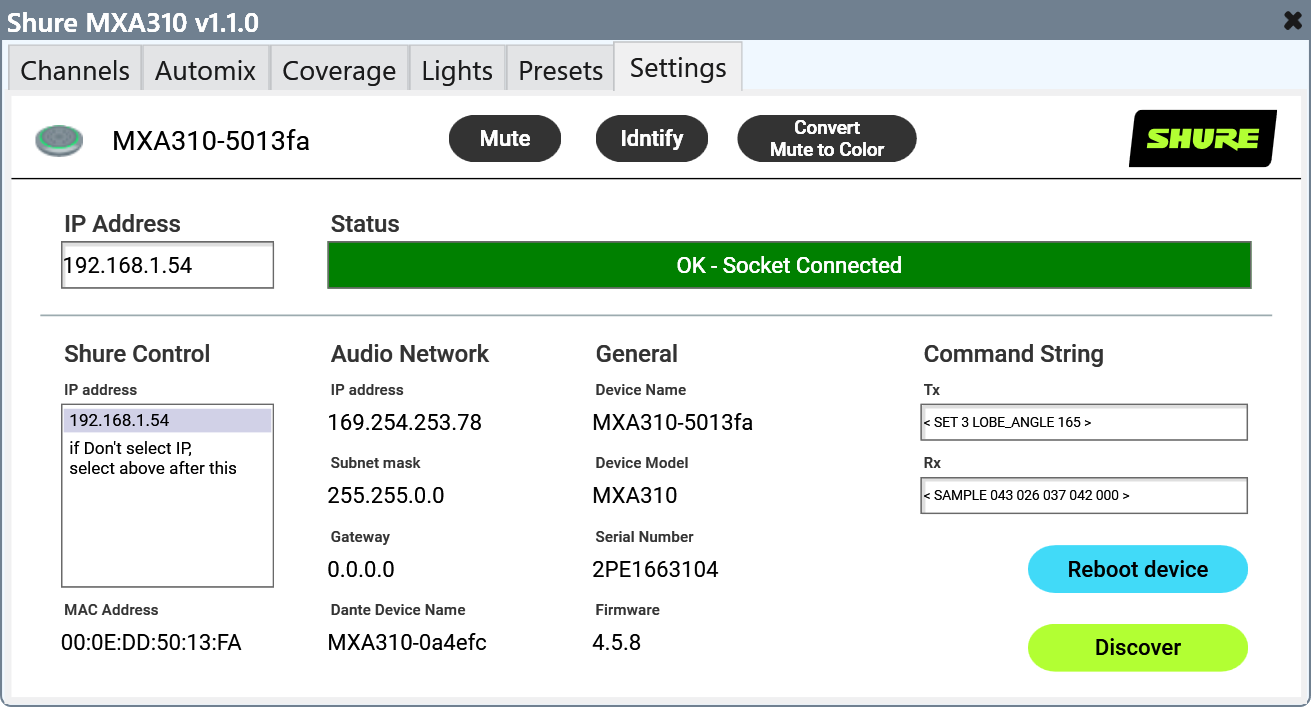

Reboot ( Settings Reboot device ) ( Trigger )
Rx ( Settings Command String Rx ) ( String )
Serial Number ( Settings Serial Number ) ( String )
Status ( Settings Status ) ( Status )
Step ( Channels Step ) ( String )
Stroke Width ( Coverage Stroke Width ) ( Float )
Tx ( Settings Command String Tx ) ( String )
*Test Equipment
Shure MXA310 ver 6.0.23 and 4.7.8.0
QDS ver 9.10.2
Discover may not work with QDS v9.10.1 or lower.
Also, it cannot search link-local-ip(DHCP Address),
without DHCP server.
