SAP Plant Maintenance Master Data creation diagram / PM00

This material is priced symbolically to keep it accessible while reflecting its practical value.

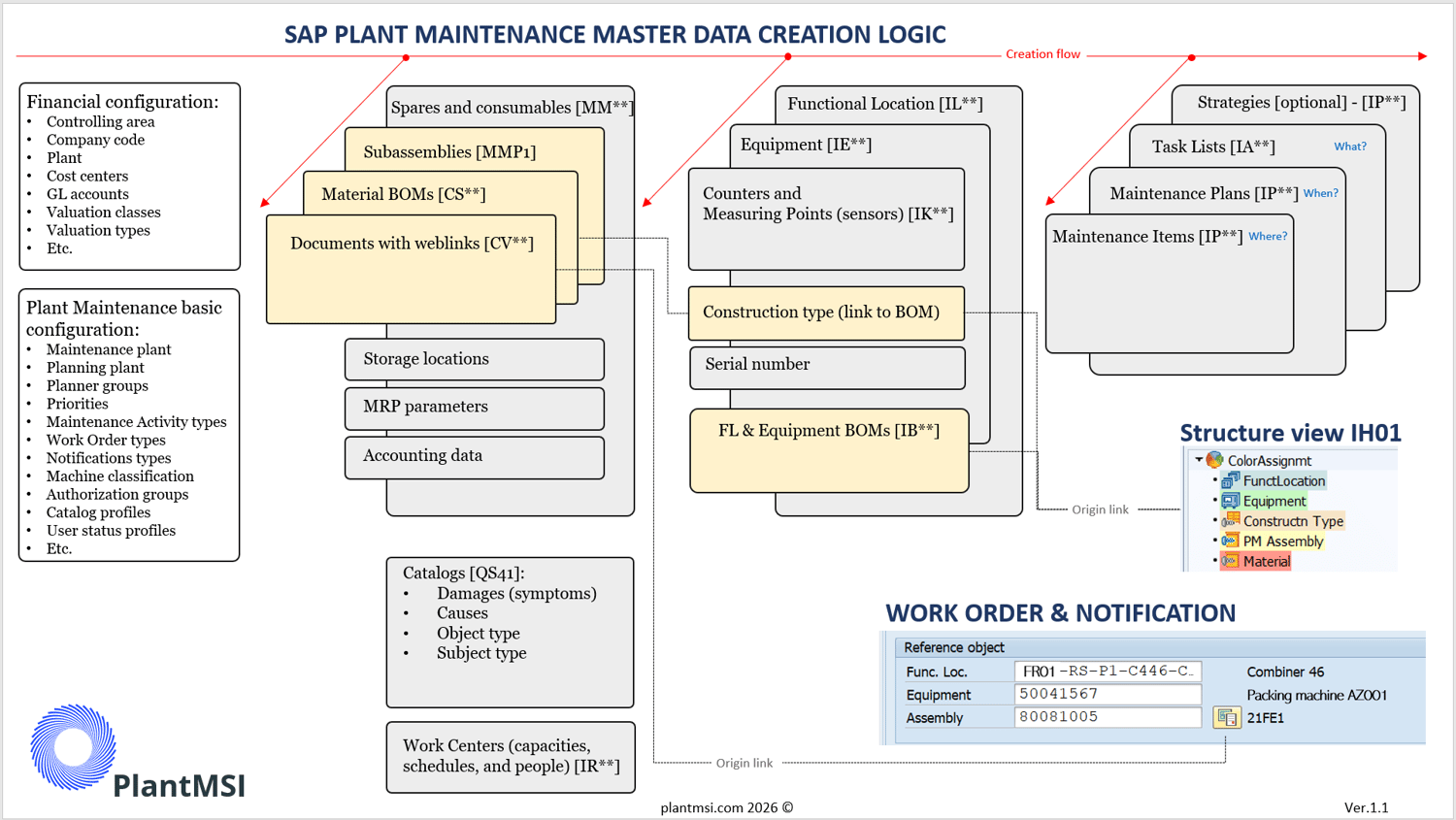

I continue my review of the SAP PM master data setup. In this diagram, I have brought together the main master data objects and illustrated the proper sequence for creating them (from left to right, building layers at each step as much as possible). The diagram can be explored to identify dependencies: for example, a material BOM can be created even before equipment records exist and later linked via the construction type, unlike an equipment BOM.

I tried to show how SAP actually behaves rather than just how it is often taught, to reflect real-world SAP PM design, not just textbook theory.
