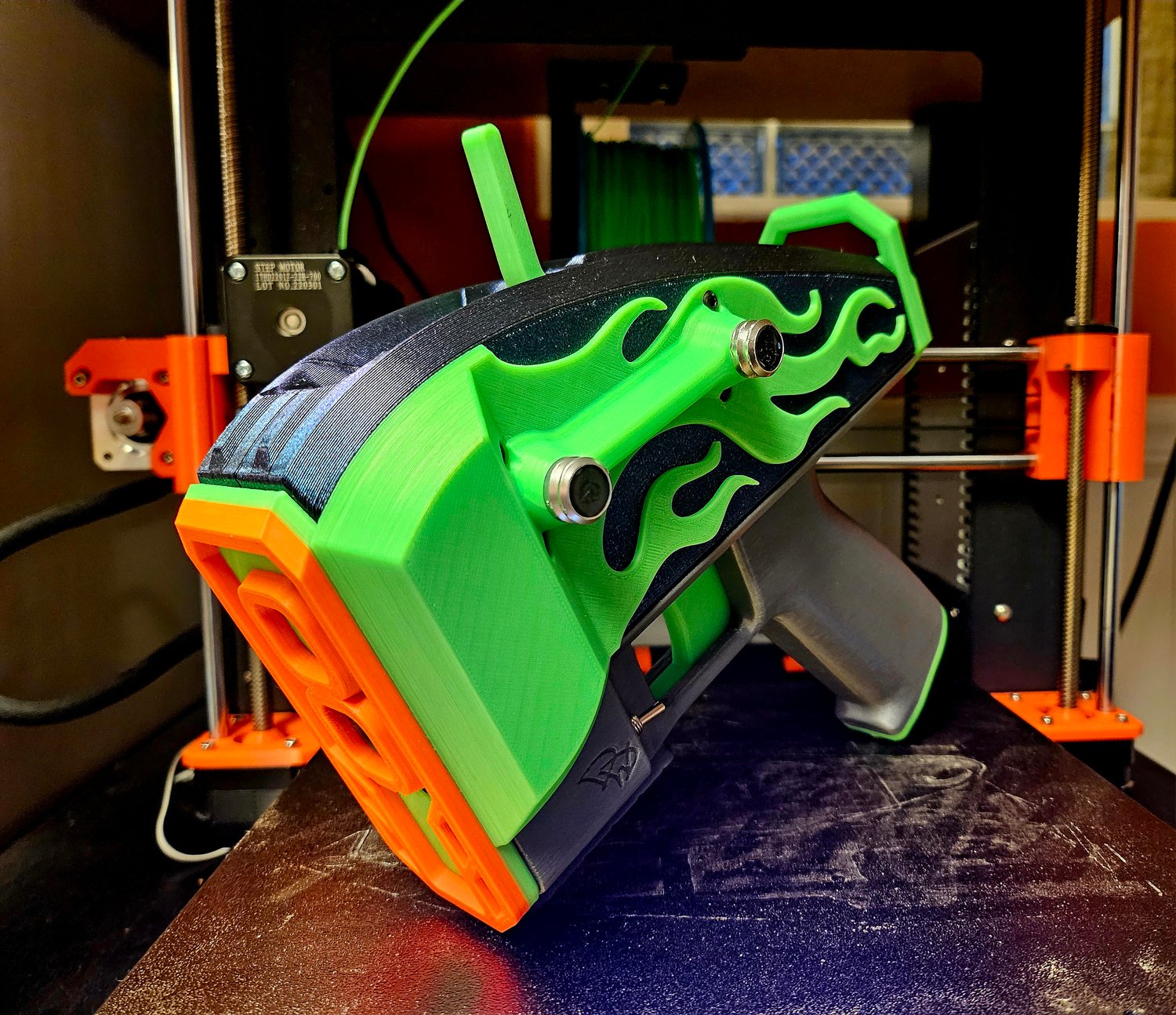

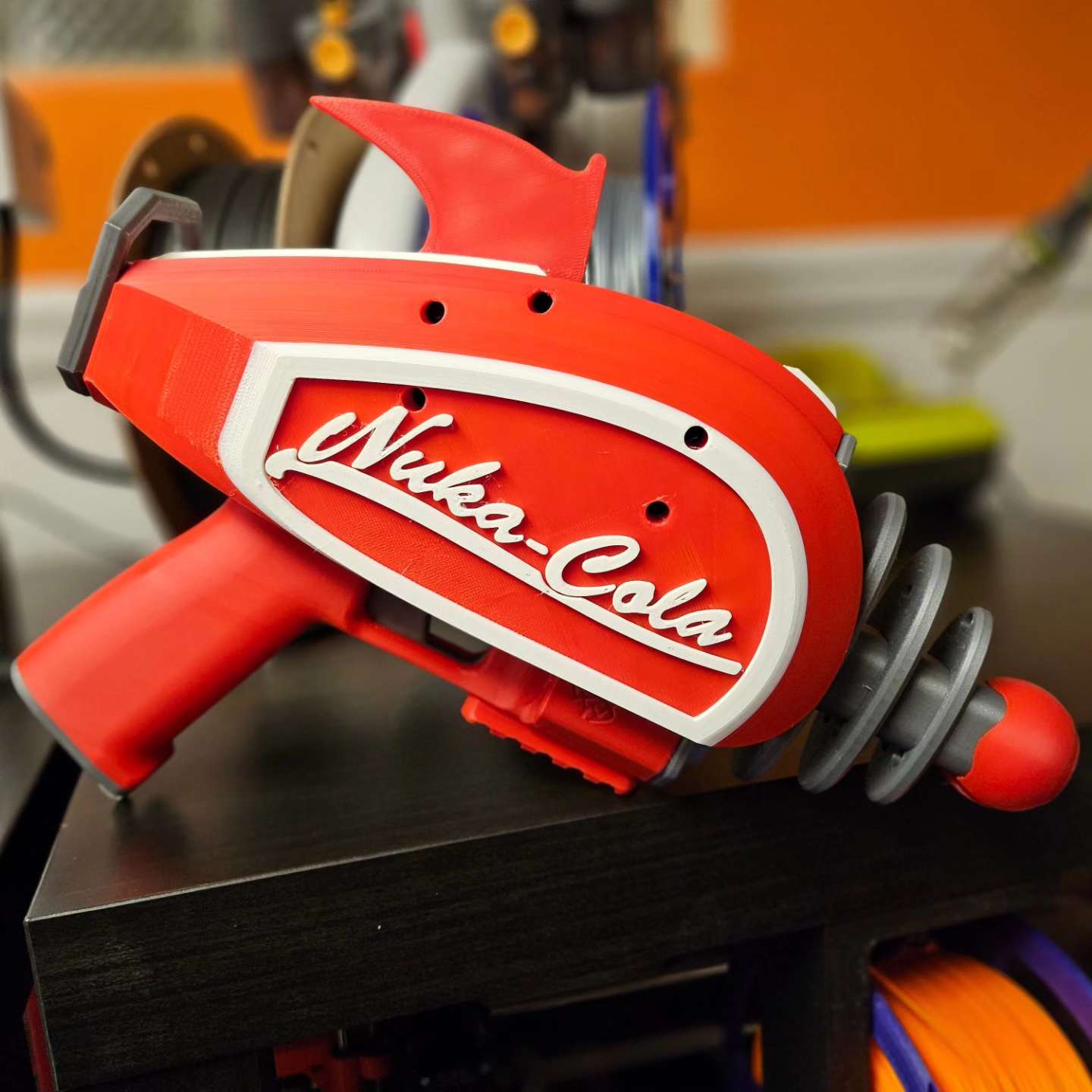

Al-Mi'raj Toy Foam Dart Flycore Blaster
These are the digital .STL files to 3D Print an Al-Mi'raj v2 toy foam dart blaster.
The Al-Mi'raj is a toy foam dart blaster powered by the Flycore system from OldFusionDesigns.
Named after the mythical "Unicorn Rabbit" of medieval Arabic literature and more recent Dungeons & Dragons adventures, the Al-Mi'raj is the first top-mag Flycore blaster. It is designed to be compatible with any micro-wheel (23mm or less motor spacing; Nightingale, FTW/Night Owl, Baby Banshee) and now with version 2 Hurricane-wheel (32.5mm-33.5mm motor spacing; Hurricane, Pulsar, Banshee Jr) straight talon Flycore or Noidcore. There are also options to create a select fire version utilizing a 12v LED Blinker relay and a toggle switch with the Noidcore flycore.
FILESETS
The Fileset comes in 2 .Zip files due to some platforms' file size limitations. Side plates are found in the Part 2 folder.
Along with the version 2 Fileset(s) for the Al-Mi'raj I am including the v1 fileset(s) for anyone who still wants a v1. Please be aware of which fileset you are using when printing your Al-Mi'raj.
FREEBIES & ADD-ONS
I like to create extra stuff, so I've set up a Github repository to hold them. All files on the github are considered to be CC-BY-NC-ND; they are for the use of those who have purchased Al-Mi'raj files.
Link here: https://github.com/DetroitDartworks/Almiraj-v2-Freebies
UPDATES FROM V1
Added Hurricane Flycore/wheel compatibility
Unified grip options; both grip options can have the select-fire switch positioned on either side.
Tweaked Trigger fitment
Included .STEP file of "plain" sideplates so anyone with CAD software can easily create their own custom side plates.
NOTE: This is a FLYCORE blaster. You will need to download, print, assemble, and wire the proper Flycore files from OldFusionDesigns to complete this blaster. Flycore files can be found here: https://github.com/Oldfusiondesigns
Building this blaster requires knowledge of circuits and soldering. It is NOT recommended for beginners.
COMPATIBLE FLYCORES
Any Micro-wheel (23mm and under motor spacing) straight talon Flycore or straight talon Noidcore
Any Hurricane-wheel (32.5mm-33.5mm motor spacing) straight talon Flycore or straight talon Noidcore
Flycore files can be found on the OldFusionDesigns github here: https://github.com/Oldfusiondesigns/OFD_Flycore_Straight_Talon
REQUIRED HARDWARE (NOT including Flycore hardware)
7 Heatset Inserts (same kind as used in the Flycore)
M3 x 8mm (5)
M3 x 16mm (4-8) (# depends on side options)
M3 x 20mm (1-5) (# depends on side options)
1 10-12mm Nerf style toy screw (m2.6 rolling thread recommended, #3-24 ⅜” or ½” should work as well)
~25mm 5mm diameter compression spring
NOTE:

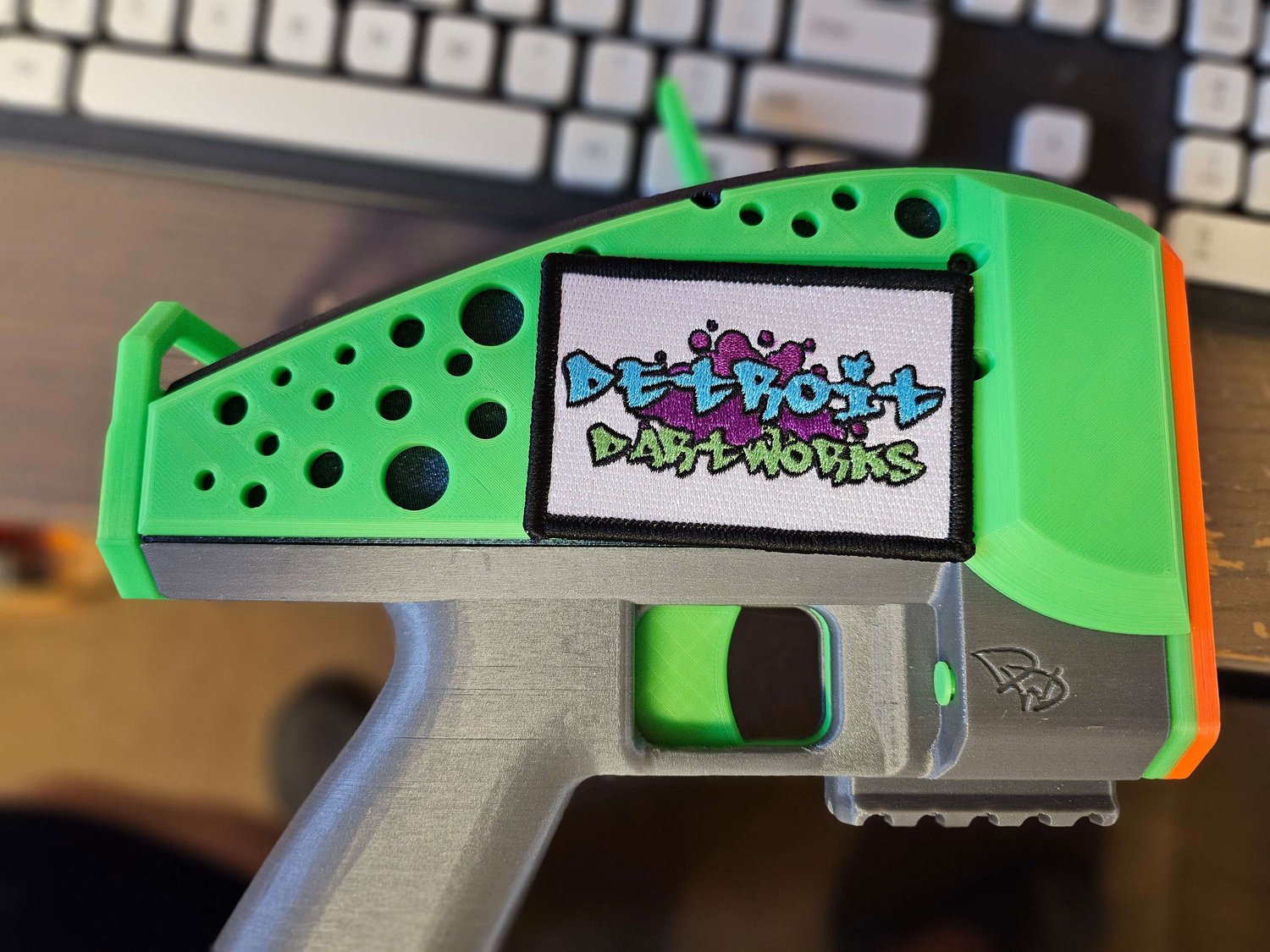

Normal Side plates and Fidlock side plates require 4 16mm screws.
Sides with Picatinny Rails will require 2 16mm and 2 20mm screws.
REQUIRED ELECTRONICS
2 130 sized 3s hobby motors
Micro Flywheel pair (Nightingale, FTW/Night Owl, & Baby Banshees (both sizes)) or Hurricane Flywheel pair (Hurricane, Pulsar, Banshee Jr)
Neutron Solenoid OR 12v n20 pusher motor (based on Flycore choice)
Omron style 15/21 amp microswitch (without lever)
Cherry DB2 style 5/10 amp microswitch (with lever)
OPTIONAL Select Fire Parts (w/ example links)
12v LED Blinker Relay - https://a.co/d/5aZya9N
6a On/On toggle switch - https://a.co/d/hNZElgJ
UPDATES - If you purchased a fileset before an update and would like the updated files, please contact me with your order number.
If you purchased a v1 Al-Mi'raj and would like the v2 files, please email me with your order number and I will make sure you get the new fileset. Thank you!
LICENSING - Standard Digital File
Each purchase of these files entitles the buyer to unlimited prints for personal use OR ONE SOLD SET OF PRINTS OR COMPLETED BLASTER. Additional sales require additional purchases of the files. If you would like to produce these commercially you must contact me to discuss a licensing agreement.
