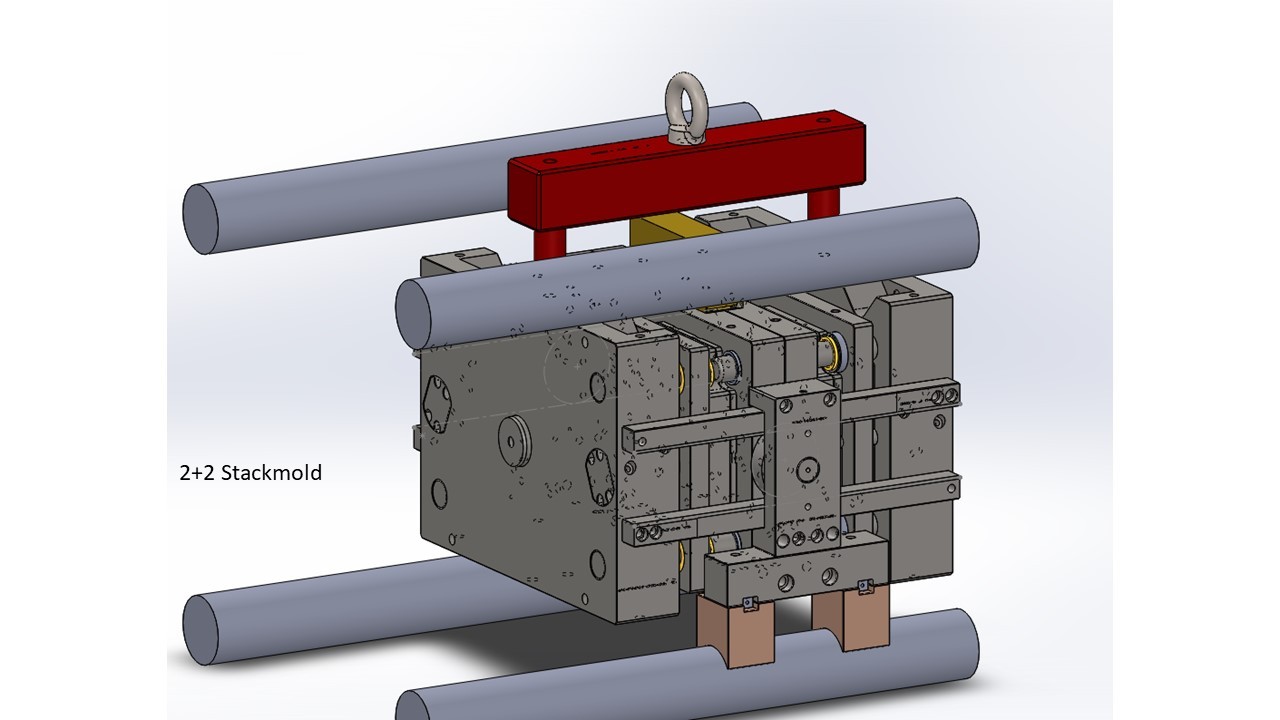

2+2 STACKMOLD FOR THINWALL LID TO SUIT 500ml TUB

Part weight: 11.2 grams

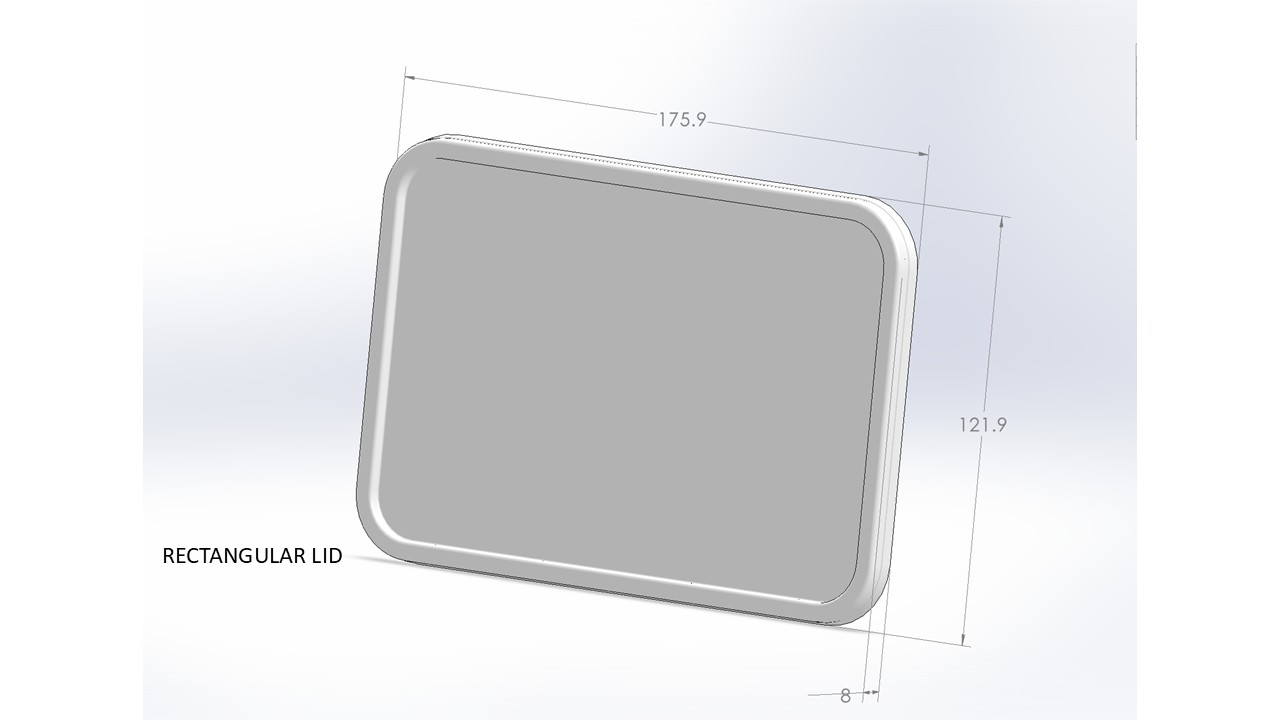

Lid to the fit 500ml food Tub 2 cavity mould

Wall thickness 0.45mm or less. Nominate your wall thickness, for example 0.40mm Contact us here to change your wall thickness for free.

Material: PP (homopolymer)

Cycle time: 3.0-3.5 seconds (free drop)

Mold designed for 280 ton Sumitomo Demag high speed moulding machine

Annual product capability: 30 million (Based on 23hrs/day)

 Mold designed with:

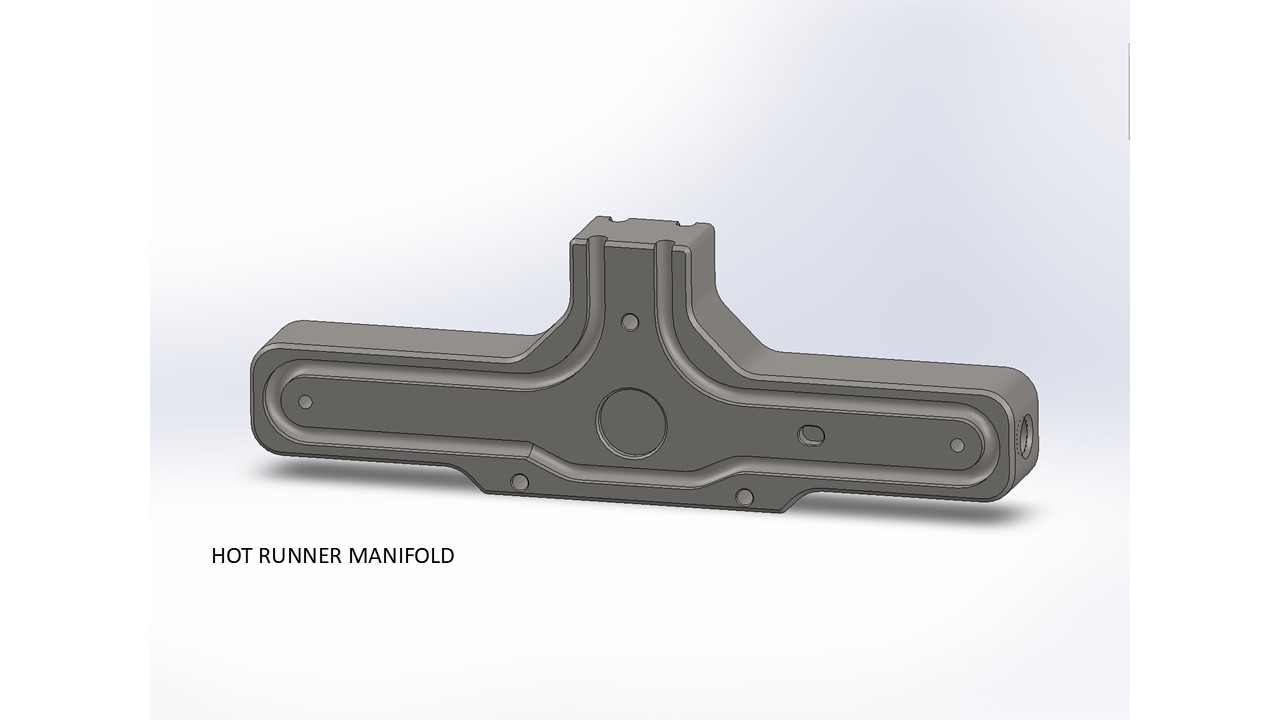

  1. Hot tip hot runner

  2. Hydraulic stripper plate movement

  3. Simple assembly

  4. Easy mold maintenance

ZIP file contains X_T and STEP files
