Electrical Calculation

Struggling with design analysis or unsure how to calculate cable sizes based on the PEC, especially for residential projects? Whether it’s cable sizing, load schedules, or overall design analysis.

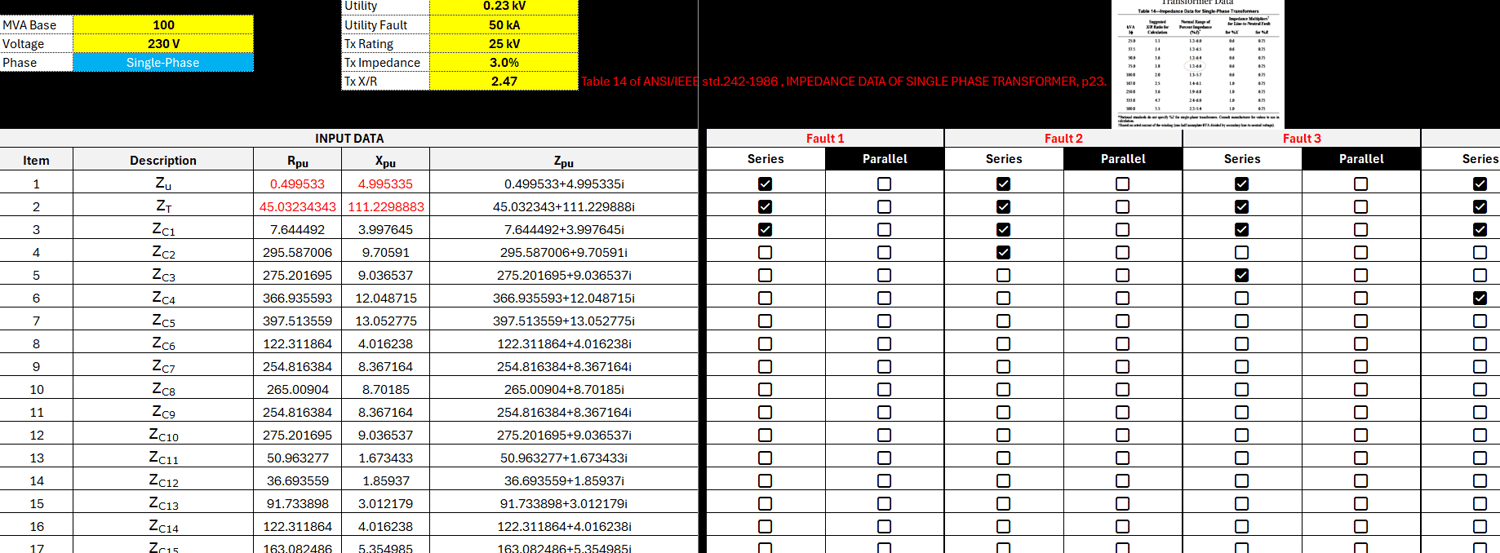

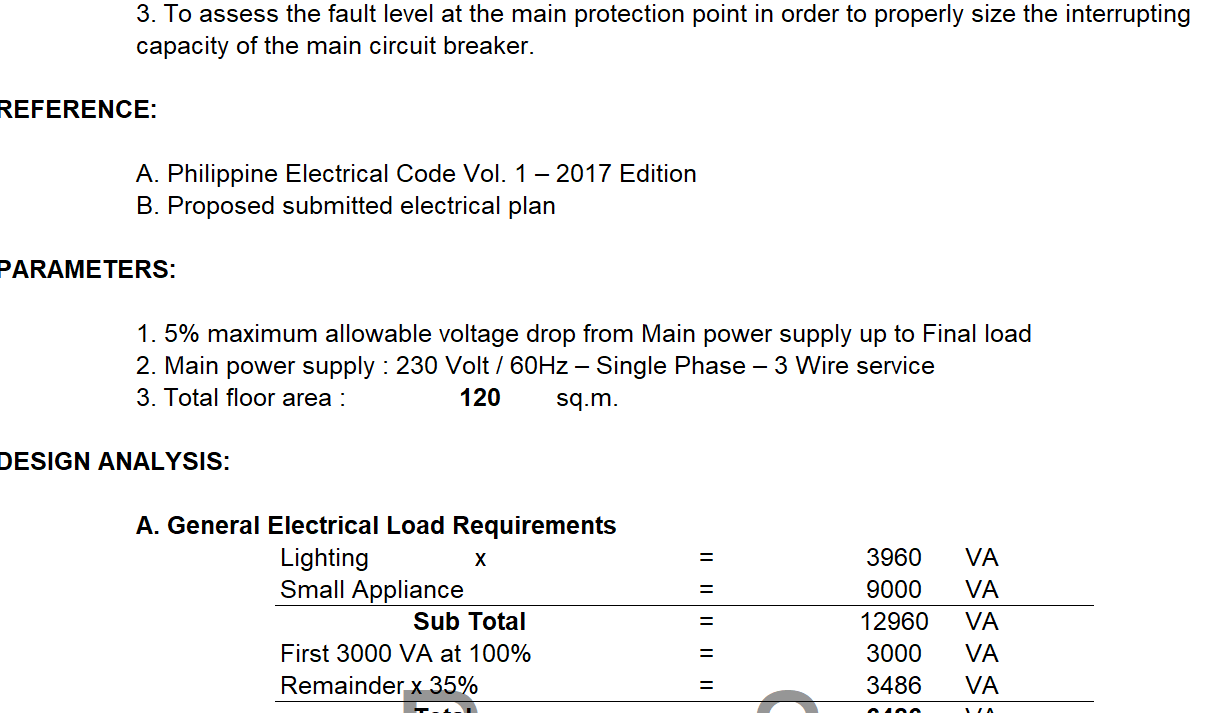

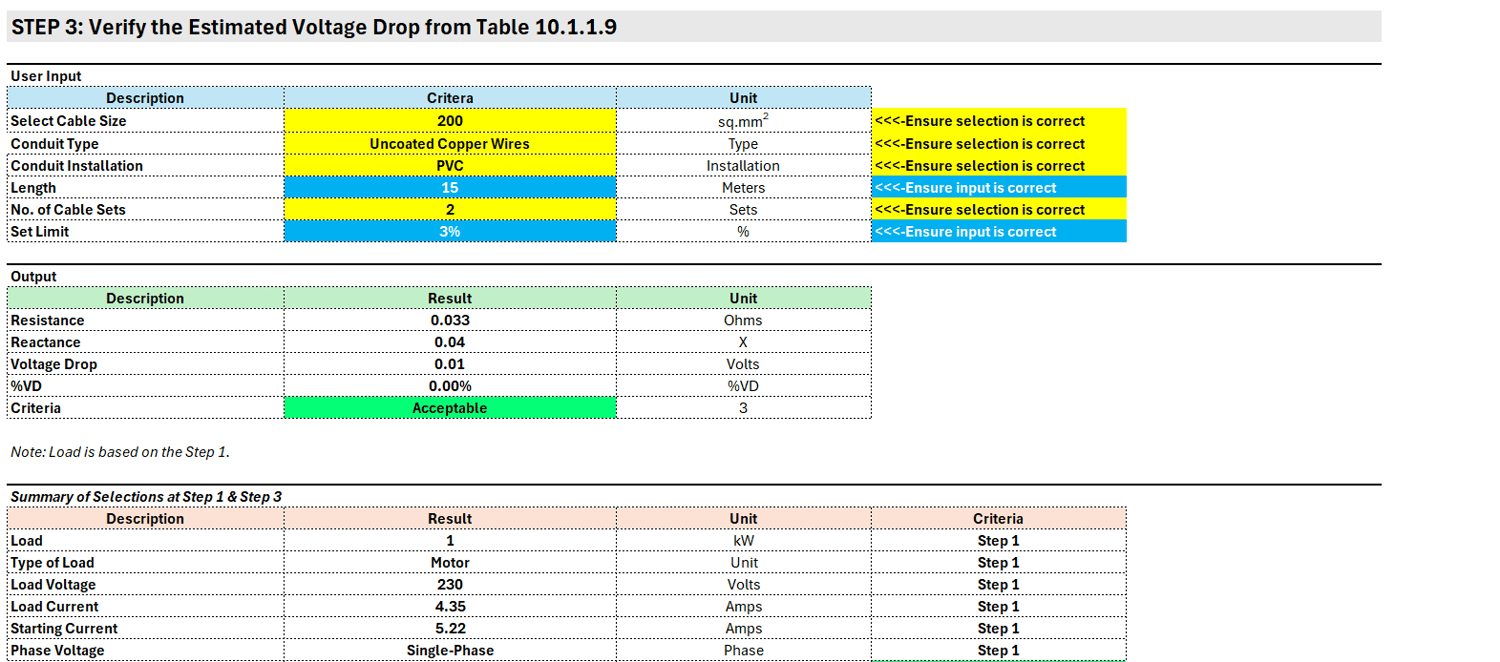

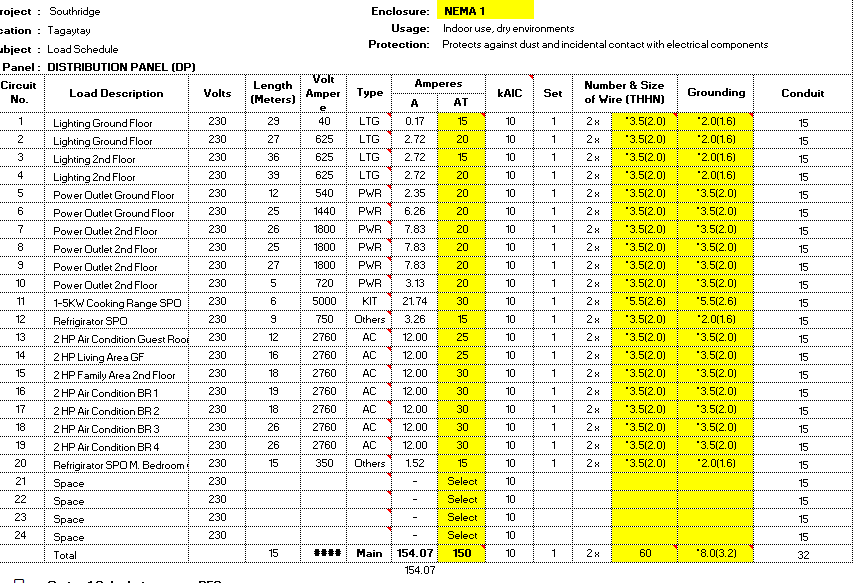

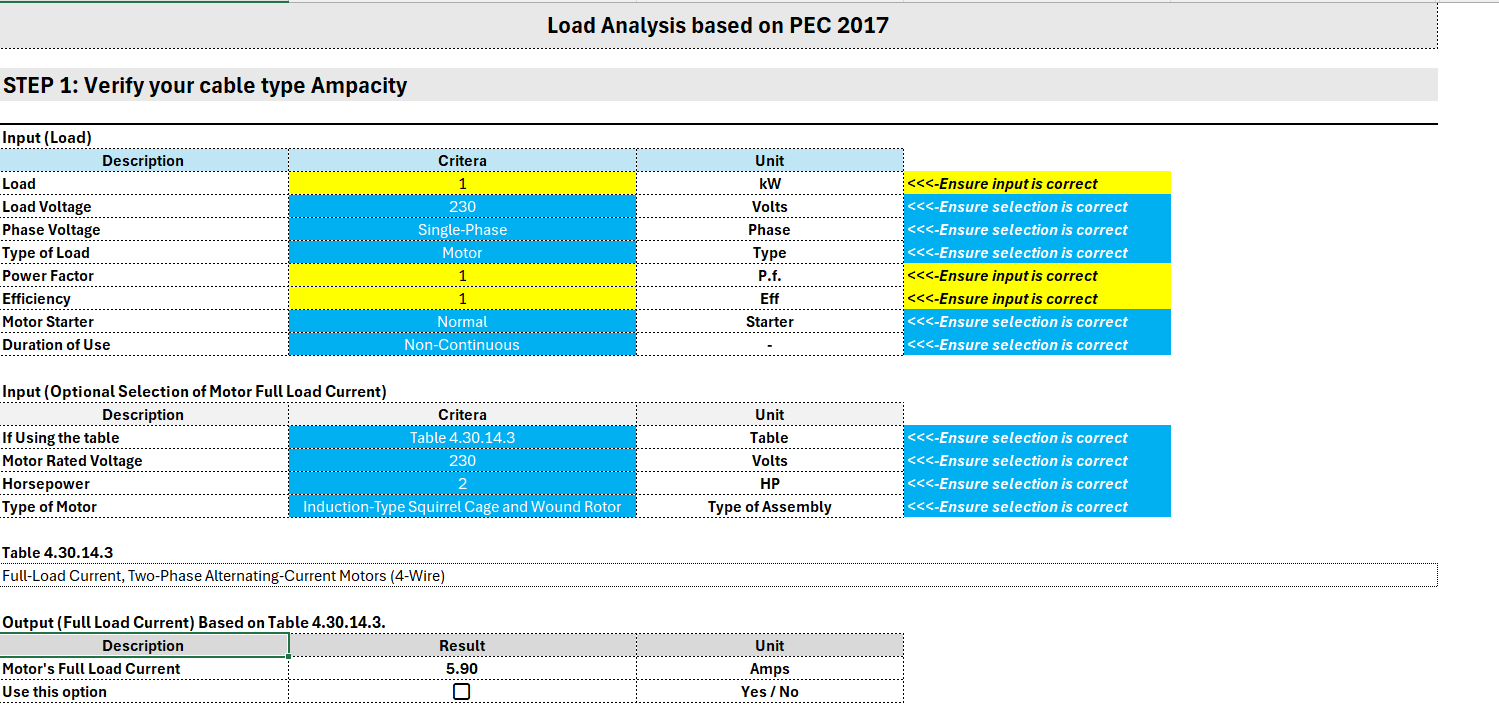

Introducing a user-friendly Excel spreadsheet that simplifies the process of calculating loads by load type. This tool provides both manual and automatic recommendations for cable sizing, conduit selection, and voltage drop calculations. Just input your load schedule, and the tool will instantly suggest the recommended cable and conduit. You can also configure your short circuit sequence with a single click and use the pre-built design analysis template. Fill in your load schedule, click to calculate the short circuit, and you're all set. Plus, the formulas are fully customizable, so you can adjust them to your preferences.
