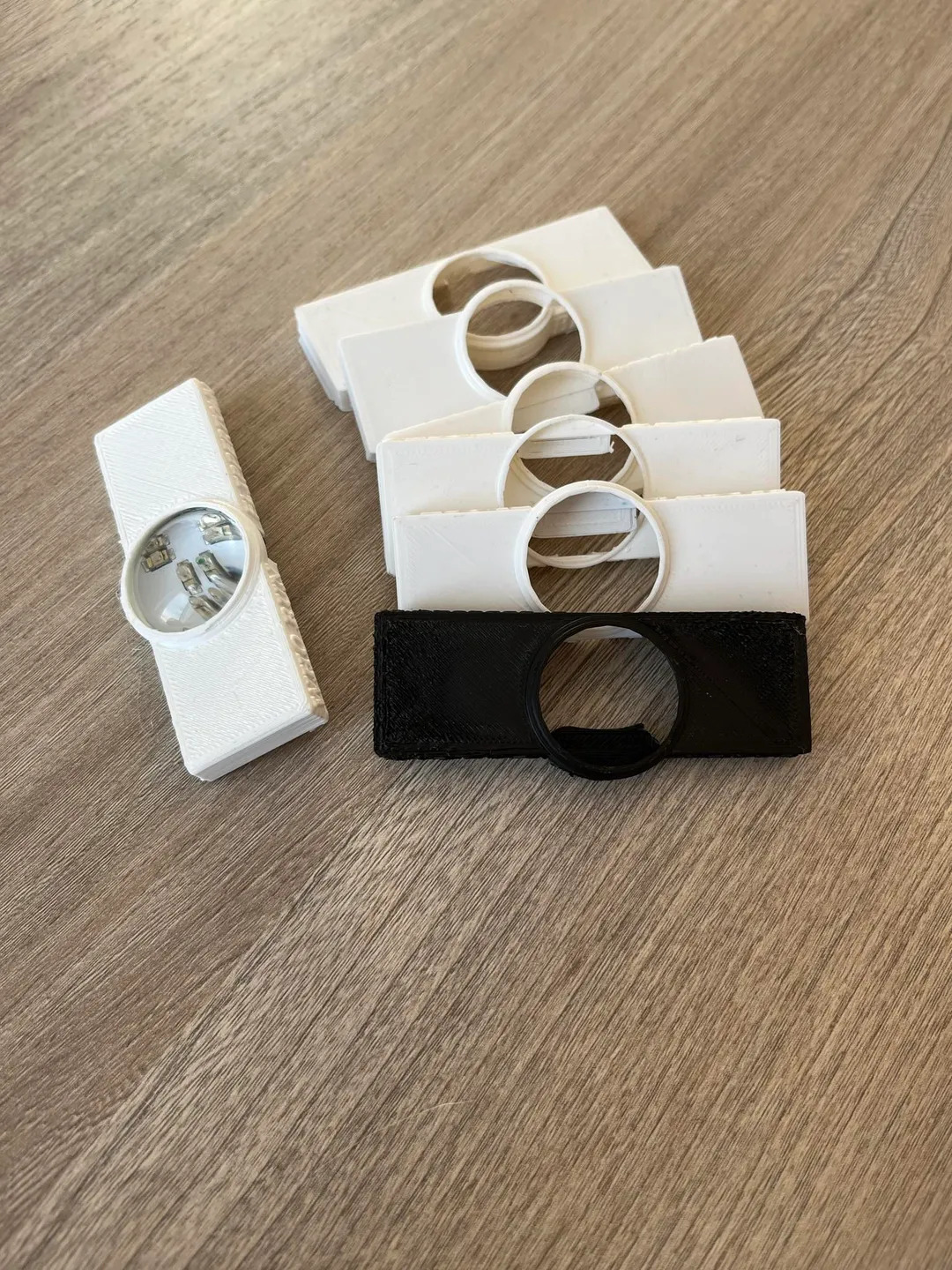

Masta Blasta Case

Why did I make it?

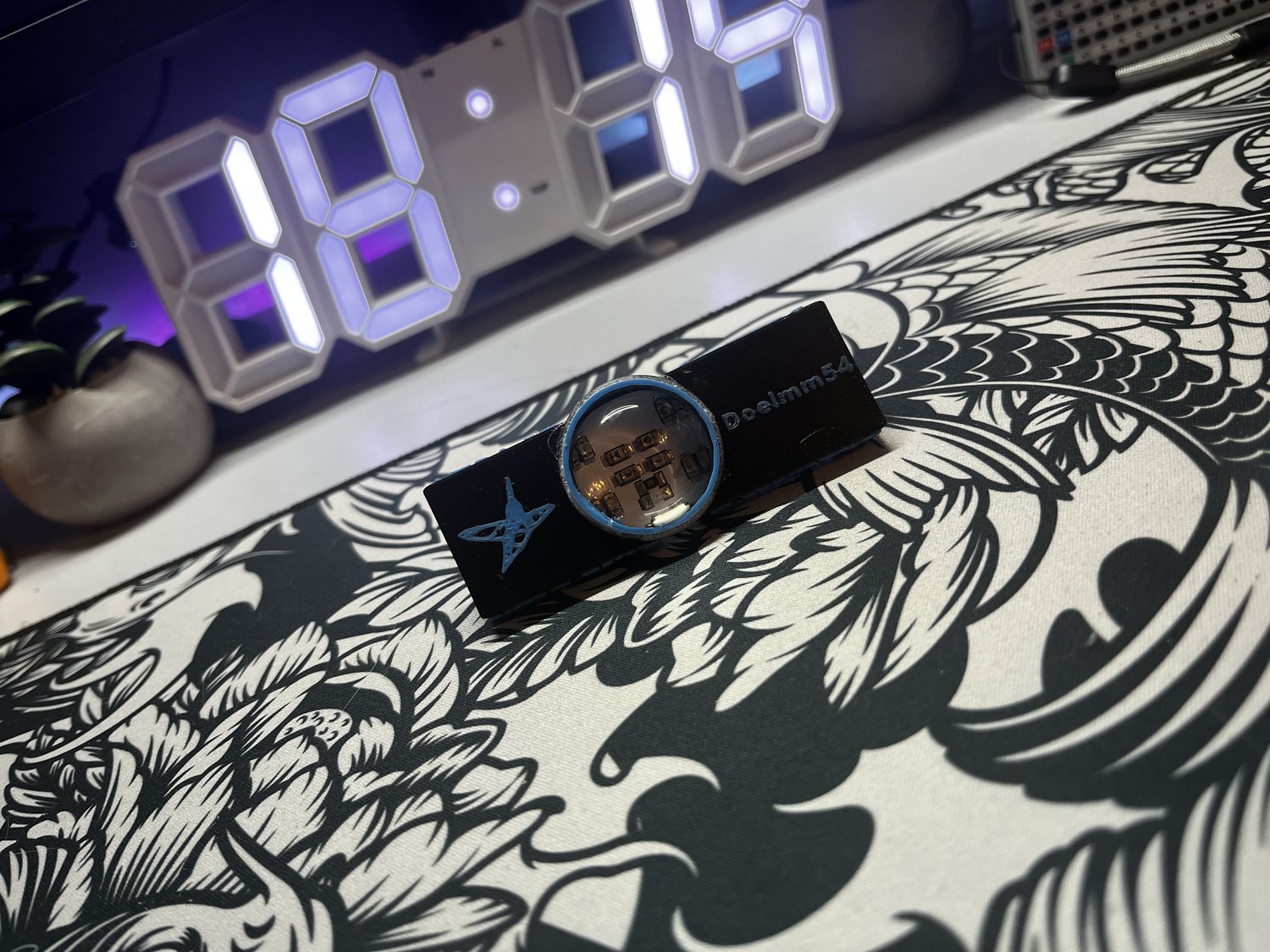

I made this case, because I wanted to input the lens to make the board infrared more effective.

What happened to other case that was published by other person?

The person, who originally made the board case first, had to delete the file, due people using it for selling.

I have nothing to do with it, I designed the case from 0 and measured myself.

The board: https://www.tindie.com/products/tehrabbitt/the-masta-blasta-ir-blaster-by-rabbit-labstm/

or

https://www.etsy.com/listing/1549985889/the-masta-blasta-ir-blaster-by-rabbit?ga_order=most_relevant&ga_search_type=all&ga_view_type=gallery&ga_search_query=mastablasta+case&ref=sc_gallery-1-3&sts=1&plkey=eec3ebdc83d807f8a5c6e0d5c578012d7ef92938%3A1549985889

They are from same seller.

If you want to print it yourself, you would need the lens:

https://www.aliexpress.com/item/32788391183.html?spm=a2g0o.order_list.order_list_main.11.6fb01802ZlNW7q

The instruction how to put it in is detailed in images, short summary here:

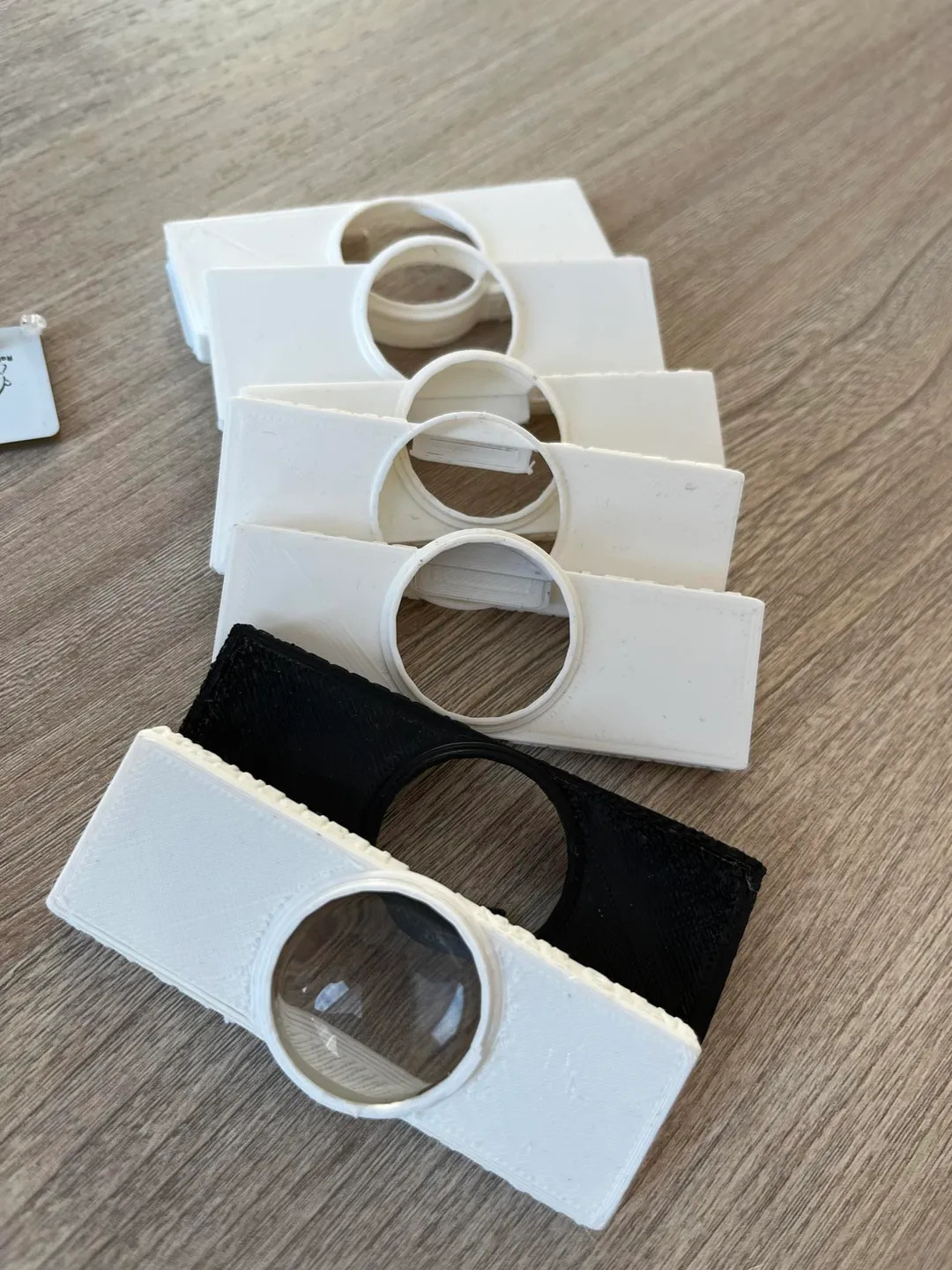

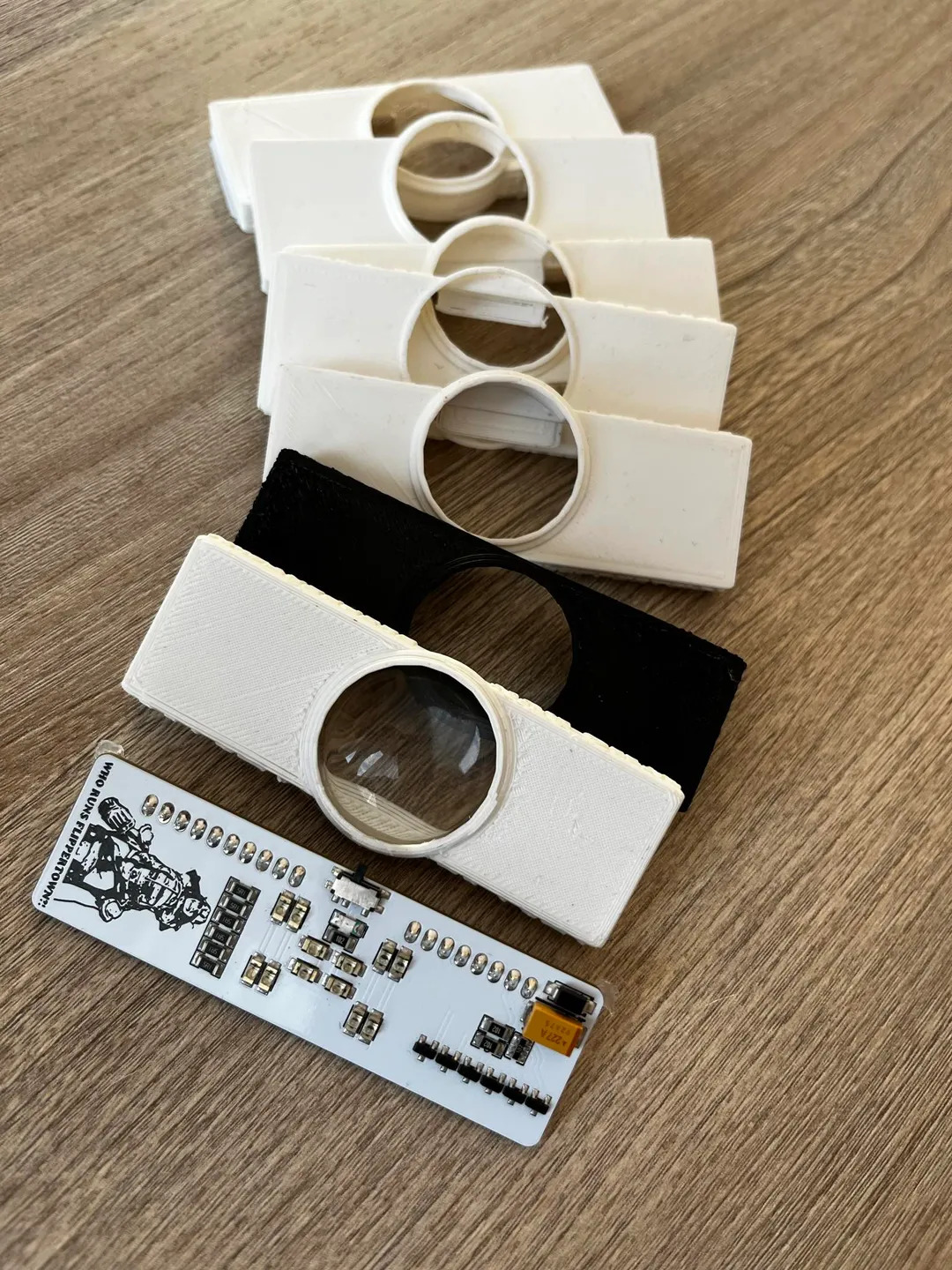

To put in lens, you need to put the lens first in from opposite side of the case (not switch side) and press the lens, till it snaps and secures.

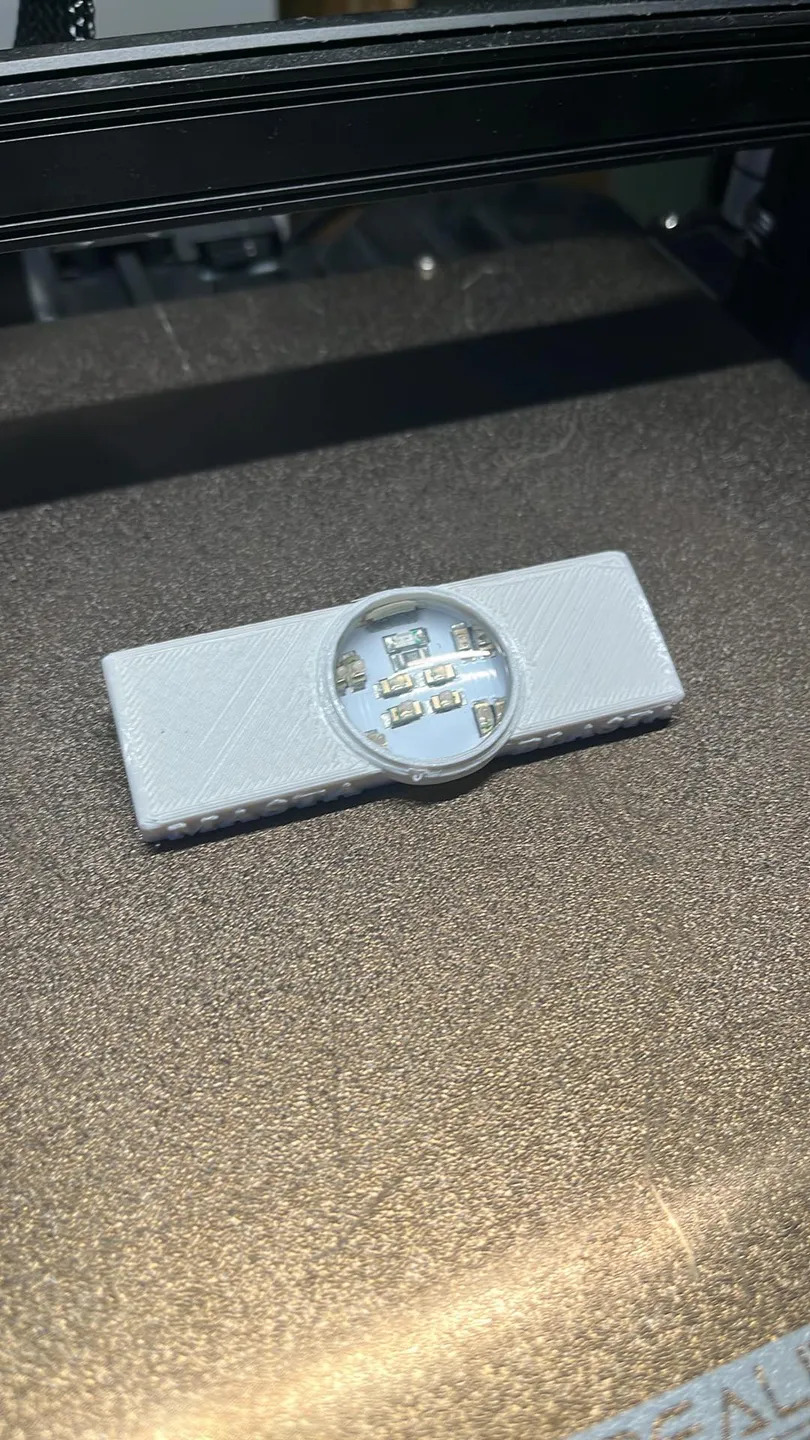

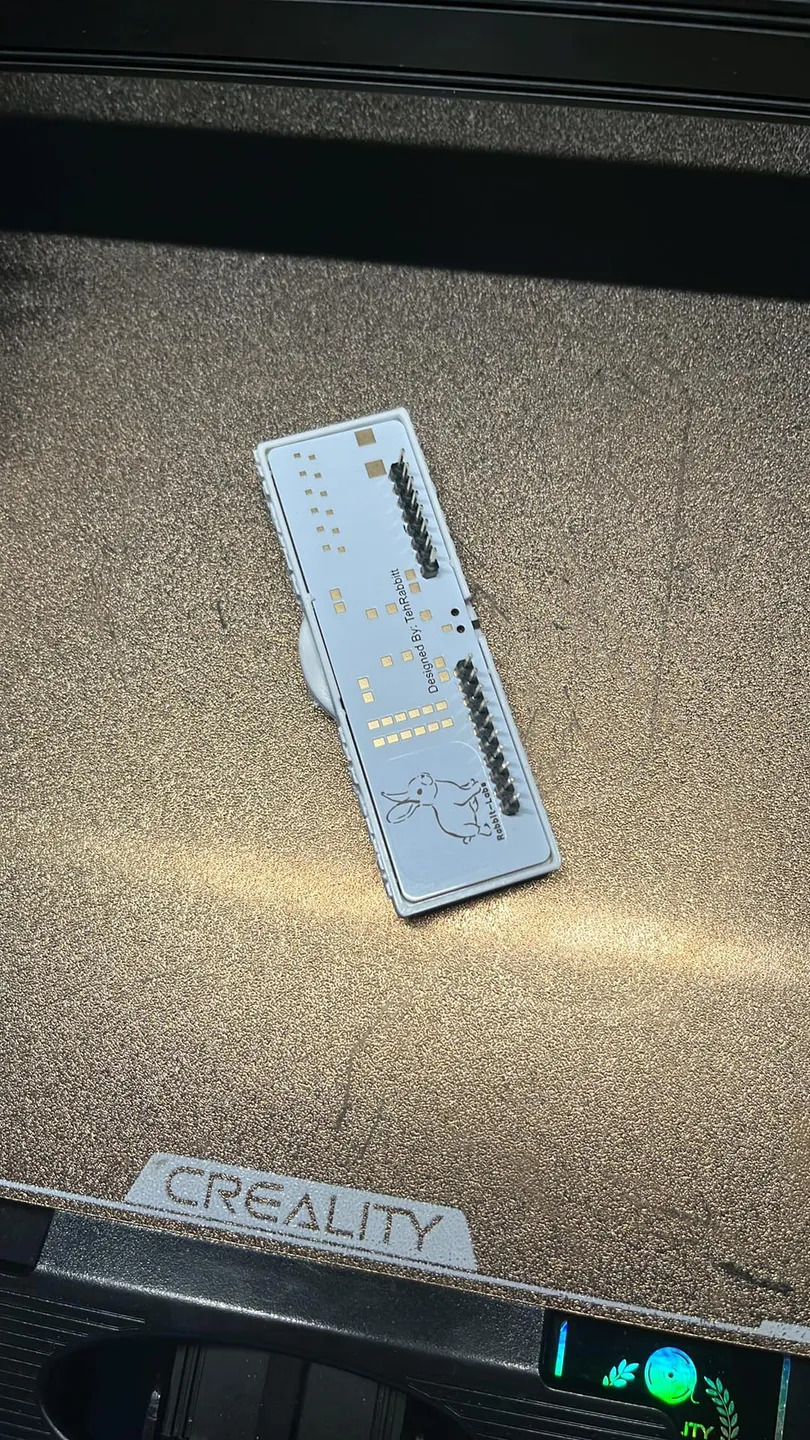

The case should be easy to install, as it should snap by itself with slight pressure.

Printing information:

Quality: 0.16mm.

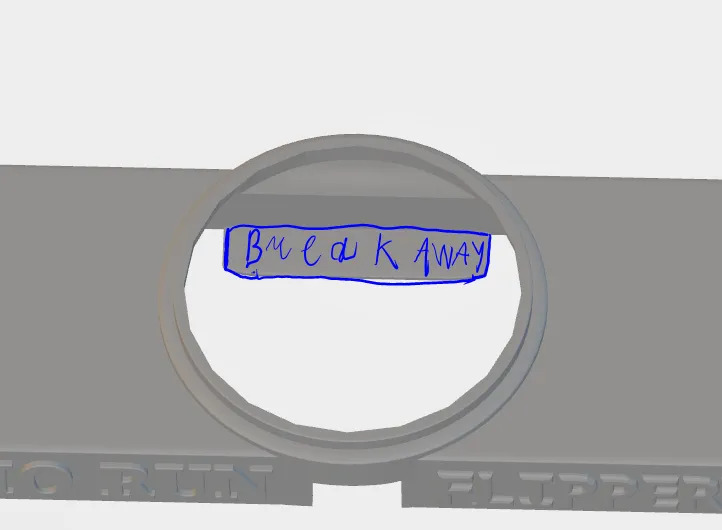

Support: Yes (print it upside down, and in image there is highlighted part, that should break off when you remove support, you can keep it if you'd like)

Adhesion: Yes.

Infill: 20%.

Material: PLA, PETG, ABS. (what I used to print my cases)

If you will have any issues, or problems with case, feel free to message me.
