Shaker Mudroom Set Plans – Entry Bench, Hall Tree Wall and Peg Rail Woodworking Plan PDF

A complete Shaker-style mudroom on one wall: a sturdy 48" bench with a boot shelf, a board-and-batten style hall-tree wall with a top shelf, and a classic peg rail, plus a separate 36" peg rail for coats and bags. Simple joinery, clean lines and paint-grade or stain-grade options.

This isn't a photo with a parts list. Every dimension comes from a parametric 3D model, and the cut list is checked against it by a second, independent calculation, so the parts actually fit. Finished size: 92" W x 12" D x 72-3/4" H (2337 mm x 305 mm x 1848 mm).

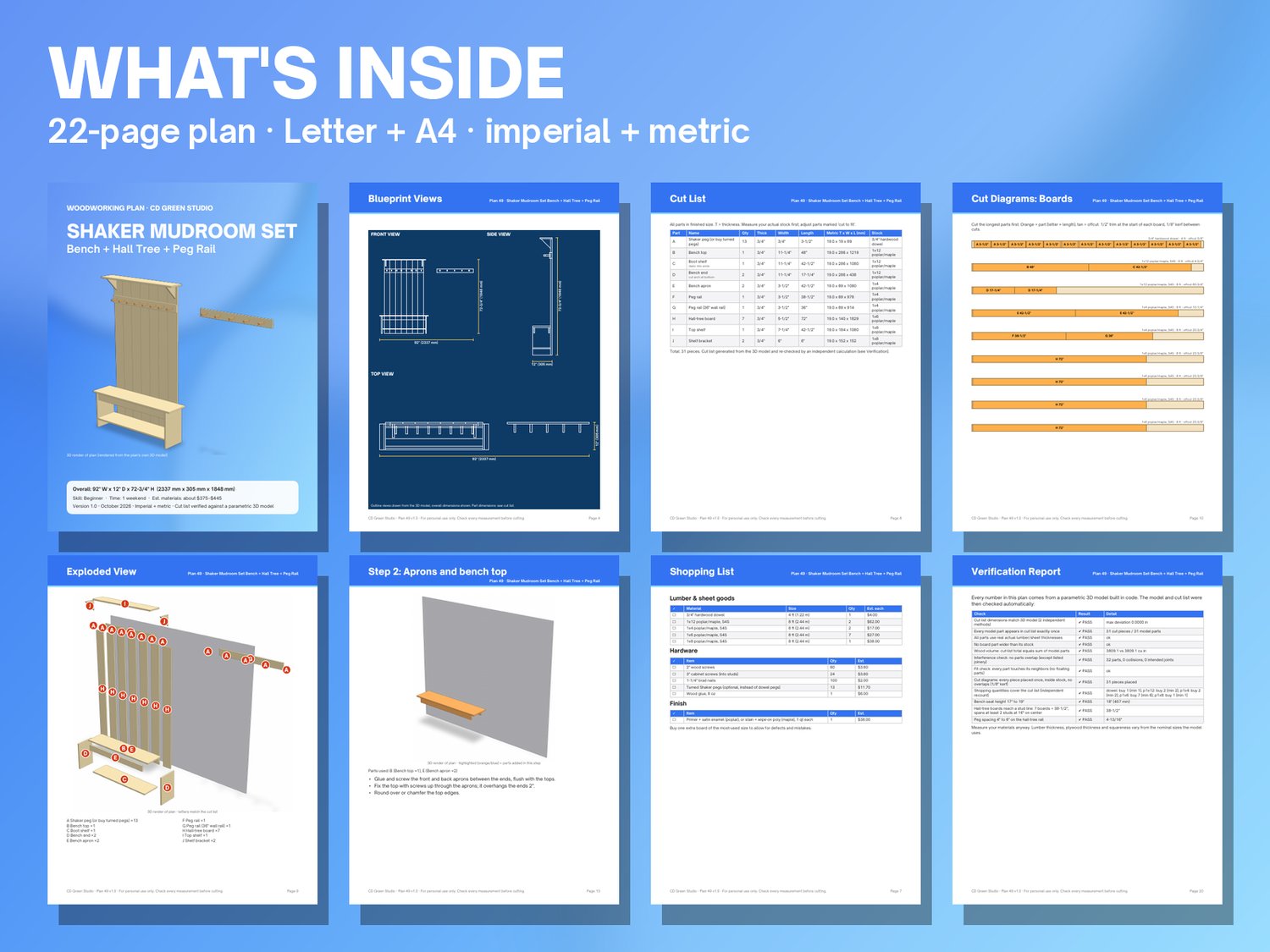

WHAT'S INCLUDED (22 pages):

• Overview with overall dimensions + blueprint front/side/top views

• Skill level, build time and a cost estimate (about $375–$445 in materials, 2026 US prices)

• Tools list and printable shopping list (lumber, sheets, hardware, finish)

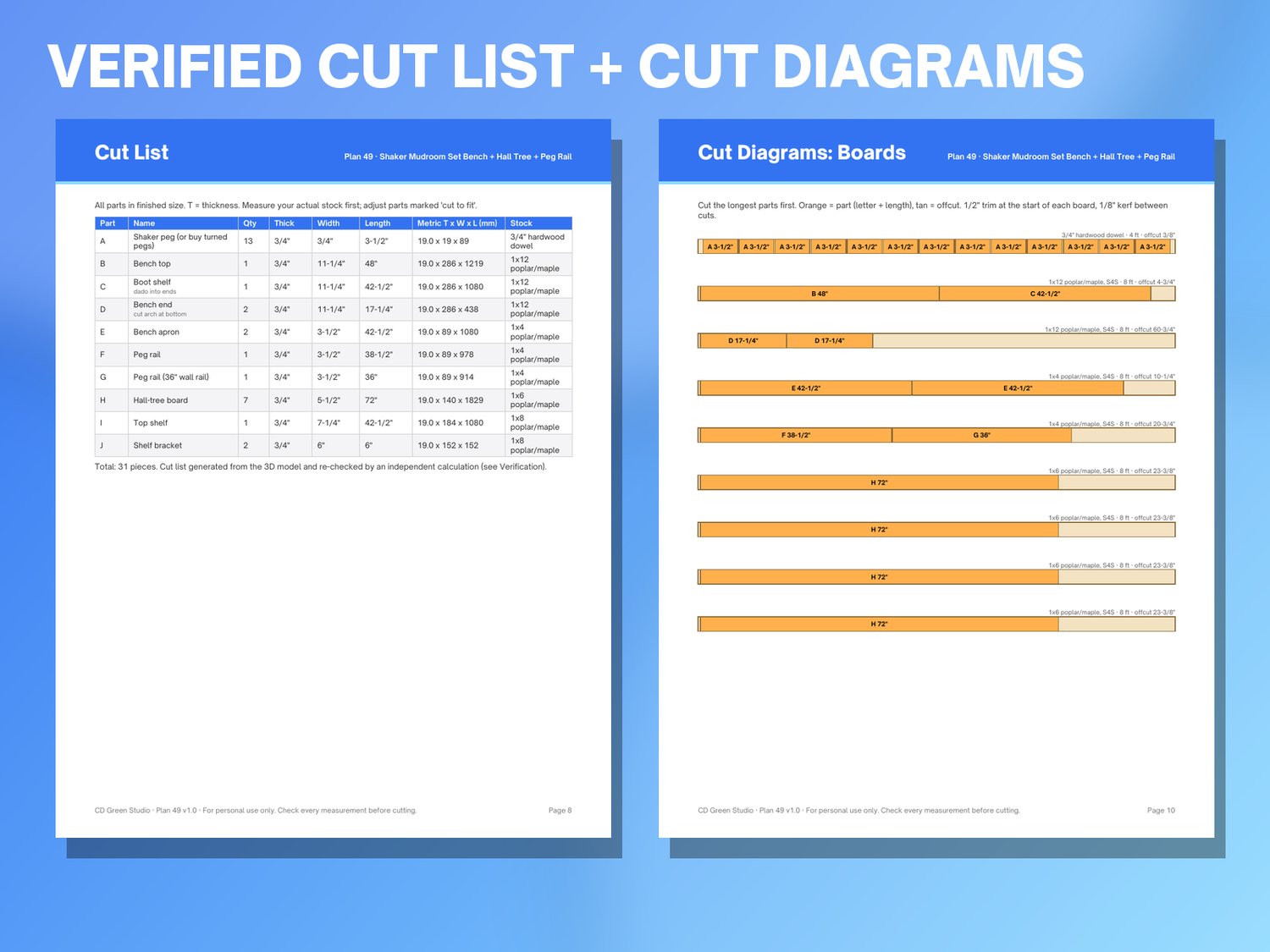

• Verified cut list: 10 lettered items / 31 pieces, inches + millimeters

• Board cut diagrams and plywood sheet layouts with kerf allowance

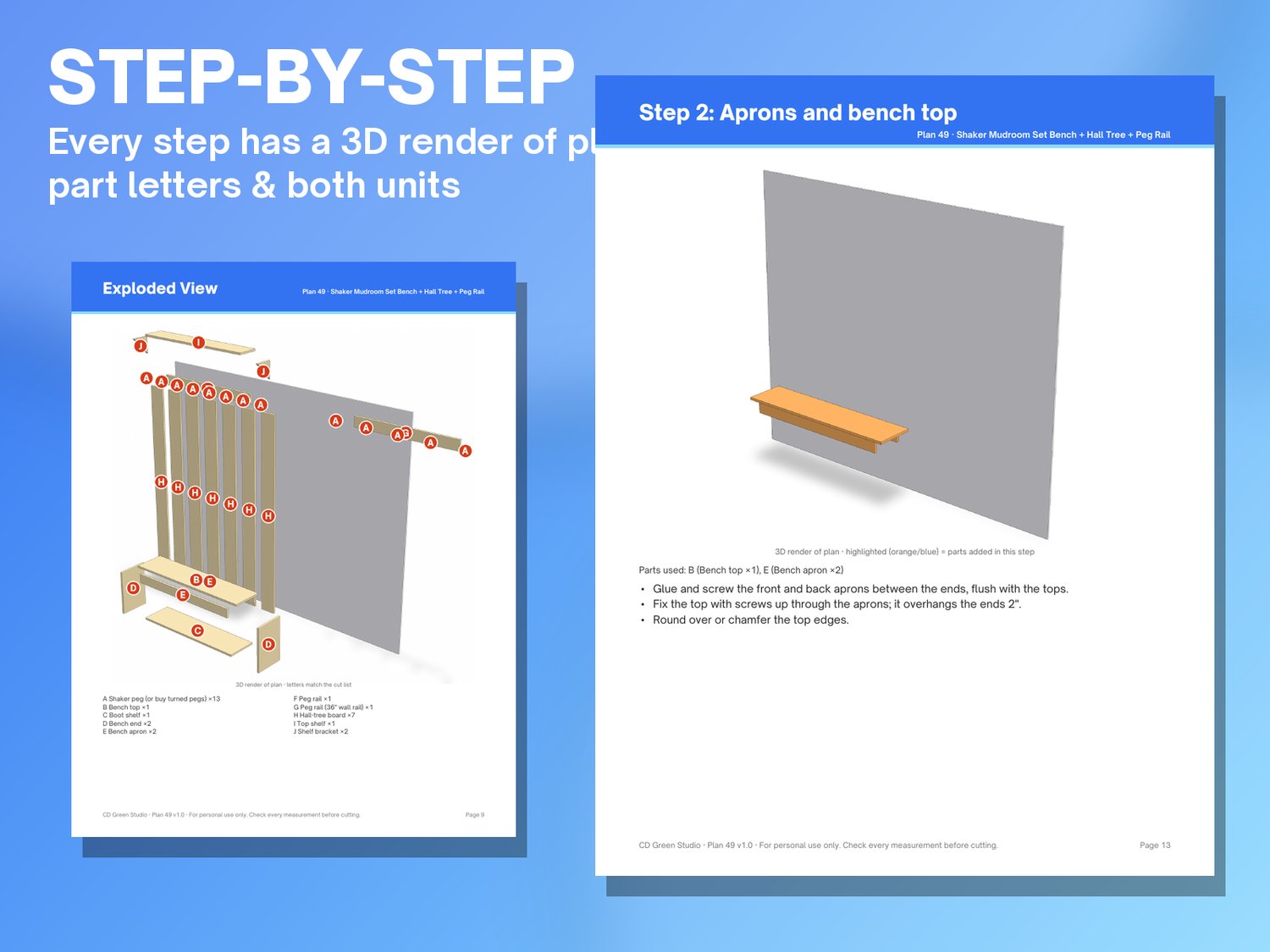

• Exploded view with part letters

• 6 step-by-step assembly pages, each with a 3D render of plan

• Finishing guide, size and style variations, troubleshooting

• Verification report (the 3D model's automatic checks)

• Safety & disclaimer page, version number and corrections contact

DETAILS:

• Skill level: Beginner · Build time: 1 weekend

• Instant download: 2 PDFs (US Letter 8.5 × 11 in and A4)

• Imperial and metric measurements throughout

• Uses real lumber sizes (a 2x4 is 1-1/2" x 3-1/2"; 3/4" plywood is 23/32")

• Version 1.0. Free updated PDF if a correction is ever made

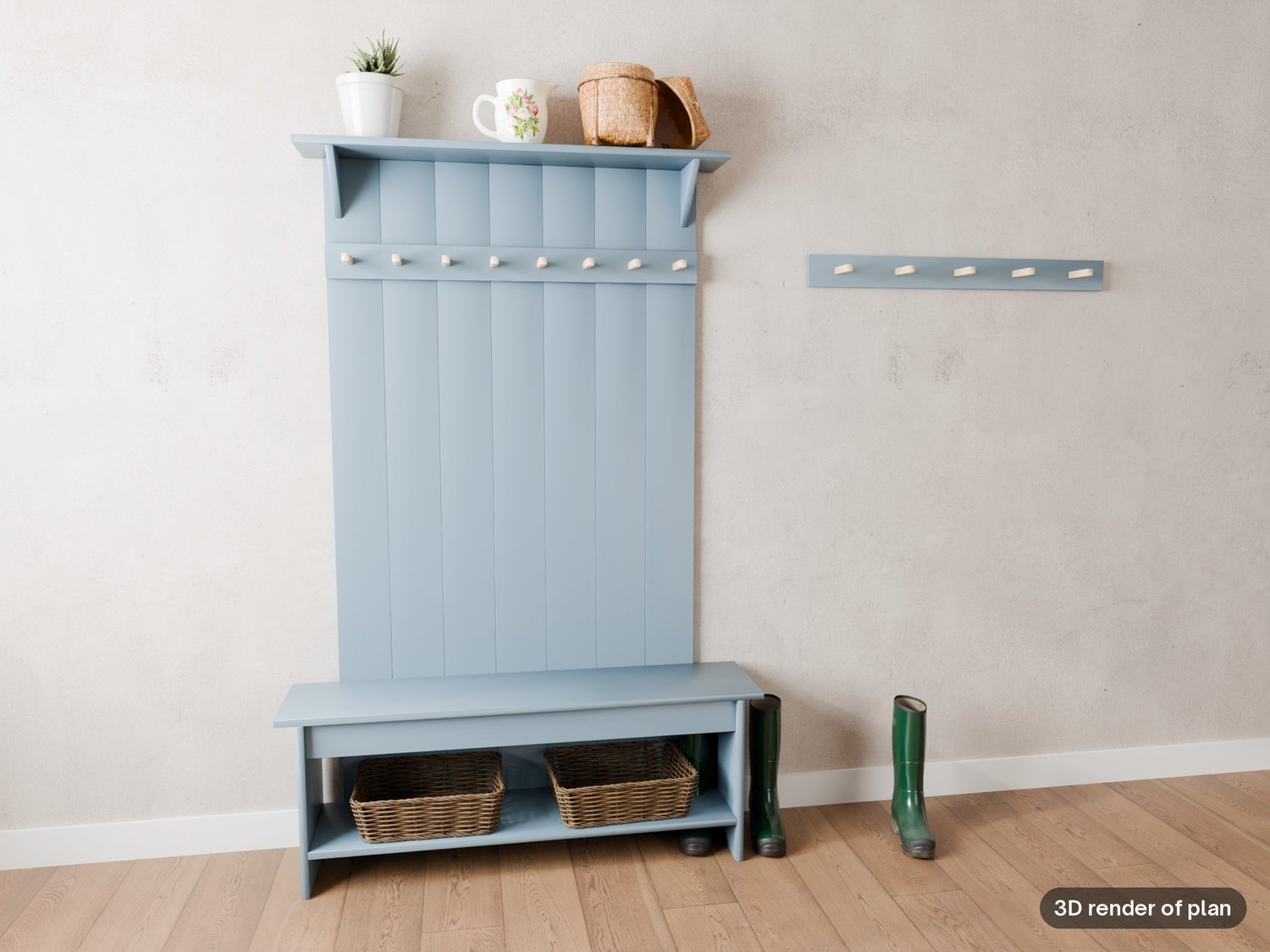

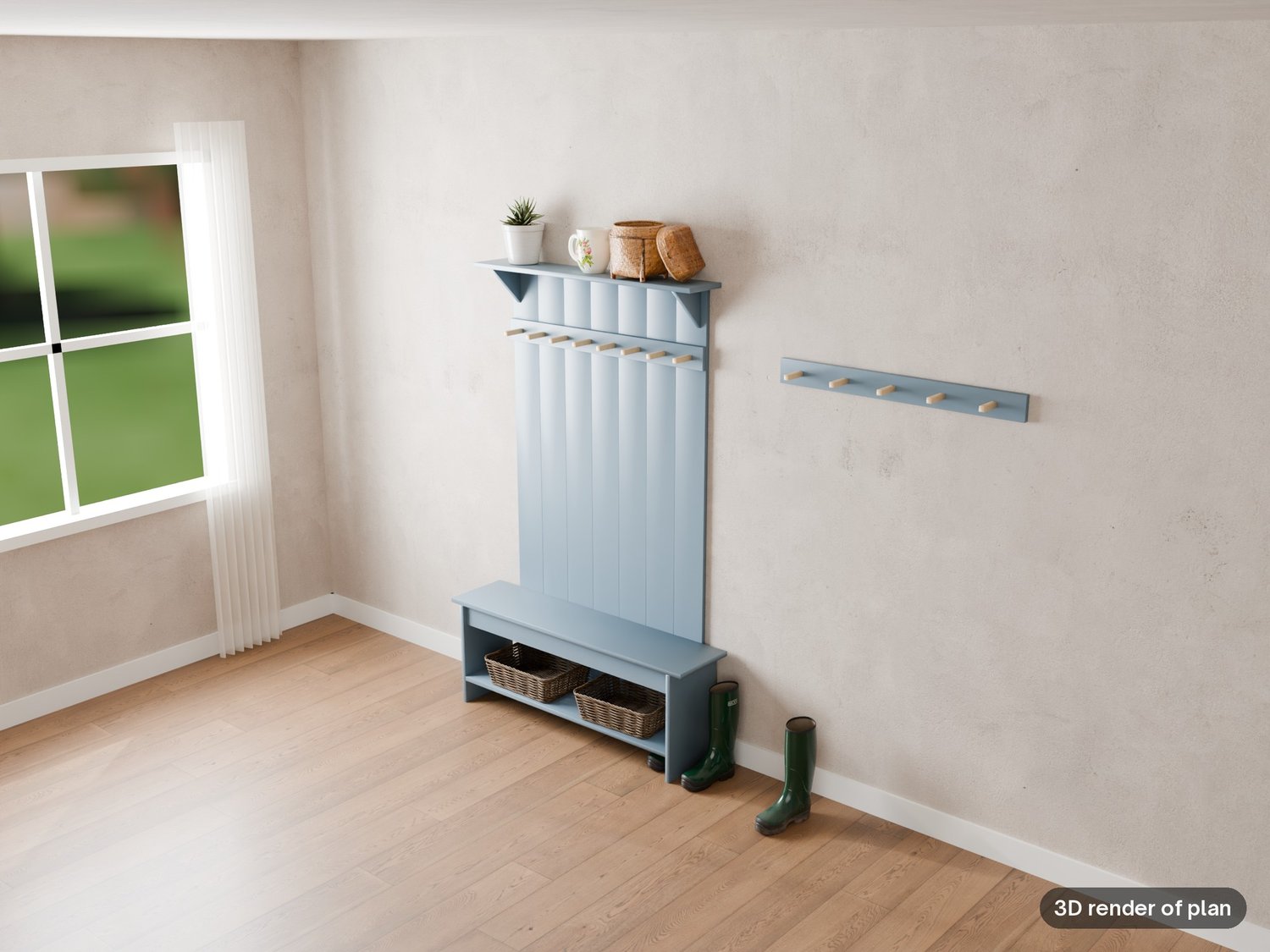

All product images and plan illustrations are 3D renders of the plan's own 3D model (labeled '3D render of plan'), not photos of a finished build. No AI image generators are used. AI disclosure: CD Green Studio made this plan with the help of AI tools (the 3D model code, cut list checks, drawings and written instructions were produced with AI assistance under our direction).

This is a digital download of a woodworking PLAN: no physical item or lumber is shipped. Build at your own risk; check all measurements and local codes. For personal use: you may sell furniture you build from it, but not the plan itself.
