The Stacey Barndominium Garage Apartment Plan

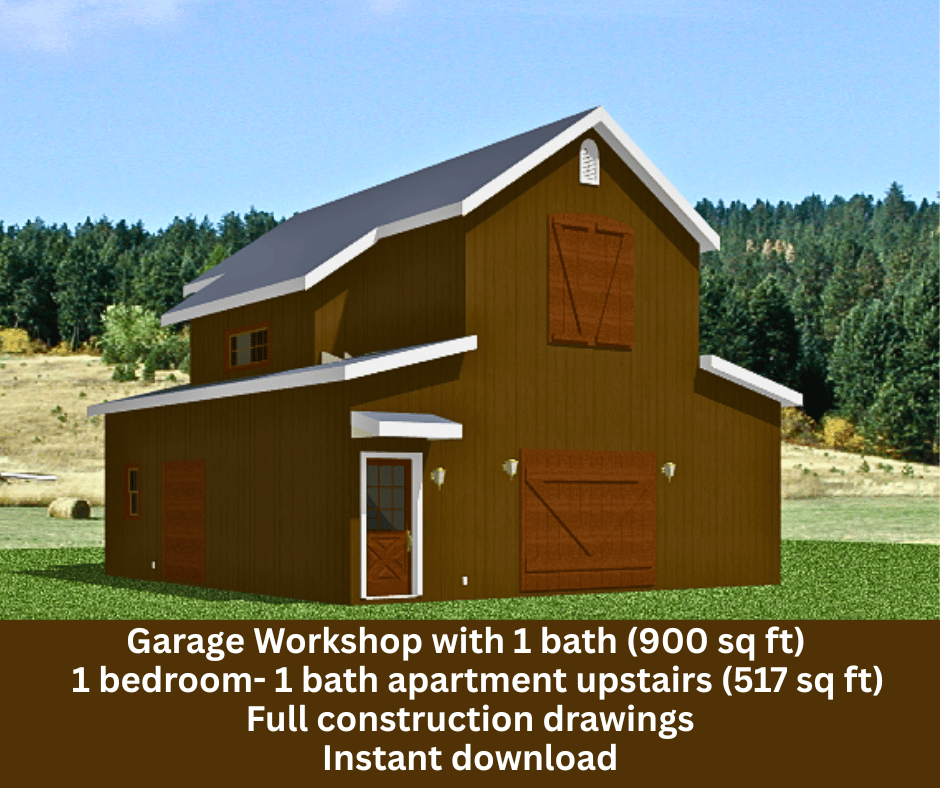

Looking for the perfect combination of functionality, comfort, and style? The Stacey Barndominium Plan delivers it all — a versatile garage and workshop with a full bath on the first floor, plus a cozy 1-bedroom, 1-bath apartment upstairs. Whether you’re dreaming of a guest suite, income property, or your own modern live-work space, this plan blends practicality with barndominium charm.

Plan Overview

The Stacey offers a balanced layout with plenty of room to work, store, and live — all under one roof. The spacious garage and workshop provide ideal space for vehicles, tools, or hobbies, while the upstairs apartment adds comfortable living quarters for guests, family, or renters.

Plan Details:

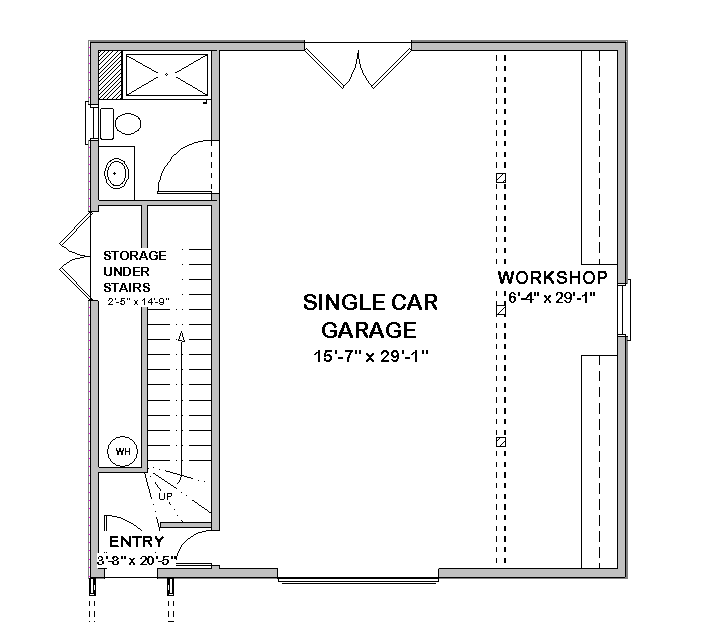

First Floor (Unheated): 900 sq. ft.

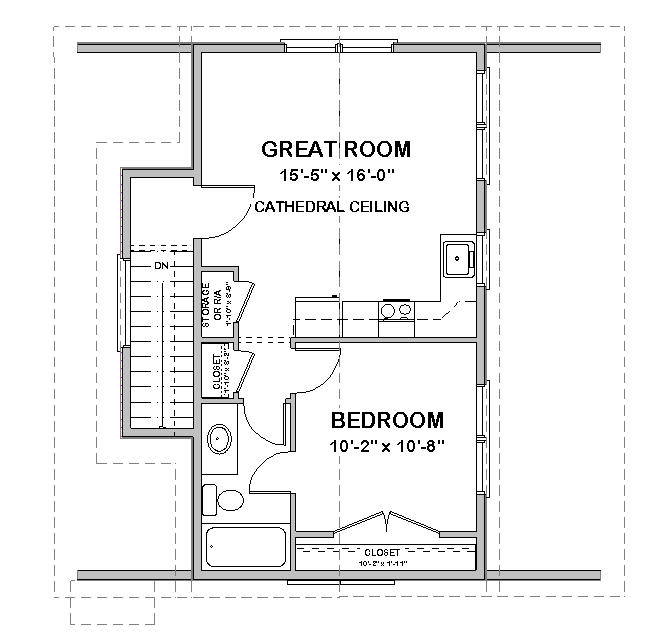

Second Floor (Heated): 517 sq. ft.

Total Under Beam: 1417 sq ft

Overall Dimensions: 30’-0” W x 33’-0” D x 25’-8” H

Ceiling Height: 10’ throughout first floor; 8' throughout second floor.

Roof Style: Gable, 8:12 pitch on main roof, 3:12 on sides

Foundation: Slab-on-grade

Your Download Includes (Full Construction Set)

Everything you need to start building confidently:

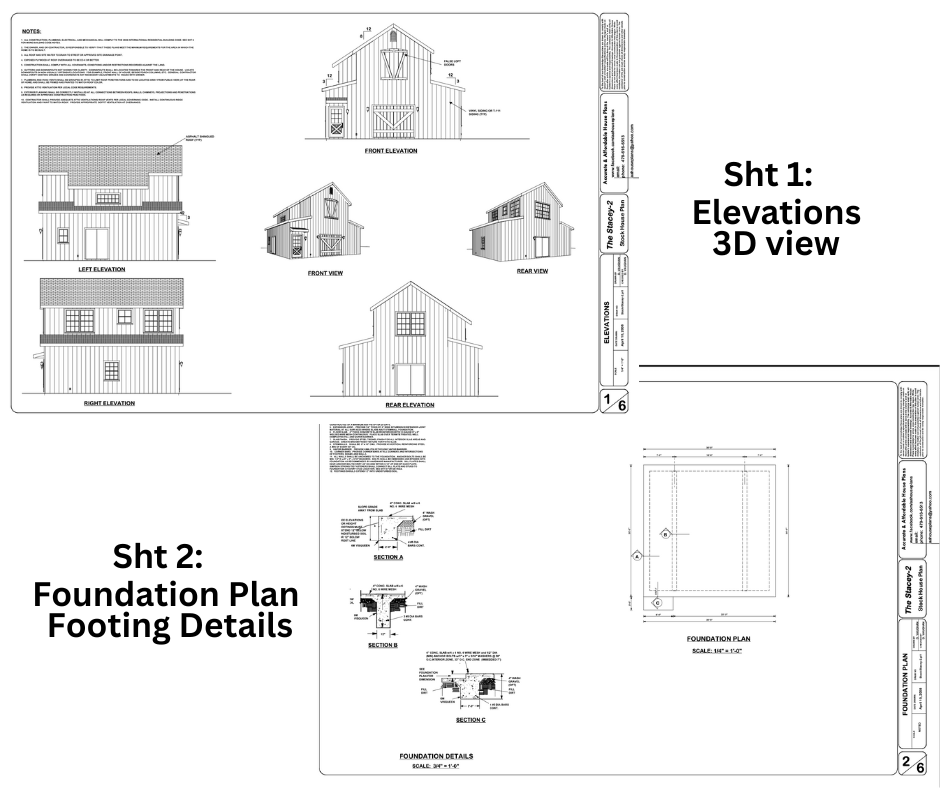

✅ Front, Rear & Side Elevations

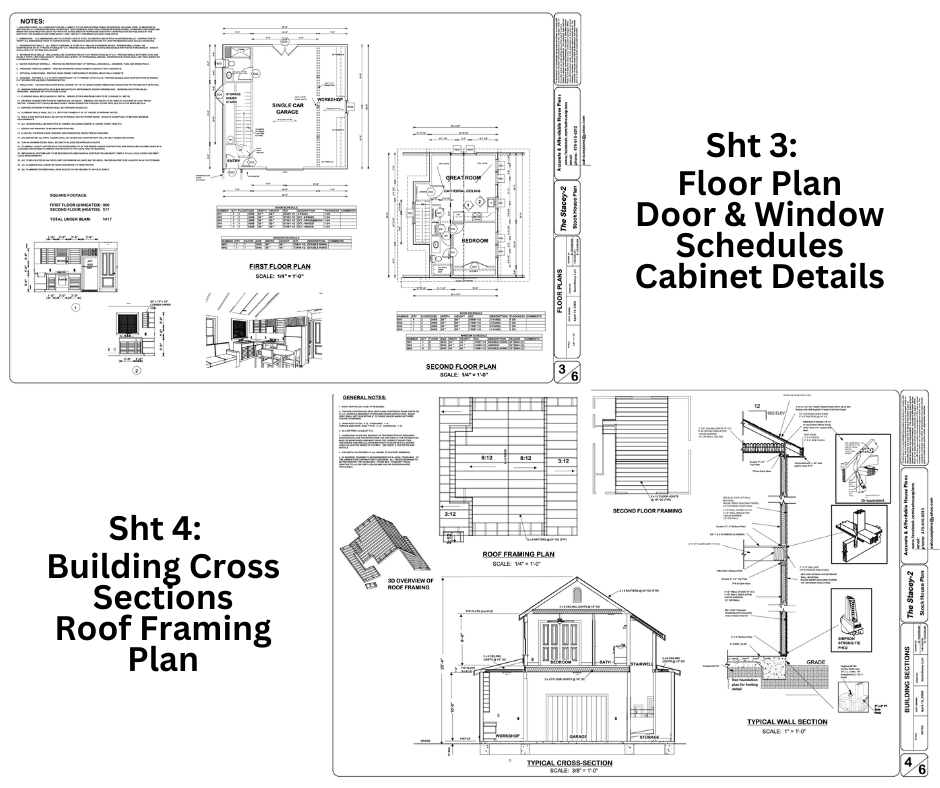

✅ Detailed Floor Plan

✅ Foundation & Footing Plans (Pier & Beam)

✅ Roof Framing Plan

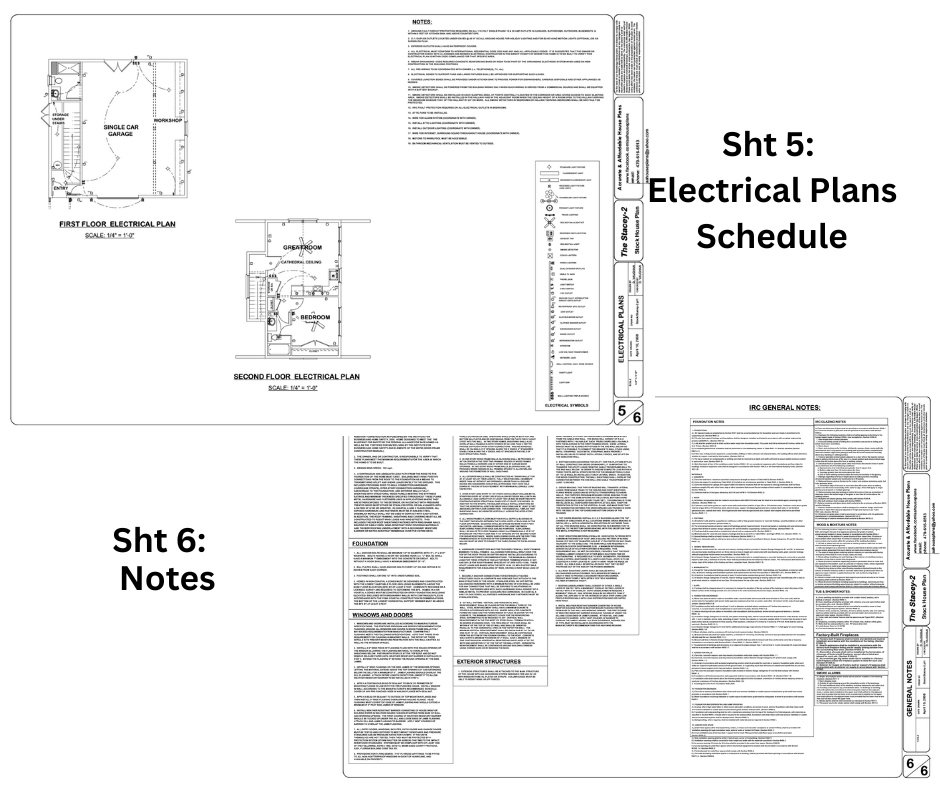

✅ Electrical Layout

✅ Door & Window Schedules

✅ Cross & Wall Sections

✅ Cabinet Details

✅ General Construction Notes (IRC Code, 120mph Wind Zone)

✅ 3D Views or Ceiling Framing Details

Not Included: Architect/engineer stamps, site plans, HVAC/plumbing layouts, materials lists, or custom changes.

Why Choose a Digital Barndominium Plan?

Instant Download – Get started planning today!

Unlimited Prints – Share easily with your builder or permitting office.

Flexible Sizes – Print full-size (24x36”) or smaller for easy reference.

Save Time & Money – No shipping delays or costly reprints.

Important Notes

For personal use only – not for resale or redistribution.

Because this is a digital product, all sales are final.

Bring your dream barndominium to life with The Stacey Garage Apartment Plan — a smart, stylish, and stress-free way to build a flexible living space that works as hard as you do.
