WPS Compliance Review Workbook — Professional Edition

Turn a complex Welding Procedure Specification review into a controlled, repeatable, and traceable workflow.

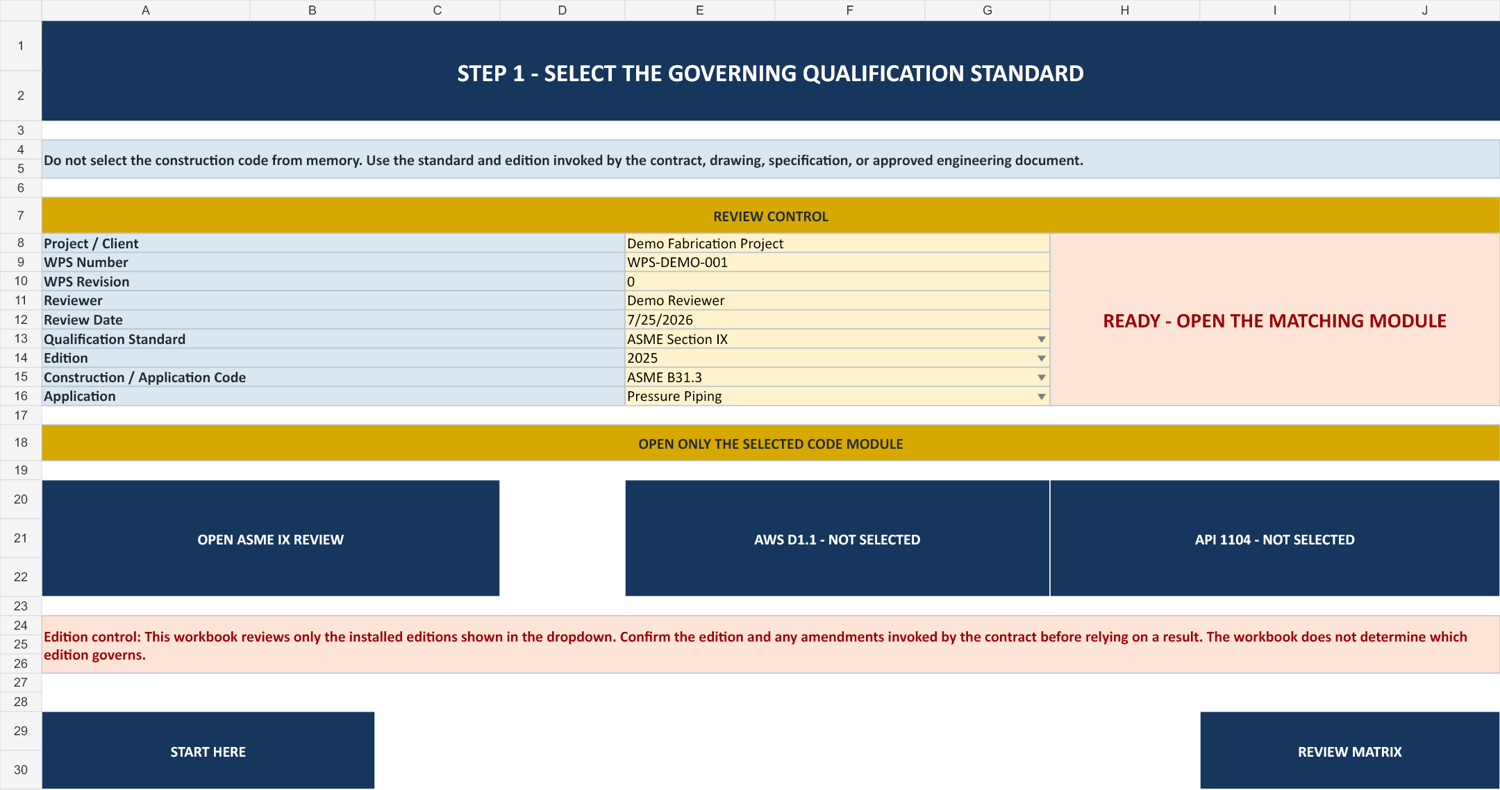

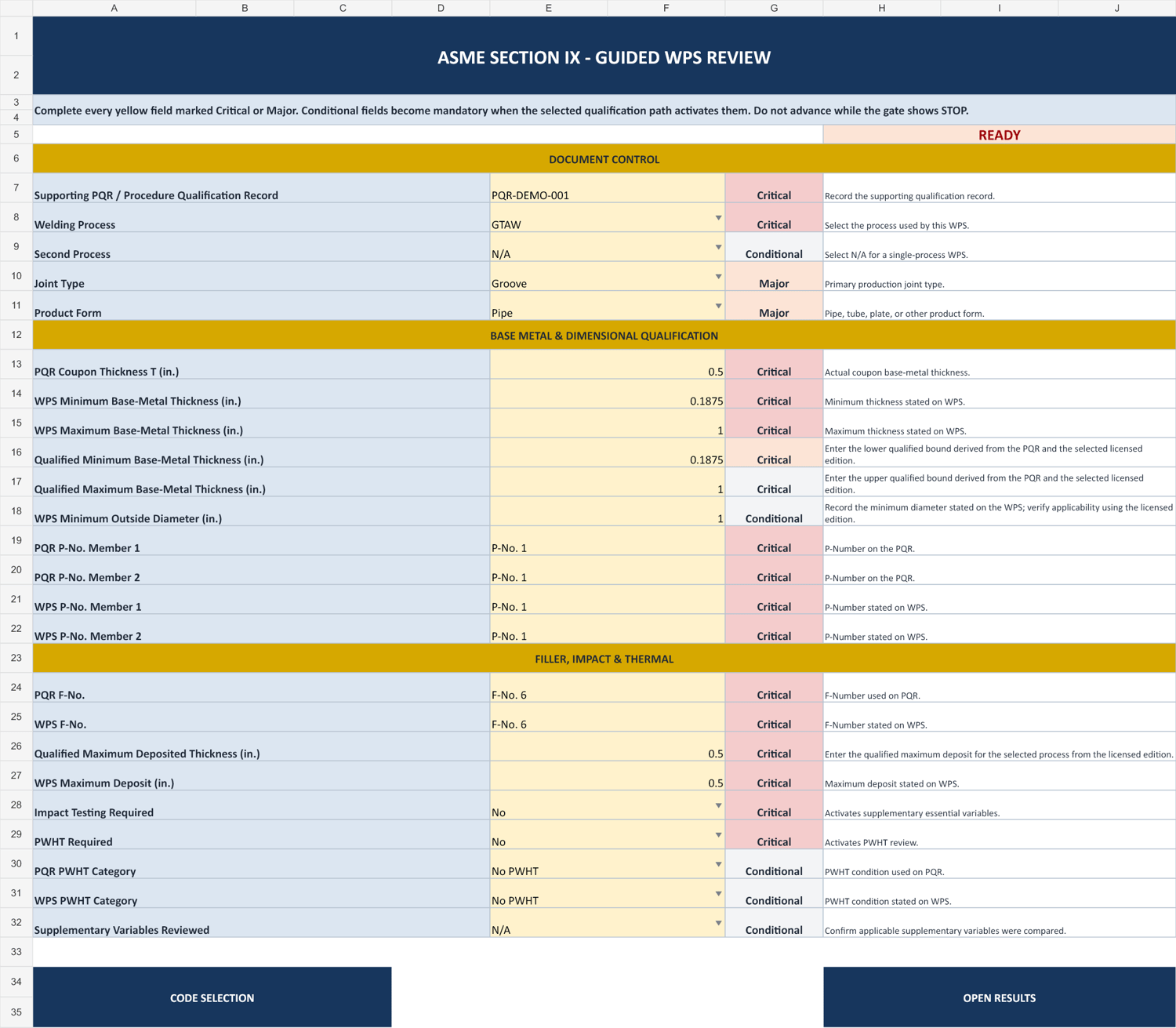

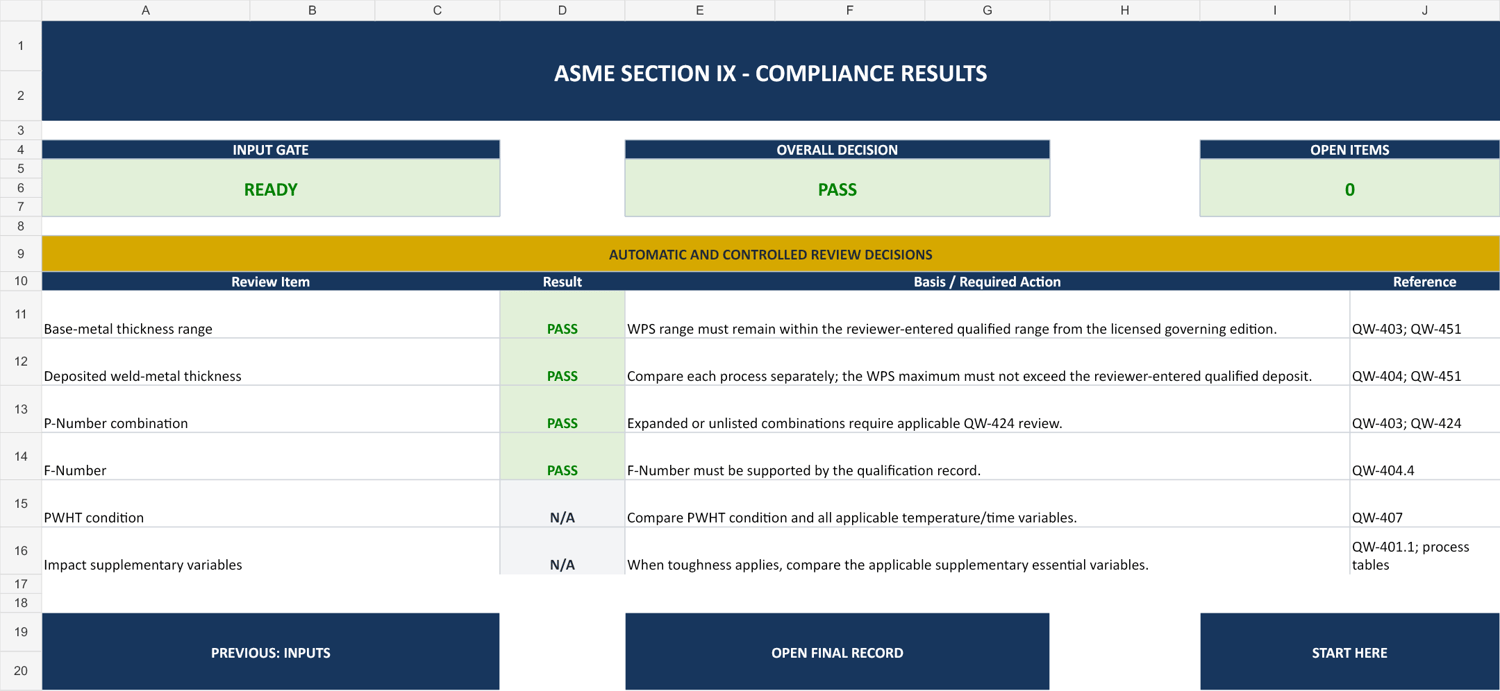

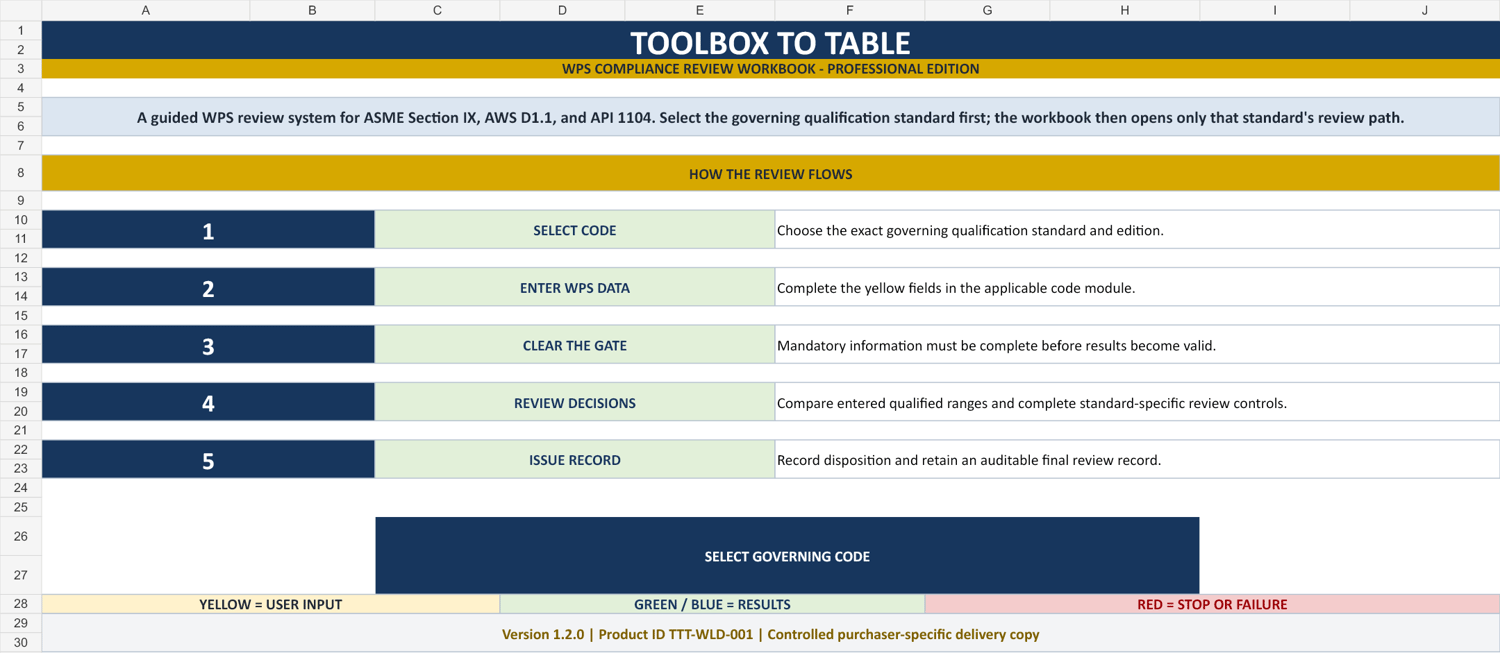

Version 1.4.0 supports structured review paths for ASME BPVC Section IX, AWS D1.1/D1.1M, and API Standard 1104. It guides qualified reviewers through WPS and PQR inputs, qualification-range comparisons, essential-variable checks, technical source control, unresolved-item tracking, and final review documentation.

KEY FEATURES

• Mandatory-input and decision gates

• Controlled thickness and diameter comparisons

• Base-metal, filler-metal, PWHT, impact, and essential-variable review controls

• Conservative HOLD / STOP / review-required workflow

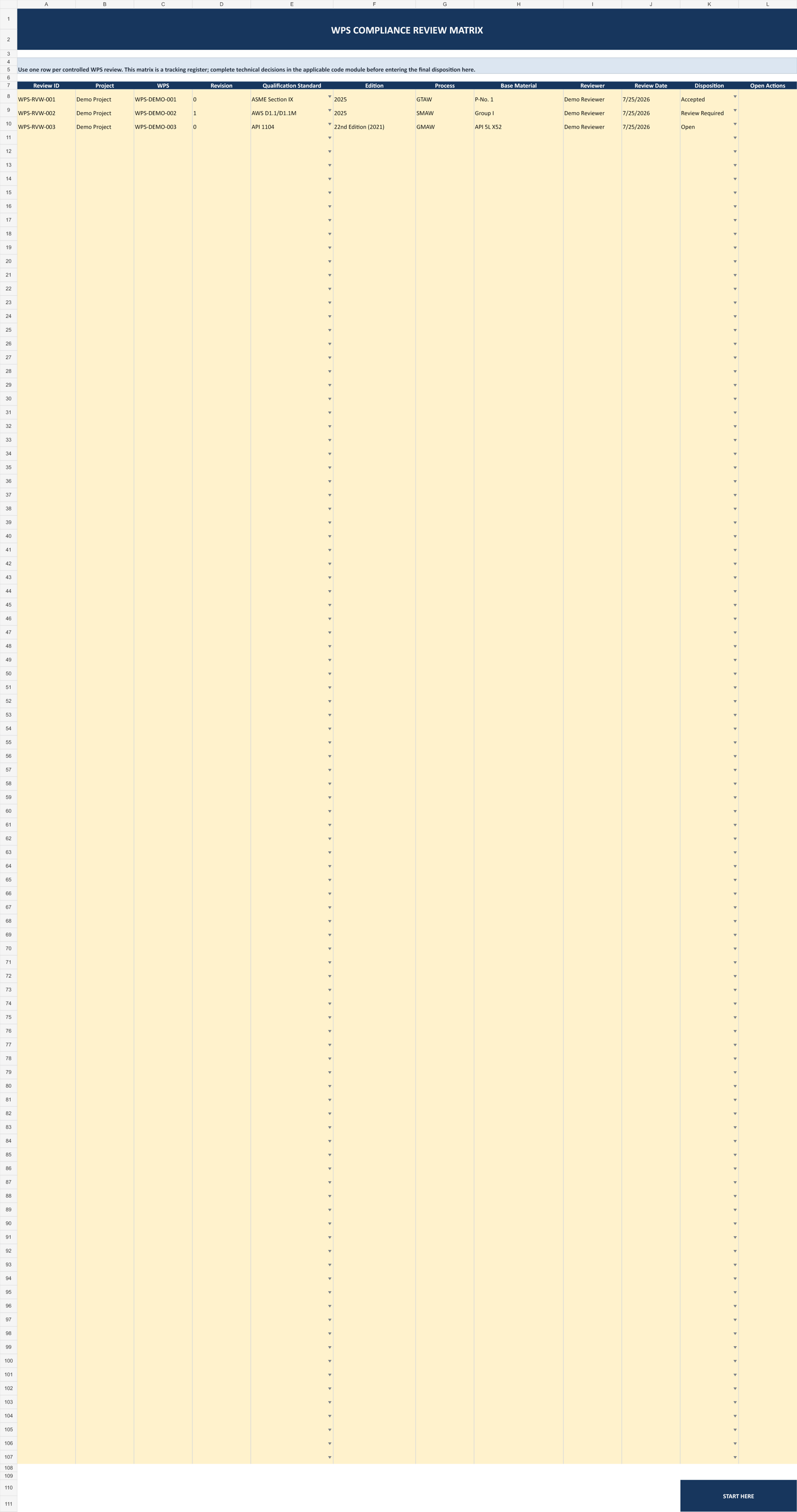

• Review Matrix for multiple WPS documents

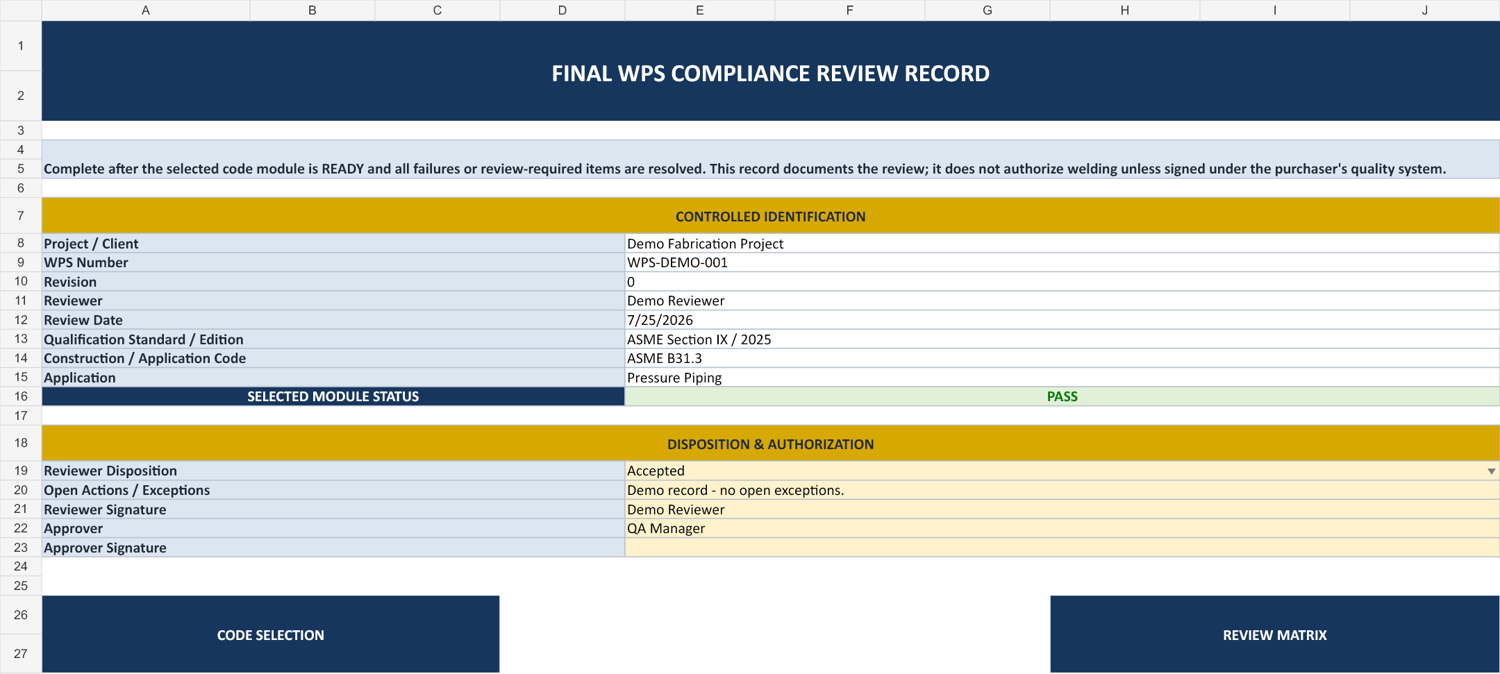

• Final WPS compliance review record

• Technical source and scope register

YOUR DOWNLOAD INCLUDES

• Macro-enabled Professional workbook v1.4.0

• Full User Manual and Quick Start Guide

• README, license, release notes, manifest, and SHA-256 checksums

This product is an original inspection productivity and documentation tool. It does not reproduce or replace ASME, AWS, API, project specifications, construction codes, or approved quality procedures. Users must possess and consult the applicable licensed standards. Final acceptance remains the responsibility of a qualified reviewer under the applicable quality-management system. Individual professional-use license included; shared use requires the appropriate multi-user license.
