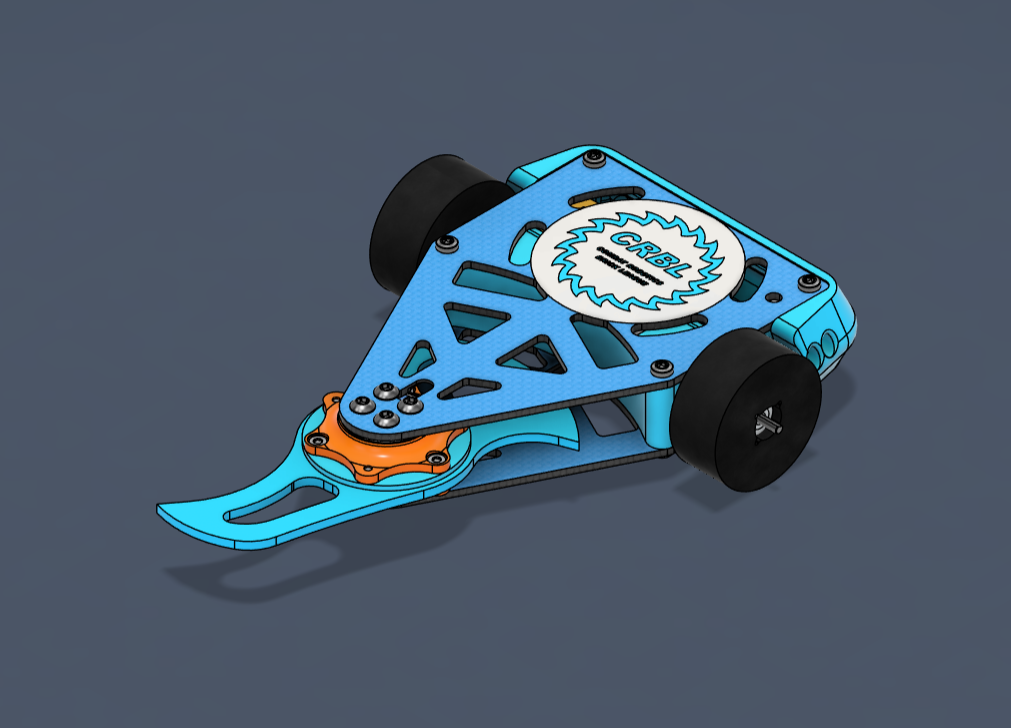

Goal Line V2 CAD

Designed for simplicity and nothing but offense, Goal Line is a fierce antweight horizontal spinner. Goal Line has competed in one event so far where it won the biggest hit award, and since then the design has been improved for increased weapon reliability.

Specifications:

• Weapon diameter: 150mm
• Weapon weight: 83 grams
• Weapon motor: RDY-Mini-5022 Hubmotor 1100kv
• Drive motors: Repeat Drive Brushed Mk2
• LiPo: 4s 380mAh
• Weapon ESC: ReadyToSky 35A blheli_s
• Drive ESC: Repeat Robotics budget ant dual ESC
• Power switch: Fingertech power switch
• Top and bottom plate material: 2.5mm carbon fiber plates
• Body material: 3D printed TPU 95A
