Residential Plumbing Fixture Pro

Residential Plumbing Fixture Pro helps you place and track plumbing fixtures in AutoCAD using a guided AutoLISP and DCL interface.

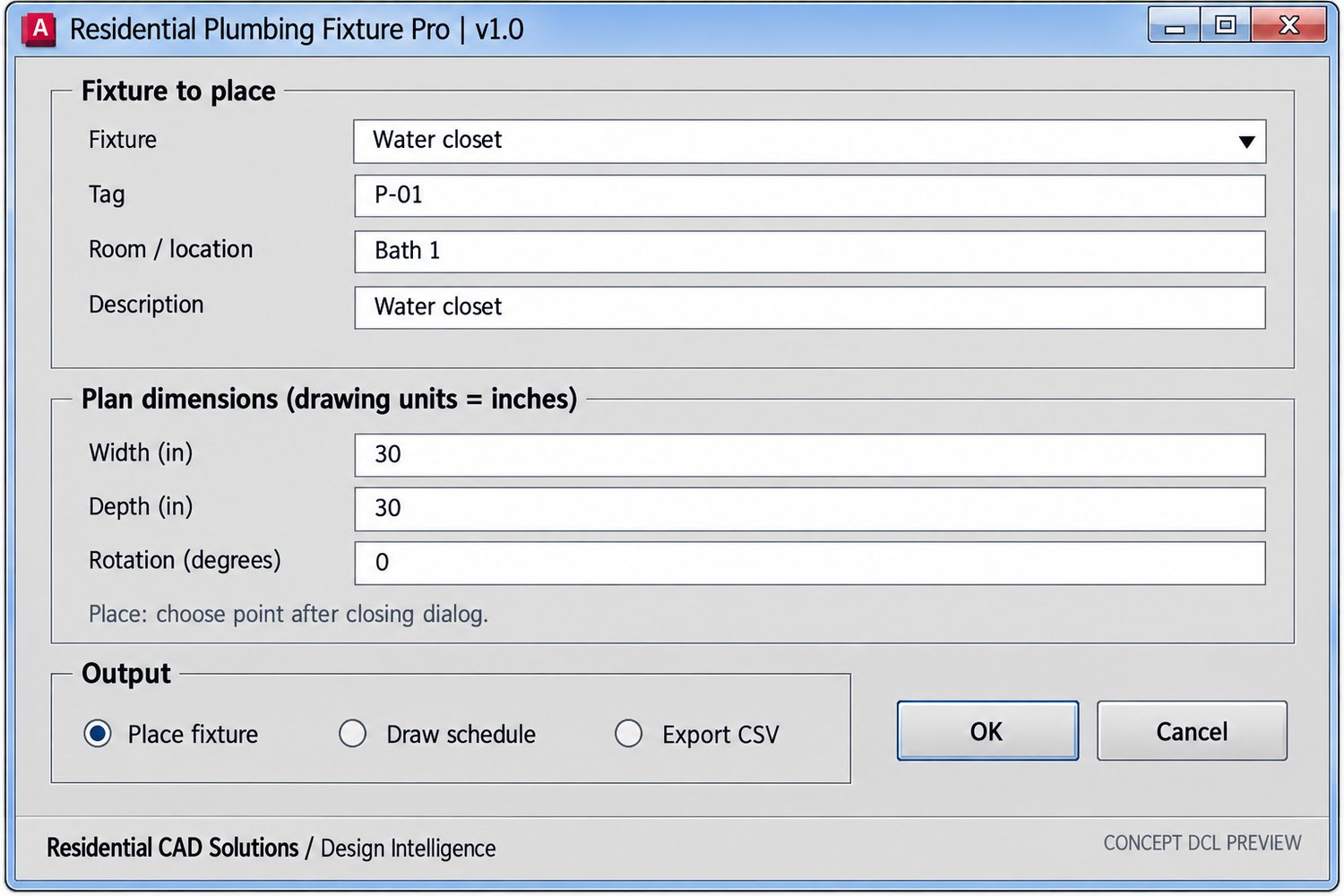

Choose from 10 fixture types, including water closets, lavatories, sinks, tubs, showers, and water heaters. Enter a fixture tag, room, description, dimensions, and rotation, then pick its location in your drawing. When you’re ready, create a fixture schedule in AutoCAD or export the fixture list to CSV.

What’s included

• ResidentialPlumbingFixturePro.lsp

• ResidentialPlumbingFixturePro.dcl

• Installation and operating guide

Command: RPFPRO

Price: $39.00

Fixture symbols are schematic plan footprints. This tool does not size plumbing pipes or verify code compliance. It was designed with AutoCAD 2002 compatibility in mind; testing in AutoCAD 2002 has not yet been completed.
