IPHONE 17 PRO MAX 512 GB

iPhone 17 Pro Max – Product Specifications

Network

GSM / CDMA / HSPA / EVDO / LTE / 5G

Body

Dimensions: 163.2 × 77.8 × 8.8 mm

Weight: 228 g

Build: Ceramic Shield 2 front, aluminum alloy frame, glass/aluminum back

IP68 dust/water resistant (up to 6 m for 30 min)

SIM

Nano-SIM + eSIM + eSIM (international, max 2 active)

Dual eSIM support (up to 8 stored, US models)

Dual Nano-SIM (China)

Display

6.9" LTPO Super Retina XDR OLED

120 Hz, HDR10, Dolby Vision

Peak brightness: 3000 nits

Resolution: 1320 × 2868 (~460 ppi)

Ceramic Shield 2 + anti-reflective coating

Platform

iOS 26

Apple A19 Pro (3 nm)

Hexa-core CPU

Apple 6-core GPU

Memory

No card slot

256 GB / 512 GB / 1 TB NVMe storage options

12 GB RAM

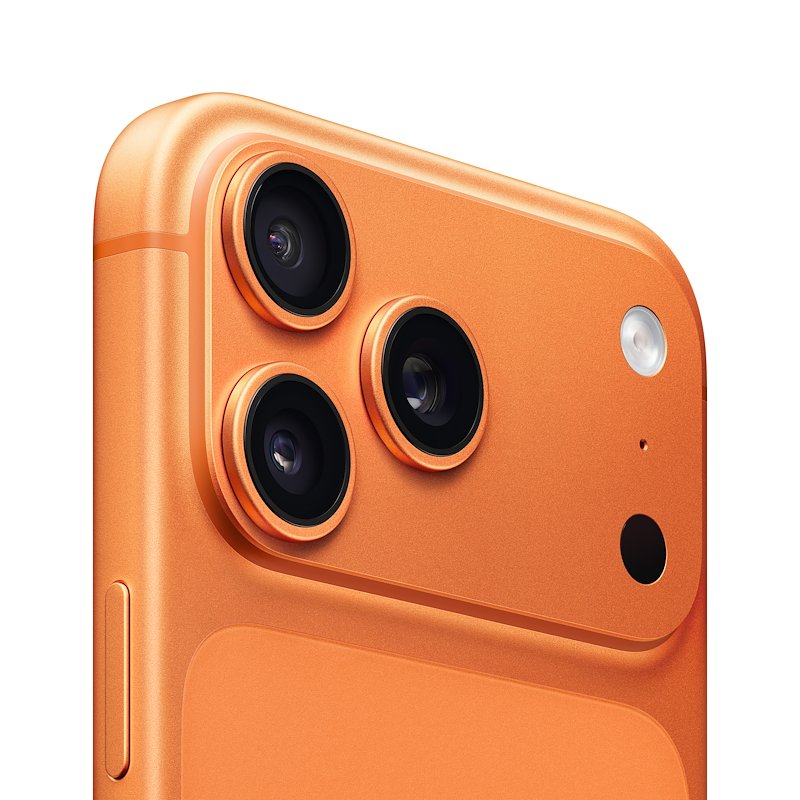

Main Camera (Triple 48 MP)

• 48 MP wide (f/1.6, OIS)
• 48 MP periscope telephoto (4x optical zoom, OIS)
• 48 MP ultrawide (120°)
• LiDAR scanner

Video: 4K up to 120 fps, Dolby Vision HDR, ProRes, ProRes RAW, Apple Log 2, spatial video/audio

Front Camera

18 MP ultrawide, Face ID (SL 3D)

4K video up to 60 fps, HDR, spatial audio

Connectivity

Wi-Fi 6E / 7

Bluetooth 6.0

USB-C 3.2 Gen 2 (DisplayPort)

GPS multi-band (L1+L5), NFC, UWB Gen 2

Satellite SOS + Find My

Battery

~4250 mAh (typical, varies by model)

Fast charging: 50% in ~20 min (wired)

25W MagSafe / Qi2 wireless

Reverse wired charging

Other

Stereo speakers, no 3.5 mm jack

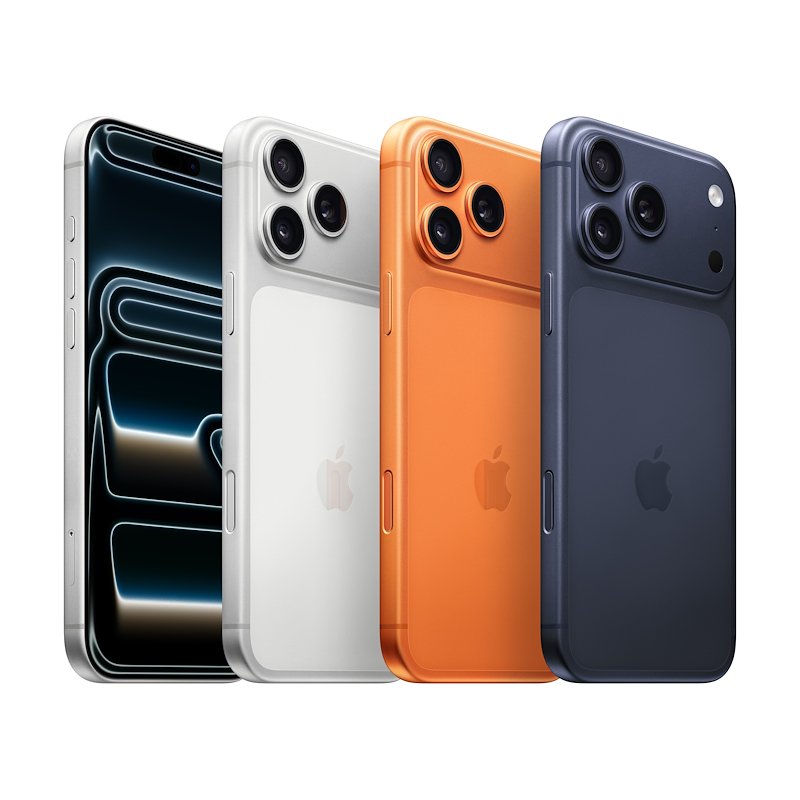

Colors: Silver, Deep Blue, Cosmic Orange

Box contents

iPhone 17 Pro Max

USB-C cable
