The Model 9K - Schematics & Firmware

The Model 9K

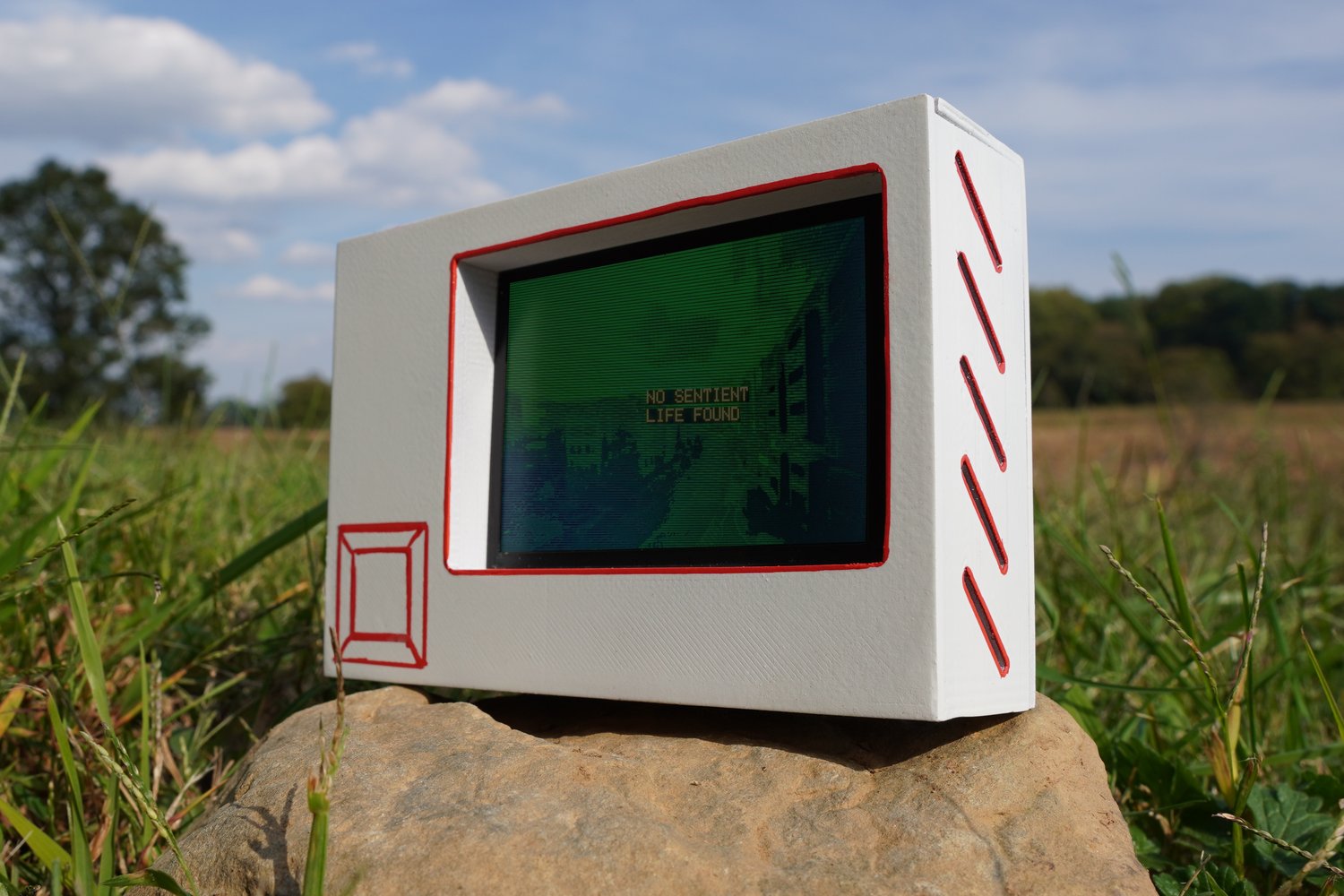

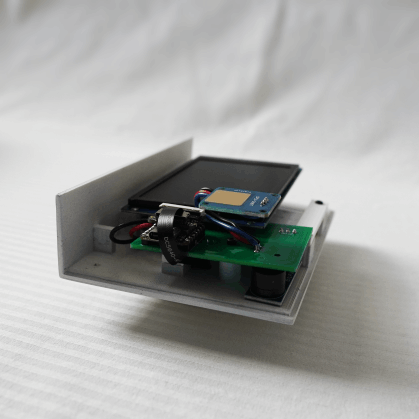

A standalone, battery-powered tactical scanner built to measure a target's power level. Frame your target on the integrated 3.5" color display and tap the capacitive trigger to execute real-time facial recognition via the onboard ESP32-S3. Enrolled faces trigger a positive match, pushing the on-screen power level over 9000 with accompanying buzzer sound effects. Unrecognized targets display with a low power level.

Schematics & Firmware

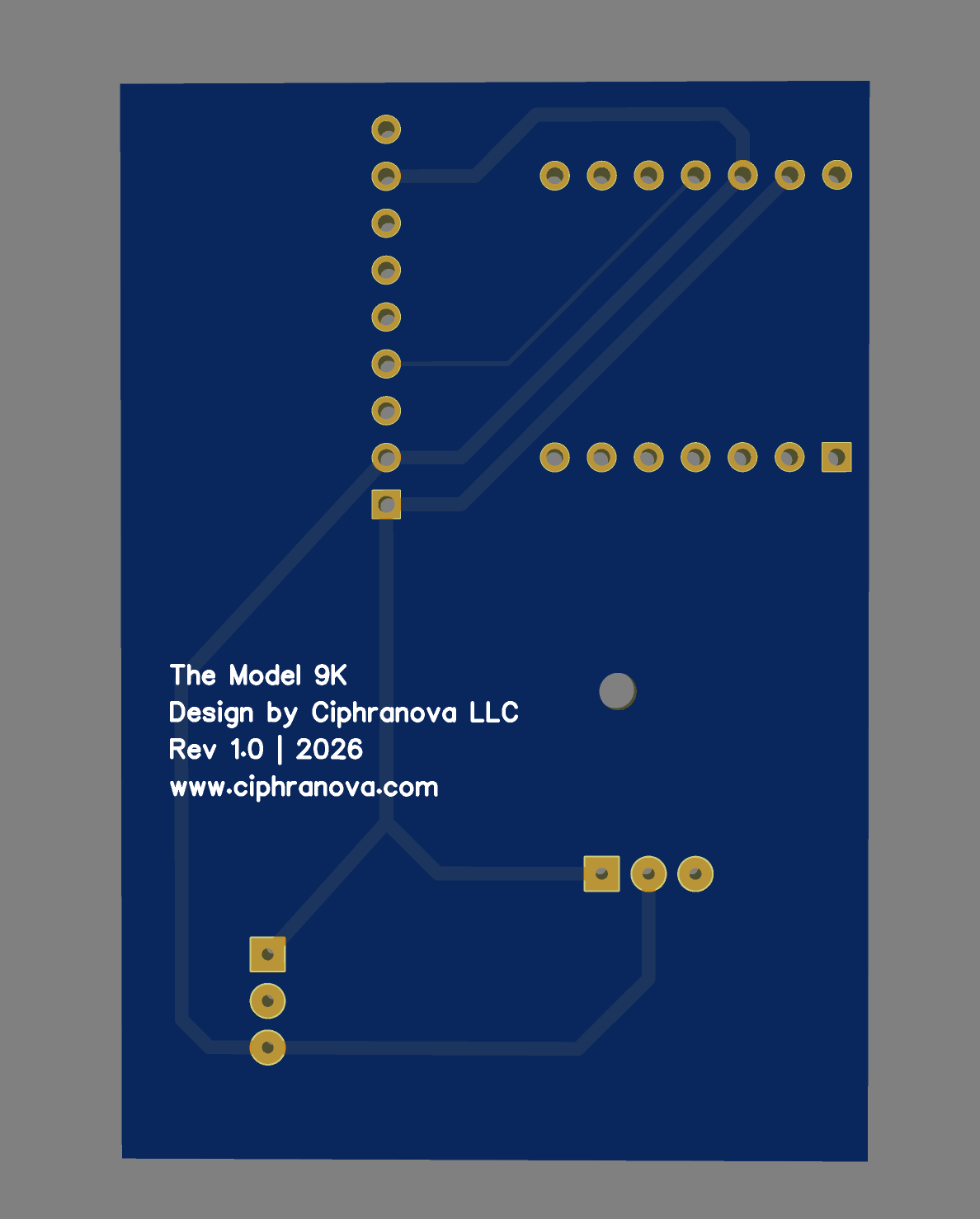

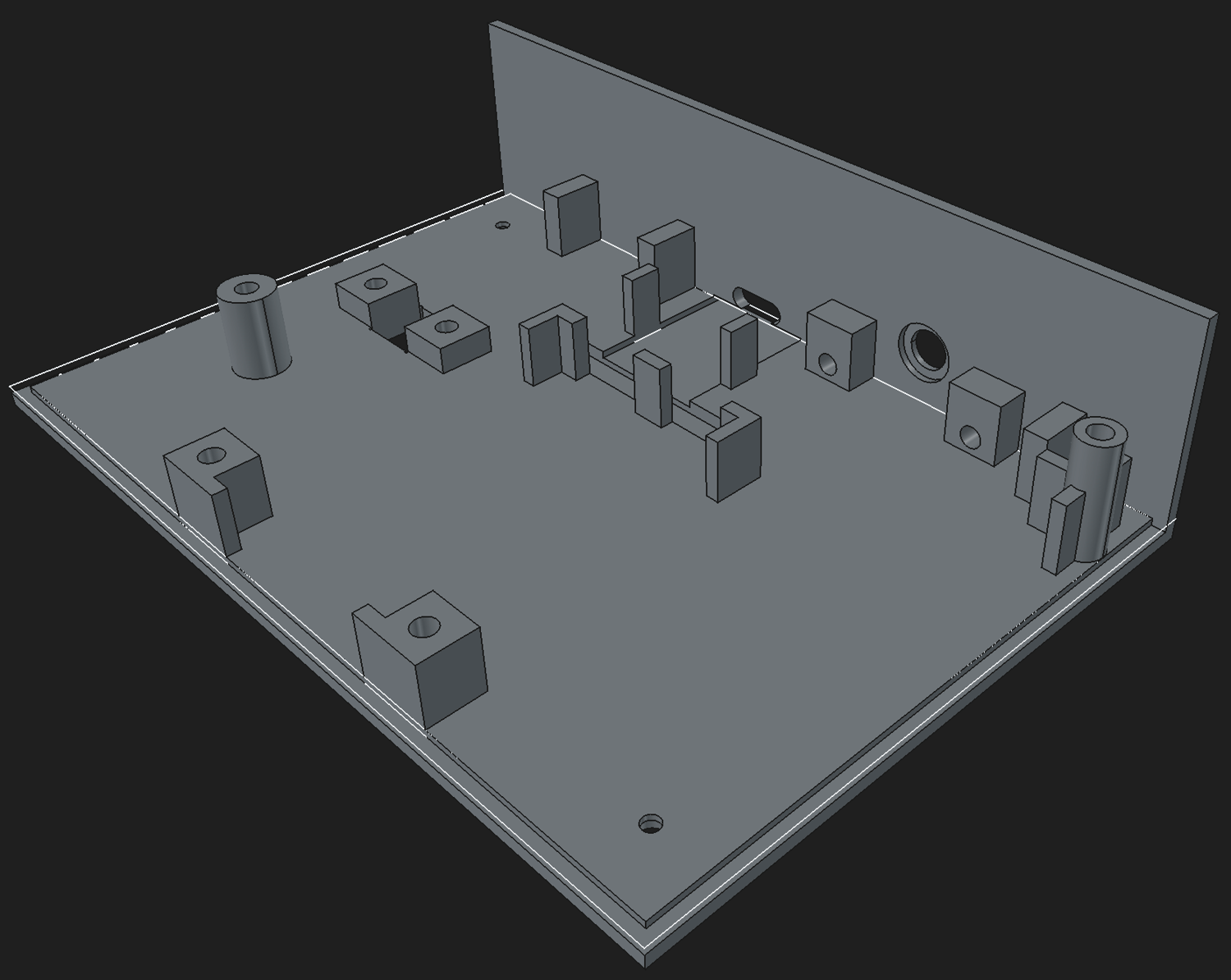

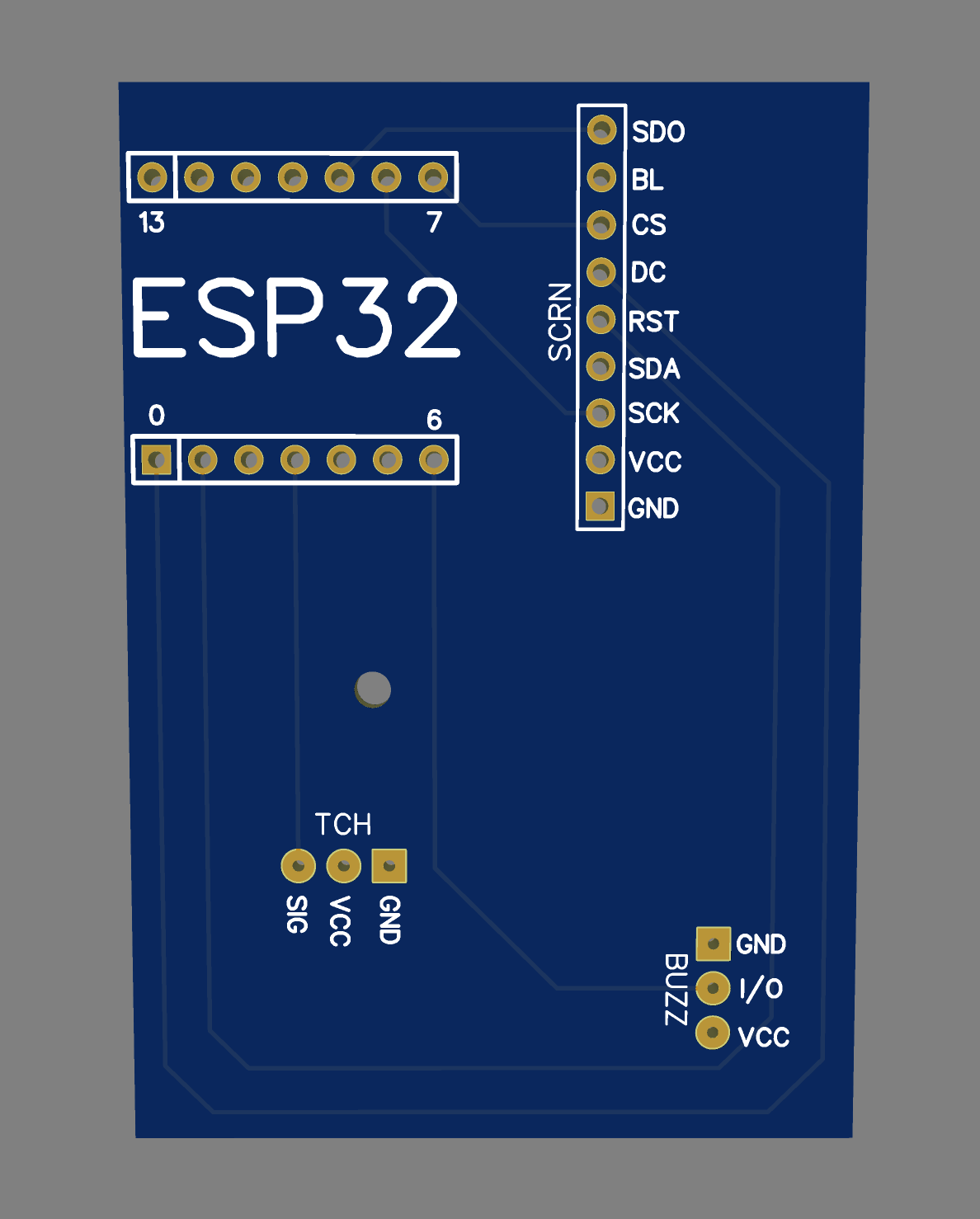

The complete builder's blueprint. Includes optimized 3D-printable STL files for the enclosure, Gerber files for the custom PCB, and firmware for the ESP32-S3. You will need to manually enroll your target face models using the included instruction guide.
