The Keiley Ranch House Plan | 3 bedrooms 2 baths | 1404 sq ft| PDF Download

Looking for the perfect cozy home design that’s stylish, efficient, and builder-ready?

The Keiley Home Plan is an affordably designed 3 bedroom, 2-bathroom layout that combines functionality with charm—perfect for downsizing, starting fresh, or building a guest or retirement cottage.

This is a DIGITAL DOWNLOAD. No physical items will be shipped. You’ll receive a full set of construction-ready blueprints in PDF format—ready to print at your local shop or at home!

What’s Included:

Your purchase includes a complete set of professional plans (PDF format) with all the details your builder needs to bring The Emma to life:

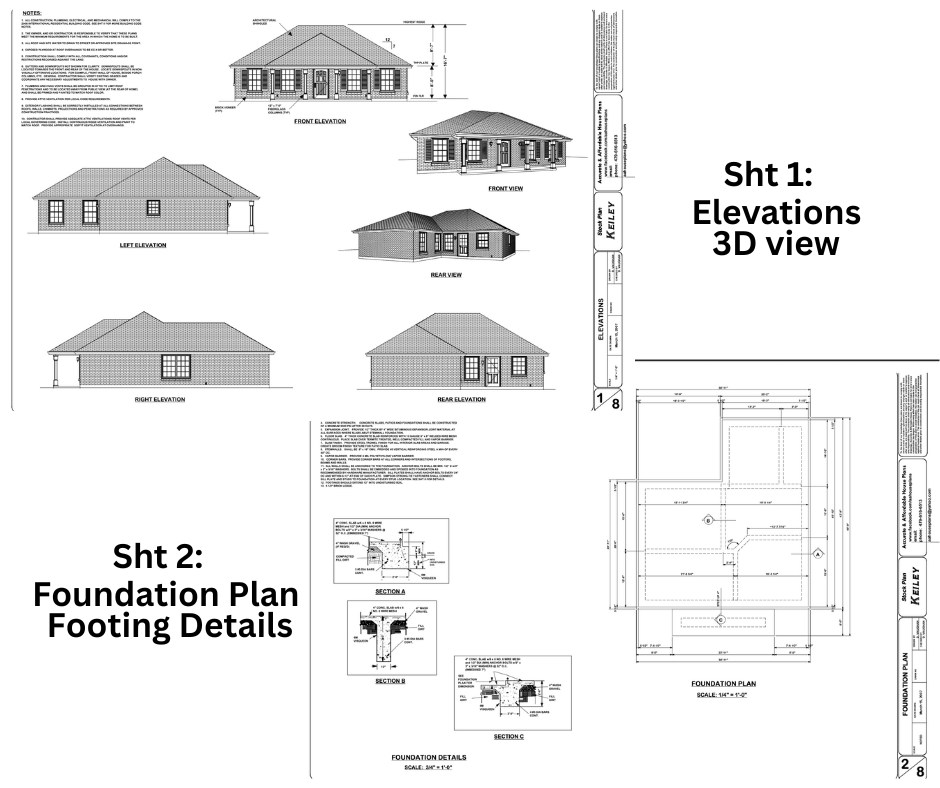

✅ Front, Rear, & Side Elevations

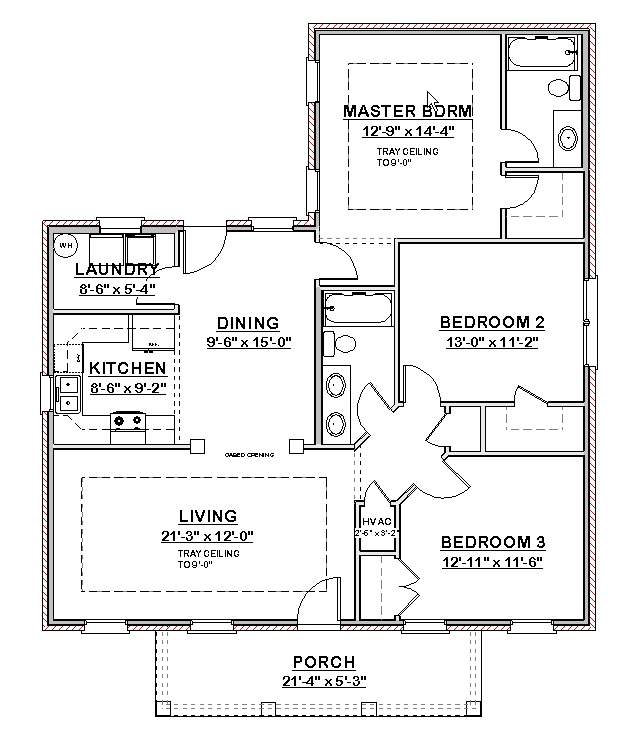

✅ Floor Plan

✅ Foundation Plan (Slab-on-grade)

✅ Footing Details

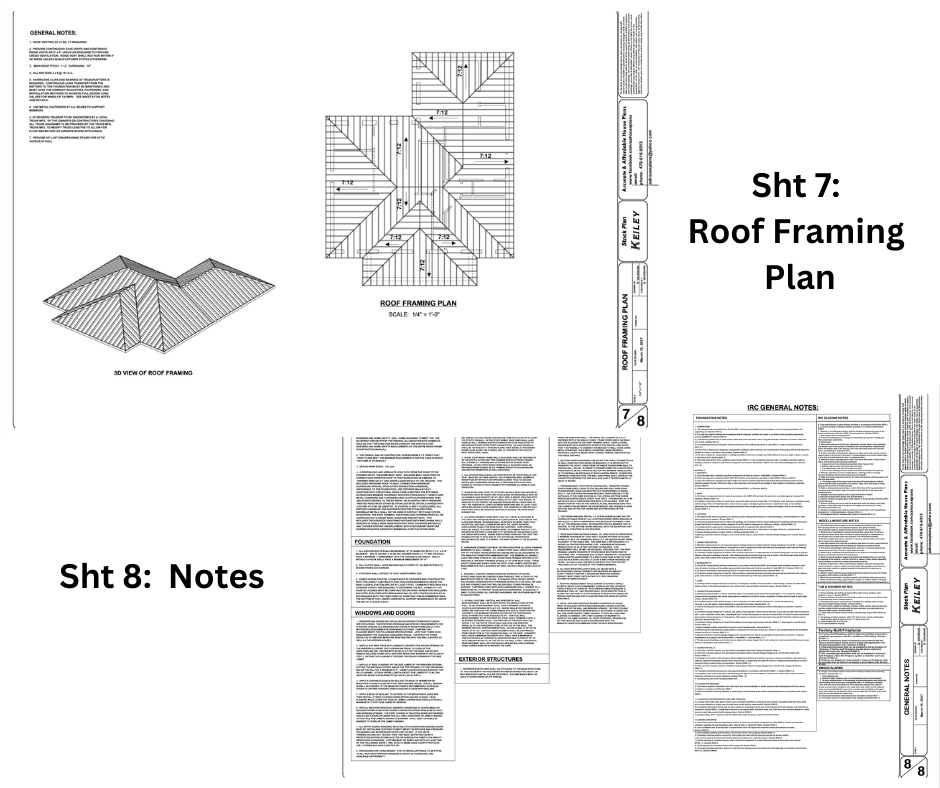

✅ Roof Framing Plan

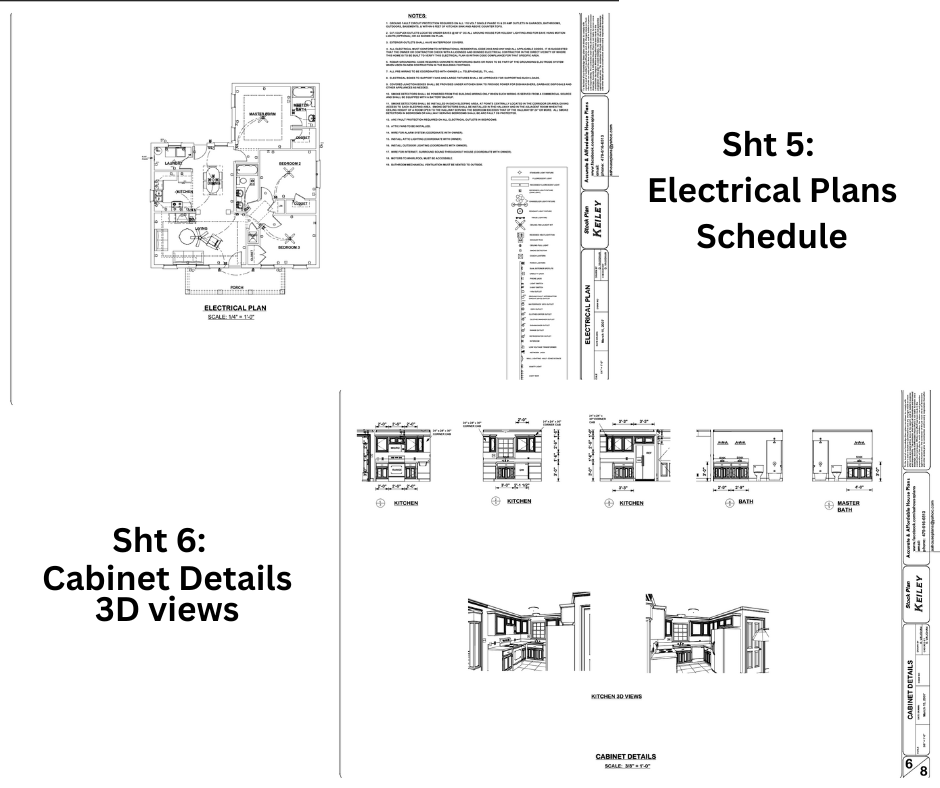

✅ Electrical Plan

✅ Door & Window Schedules

✅ Cabinet Details

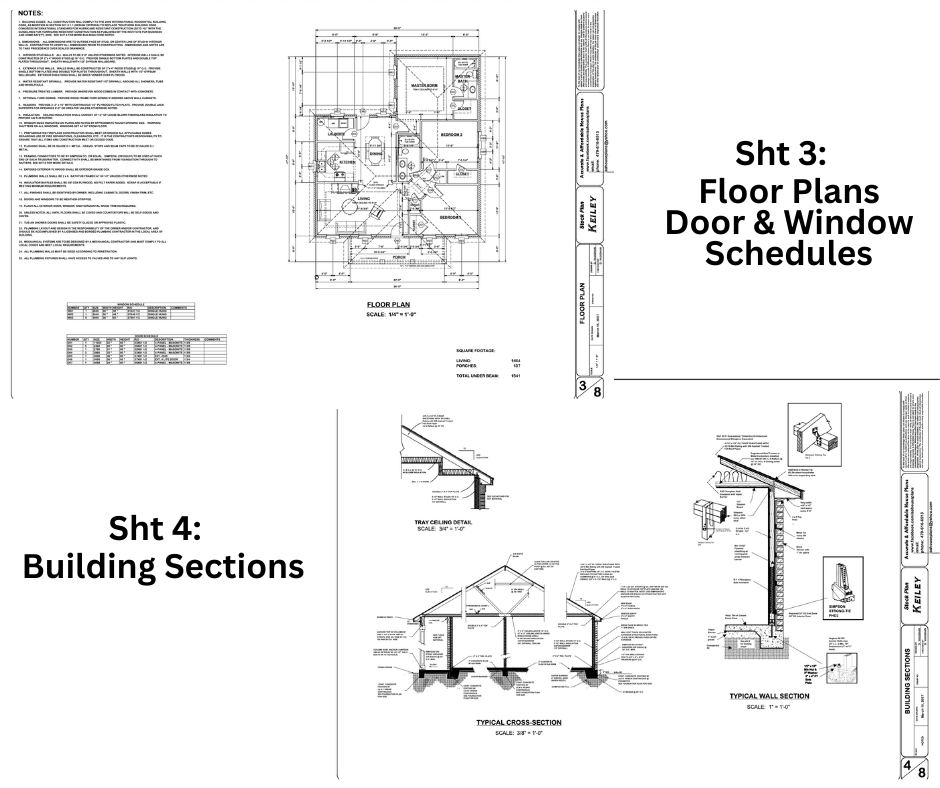

✅ Wall & Cross Sections

✅ IRC Compliance Notes & 120mph Wind Rating (for applicable regions)

✅ Bonus: Some plans may also include 3D Views and Ceiling Framing Details

Sized for 24" x 36" printing — scalable for 11x17, 18x24, or full permit size.

The Keiley Home Specs:

Heated Living Space: 1404 sq. ft.

Porch: 137 sq. ft.

Total Area Under Roof: 1,541 sq. ft.

Dimensions: 38'-11" W x 48'-9" D x 17'-3" H

Ceilings: 8-ft standard ceilings with a tray ceiling to 9' in both living and master bedroom.

Roof: 7:12 Hip

Exterior: Brick veneer

Foundation: Slab-on-grade

Why You'll Love It:

✔️ Instant Access – No waiting, shipping delays, or extra printing costs

✔️ Flexible Printing – Print only what you need, in the size you need

✔️ Cost-Effective – One low price for unlimited copies

✔️ Professionally Designed – Created by a Residential Designer with 40 years of experience

✔️ Permitting Ready – Includes all standard drawings for builder and permit use

What’s Not Included:

Architectural/Engineering Stamp (check your local code)

Site Plan (specific to your land)

HVAC, Plumbing, or Energy Calculations

Material List or Revisions

How It Works:

After purchase, you will be emailed your download link. Check your inbox, spam, or trash folders. Download the file, and take it to any print shop of your choice. You have full control over how many sets you print and what size!

Important Notes:

This is a digital product—no refunds or exchanges are offered once the file is delivered.

All plans are copyright protected and may not be resold or shared.

Start your dream home journey today with The Keiley—a timeless, affordable plan with big potential in a small footprint.

👉 Add to Cart & Download Instantly!
