Atlas 6 Inch No. 618 Lathe Manual Instructions & Parts
On Sale
$5.99
$5.99
Number Of Pages: 19
Condition Of Original: Good
Scan Type: Black & White Scan of Black & White contents

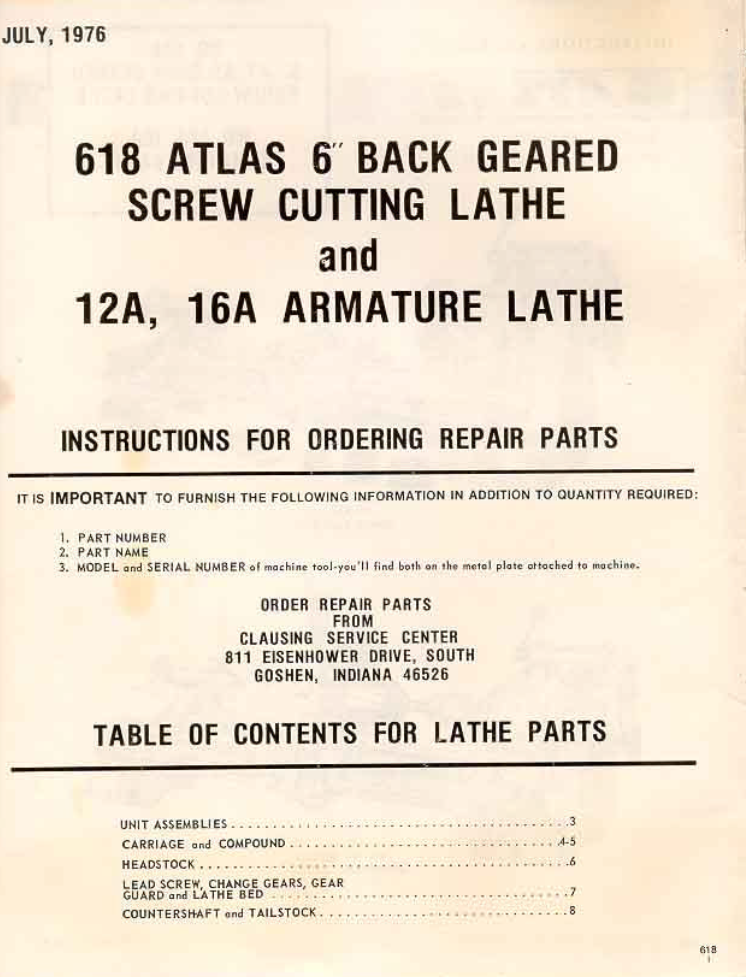

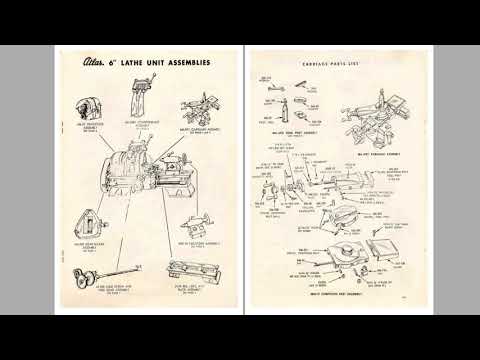

Description: 1967 File No. 618-4 covering the No. 618 Atlas Back Geared Screw Cutting Lathe and No. 12A, 18A Armature Lathe. Manual includes Mounting instructions, Gear Clearance, Leveling, Wiring Instructions, Lubrication, And parts sheets consisting of labeled exploded diagrams of major sub assemblies. Following that is a change gear threading chart, and several pages regarding removal and reassembly of back gears and headstock from the lathe, as well as subsequent readjustments. A little extra compared to what you'll get elsewhere!
Condition Of Original: Good
Scan Type: Black & White Scan of Black & White contents
Description: 1967 File No. 618-4 covering the No. 618 Atlas Back Geared Screw Cutting Lathe and No. 12A, 18A Armature Lathe. Manual includes Mounting instructions, Gear Clearance, Leveling, Wiring Instructions, Lubrication, And parts sheets consisting of labeled exploded diagrams of major sub assemblies. Following that is a change gear threading chart, and several pages regarding removal and reassembly of back gears and headstock from the lathe, as well as subsequent readjustments. A little extra compared to what you'll get elsewhere!
