Wooden Wine Floor Display Stand CNC Cut File | 4-Tier Bottle Display Rack DXF SVG Vector Plans (9mm / 3/8" Plywood)
On Sale
$18.90
$18.90
Elevate your retail space, winery, or boutique with this modern 4-Tier Wine & Bottle Floor Display Stand! Specially designed to showcase wine bottles, premium oils, or packaged goods, this flat-pack rack combines high structural stability with a clean Scandinavian plywood aesthetic.
Engineered with smart interlocking joints for easy, tool-free assembly—no glue, screws, or complex hardware required!
📐 Technical Specifications & Dimensions:
- Overall Stand Dimensions: Height 1826 mm x Width 510 mm x Depth 280 mm (71.8" x 20.0" x 11.0")
- Shelf Clearance / Height: 391 mm vertical space between tiers (fits standard wine and oil bottles perfectly)
- Material Thickness: Optimized for 9 mm (3/8") Plywood, MDF, or Birch
- Toolpath Ready: 1:1 scale vector files with built-in dogbone and slot tolerances for a seamless friction fit.

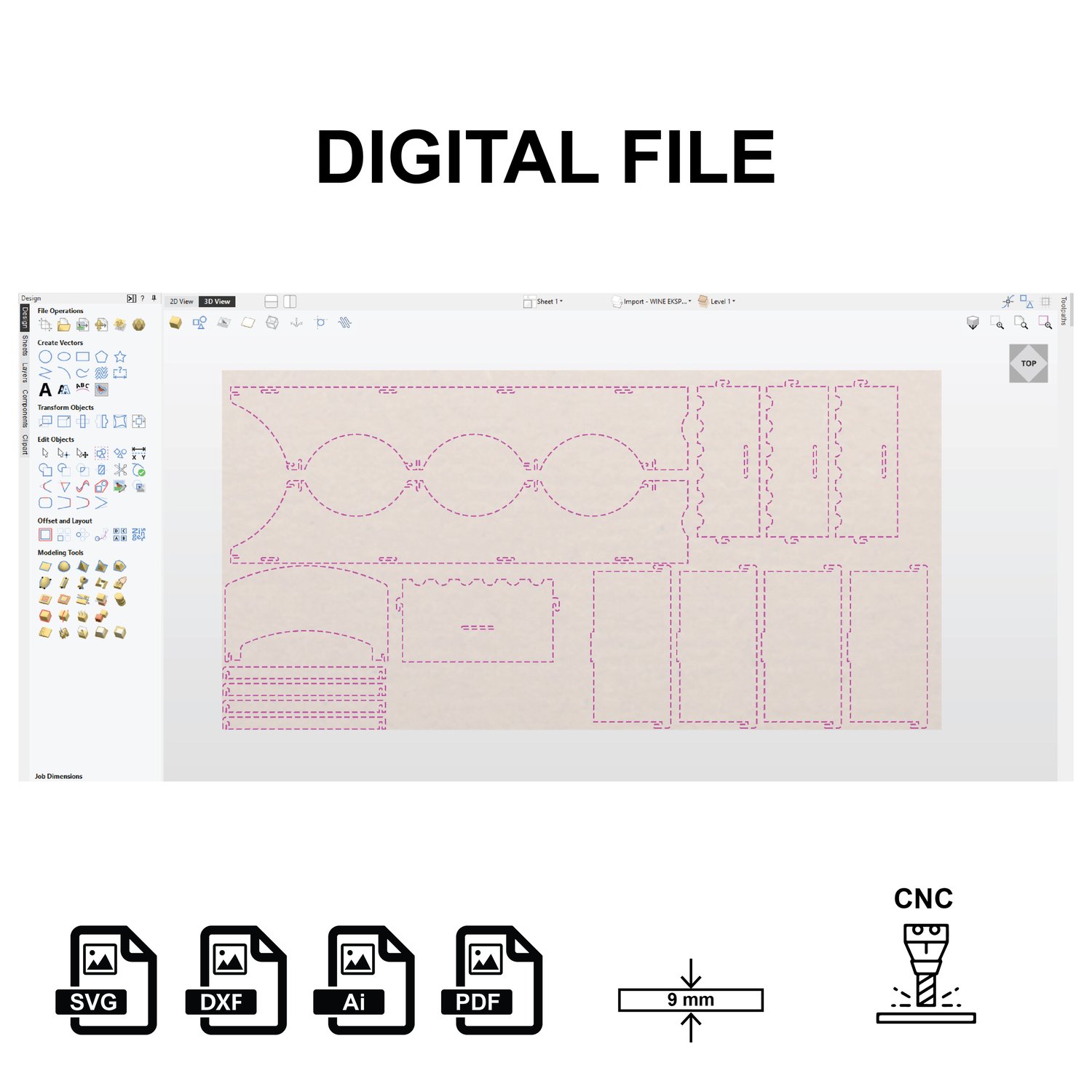

📦 Included Digital Files (ZIP Download):
- DXF (AutoCAD / CNC Routers & Lasers)
- SVG (Scalable Vector Graphics)
- AI (Adobe Illustrator CS6+)
- PDF (Vector Blueprint with full dimension breakdown)
🛠 Recommended Machine Usage: Ideal for CNC Routers, Laser Cutters, Wineries, Retail Shops, and Trade Shows.
Note: This is an instant digital file download. No physical product will be shipped.
