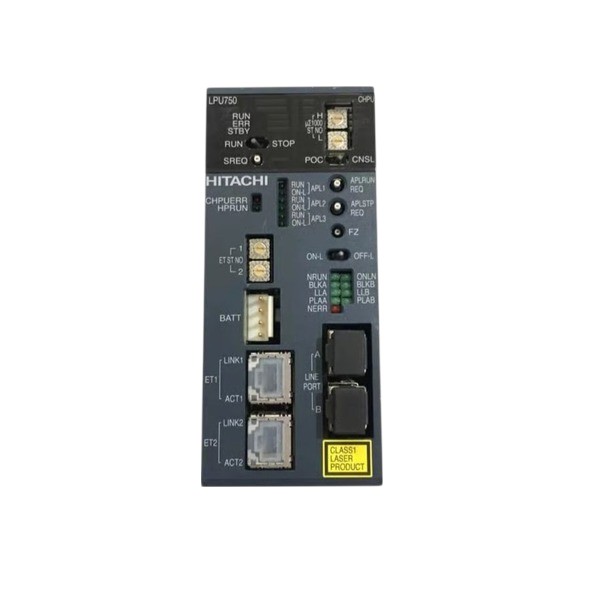

HITACHI LPU750

The CPU modules of the LPU500 series (models LPU500, LPU503, LPU505, LPU508, LPU510, LPU513,LPU750, LPU515, LPU518) are powerful control units for network applications. They feature two 32-bit RISC processors (SH4 at 160 MHz) and achieve a performance of approximately 290 MIPS per processor. Depending on the model, these modules offer 32 or 64 MB of main memory (ECC included) and a high-accuracy RTC (real-time clock).

Key specifications:

• Processor: 32-bit RISC (SH4, 160 MHz) x 2 units
• Main memory: 32 MB or 64 MB (depending on model), ECC included
• Network type: Ethernet with 100 Mbps/10 Mbps transmission speed
• Communication: Supports TCP/IP, UDP/IP and remote control of the CPU
• Access method: CSMA/CD
• Battery backup: 120 hours or more after power off, with a fully charged battery

Connections and interfaces:

• External contact: 24 VDC
• Network interfaces: Supports 100BASE-TX and 10BASE-T with a maximum transmission distance of 30 m.

Hitachi Lpu 750

Brand New

12 Month Warranty

Shipping:DHL/FEDEX(3-5 working days)
