Dimension Text Gap Pro

Bring dimension text closer to the line for cleaner, more consistent drawings.

Dimension Text Gap Pro is an AutoLISP and DCL utility that adjusts spacing on selected linear and aligned dimensions. Set your preferred gap and apply it across multiple dimension strings in one operation.

Features

• Adjustable text gap for tighter spacing.
• Batch selection of linear and aligned dimensions.
• Optional reset for text that has been manually moved.
• Keeps dimensions editable without exploding them.
• Preserves dimension measurements, text height, arrow styles, and layers.
• Applies changes to selected dimensions without modifying named dimension styles.
• Undo the entire batch with one Undo command.

Your download includes

• AutoLISP program (.LSP).

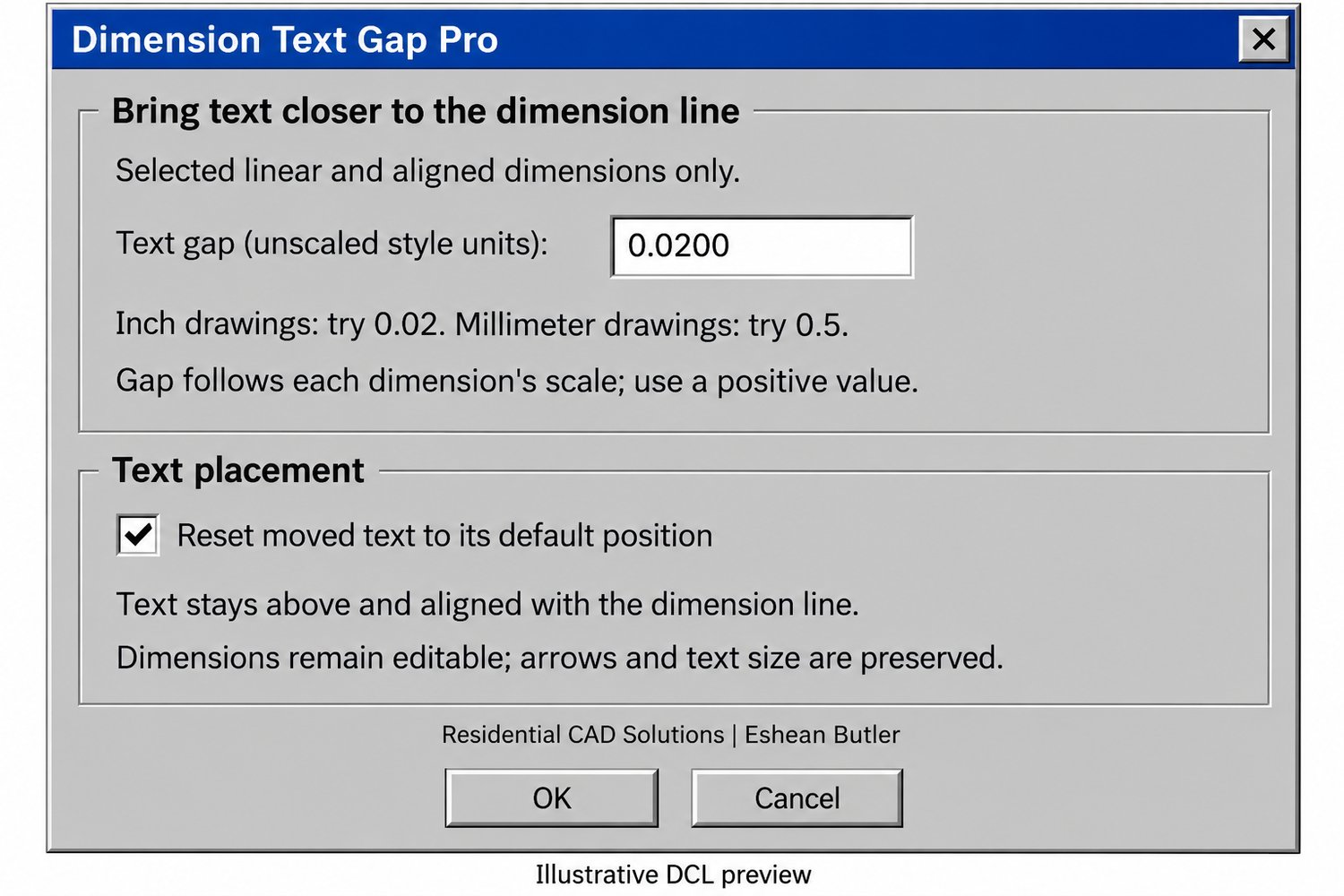

• Dialog interface (.DCL).
• Installation and operating instructions.

Command: DTGAP

Written for full Windows AutoCAD using commands available in AutoCAD 2002 and later. Requires AutoLISP and DCL support; not compatible with AutoCAD LT 2002. Not independently tested in every AutoCAD release.

Works with intact linear and aligned dimensions on unlocked layers. Existing dimension breaks, text masks, and crowded layouts may require additional adjustment. Test on a drawing copy before production use.

Residential CAD Solutions | Eshean Butler
