Brightlink Pro Series HDMI 2.0 8x8/8x16/8x24 HDMI / HDBaseT Matrix with 4Kx2K@60Hz, HDR, YUV 4:4:4, 18Gbps, HDCP 1.4/2.2 - APP CONTROL - Distance upto 70m/228ft away | C/W 8 HDBaseT Receivers with 2ea HDMI outputs and POC/POE

This 8x8 HDBaseT / HDMI 2.0 Matrix SET over single Cat6 cable and HDMI can route Eight Hi-Definition sources to any Eight HDTV displays, supporting 1080p Full HD up to 4Kx2K@60Hz with HDR , plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Using our advance HDBaseT chipset inside, the output distance can reach upto 228ft over a single Cat5e/Cat6 cable while still delivering a clear crisp un compressed image.

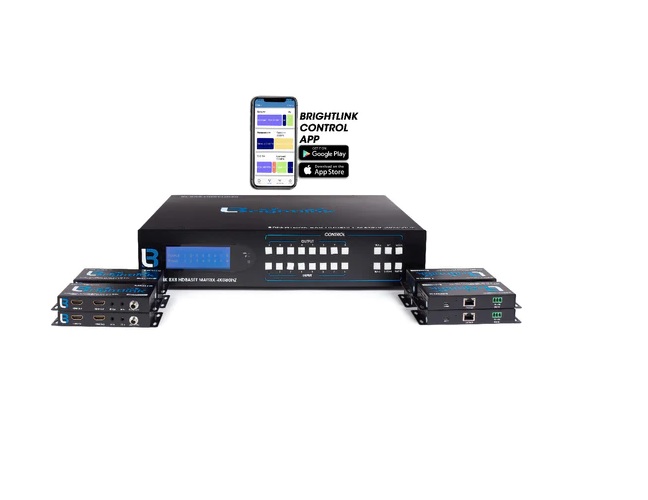

Each source can be routed to any display using BRIGHTLINKS PRO CONTROL APP (available on the APP STORE and GOOGLE PLAY ) , front panel buttons, IR remote control, RS-232 control via PC, and TCP/IP control via PC or 3rd Party control software like SimpleControl.com, Control 4, Crestron and many more.

This Pro Series 8x8 Matrix comes with many features including 8 mirrored HDMI outputs giving upto 16 connected displays as well each receiver has 2 HDM outputs allowing for an additional 8 connected displays for a total of 24 connected display (each of the 8 outputs can only show one source at a time. So the mirrored HDMI output, and two HDMI outputs on the receiver will all show the same image). Each output has separate Analog Audio and SPDIF Audio Extraction, Wide-Band Bi-Direction IR control (You can control the source or matrix from the displays (e.g. Pause, play or change input/outputs) and you can also control the displays from the source (e.g. Turn TV on and off), and comes with 8 HDBaseT receiver which support POC (Receivers power from matrix through network cable so no power supply is needed).
