Modern Industrial Loft House Plans 6x8m 20x26ft | Wheelchair Accessible Universal Design, 2 Bedroom 1 Accessible Bathroom | Pdf + Dwg + Skp

📝Loftbox Industrial Universal House – Professional Architectural & Structural Plans

Discover the perfect blend of modern industrial aesthetics and functional accessibility. The "Loftbox" is thoughtfully designed using Universal Design principles, making it 100% barrier-free and wheelchair-friendly while maintaining a sleek, minimalist luxury look. Perfect for a cozy family home, a stylish accessory dwelling unit (ADU), or a premium Airbnb rental.

✨ HOUSE SPECIFICATIONS:

-Main Cabin Size: 6.00 x 8.00 m. (19'-8"x 26'-3")

-Total Footprint (with front ramp): 6.20 x 9.60 m. (20'-4" x 31'-6")

-Total Area: 48 sq.m. (approx. 516 sq.ft.)

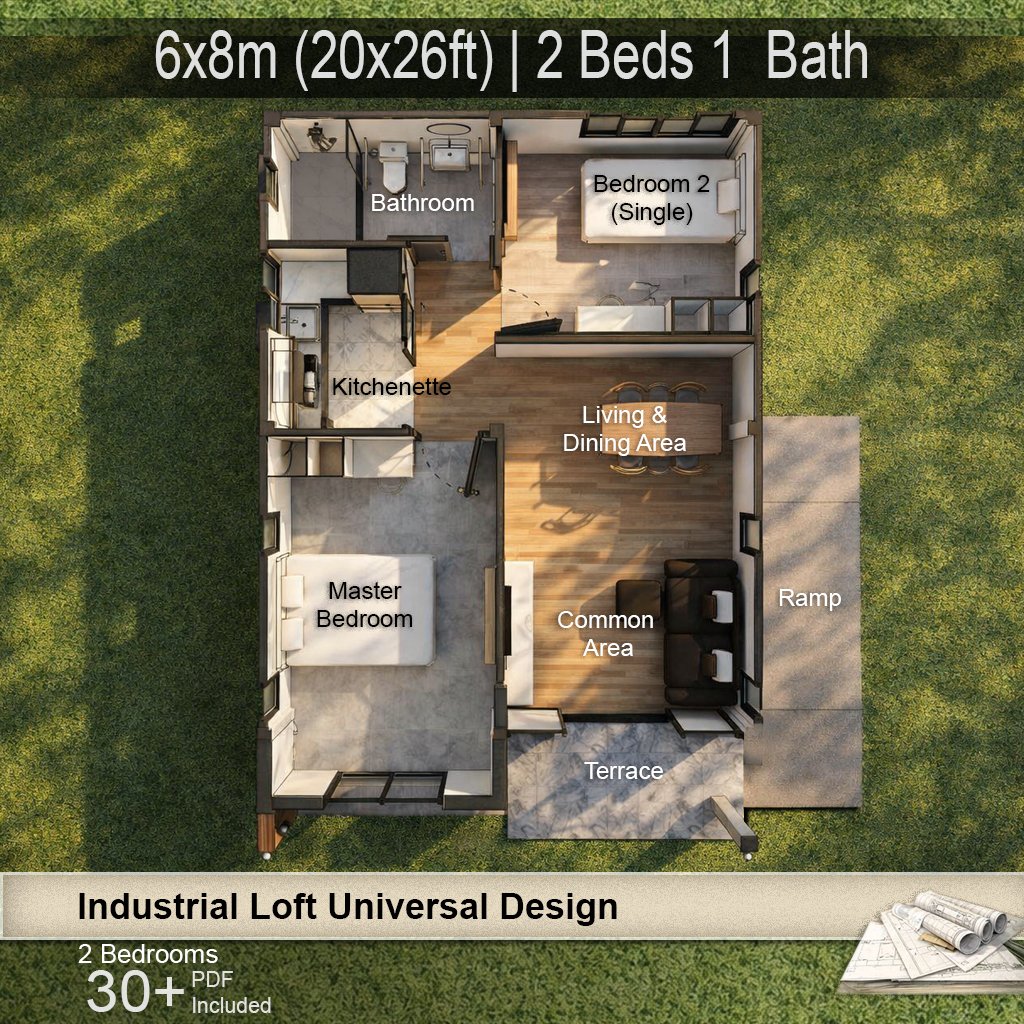

-Layout: 2 Bedrooms, 1 Bathroom, Living & Dining Area, Smart Kitchen, and Seamless Front Accessible Ramp.

♿ UNIVERSAL & INDUSTRIAL DESIGN HIGHLIGHTS:

Barrier-Free Living: Continuous flush flooring transitions with optimized 1:100 drainage slopes in the bathroom and exterior slabs.

Wheelchair Friendly: Integrated entry ramp with a heavy-duty, footing-free grade beam system (Typical Detail included). Spacious bathroom layout with zero-step shower area.

Architectural Style: Striking concrete-look finishes, elegant marble accents, rich natural wood ceilings, and expansive floor-to-ceiling glass windows that flood the home with soft natural light.

📐 WHAT IS INCLUDED IN THIS BLUEPRINT SET (High-Quality PDF):

This is a highly detailed, construction-ready blueprint set meticulously detailed in both Metric (mm) and Imperial (Inches/Feet) units.

ARCHITECTURAL PLANS:

-Exterior Perspectives & Renderings

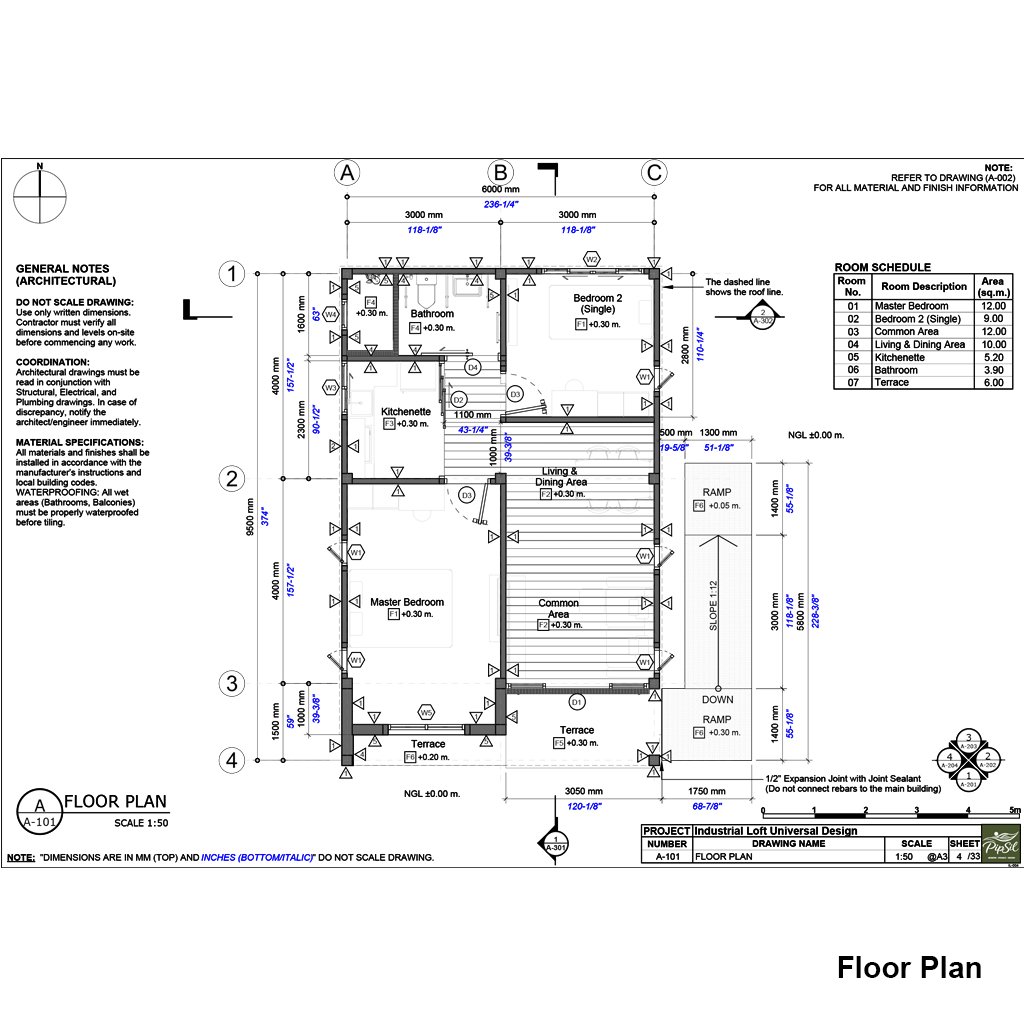

-Detailed Floor Plans & Furniture Layout

-Roof Plan (with 1:100 drainage spec)

-Building Sections & Detailed Elevations

-Comprehensive Bathroom Detail (Layout, Sections, and Materials Schedule)

-Material & Floor Finish Schedules (F1-F6 Specifications)

STRUCTURAL PLANS:

-Foundation & Footing Plan

-Column & Wall Structural Layout

-Roof Structural Plan (Featuring Upper Ridge/Intermediate/Eave Steel Beam Configurations)

-BONUS: Typical Concrete Ramp Detail (Slab on Beam with no footing & proper expansion joint specification)

📩 DIGITAL DOWNLOAD INFO:

-This listing is for a Digital PDF Download only. No physical items will be shipped.

-Print-ready on standard A3 paper size.

-Files will be available instantly in your Etsy account after purchase.

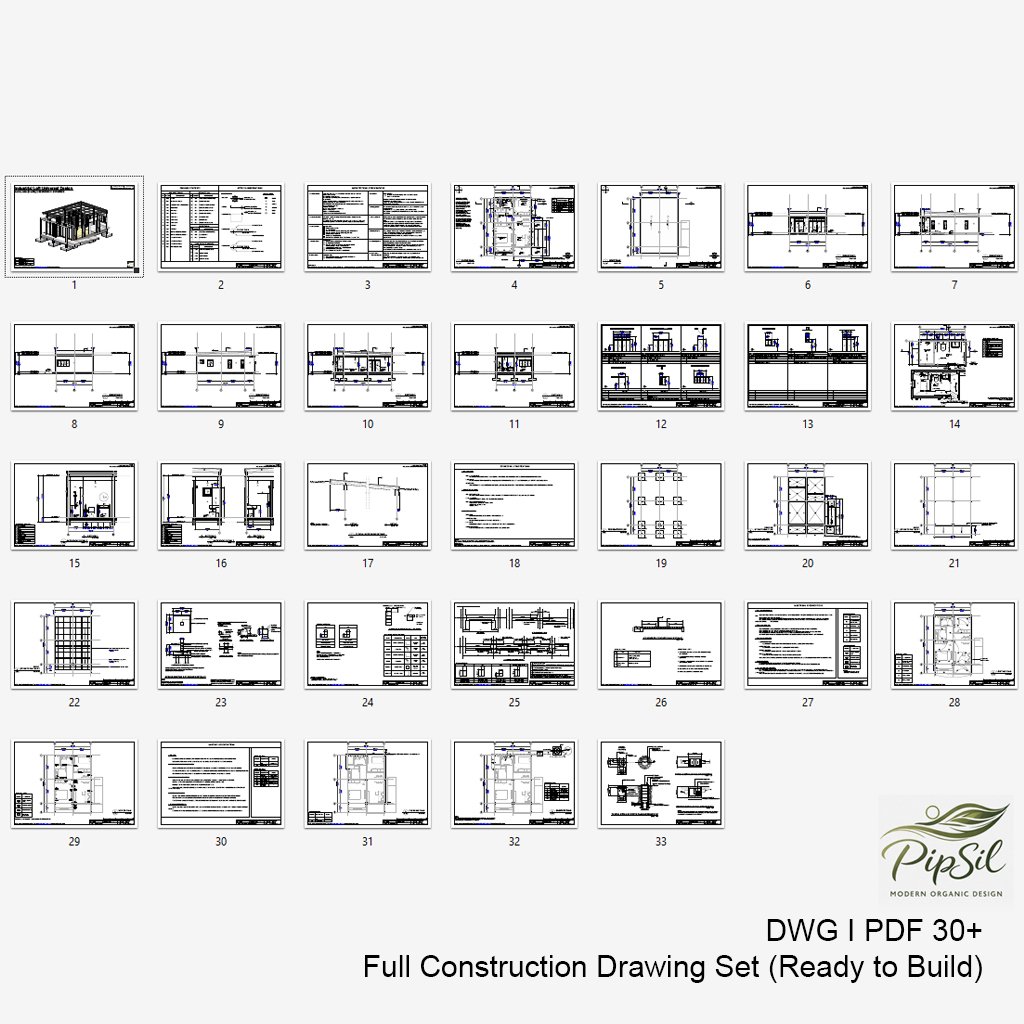

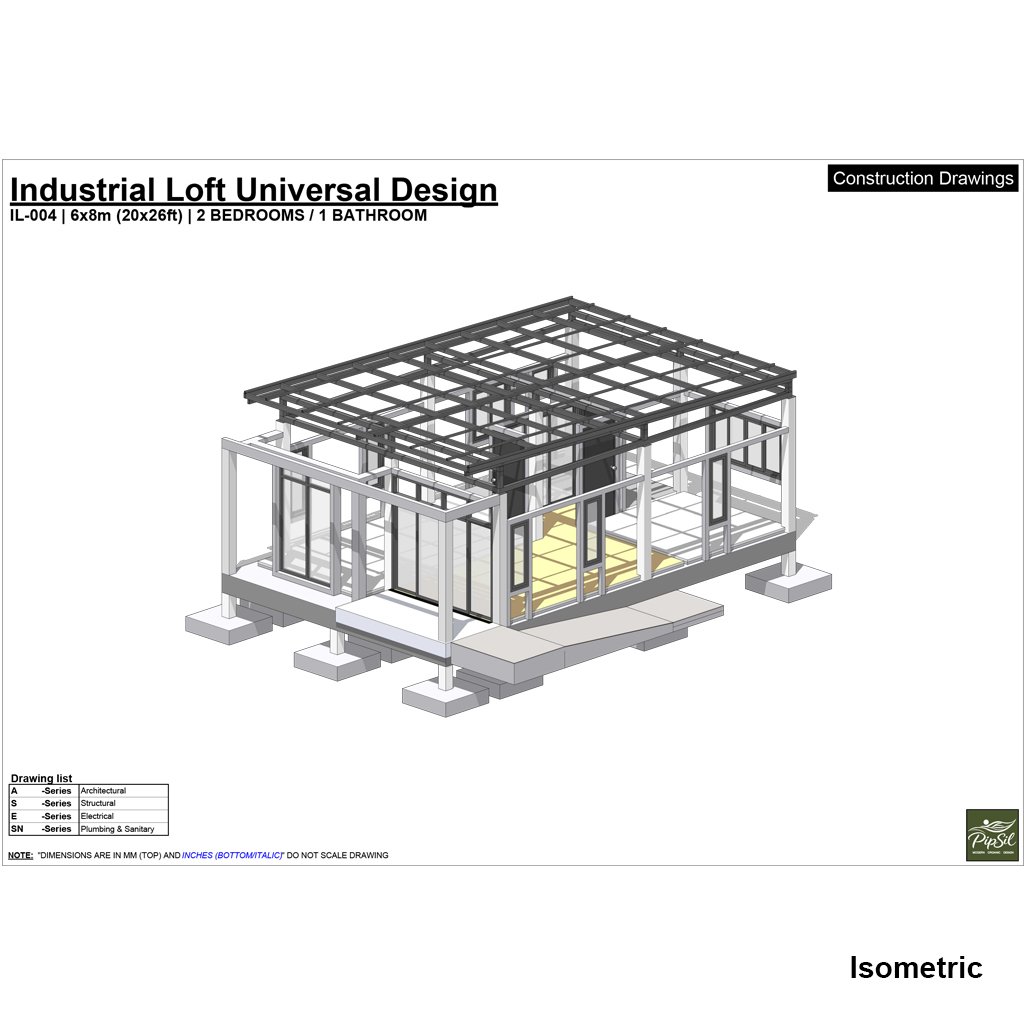

📦 FILES INCLUDED

Architectural Drawings (PDF)

Structural Drawings (RC)

Electrical & Plumbing Plans

DWG (AutoCAD files)

SKP (3D Model – SketchUp)

Note: Digital Download Only. No physical prints will be shipped.

⚠️ Important:

This design is based on reinforced concrete construction. Buyers should consult a local engineer or contractor to adapt the structure to local building codes and site conditions.
