Goal Line Power Bar CAD

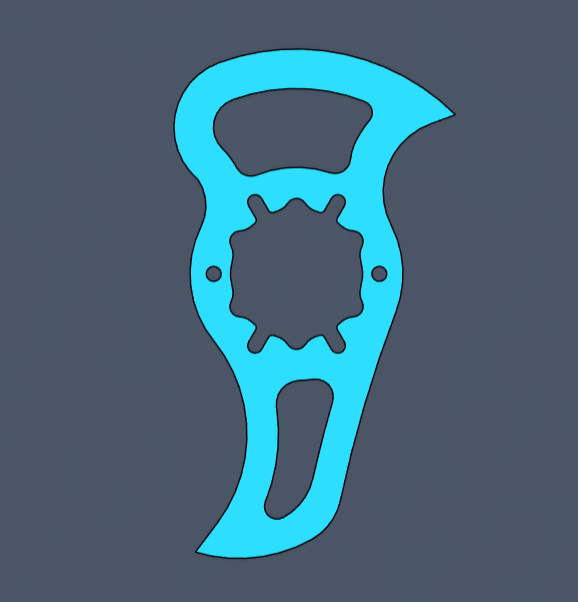

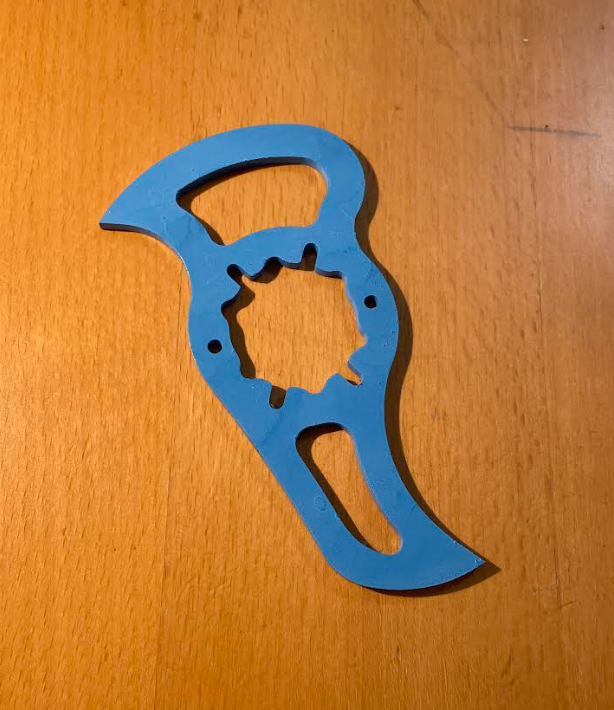

As the name implies, the Power Bar is focused on trying to cause the biggest and most damaging hits possible. The asymmetrical one-toothed design increases how much bite the weapon can achieve, while much of the weight is moved away from the center to maximize the moment of inertia. The weapon is only 1/8 inch thick and the tooth is designed with a sharp rake angle to dig right through TPU armor. Additionally, the weapon tip only touches the perimeter reached by the weapon at a single point to reduce the area underneath the tooth for a vertical spinner to catch.

The mounting pattern for the blade is designed to fit onto the RDY-Mini-5022 Hubmotor.

Specifications:

• Weight: 83g

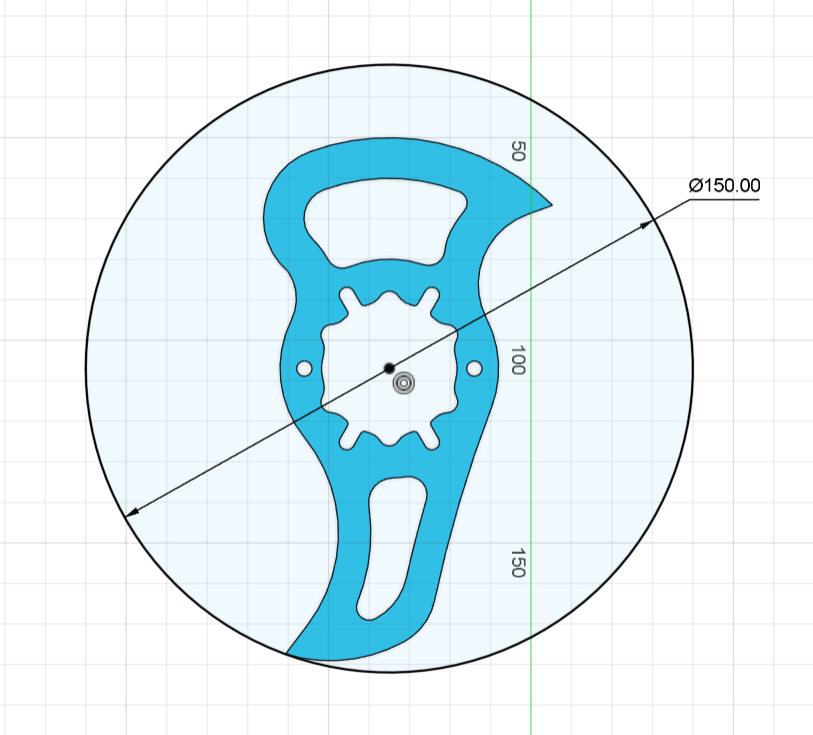

• Diameter: 150g

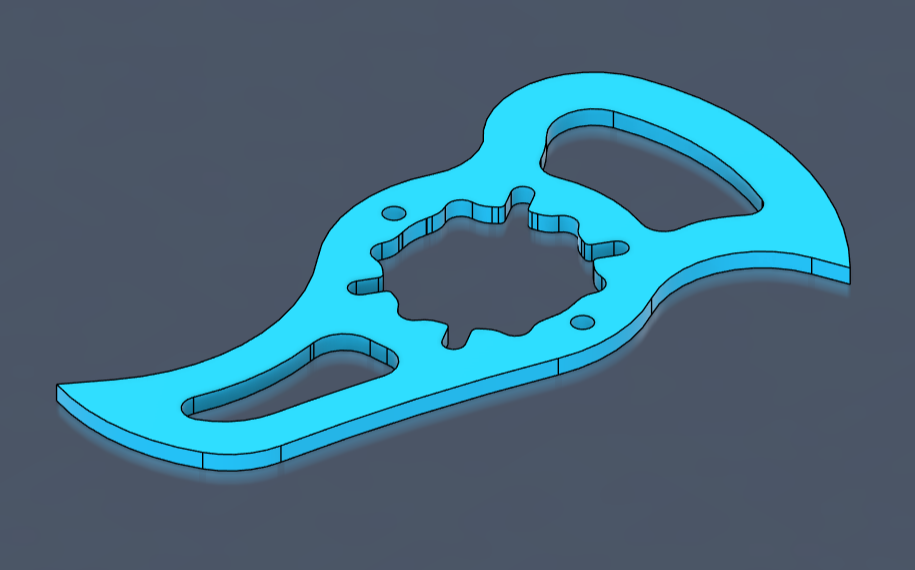

• Thickness: 1/8 in (3.175mm)
• Recommended material: AR600 or AR500 steel.

The CAD file included will come in .step format.
