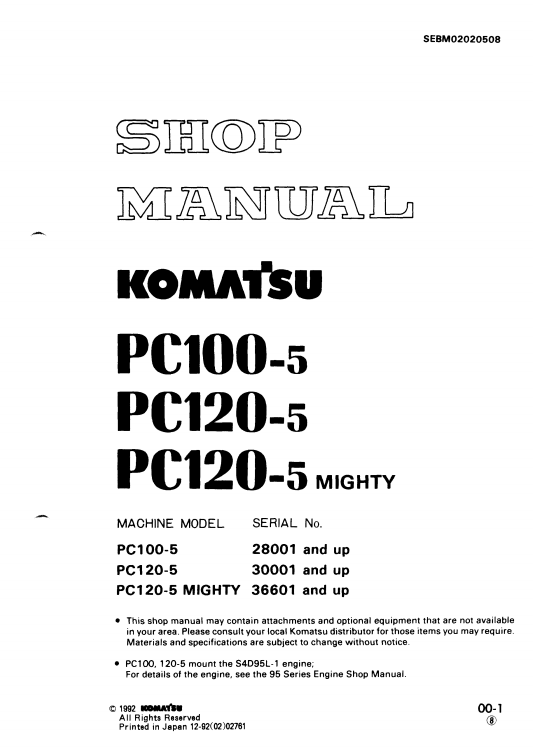

KOMATSU SHOP MANUAL PC100-5, PC120-5

KOMATSU SHOP MANUAL PC100-5, PC120-5

- Format: PDF

- Language: English

This manual contains essential technical information for technicians working in repair shops. For ease of understanding, this repair document is divided into the following parts:

KOMATSUSHOP MANUAL PC100-5, PC120-5

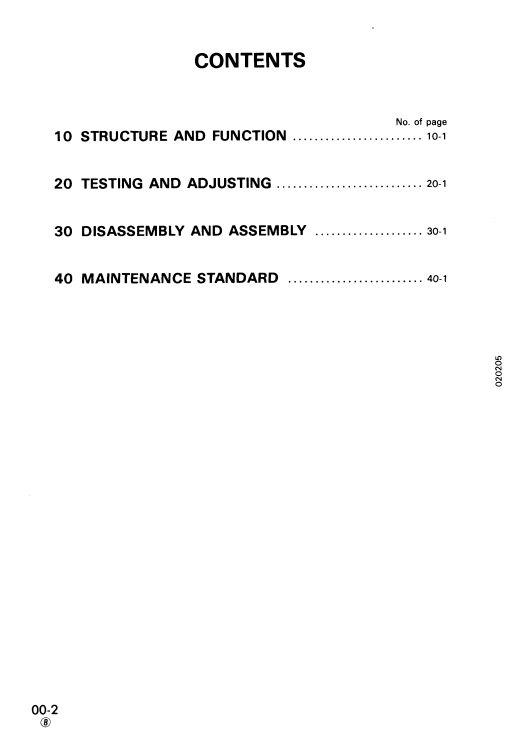

Table of Content of this Book

Manual:

10 Structure and function

20 Testing and adjusting

30 Disassembly and assembly

60 Maintenance standard

1. Composition of shop manual

This shop manual contains the necessary technical information for services performed in a workshop. For ease of understanding, the manual is divided into the following sections.

10. Structure and function

This section explains the structure and function of each component. It serves not only to give an understanding for the structure of each component, but also serves as reference material for troubleshooting.

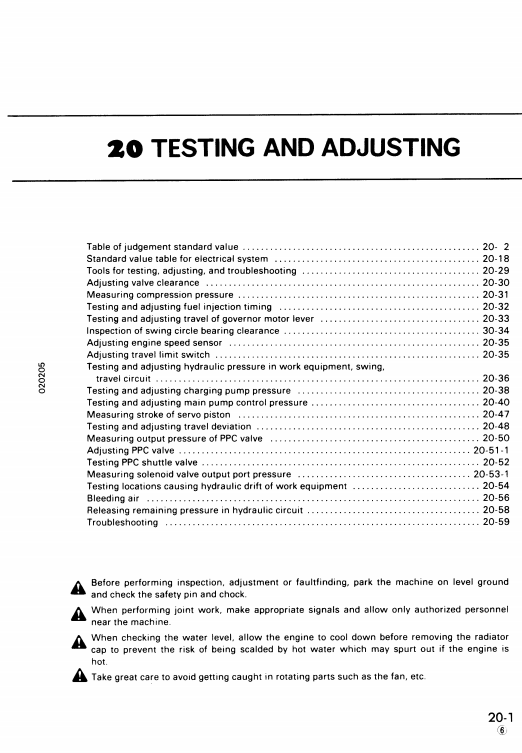

20. Testing and adjusting

This section explains measuring tools and measuring methods for testing and adjusting, as well as the adjusting method of each part. The standard values and judgment criteria for “Testing and adjusting” are explained in “Standard value table”.

30. Disassembly and assembly

This section explains the special tools and procedures for removing, installing, disassembling, and assembling each component, as well as precautions for them. In addition, tightening torque, and quantity and weight of coating material, oil, grease, and coolant necessary for the work are also explained.

40. Maintenance standard

This section gives maintenance standard values of each component. The maintenance standard sub-section explains the criteria and remedies for disassembly and service.

This section explains the method of remanufacturing and repairing engine and replacing parts.
