Garden Room Design VII Elongated Capsule with Rhythm Sequential Repetition

This is a scaled adaptable architectural garden framework for experienced gardeners and designers who prefer structured spatial planning over template-based layouts.

What’s Included

• One complete high-resolution Garden Room PDF with 3 room variations.
• Three finished design plates exploring variation within a single rectilinear enclosure organized through orthogonal circulation and compartmental massing.
• A title and cover plate.
• Grid system for practical planting use for 3 room variations.
• Plant mass reference glyphs and a plant legend offering general plant suggestions.
• Interpretive design notes and visual reference material.

Concept

The Garden Room series is conceived as a set of spatial studies rather than rigid specifications. Each room is treated as a composed enclosure defined by proportion, sequence, repetition, and edge, where planting is understood as mass and spatial relationship rather than inventory. The work draws from historical garden and architectural traditions associated with the late Renaissance through the early Enlightenment period, when gardens were communicated through plates and variation rather than instruction manuals.

The intent is to offer a way of organizing gardens as legible rooms capable of holding complexity without rigidity. The plates are meant to be read slowly and interpreted, functioning as reference objects and planning tools for gardeners, designers, and homeowners who prefer judgment and adaptation over fixed templates.

Elongated Capsule with Sequential Rhythm

This Garden Room explores an elongated capsule-shaped enclosure containing exactly three enclosed compartments arranged sequentially along its length. The dominant geometric move establishes a longitudinal rhythm, around which clearly defined planting volumes are organized in measured succession.

Internal divisions shift between compression and expansion while preserving the overall directional flow. Circulation moves fluidly between compartments and along the perimeter, reinforcing sequence rather than abrupt interruption.

The composition reads as structured and intentional, with tension generated through adjacency, repetition, and controlled variation rather than symmetry.

Planting Strategy

The planting palette is deliberately restrained, chosen for clarity of form, sustained seasonal presence, and the way each plant holds space rather than competes for attention.

Hydrangea paniculata ‘Little Lime’ forms the primary structural mass within the central compartment. Its upright habit and lime-green conical panicles create a luminous architectural volume that reads as a unified plane rather than scattered shrubs.

Salvia nemorosa ‘Caradonna’ establishes vertical rhythm within one opposing compartment. Its deep violet flower spikes and dark stems create directional repetition with visible air between stems, reinforcing movement while preserving geometric clarity.

Nepeta ‘Walker’s Low’ provides a lower continuous flowering plane within the remaining compartment. Its soft violet-blue haze forms a cohesive mass that tempers the sharper edges without dissolving the structure.

The outer boundary is defined by European Beech (Fagus sylvatica), clipped into a continuous enclosing hedge that holds the perimeter with disciplined repetition while remaining secondary to the interior geometry.

Planting reads as disciplined mass and adjacency, with clarity between compartments and a firm structural edge.

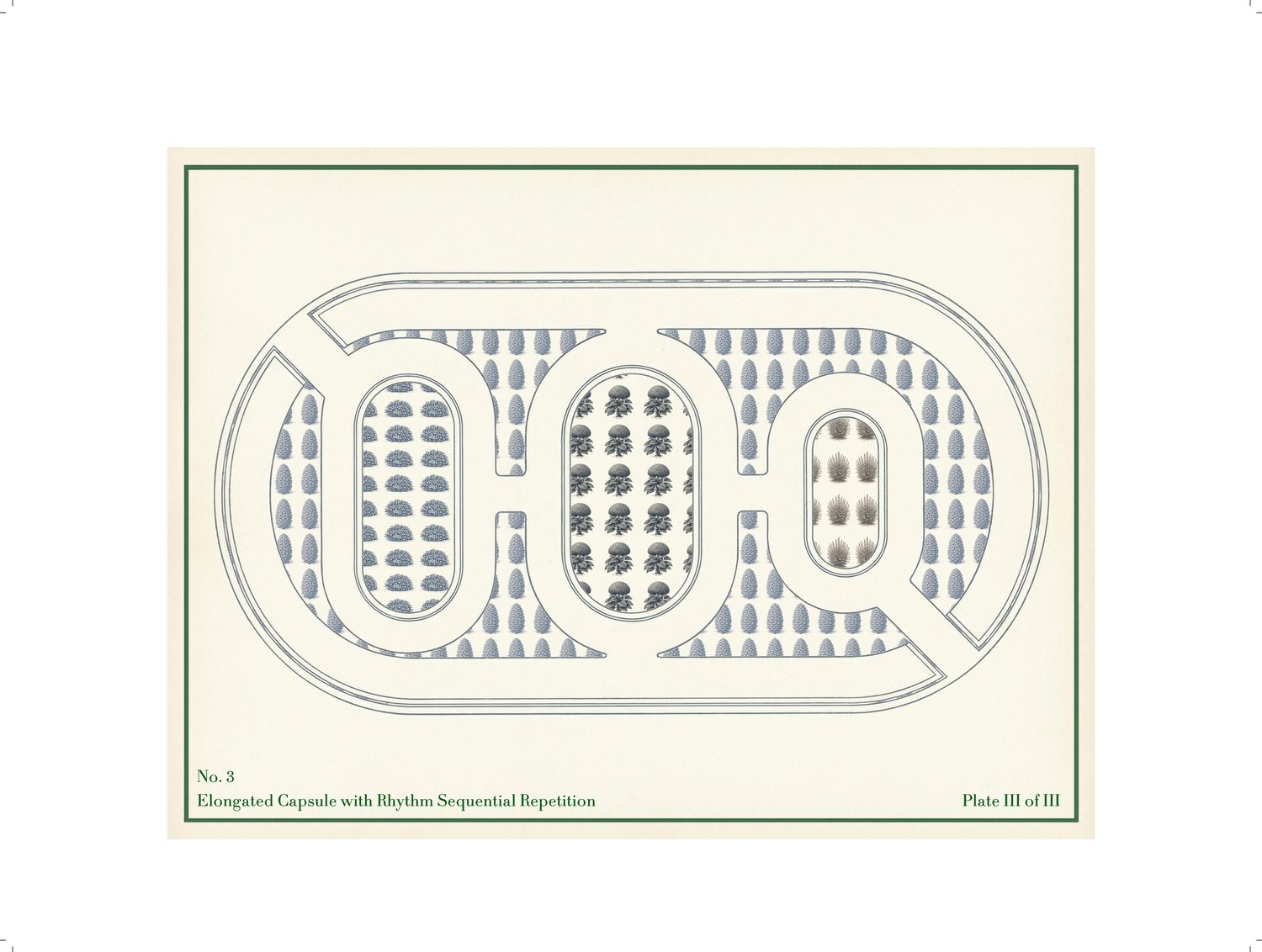

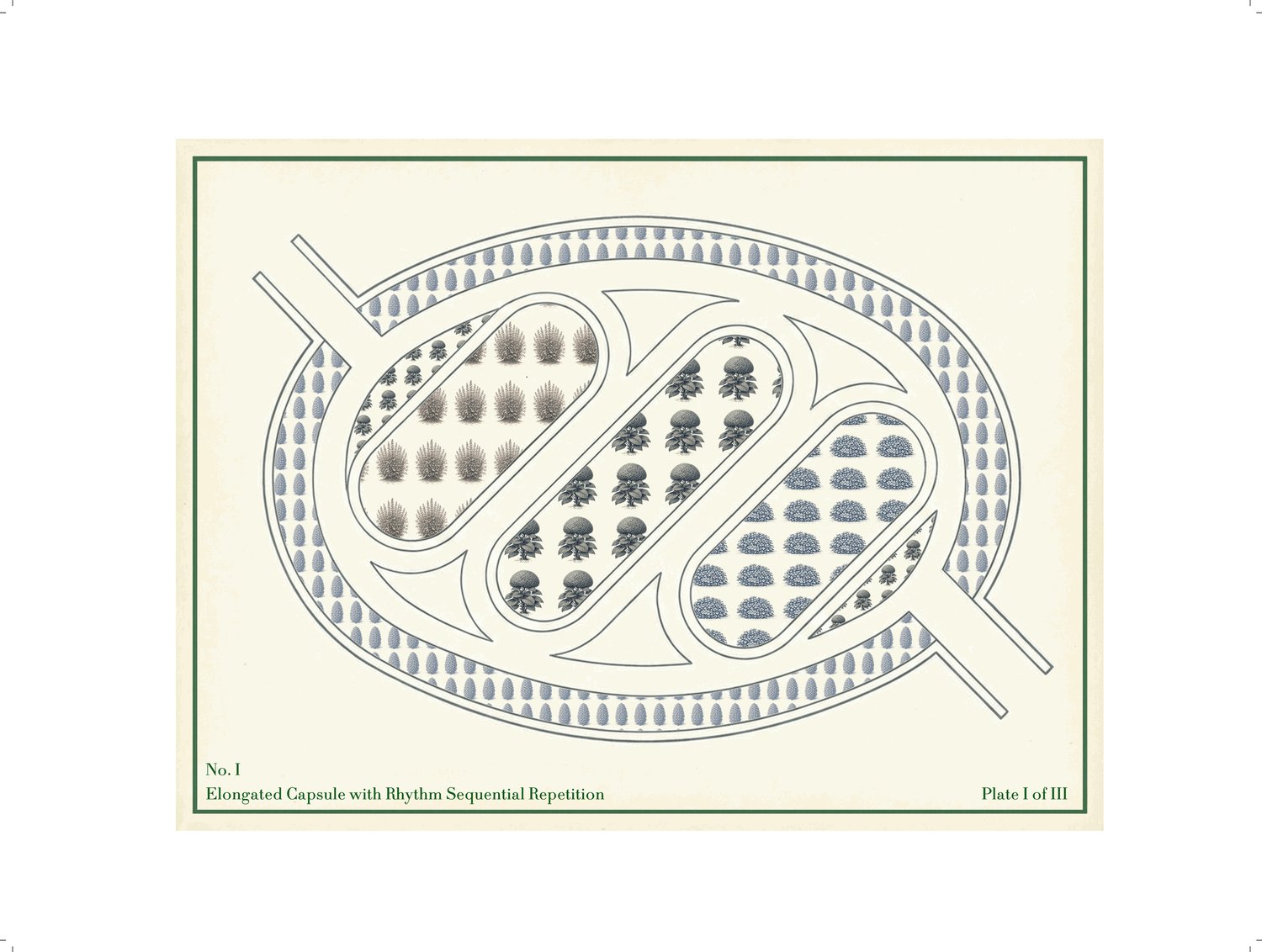

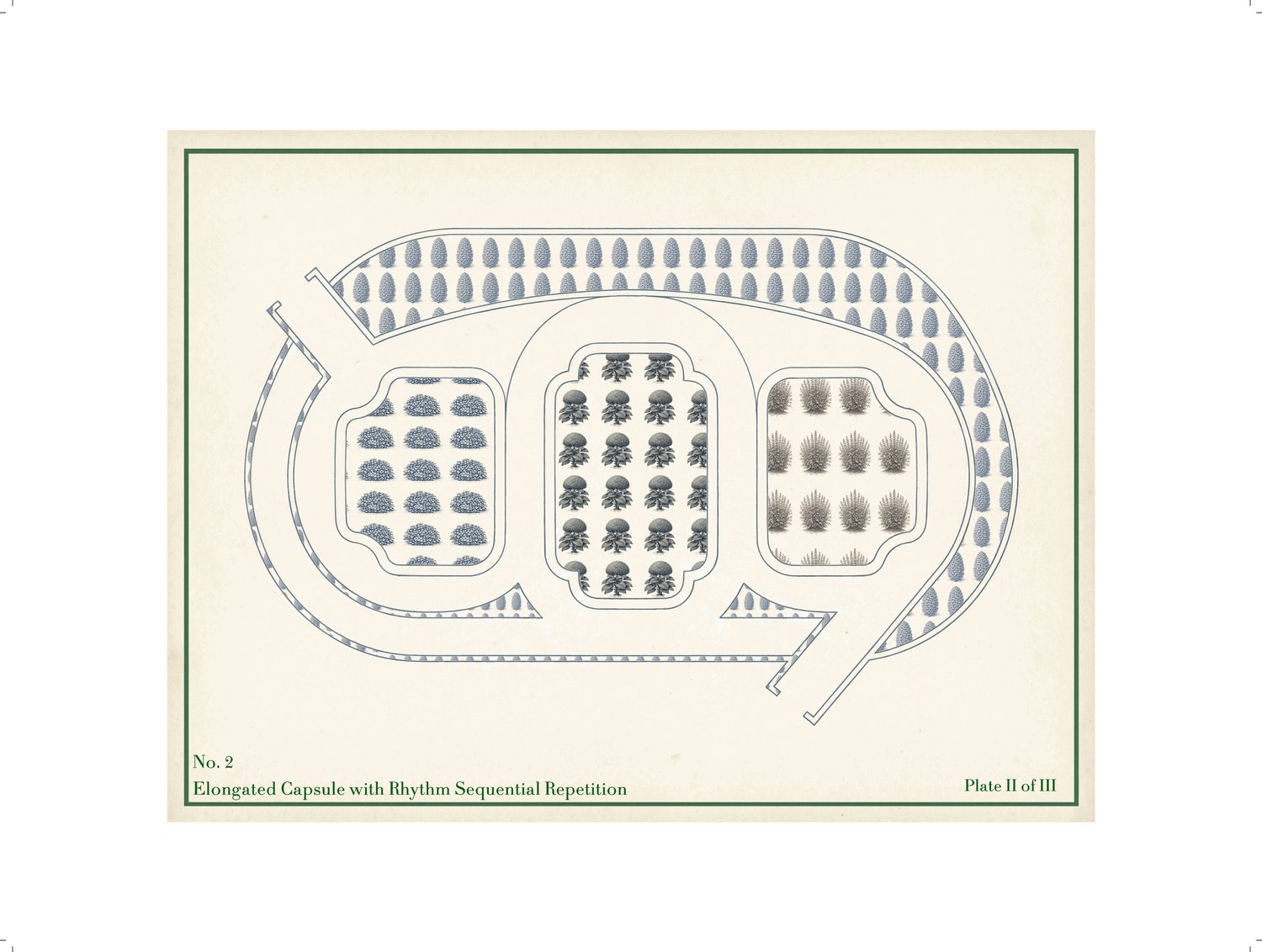

Variation Across the Plates

Across the three plates, the same geometric logic and planting roles are recomposed to explore subtle shifts in proximity, compression, and internal balance within the elongated capsule enclosure. The sequential rhythm remains the organizing force, and circulation continues to reinforce directional movement along the length of the garden.

Planting masses remain pure within each compartment and are repeated to build coherence. The enclosing beech hedge holds the perimeter as a continuous architectural frame.

Rather than presenting alternatives, the plates describe different tensions within the same spatial idea. Together they invite the viewer to experience the garden as a contained interior landscape shaped by rhythm, luminosity, disciplined massing, and deliberate restraint.

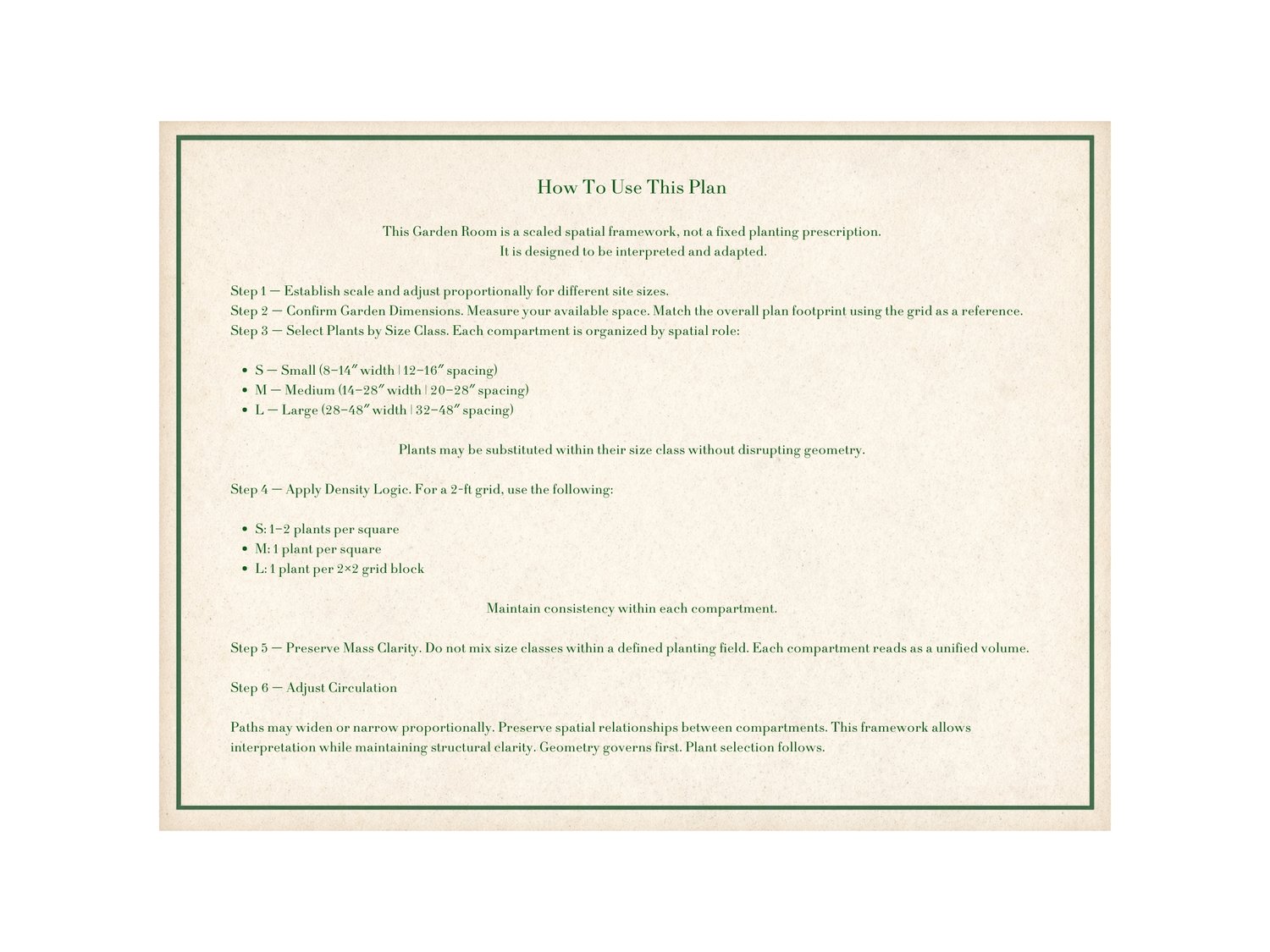

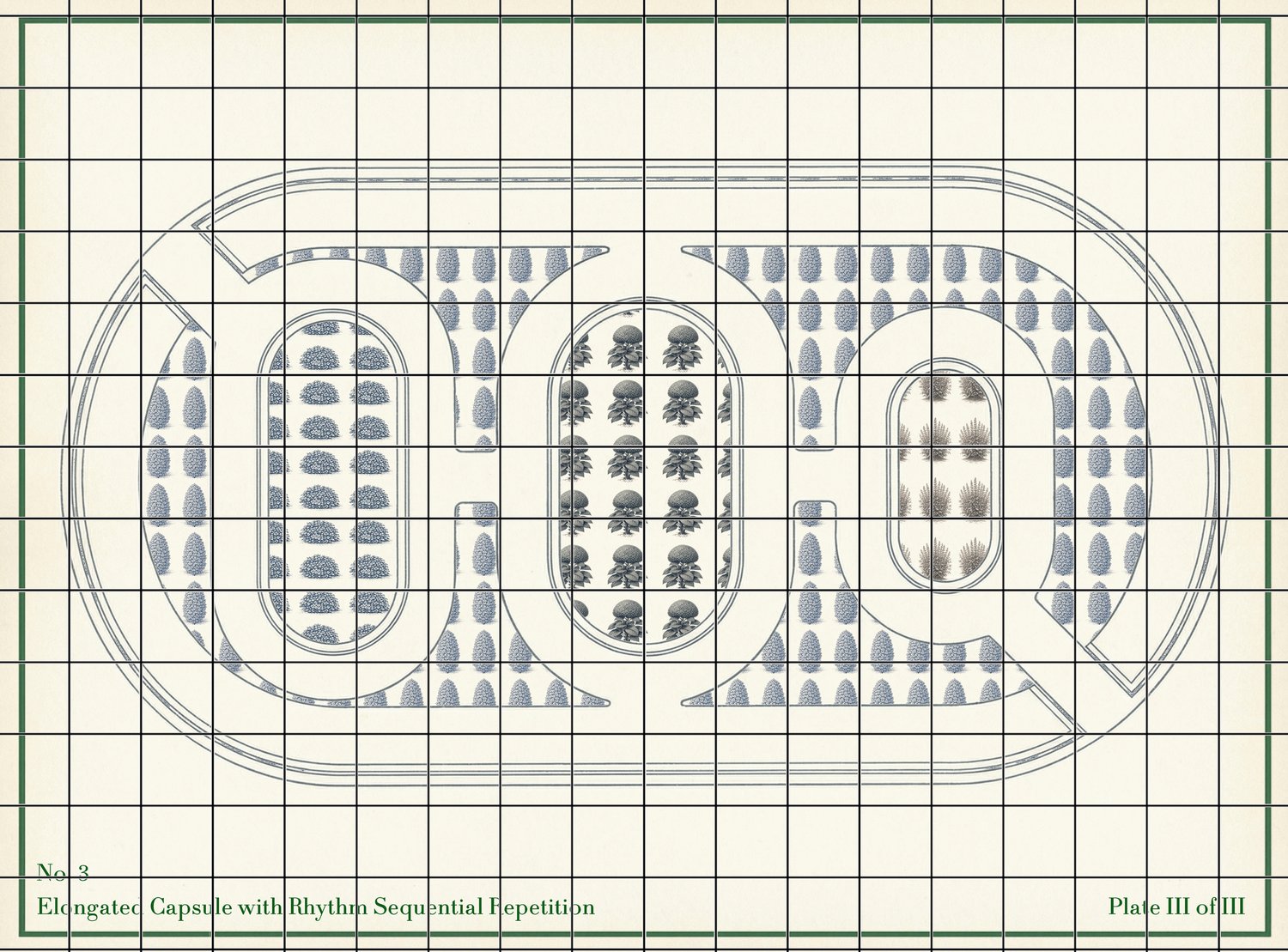

How to Use the Grid

The grid functions as a proportional scaling tool. Each square corresponds to the scale indicated on the specific plate (1 ft, 1.5 ft, or 2 ft). Use the grid to translate planting mass into appropriate on-center spacing. Small plants occupy tighter intervals, medium plants align approximately one per square at their spacing, and large plants extend across multiple squares according to mature width. Maintain a single size class within each compartment to preserve spatial clarity. Plants may be substituted within the same size range without altering the underlying geometry.

The plant glyphs shown on the plates represent planting types listed in the legend and are decorative indicators of mass, not literal quantities per grid square.
