The Chloe Cottage House Plan | 1 bed 1 bath | 648 sq ft heated | PDF download

The Chloe Cottage House Plan – 1 Bed / 1 Bath | 648 Sq Ft

Instant PDF Download – Full Construction Blueprints

Looking for a cozy, functional home design perfect for a guest house, downsizing, or a peaceful retreat?

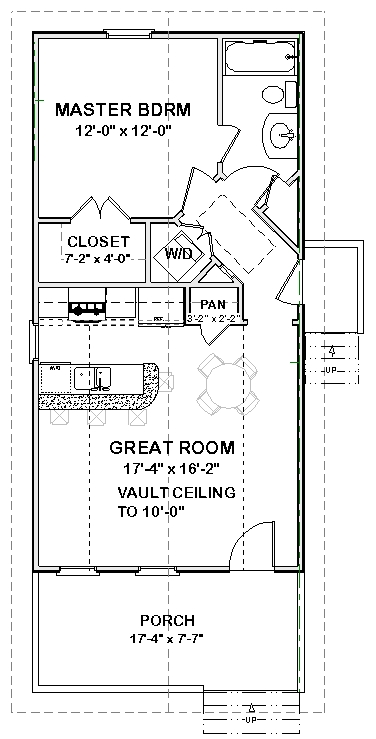

The Chloe Plan is a charming, craftsman-style 1-bedroom, 1-bath cottage with vaulted ceilings, an open living space, and front porch charm – designed by a 40-year residential design veteran.

Perfect for:

--DIY builders

--Vacation homes or Airbnb rentals

--Aging-in-place designs

--In-law cottages or tiny homes with real comfort

✅ What's Included in the Download:

Full construction documents in PDF format—ready to print on 24"x36" paper or scale down to 18"x24" or 11"x17".

Detailed Sheets Include:

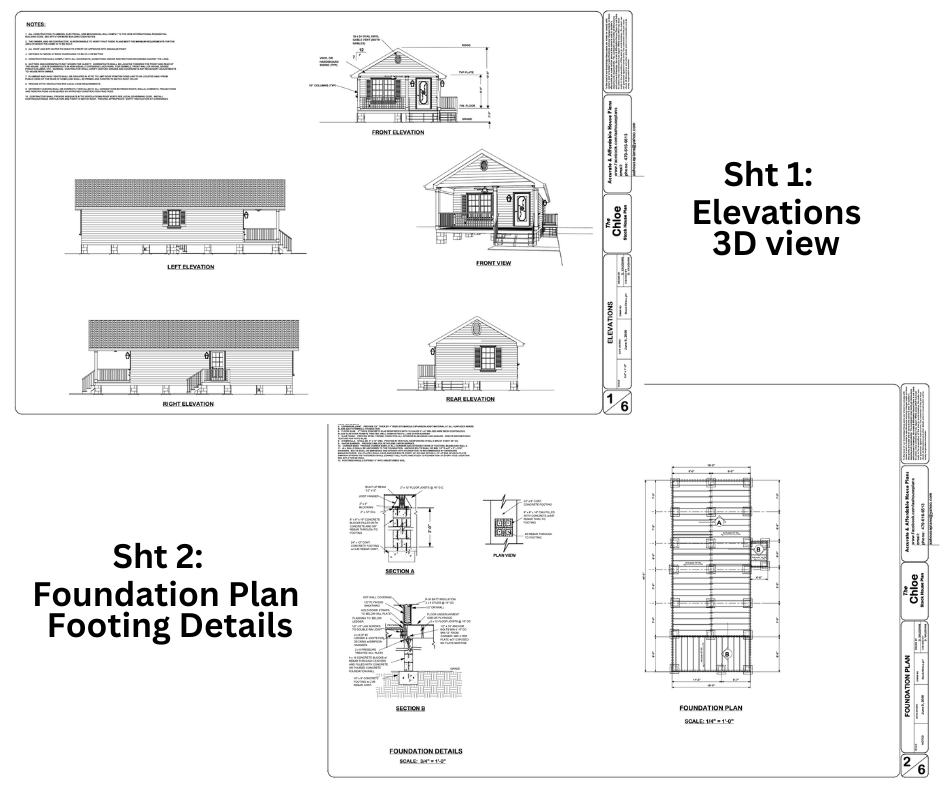

--Front, Rear & Side Elevations

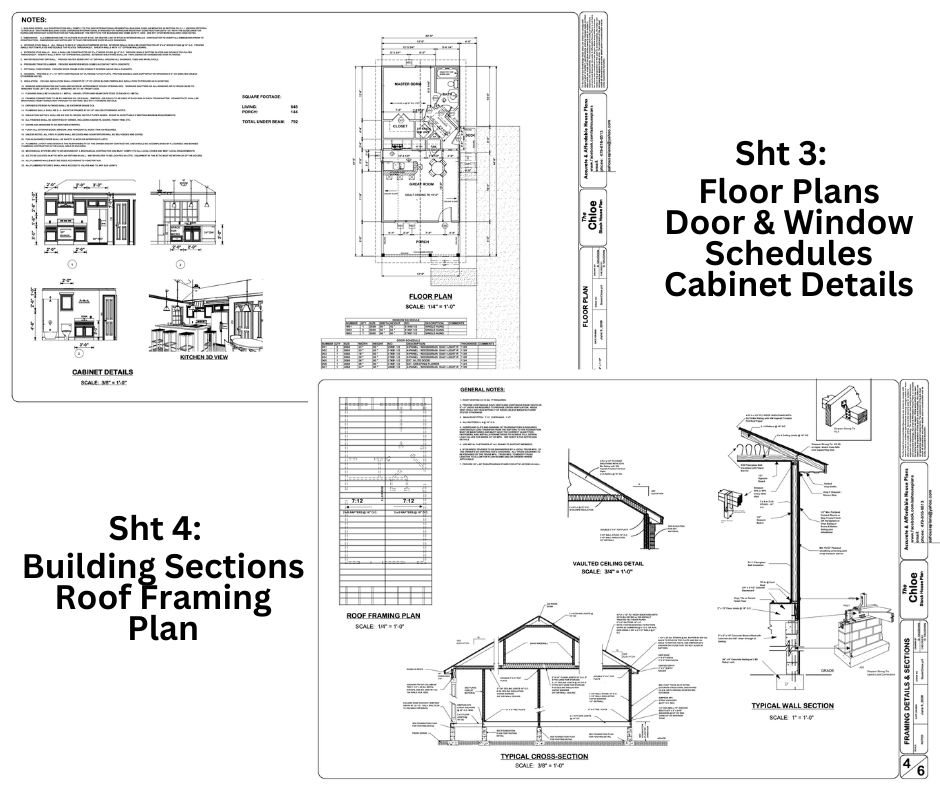

--Floor Plan

--Foundation Plan (Pier & Beam)

--Roof Framing Plan

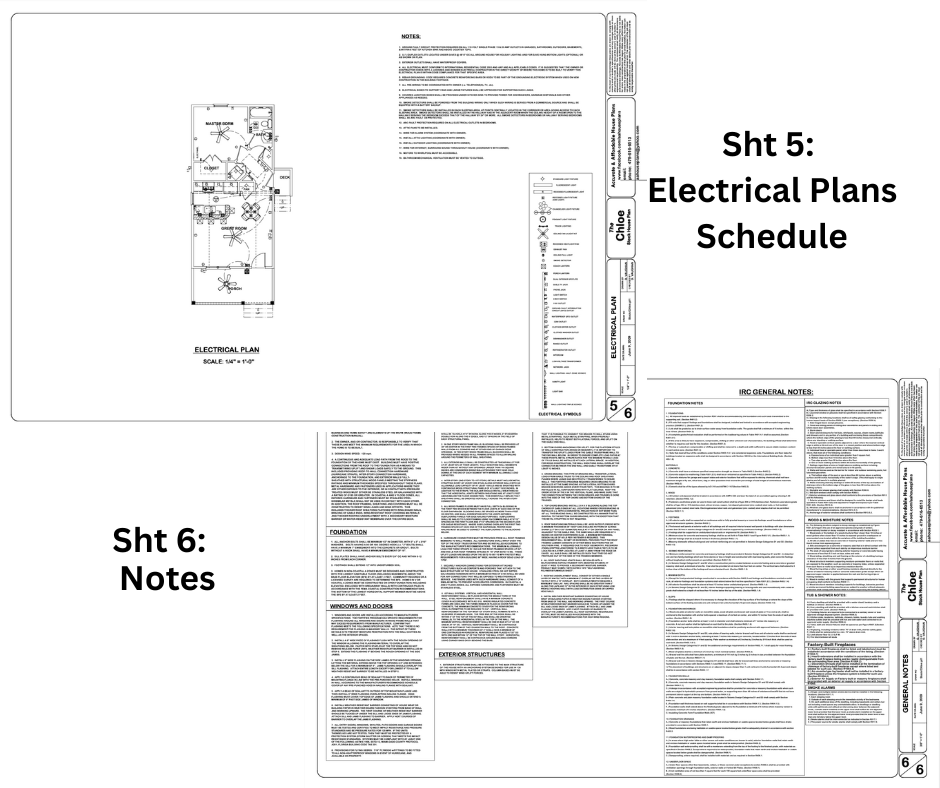

--Electrical Layout

--Door & Window Schedules

--Cabinet Details

--Wall Section, Cross Section

--Footing & Framing Details

--IRC & Wind Load Notes (120mph)

May also include 3D views, ceiling details & more

Dimensions & Specs:

--Heated Living Area: 648 sq ft

--Porch: 144 sq ft

--Total Under Roof: 792 sq ft

--Width: 18’ (plus 4’ side deck)

--Depth: 44’

--Height: 16'-6"

Ceilings: 8’ standard; vaulted to 10' in Great Room.

Roof Pitch: 7:12

Foundation: Pier and Beam

Siding Options: Hardiplank or Vinyl

PDF Format – scalable, printable, sharable

Why Choose a PDF Plan?

--Instant delivery — no waiting or shipping

--Print as many copies as you need, in the size you want

--Share directly with your builder, permit office, or subcontractors

--Save time, money, and shipping costs

How to Access Your Files:

After purchase, you will receive an email with download link.

Check your inbox, spam, or trash folders.

Click the link and download the file- save it to a place that you will remember where it is located.

Important Notes:

--This is a digital product – no physical blueprints will be shipped

--Copyrighted: Not for resale or redistribution

--No refunds/exchanges on digital downloads

--No architectural/engineering stamp, site plan, plumbing or HVAC drawings included

--No changes included with this plan

--Designed with care and precision by a professional with 40+ years in residential design, The Chloe Cottage is a customer-favorite for its simplicity, charm, and flexibility.
