MikroTik Plugin v1.0.0

Q-SYS plugin MikroTik Plugin based on RouterOS API

This plugin is the MikroTik Routers plugin for Q-SYS.

How to Use

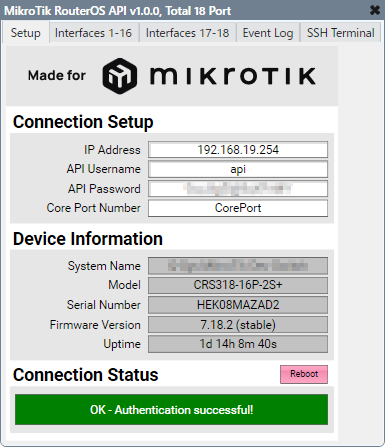

●Setup

Displays router device information.

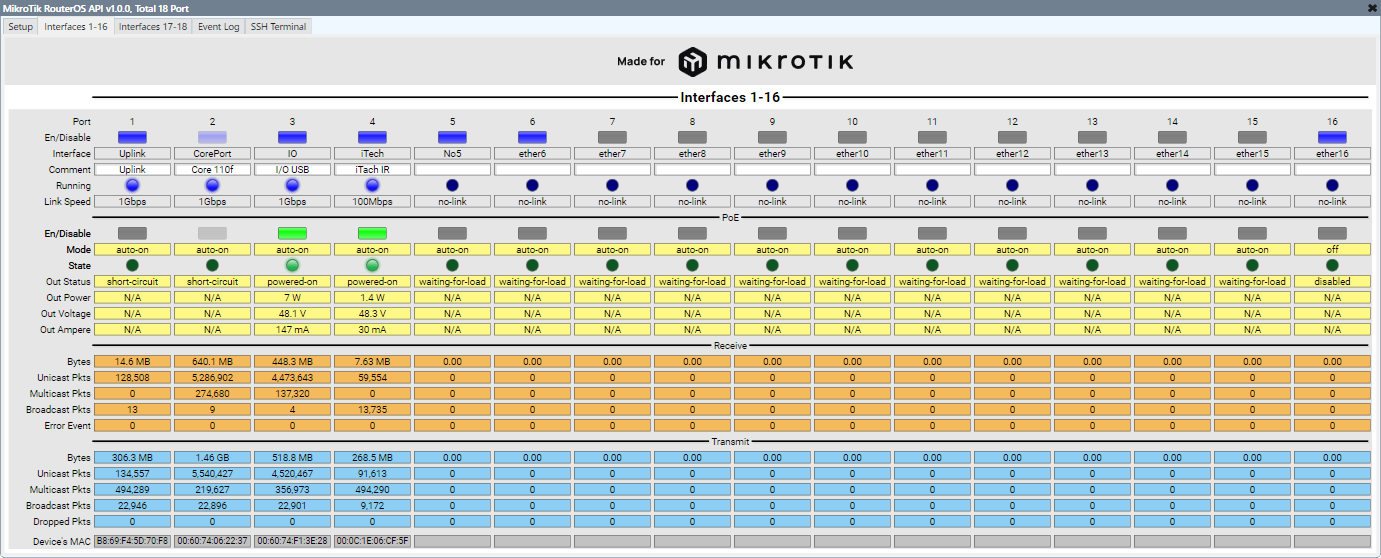

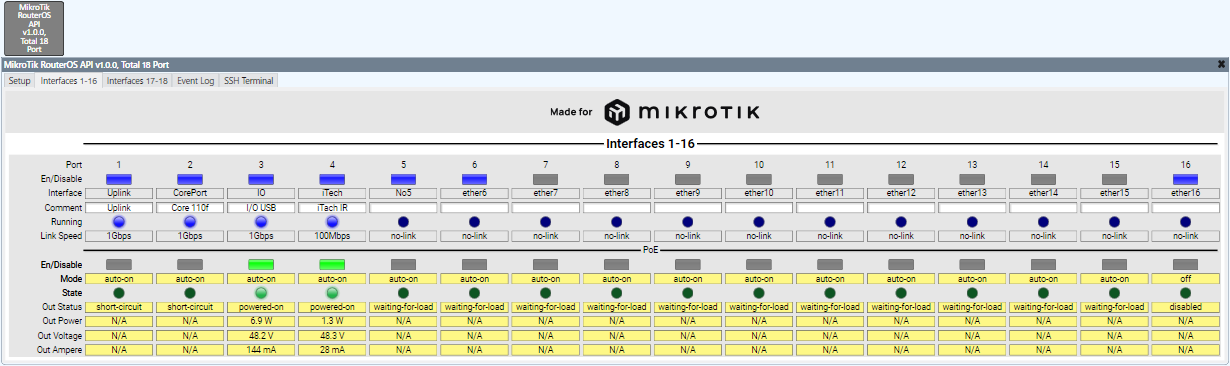

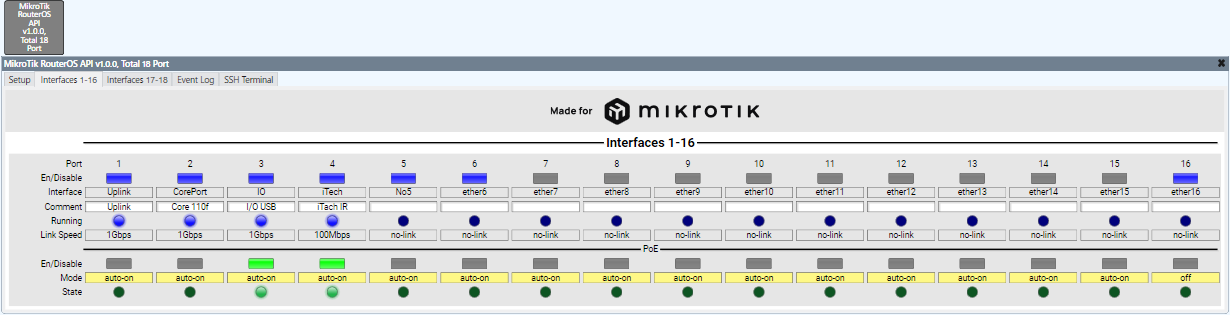

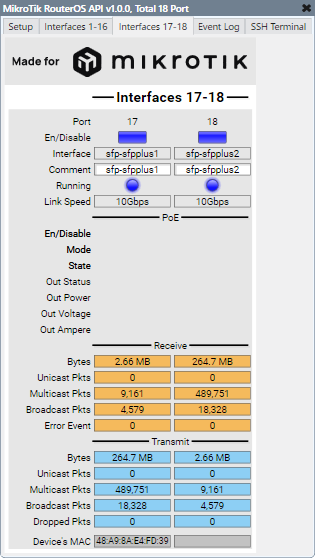

●Interfaces

Dynamically retrieves and displays port information based on the total number of interface properties.

1. Basic View: Provides a simple, streamlined display.
2. +PoE: Displays Power over Ethernet (PoE) information.
3. +Packets: Shows transmitted (TX) and received (RX) packet statistics.

• Also retrieves and displays MAC addresses of connected devices.

The values for Interfaces are updated every 'Poll Rate (sec)' seconds.

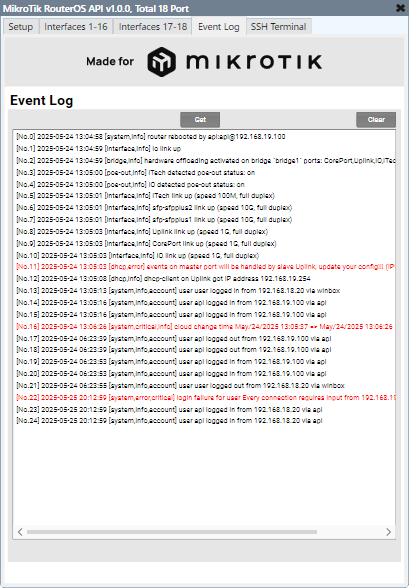

●Event Log

Retrieves and displays error logs.

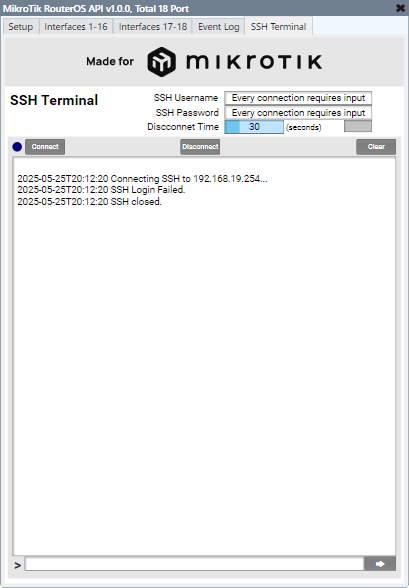

●SSH

When enabled via a property, allows sending arbitrary commands via SSH.

Setting the timeout value to '0' maintains a constant connection.

--v1.0.0--------------------------------------------------

Initial Release 20250526

*Note and Caution-------------------------------------

As you know, use this plugin at your own risk.

*Test Equipment

QDS ver 9.13.0

This is based on Reference RouterOS v7.18.2(stable), so new versions released after this may not be guaranteed to work.
