Header Opening Pro

Header Opening Pro — AutoLISP + DCL Drafting Tool

Create clean header and wall-opening details with a convenient dialog interface. Header Opening Pro helps you break two parallel wall edges, draw jamb closure lines, and place a header centerline with adjustable extensions.

Features

• Adjustable clear opening width and header extension at each end
• Automatic opening breaks in two straight LINE wall edges
• Optional jamb closure lines and header annotation
• New and existing construction layer presets
• Custom header and jamb layers with color settings
• Support for angled walls in the current UCS plane
• Settings retained during your AutoCAD session
• One-step undo for completed drawing operations

Your download includes

• AutoLISP program (.LSP)
• Matching dialog file (.DCL)
• Installation and operating instructions

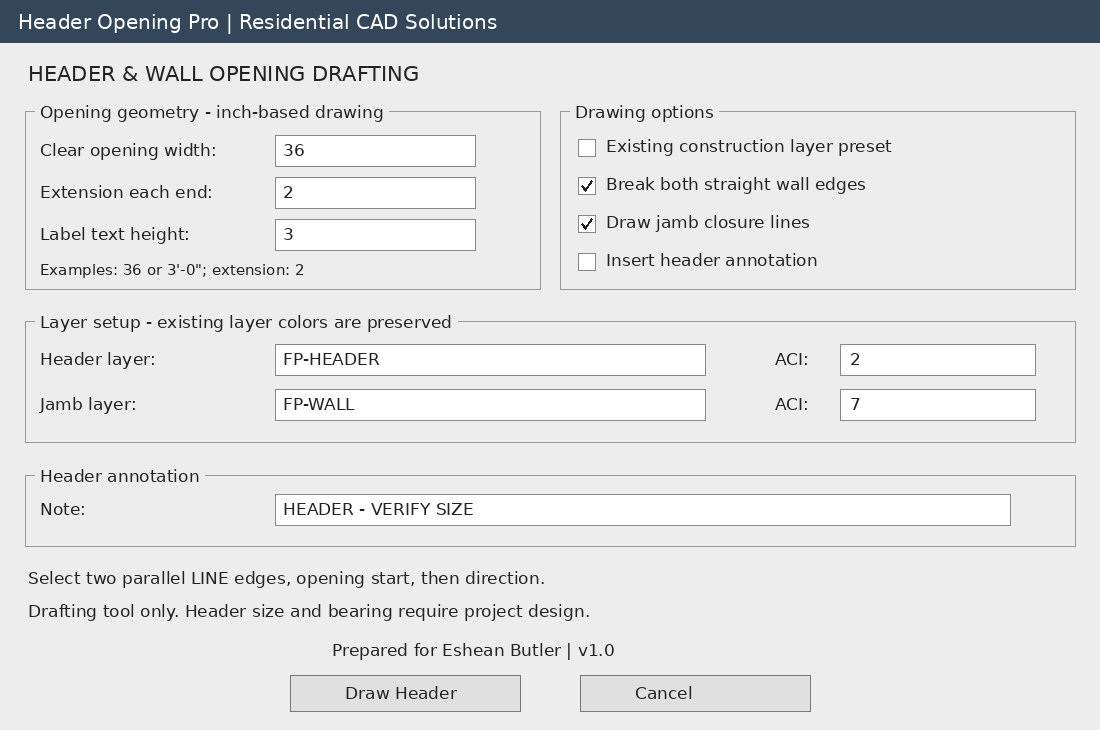

• Gray DCL preview image

Command: HEADERPRO

Designed for full-size, inch-based drawings using two parallel straight LINE wall edges. Written using classic AutoLISP and DCL for AutoCAD 2002-era environments; runtime compatibility requires testing in your installation.

Please note: This is a drafting tool. It does not calculate structural header sizes or required bearing.
