GEM Protocol Validation Tool for Education version.
GEM Protocol Validation Tool
A verification tool designed for testing both standard and error‑handling scenarios of SECS/GEM communication used in semiconductor manufacturing equipment (SEMI E5 / E30 / E37). It faithfully reproduces the GEM state machine internally and executes equipment‑side and host‑side behavior as scenario‑driven workflows.
The tool also functions as a practical learning platform, visualizing the two major sources of GEM complexity—ambiguous specifications and vendor‑specific implementation differences—through a clear, deterministic state‑transition model.
Product Page:
Sample Video:
- Verify standard and error scenarios
- Validate scenario behavior step by step
- Review execution results through generated reports
Key Features
- Production‑grade GEM driver implemented in pure C++20
- Recreates the GEM state machine with no external runtime dependencies.
- Scenario execution covering both normal and abnormal behavior
- Includes major S1–S14 messages, E30 control models, and E37 HSMS connection states.

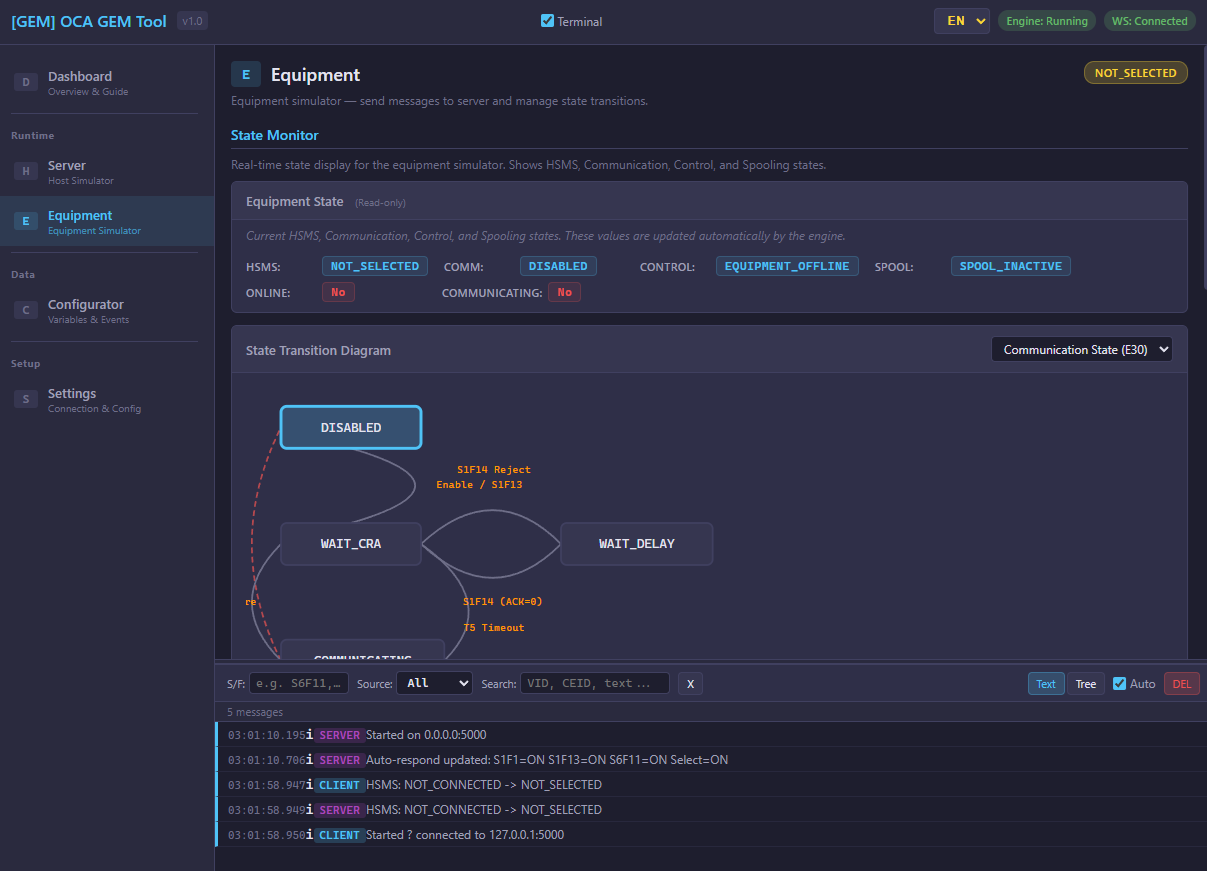

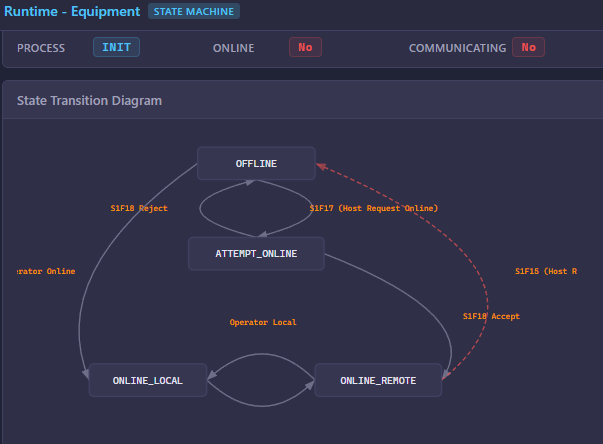

- State‑machine‑driven validation engine
- Ensures correctness based on state transitions rather than simple message exchange.
- Step‑by‑step scenario execution with detailed logging
- Records every message, state transition, and error point throughout execution.
- Report generation (HTML / JSON)
- Saves execution results for review, documentation, and team sharing.
Notes on GEM Specifications
Although SECS/GEM has formal standards, vendor interpretations vary widely.
This tool uses the official SEMI E5 / E30 / E37 specifications as the reference model.
- Equipment‑specific extensions (custom SVIDs, alarms, etc.) can be defined within scenarios.
- Any behavior that contradicts the SEMI standard is intentionally treated as an error to eliminate ambiguity.
Requirements
To use this tool, the following environment is required:
- Windows 10 / 11
- Microsoft Visual C++ Redistributable
- Python
Specifications
- Supported Protocols: SECS‑II (E5), GEM (E30), HSMS (E37)
- Scenario Format: JSON‑based
- Validation Coverage:
- HSMS connection states
- GEM control states (Offline / Online / Remote / Local)
- Major SECS/GEM messages
- Standard and error‑path state transitions
- Limitations:
- Equipment‑specific proprietary behavior must be defined in scenarios.
- Not intended to reproduce every vendor‑unique implementation.
- Any deviation from SEMI standards is treated as an error by design.
