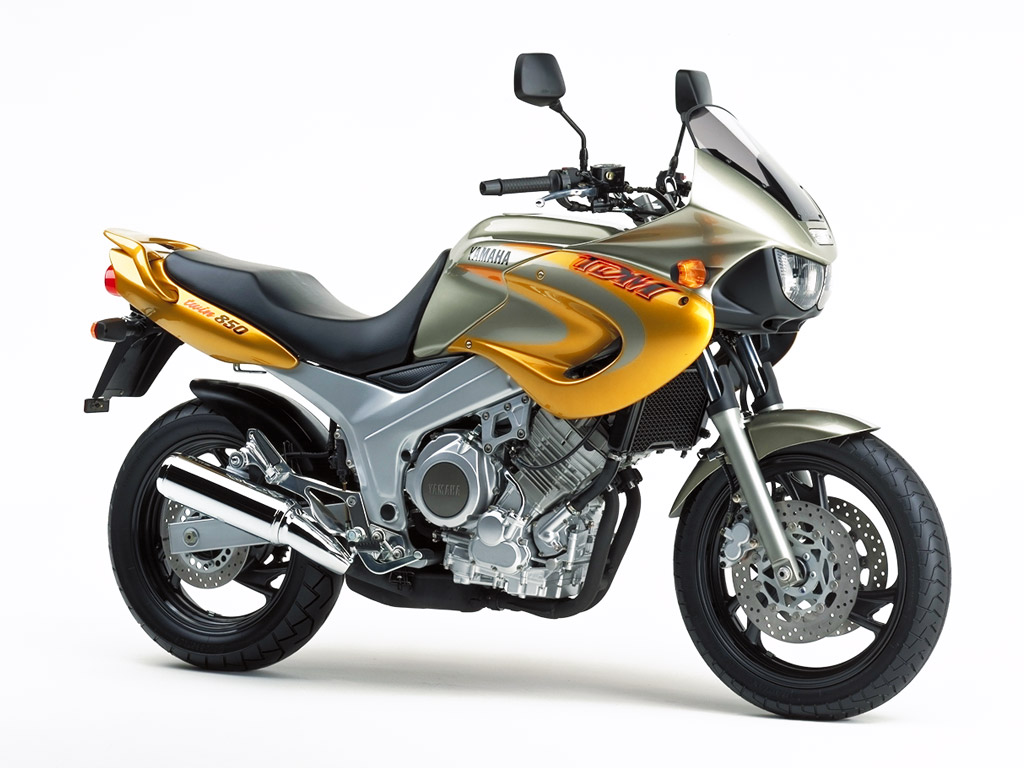

Yamaha TDM850, TRX850, XTZ750 1989-1999 Factory Service & Shop Manual
Yamaha TDM850, TRX850, XTZ750 1989-1999 Factory Service & Shop Manual
Complete workshop & service manual with electrical wiring diagrams for Yamaha TDM850, TRX850, XTZ750 1989-1999. It's the same service manual used by dealers that guaranteed to be fully functional and intact without any missing page.
This Yamaha TDM850, TRX850, XTZ750 Motorcycle service & repair manual (including maintenance, overhaul, disassembling & assembling, adjustment, tune-up, operation, inspecting, diagnostic & troubleshooting…) is divided into different sections. Each section covers a specific component or system with detailed illustrations. A table of contents is placed at the beginning of each section. Pages are easily found by category, and each page is expandable for great detail. The printer-ready PDF documents work like a charm on all kinds of devices.
“TDM850, TRX850, XTZ750 '89-'99.pdf”
MODEL: ’91-’99 TDM850, ’91-’99 TRX850, ’89-’95 XTZ750 Super Ténéré; 210 pages
“TDM850 '96.pdf”
319 pages
EXCERPT:
INSPECTION
1. Eliminate:
Carbon deposit
(from combustion chamber)
Use rounded scraper.
Do not use a sharp instrument to avoid damaging or scratching:
Spark plug threads
Valve seat
2. Inspect:
Cylinder head
Scratches/Damage Replace.
3. Measure:
Cylinder head warpage
Out of specification Resurface.
Cylinder head warp limit:
Less than 0.03 mm
Warp limit measurement and resurfacement steps:
Hold a straight edge and a thickness gauge to the cylinder head.
Measure the warpage.
If the warpage is out of specification, resurface the cylinder head.
Place a 400 600 grit wet sandpaper on the surface plate, and resurface the head using a figure eight sanding pattern.
