Retail Floor Display Stand CNC Cut File | Wooden Pegboard Display Rack DXF SVG Vector Plans (9mm / 3/8" Plywood)
On Sale
$18.90
$18.90
Boost your retail store, boutique, or craft fair setup with this modern Pegboard Floor Display Stand! Specially engineered to display hanging merchandise—from packaged goods and accessories to keychains and retail products—this flat-pack rack combines high functionality with a clean wooden aesthetic.
Designed with precision interlocking joints for tool-free, friction-fit assembly—no glue or screws required!
📐 Technical Specifications & Dimensions:
- Overall Stand Dimensions: Height 1748 mm x Width 500 mm x Depth 287 mm (68.8" x 19.6" x 11.3")
- Row Spacing: 253 mm vertical distance between hook rows
- Material Thickness: Optimized for 9 mm (3/8") Plywood, MDF, or Birch
- Toolpath Ready: 1:1 scale vectors with built-in dogbone/slot tolerances for clean CNC cutting.

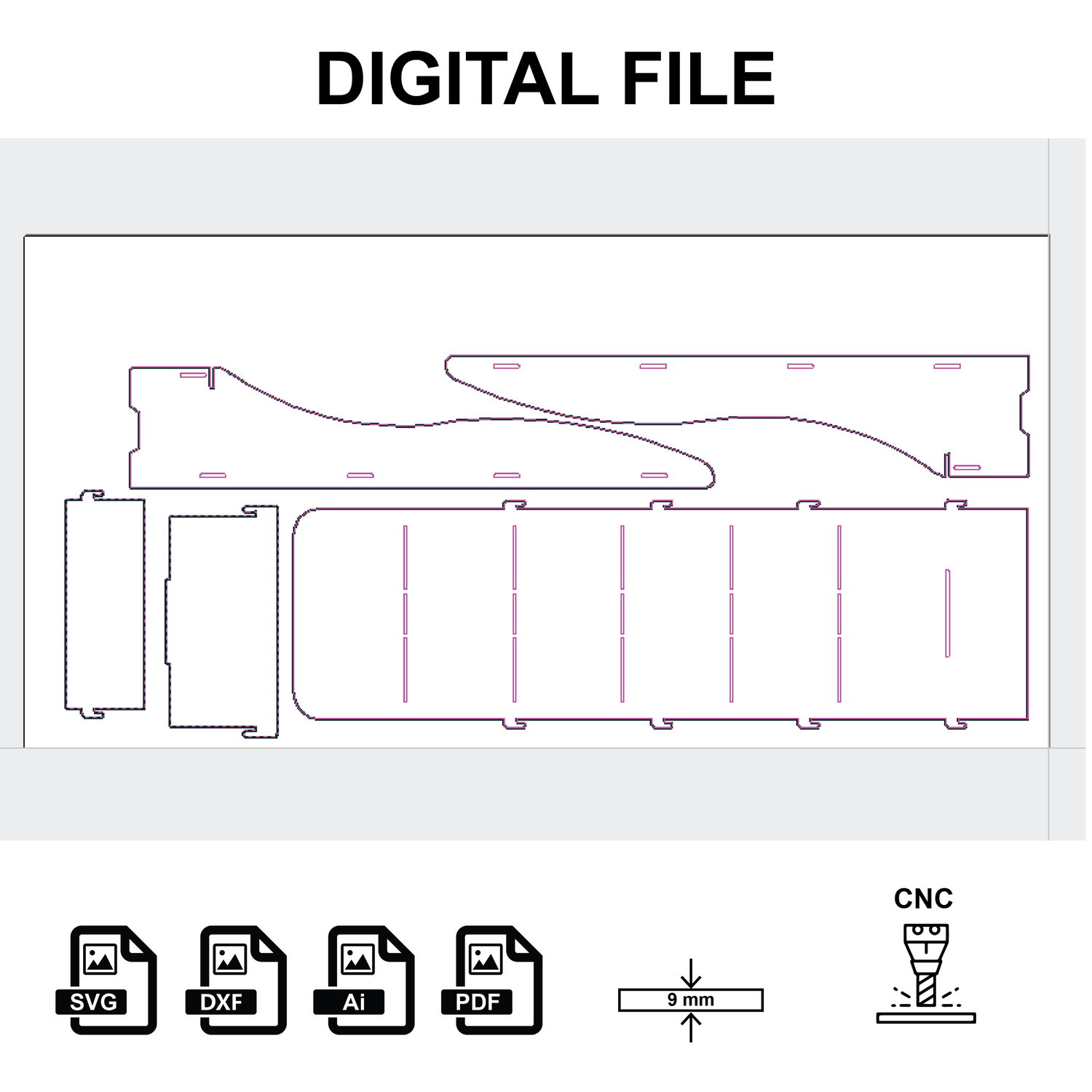

📦 Included Digital Files (ZIP Download):
- DXF (AutoCAD / CNC Routers & Lasers)
- SVG (Scalable Vector Graphics)
- AI (Adobe Illustrator CS6+)
- PDF (Vector Blueprint with full dimension breakdown)
🛠 Ideal For: CNC Routers, CO2 Lasers, Trade Shows, Craft Fairs, and Retail Stores.
Note: This is an instant digital file download. No physical product will be shipped.
