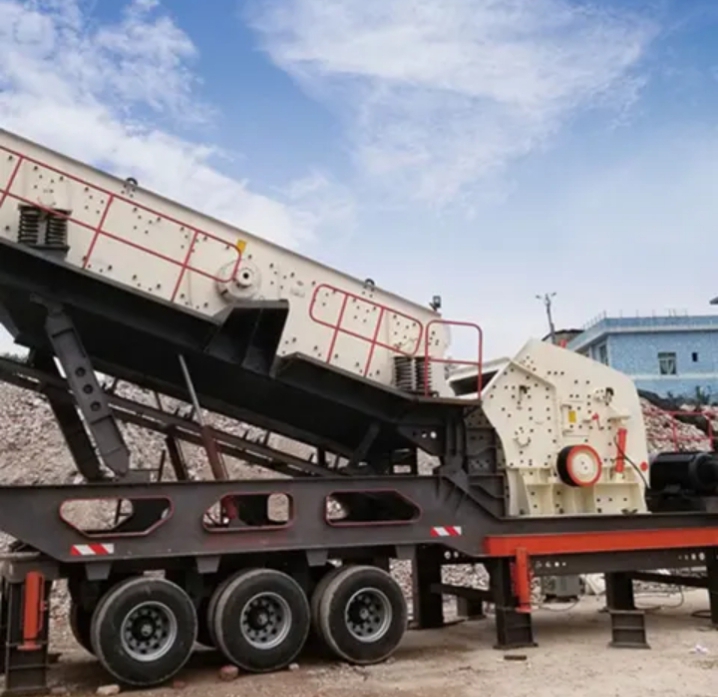

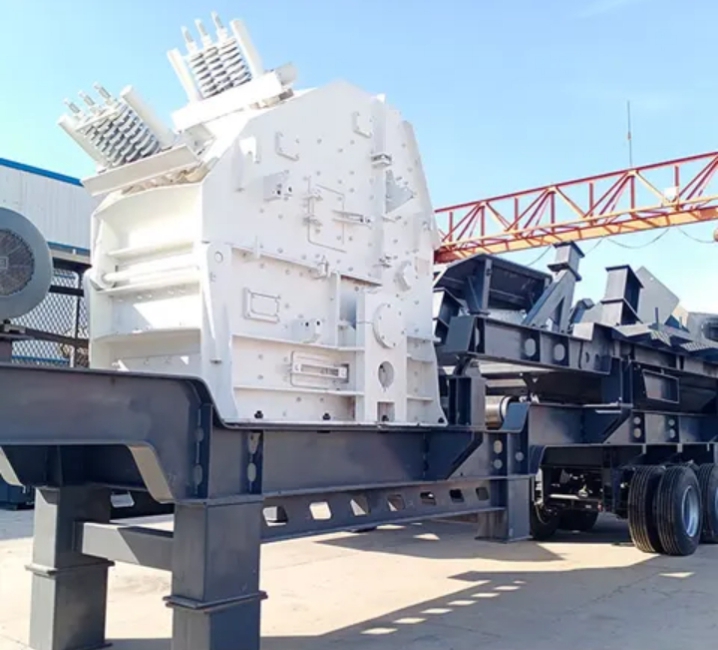

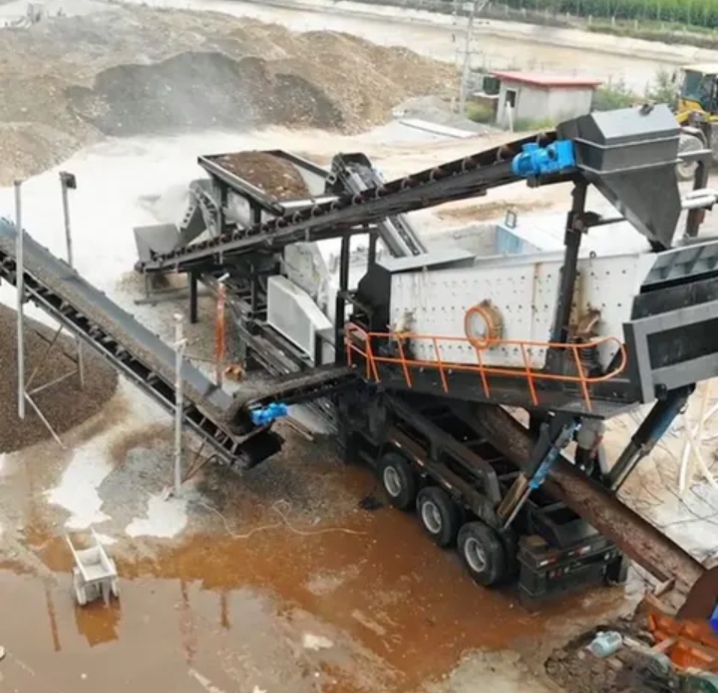

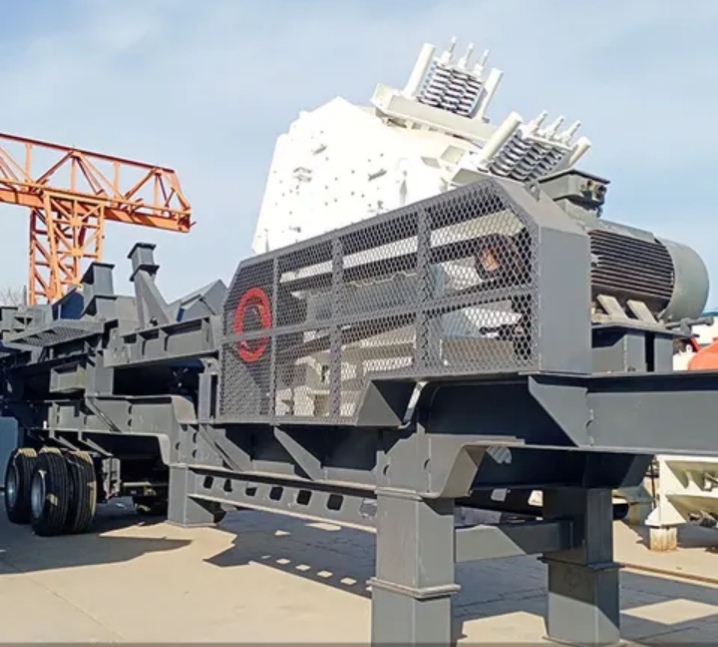

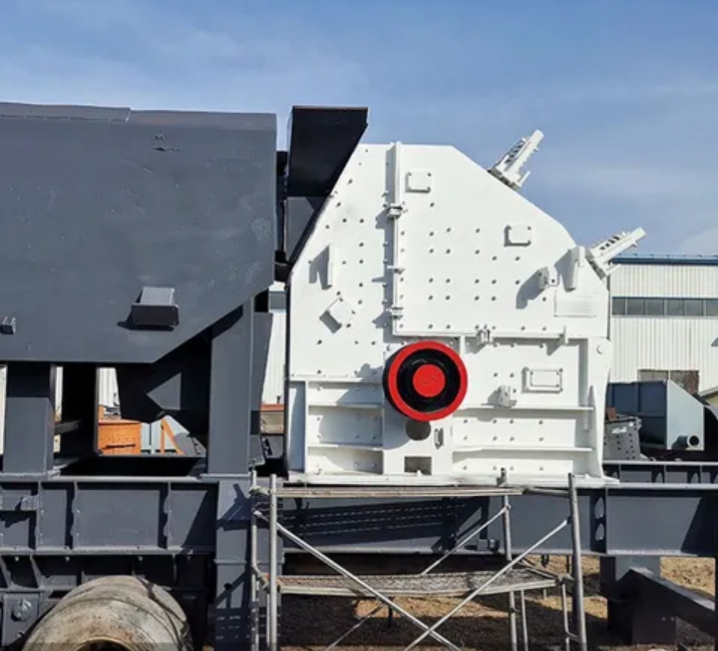

Wheel Type Mobile Impact Crusher Plant

Equipment application:

1. Primary, medium and fine crushing in various medium hardness crushing processes;

2. Crushing of various types of mine rocks;

3. Reutilization of waste solid resources, such as crushing in house demolition and the recycling of road concrete;

4. Aggregates crushing in the asphalt and concrete mixing station;

5. Other industrial material crushing.

Advantages and features:

1. High efficiency of crushing host: overweight rotor, high wear-resistant material, large crushing cavity, making it have large feed size, stable product and high output;

2. The final product has good grain size and large crushing ratio: it is suitable for various crushing needs and has wide application;

3. Simple operation and convenient maintenance: the rear frame of the crusher is opened by hydraulic pressure, which is convenient for maintenance and repair; the side unloading belt can be folded;

4. Flexible configuration: optional iron remover, returning system or plate feeding system;

5, Fast transition work: the use of intelligent wireless remote control device, on-site mobile passability, can adapt to a variety of complex construction environments such as mountains, wetlands.

Specification

Model

Max Feeding Size(mm)

Main Machine

Screener

Discgarge Opening Size(mm)

Capacity(t/h)

MHYP150

600mm

PF1010

HY1237

25-100

100-200

MHYP260

900mm

PF1214

HY1540

25-100

200-400

MHYP350

1000mm

PF1317

HY1540

20-200

250-500

MHYP550

1000mm

PF1420

----

20-200

400-600
