KOMATSU PC130-8 SHOP MANUAL Serial: 80001-UP ; C30001-UP

KOMATSU PC130-8 SHOP MANUAL

Serial: 80001-UP ; C30001-UP

Format: PDF

Language: English

KOMATSU PC130-8 SHOP MANUAL

Table of Content of this Book Manual:

00 Index and Foreword

01 Specifications

10 Structure and function

20 Standard value table

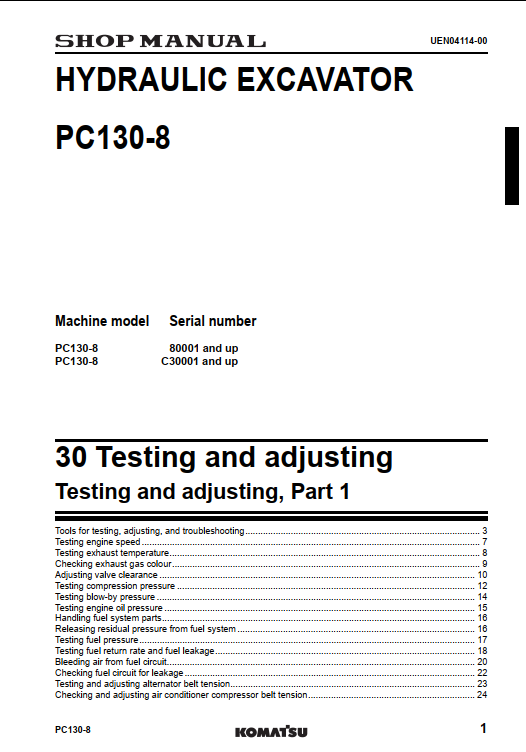

30 Testing and adjusting

40 Troubleshooting

50 Disassembly and assembly

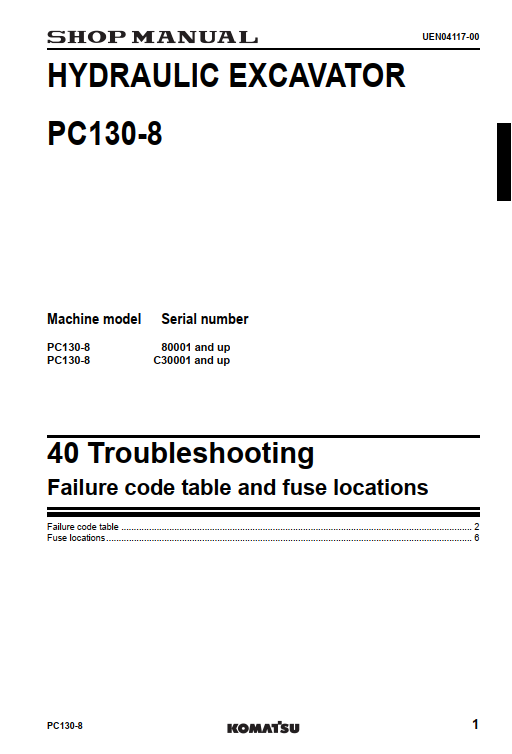

90 Diagrams and drawings

Composition of shop manual

This shop manual contains the necessary technical information for services performed in a workshop. For ease of understanding, the manual is divided into the following sections.

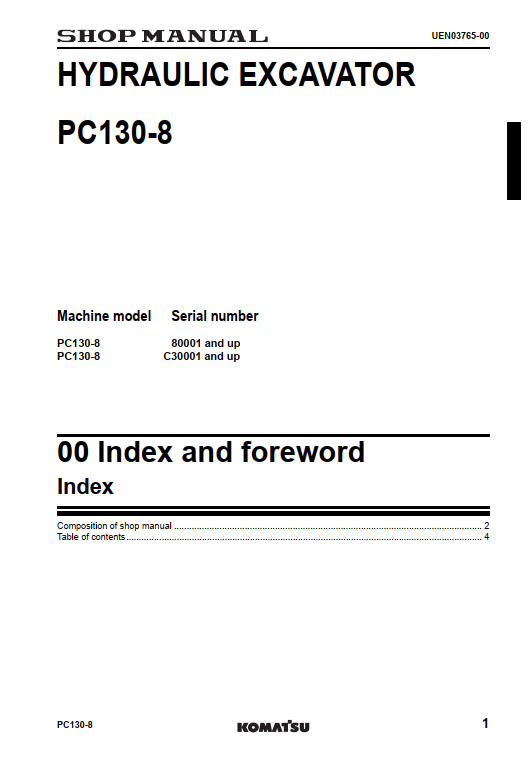

00. Index and foreword

This section contains the index, foreword, safety and basic information.

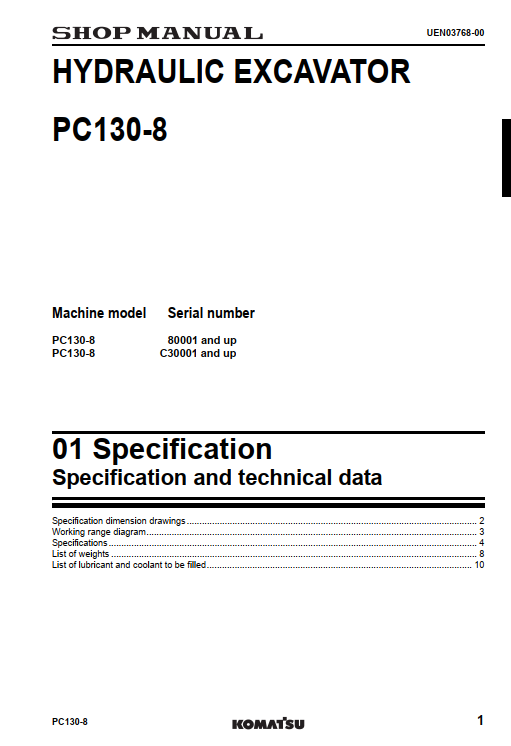

01. Specification

This section explains the specifications this machine

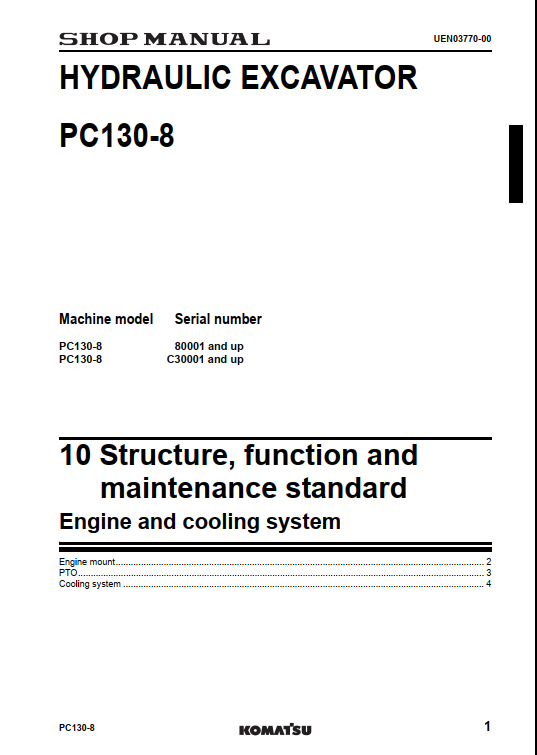

10. Structure and function

This section explains the structure and function of each component. It serves not only to give an understanding for the structure of each component, but also serves as reference material for troubleshooting.

20. Standard value table

This section explains the standard values for new machine and judgement criteria for testing, adjusting, and troubleshooting. This standard value table is used to check the standard values in testing and adjusting and to judge parts in troubleshooting.

30. Testing and adjusting

This section explains measuring tools and measuring methods for testing and adjusting, as well as the adjusting method of each part. The standard values and judgment criteria for “Testing and adjusting” are explained in “Standard value table”.

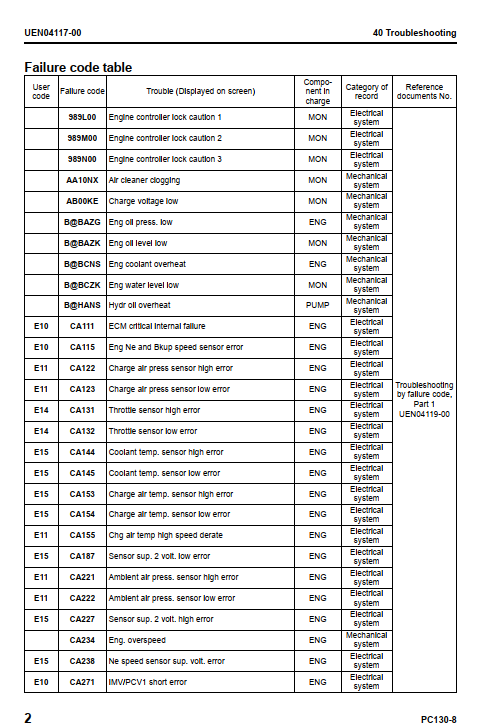

40. Troubleshooting

This section explains how to find out failed parts and how to repair them. The troubleshooting is divided by failure modes. The “S mode” of the troubleshooting related to the engine may be also explained in the Chassis volume and Engine volume. In this case, see the Chassis volume.

50. Disassembly and assembly

This section explains the special tools and procedures for removing, installing, disassembling, and assembling each component, as well as precautions for them. In addition, tightening torque, and quantity and weight of coating material, oil, grease, and coolant necessary for the work are also explained.

90. Diagrams and drawings

Hydraulic diagrams and drawings

Hydraulic diagrams and drawings
