French Cleat Wall + 25 Tool Holder Plans – Garage Storage Woodworking Plan PDF

A clean, modular garage wall you can rearrange in seconds. Rip 45° cleats from plywood, screw them into studs, then build any of 25 holders, from drill docks to clamp racks, that drop on and lift off anywhere on the wall.

This isn't a photo with a parts list. Every dimension comes from a parametric 3D model, and the cut list is checked against it by a second, independent calculation, so the parts actually fit. Finished size: 96" W x 1-7/16" D x 65-1/2" H (2438 mm x 37 mm x 1664 mm).

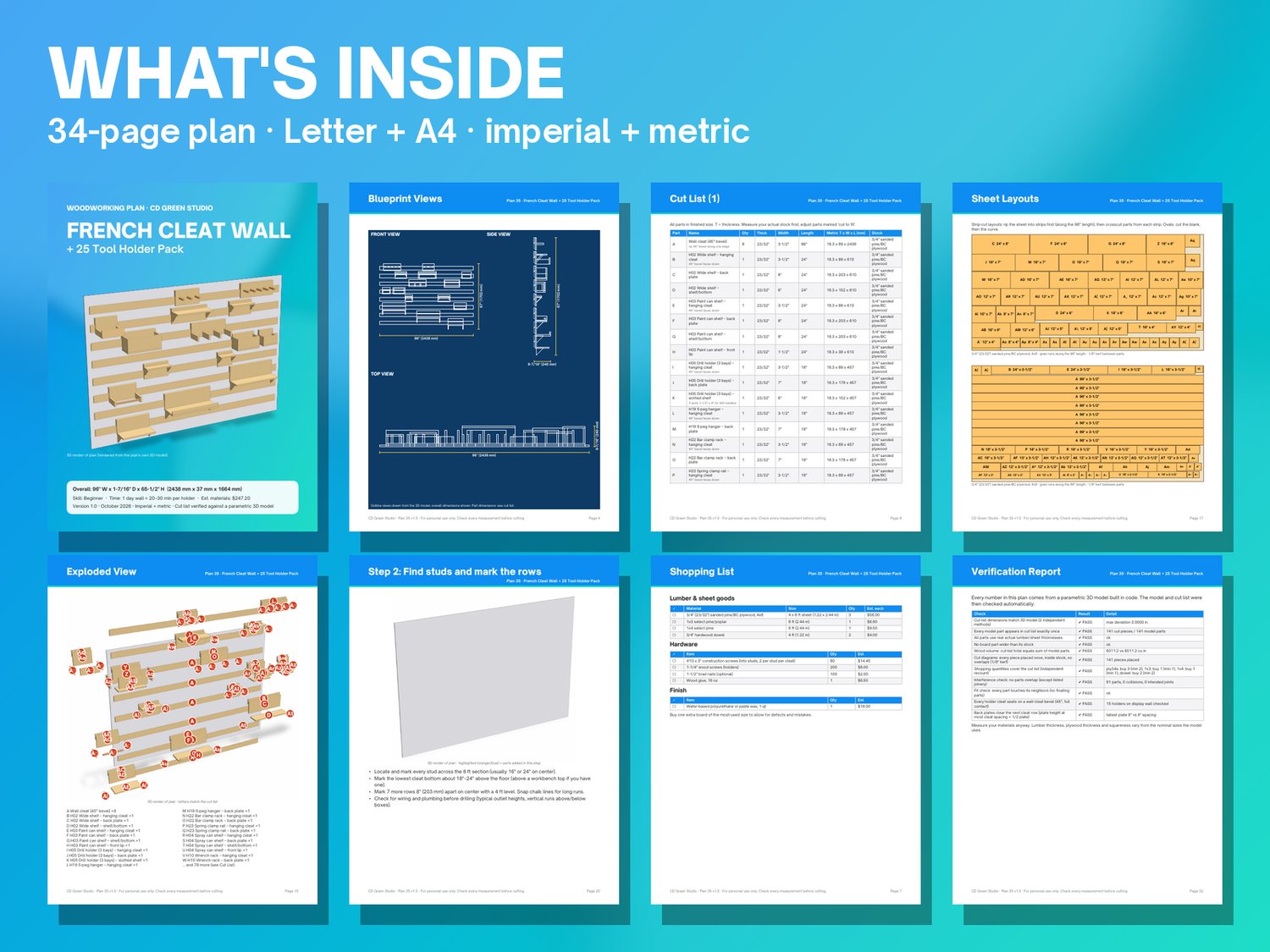

WHAT'S INCLUDED (34 pages):

• Overview with overall dimensions + blueprint front/side/top views

• Skill level, build time and a cost estimate (about $247 in materials, 2026 US prices)

• Tools list and printable shopping list (lumber, sheets, hardware, finish)

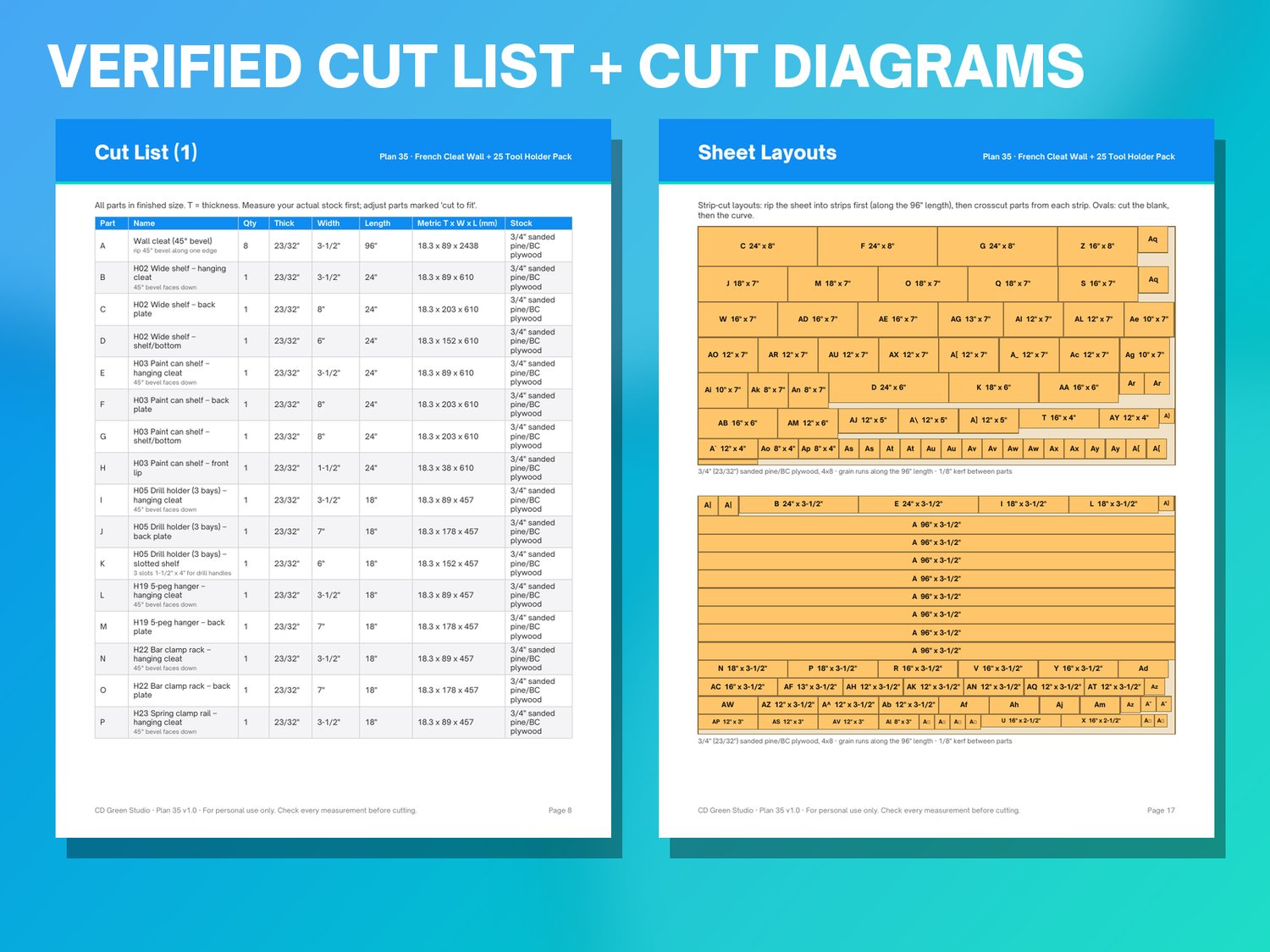

• Verified cut list: 102 lettered items / 141 pieces, inches + millimeters

• Board cut diagrams and plywood sheet layouts with kerf allowance

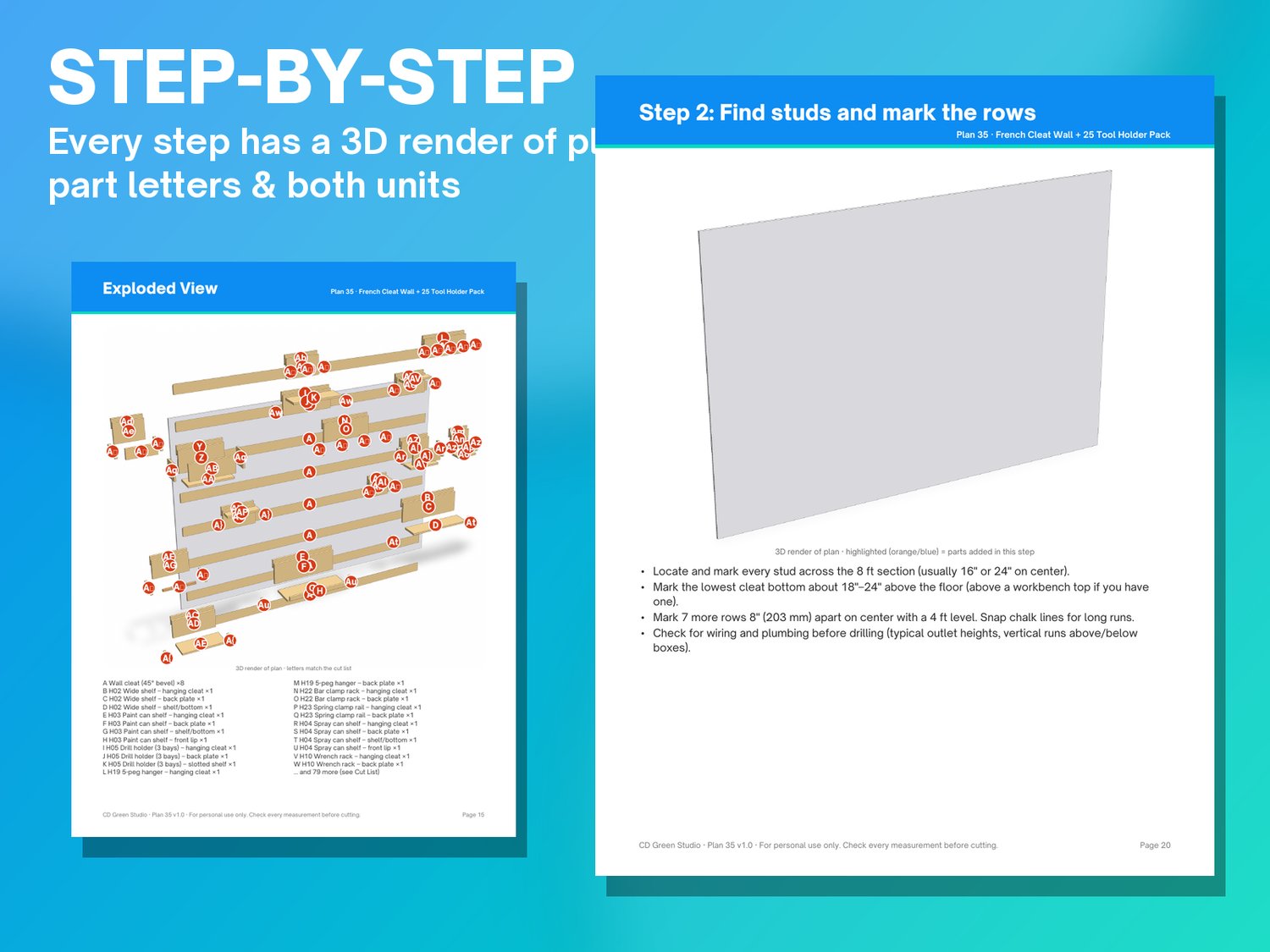

• Exploded view with part letters

• 6 step-by-step assembly pages, each with a 3D render of plan

• Holder library: 25 French cleat holder designs, each with its own render and cut list

• Finishing guide, size and style variations, troubleshooting

• Verification report (the 3D model's automatic checks)

• Safety & disclaimer page, version number and corrections contact

DETAILS:

• Skill level: Beginner · Build time: 1 day wall + 20–30 min per holder

• Instant download: 2 PDFs (US Letter 8.5 × 11 in and A4)

• Imperial and metric measurements throughout

• Uses real lumber sizes (a 2x4 is 1-1/2" x 3-1/2"; 3/4" plywood is 23/32")

• Version 1.0. Free updated PDF if a correction is ever made

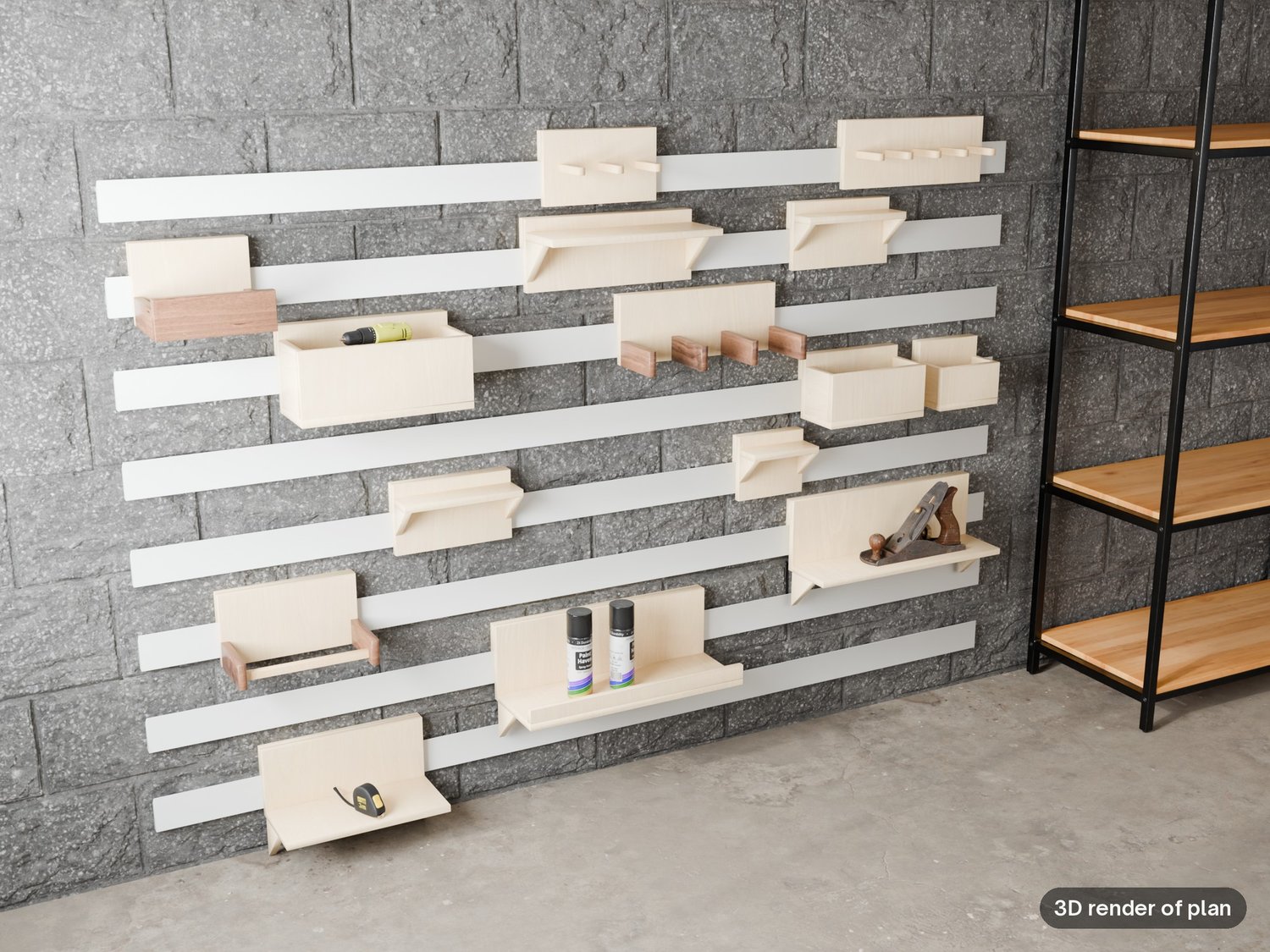

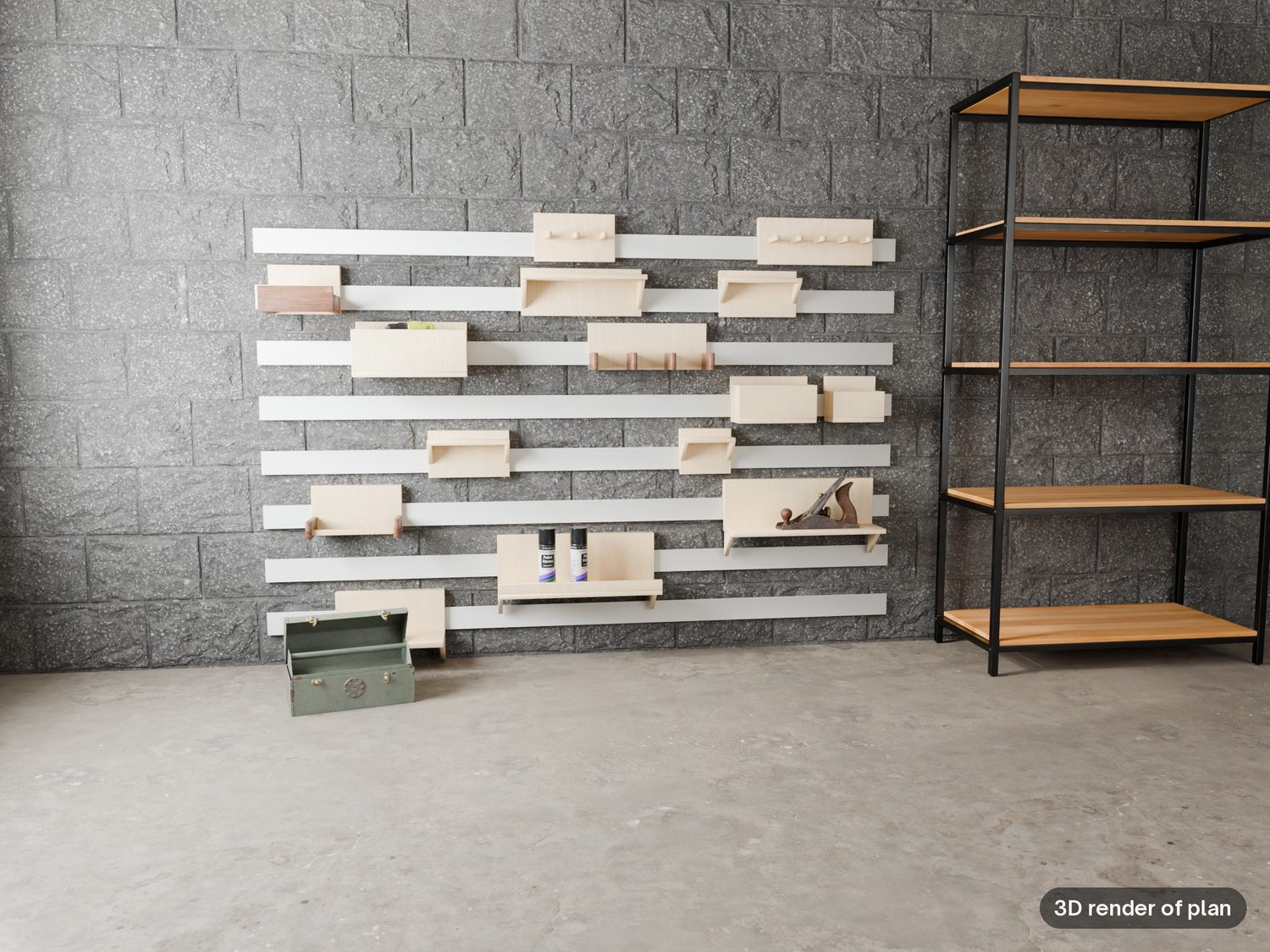

All product images and plan illustrations are 3D renders of the plan's own 3D model (labeled '3D render of plan'), not photos of a finished build. No AI image generators are used. AI disclosure: CD Green Studio made this plan with the help of AI tools (the 3D model code, cut list checks, drawings and written instructions were produced with AI assistance under our direction).

This is a digital download of a woodworking PLAN: no physical item or lumber is shipped. Build at your own risk; check all measurements and local codes. For personal use: you may sell furniture you build from it, but not the plan itself.
