Series - Parallel Complex Number Calculator for Short Circuit Analysis

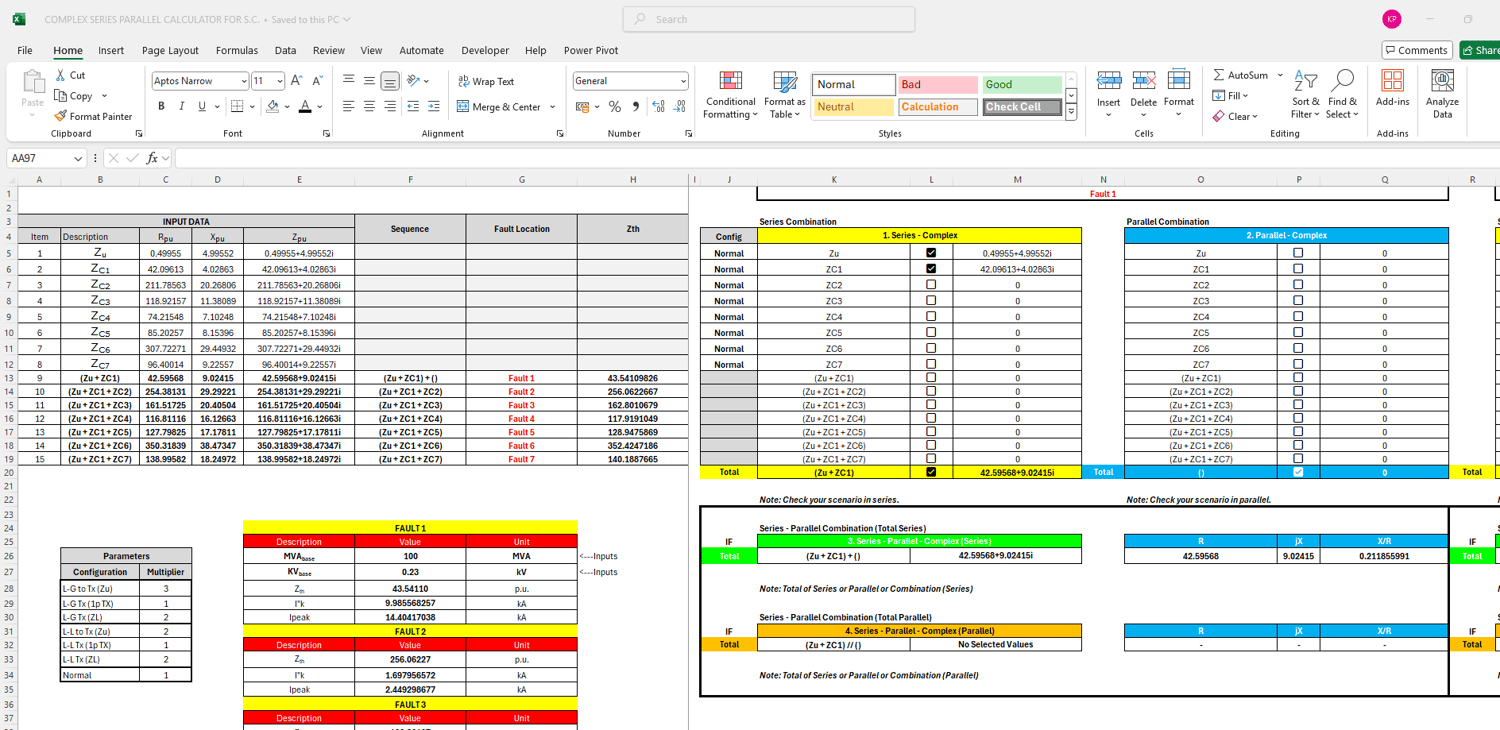

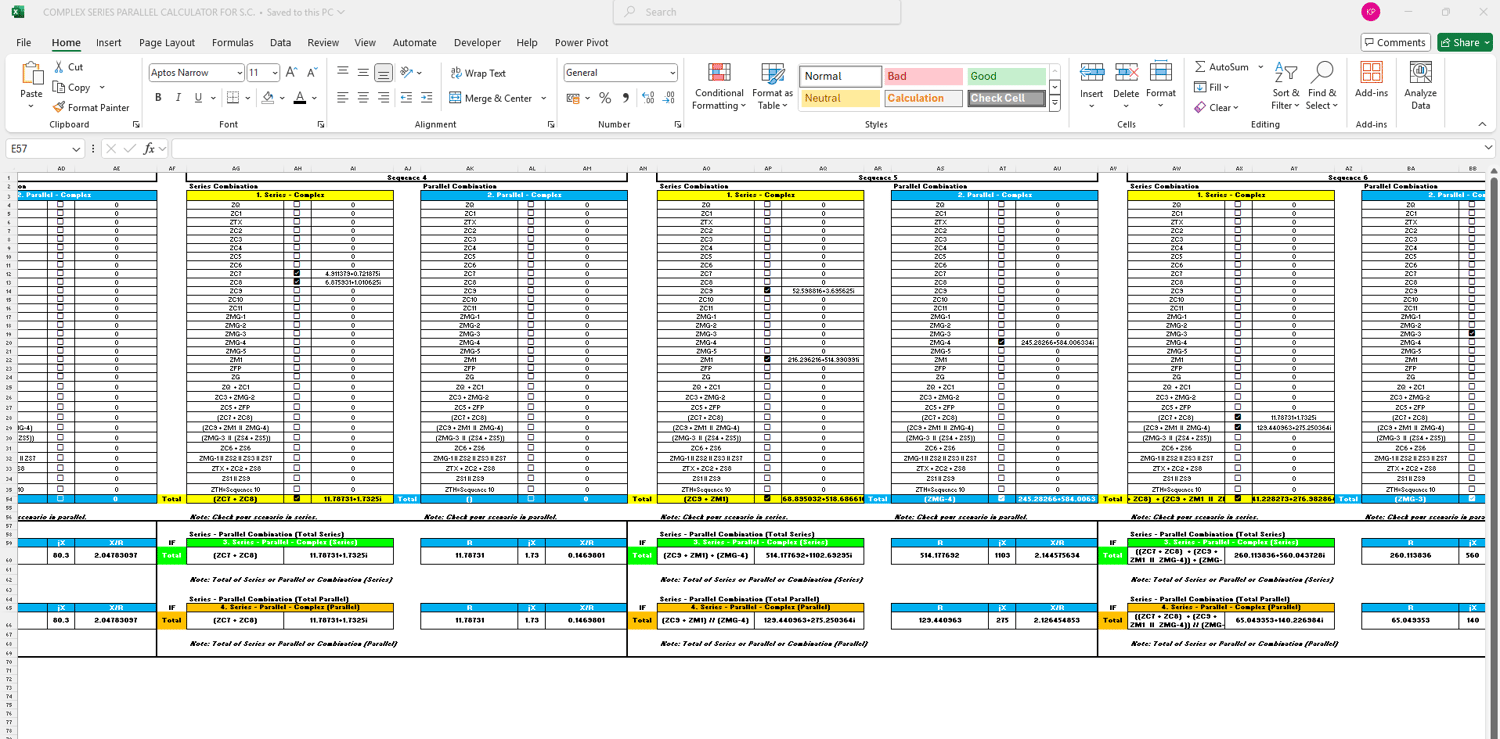

Introducing an Excel spreadsheet designed to simplify the calculation of complex numbers in series and parallel configurations for fault analysis.

Analyzing circuits and collecting essential data like impedance can be time-consuming, especially when it comes to manually entering formulas for each series or parallel sequence. This Excel sheet streamlines that process, allowing you to easily calculate complex impedance without the need for additional electrical software.

With just a click of a box, you can select your desired sequence and instantly obtain the complex number for either series or parallel configurations.
