Structural Connector & Hold-Down Coordinator Pro

Coordinate structural connectors, hold-downs, roof clips, straps, post bases, anchors, and continuous load paths directly inside AutoCAD with Structural Connector & Hold-Down Coordinator Pro.

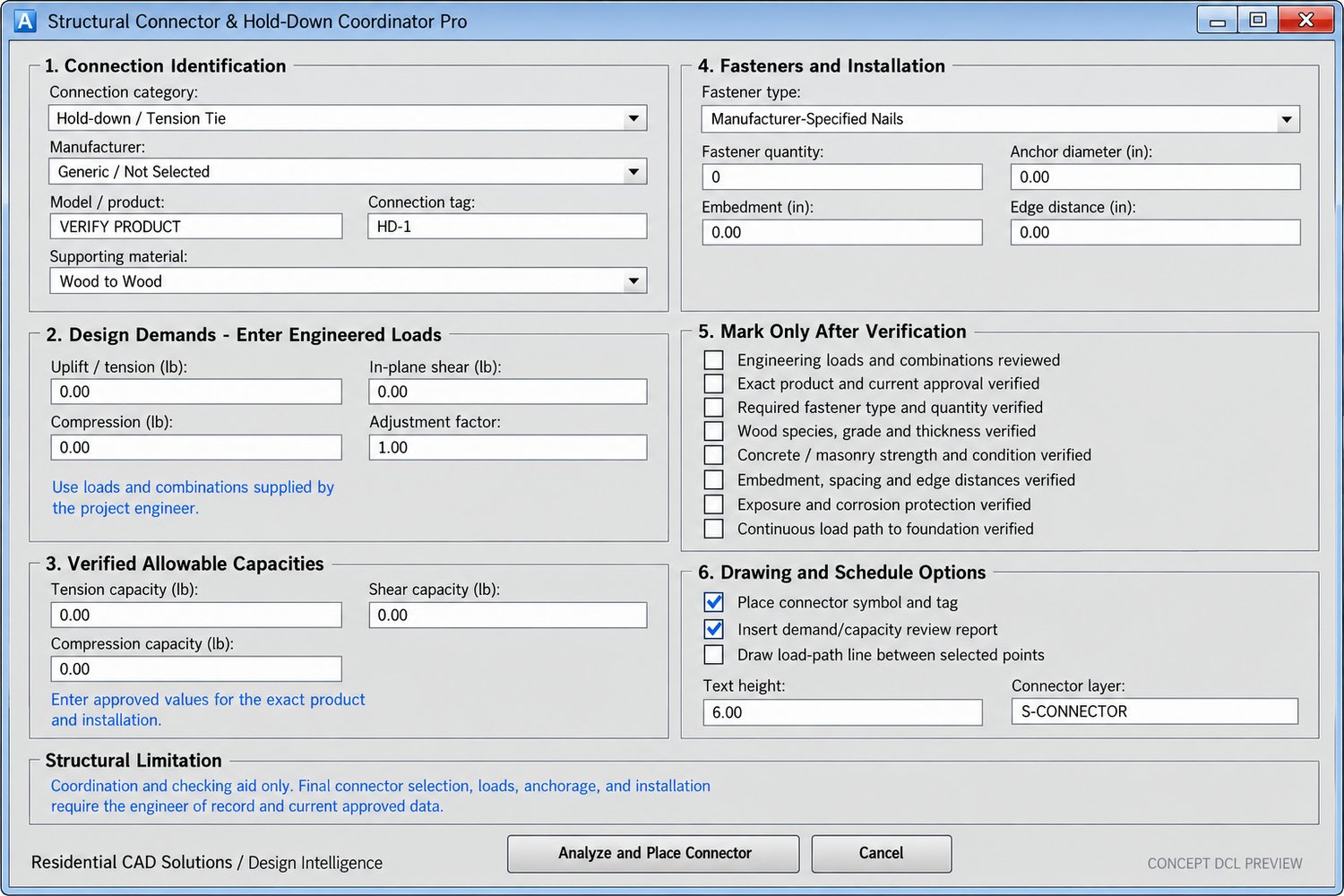

This advanced AutoLISP and DCL package provides one organized interface for recording engineer-supplied loads, verified connector capacities, fastener requirements, anchorage information, installation conditions, and load-path verification.

The program calculates preliminary demand-to-capacity ratios using the values you enter. Conservative HOLD warnings identify missing capacities, incomplete verification items, or entered demands that exceed entered capacities.

Features include:

• Eight connector and hold-down categories

• Manufacturer, model, connection-tag, and supporting-material fields

• Tension, shear, and compression demand tracking

• User-entered verified allowable capacities

• Adjustable demand factor

• Demand-to-capacity ratio reviews

• Automatic HOLD warnings

• Eight-point installation and load-path checklist

• Fastener type and quantity tracking

• Anchor diameter, embedment, and edge-distance fields

• Connector symbols and drawing tags

• Multi-point continuous load-path graphics

• In-drawing coordination reports

• TXT report export

• Connector and hold-down schedules

• Automatic connector, load-path, and annotation layers

• AutoCAD 2002 and later compatibility

• LISP, DCL, instructions, command guide, testing checklist, and commercial license included

Commands include SCHDPRO, CONNECTORPRO, SCHDREPORT, SCHDSCHEDULE, and SCHDABOUT.
