Arc Gauge with EzSVG v1.0.2

Q-SYS plugin Arc Gauge with EzSVG v1.0.2

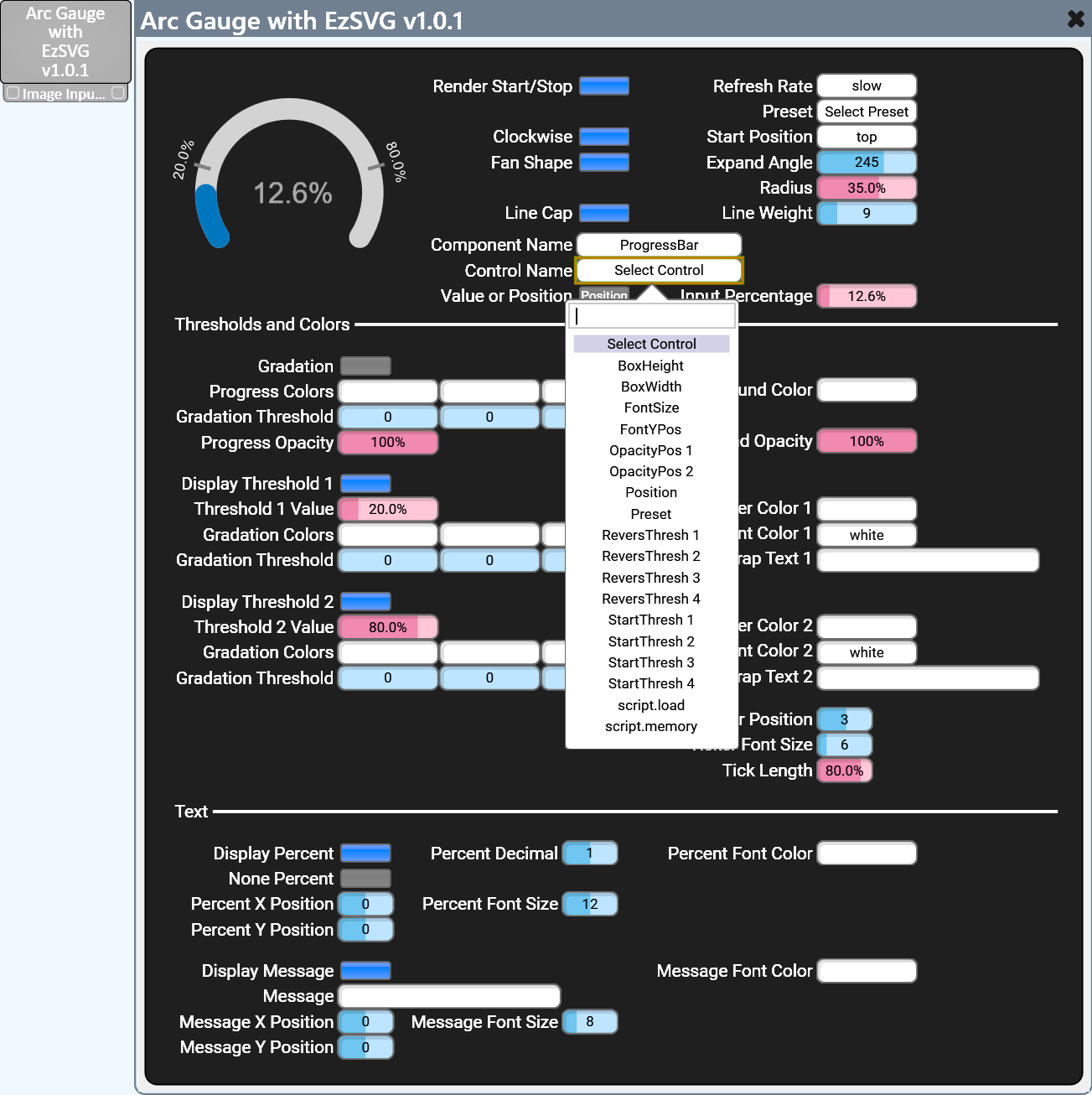

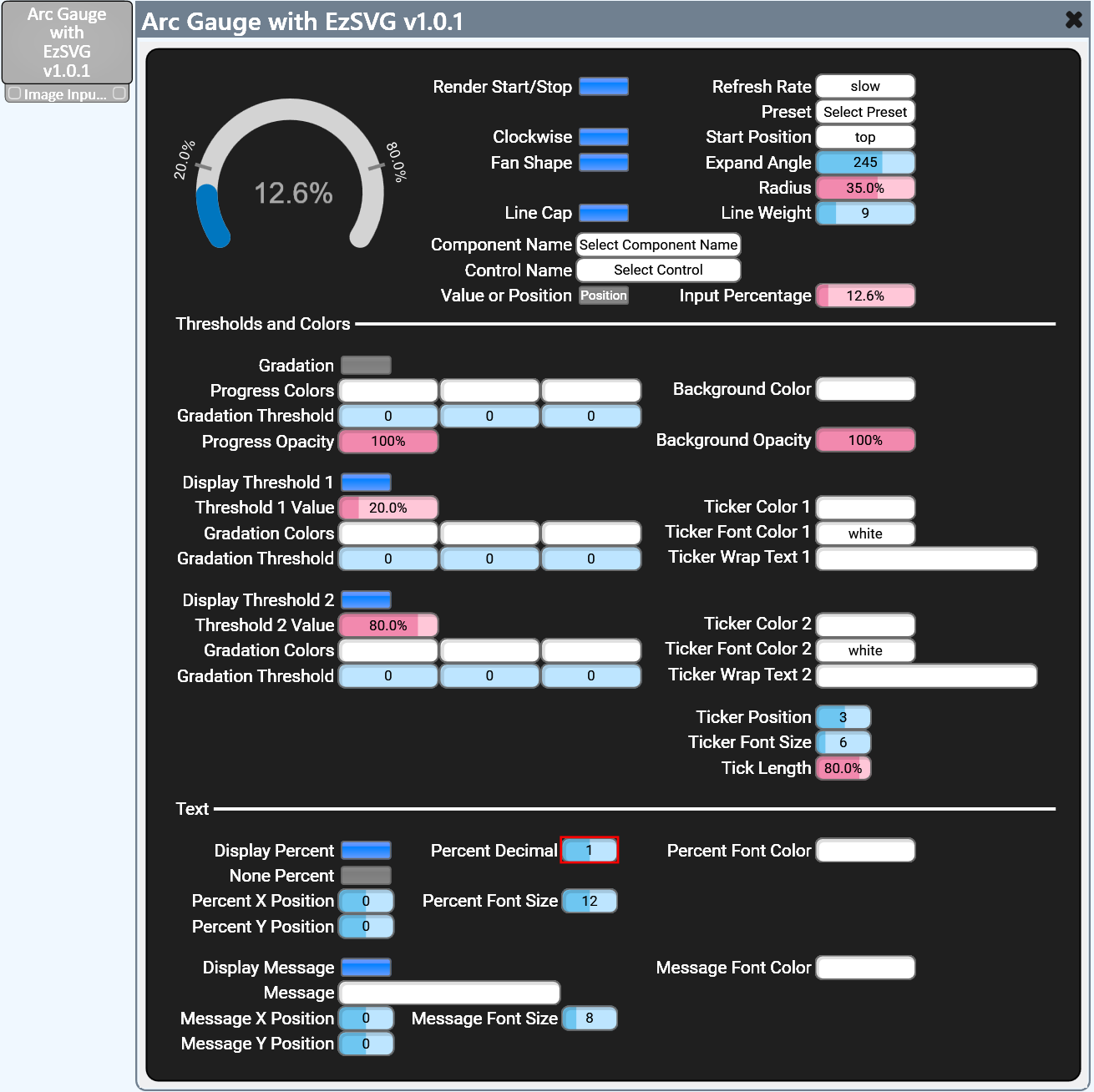

This plugin creates dynamic, customizable SVG gauges that can be displayed directly in UCI panels. Transform any linked float or array control into a live, animated arc gauge with smooth gradients, threshold-based color changes, and radial tick marks.

Features include:

・Real-time SVG Rendering – Generates animated arc gauges (full circle or fan segments) using EzSVG library

・Smart Color Thresholds – Automatically switches between normal/caution colors or smooth gradients based on configurable threshold values

・Customizable Display – Adjustable tick marks, arced text labels, central percentage display, and custom messages

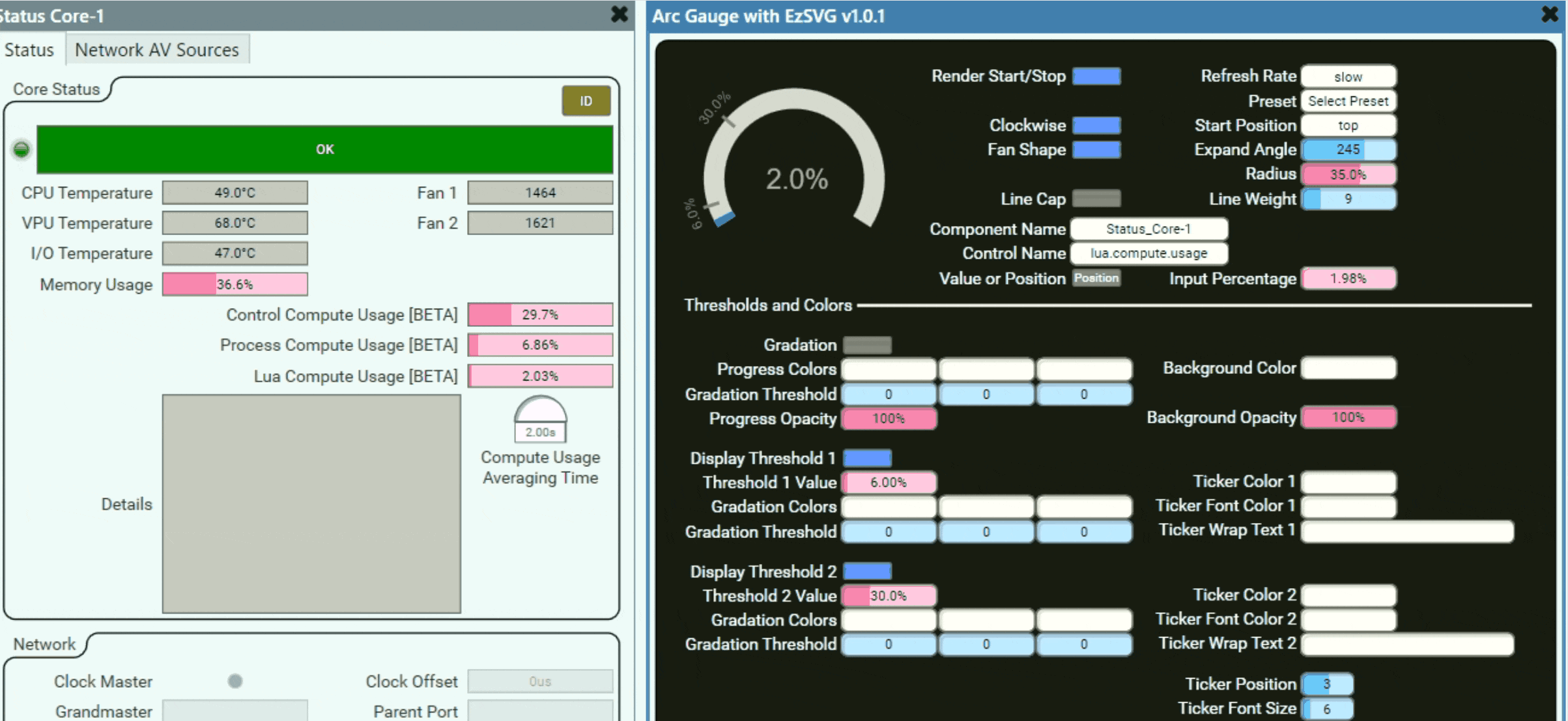

・External Control Linking – Bidirectional sync with any component's float/array controls for seamless integration

・5 Built-in Sample Presets – Quick setup options for common gauge styles and configurations

If Color is empty, the default color will be used.

--v1.0.2----------------------------------20250828

fix the issue where the Graph button becomes blurry when its size is large.

--v1.0.1----------------------------------20250802

add feature, possible to assign the Control Value (Position) of components with script access within the configuration file to a percentage.

--------------------------------------------20250731

Initial release

--------------------------------------------

*Note and Caution-------------------------------------

As you know, use this plugin at your own risk.

select "slow" refresh rate to maintain optimal system performance. Fast refresh rates can cause high CPU load.

*Test Equipment

QDS ver 10.0

UCI Viewer 3.11
