Structural Load Path Mapper

Structural Load Path Mapper

Make support coordination easier to review. Structural Load Path Mapper helps architects, designers, engineers, and drafters compare user-defined support locations across Foundation, Main, Upper, and Roof levels.

Features include:

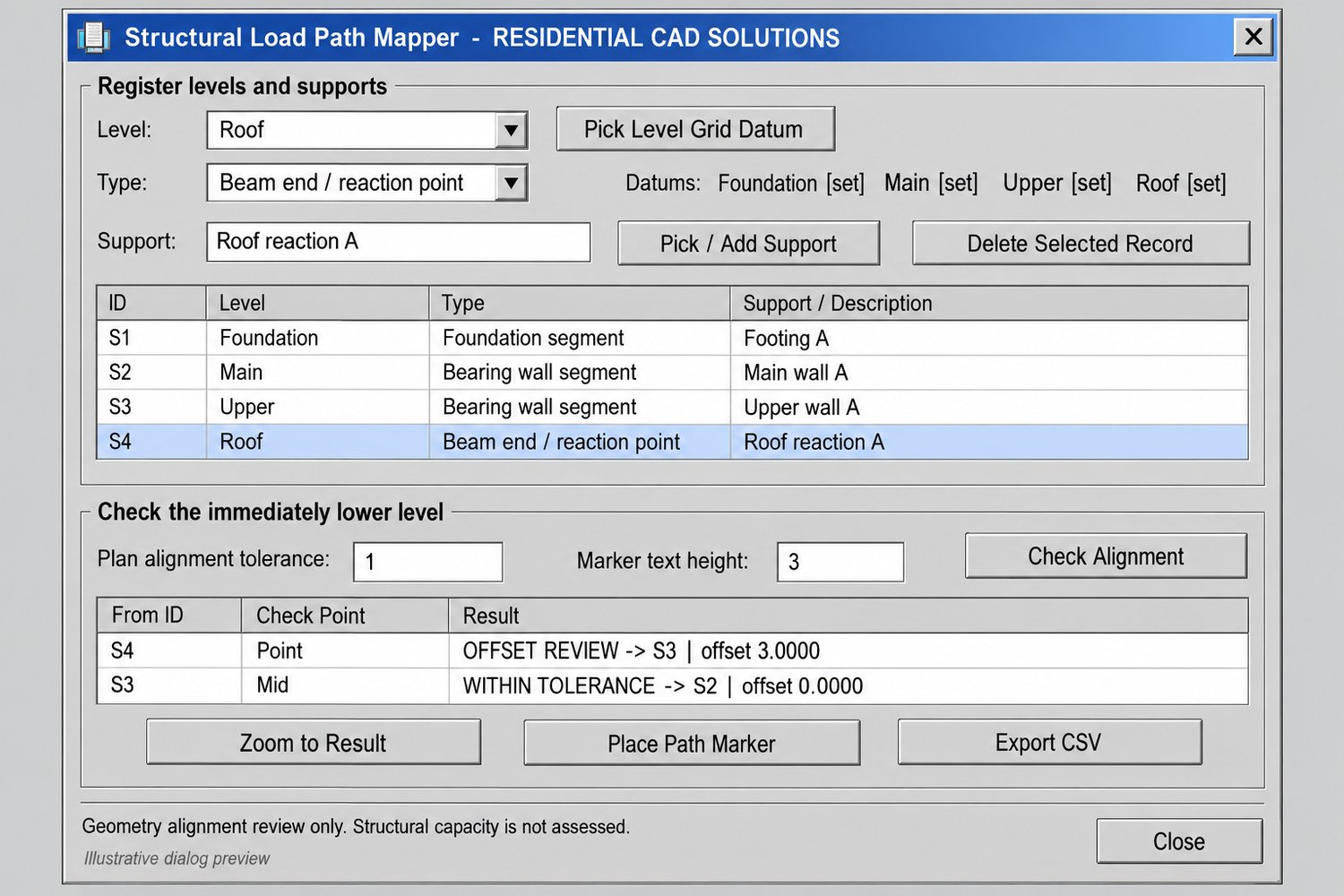

• Register posts, beam-end points, bearing-wall segments, and foundation segments.
• Set common grid datums to compare plans drawn side by side.
• Check alignment against supports on the immediately lower level.
• Flag offsets, missing lower supports, and missing datums.
• Set your own alignment tolerance.
• Zoom to results and place color-coded review markers.
• Save support records and datums inside the DWG.
• Export CSV reports for project coordination.

Your download includes: LISP program, DCL dialog file, demo DXF drawing, installation instructions, and verification examples.

Command: SLPM

Please note: This is a geometric coordination tool. It does not calculate loads, size members, verify structural capacity, or establish load-path adequacy. Segments are checked at their start, midpoint, and end; results require professional review.
