Injection Mold CAD for Bead Curtain System
A production-ready injection mold design for manufacturing plastic beads using small-scale injection molding.

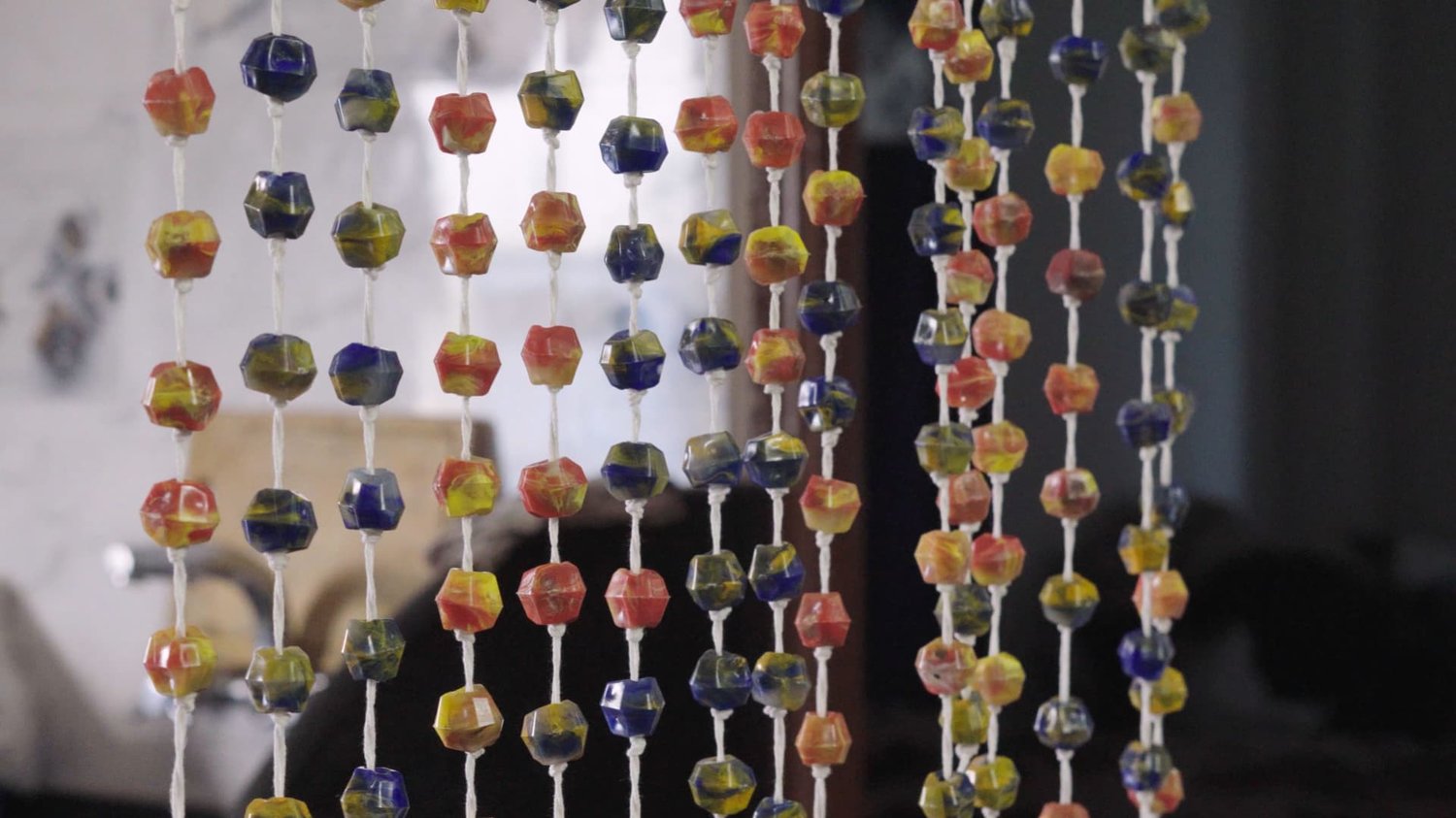

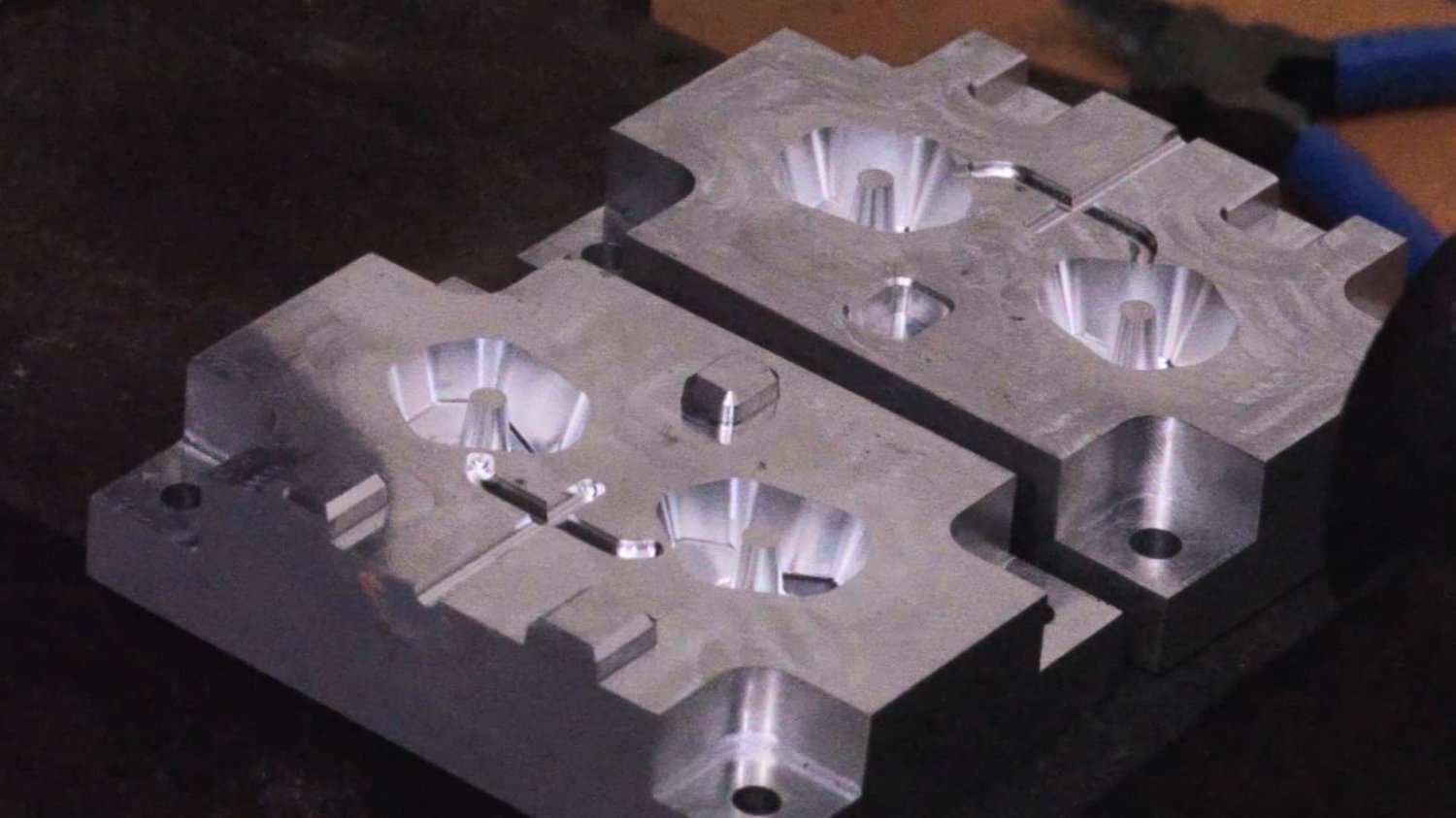

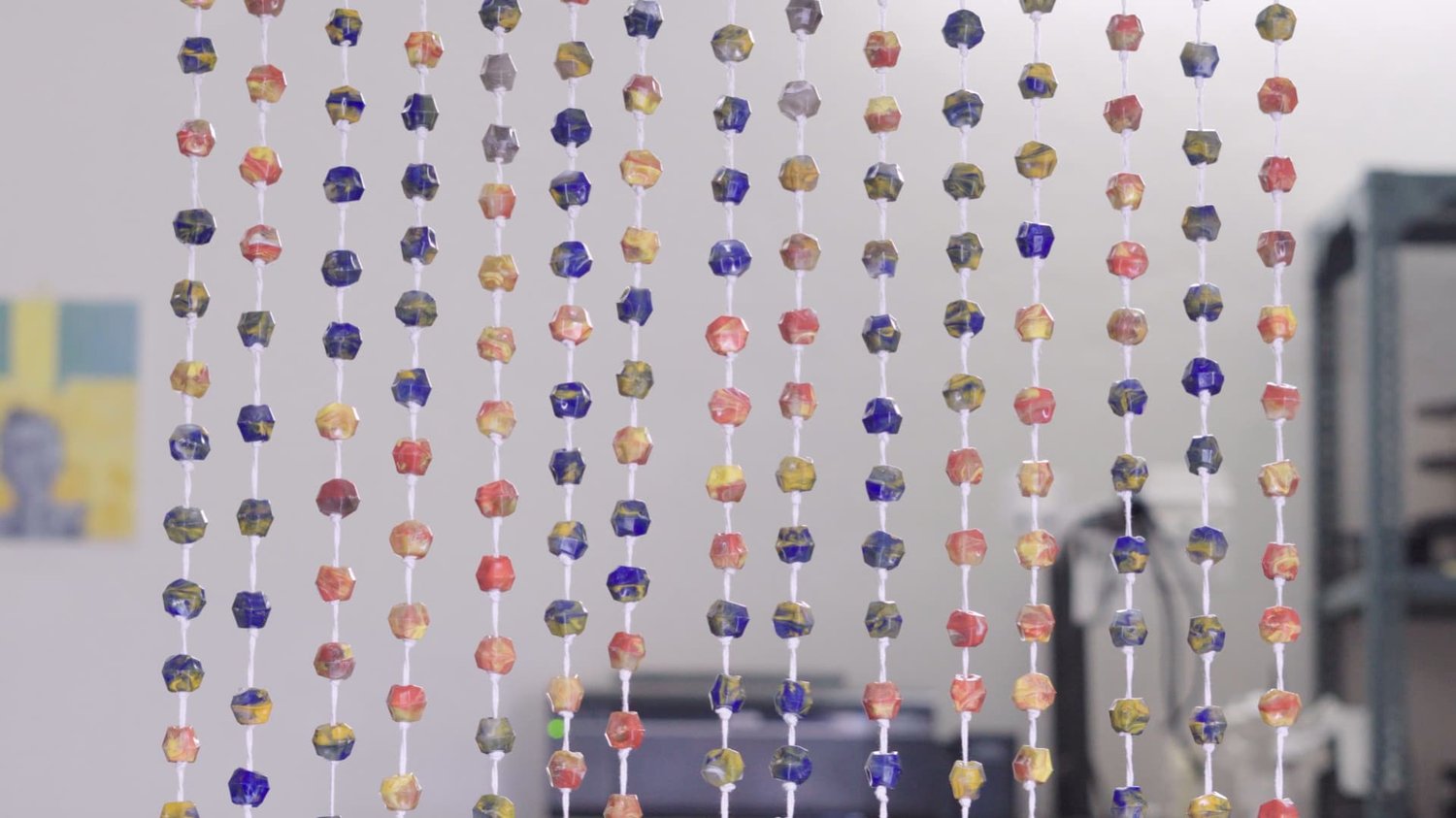

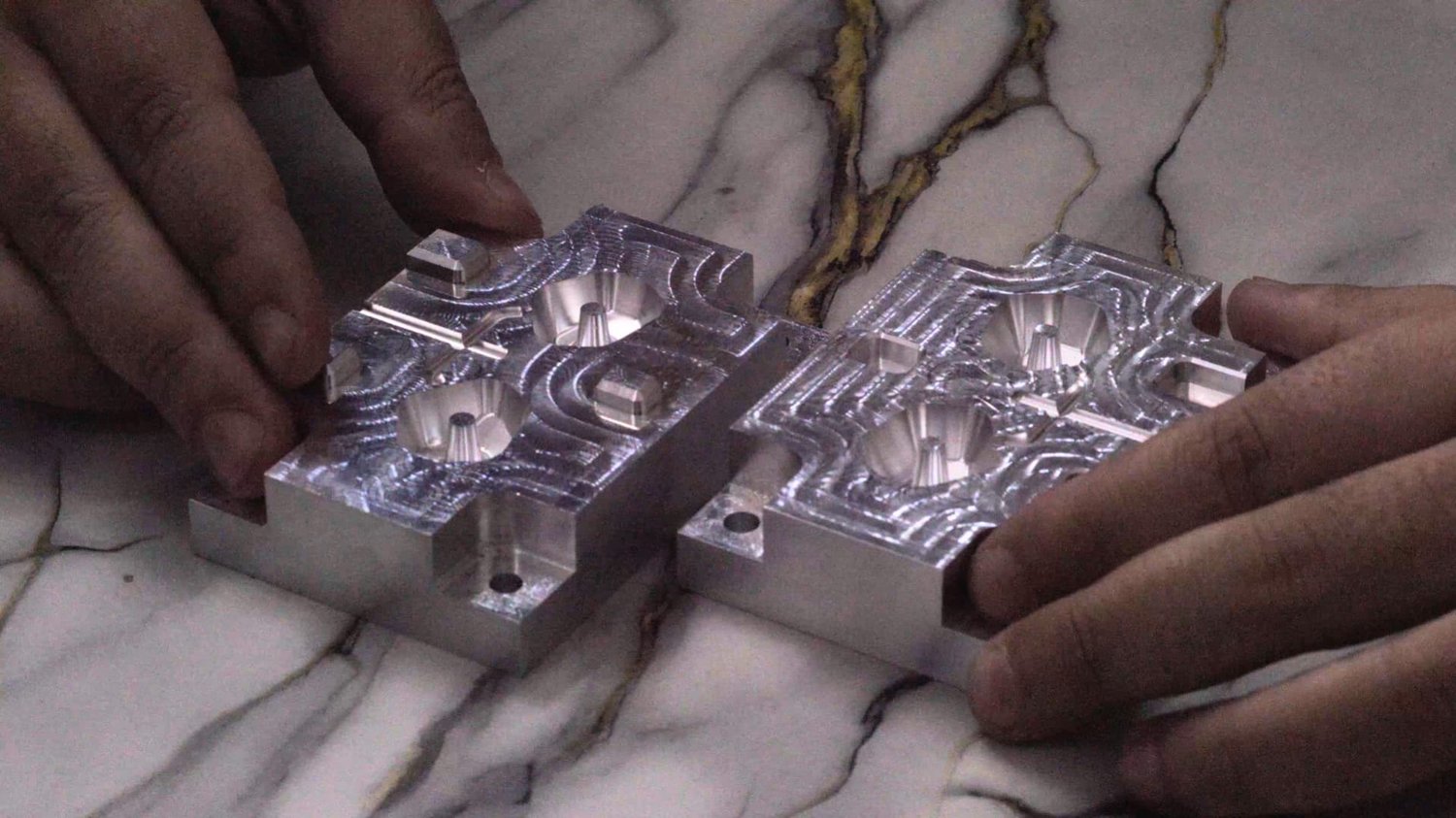

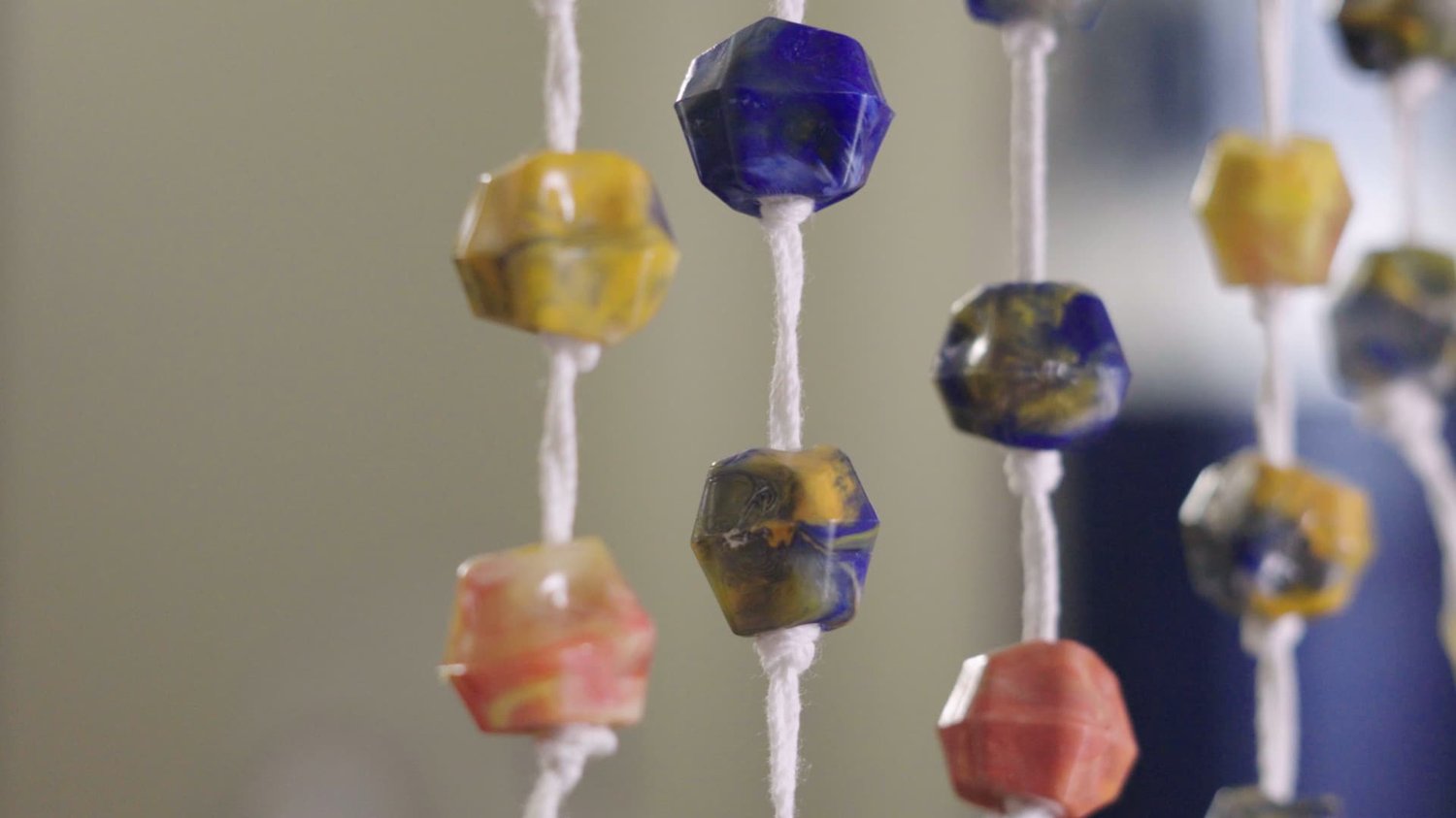

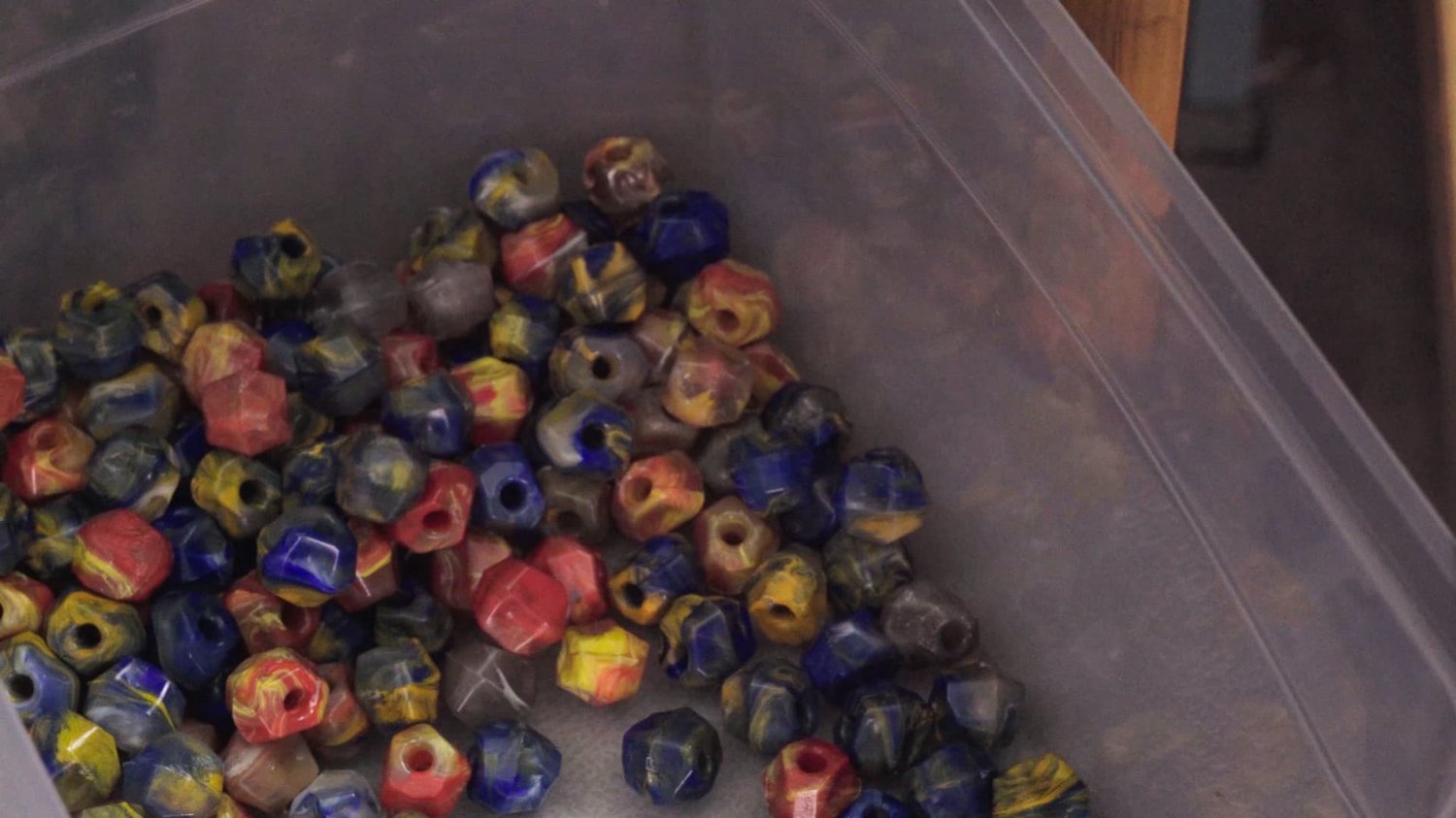

This is a CNC-machinable aluminum mold designed specifically for producing bead components used in a curtain system. The mold has been engineered, tested, and used to successfully produce hundreds of parts using recycled polypropylene and a small hand injection molding setup.

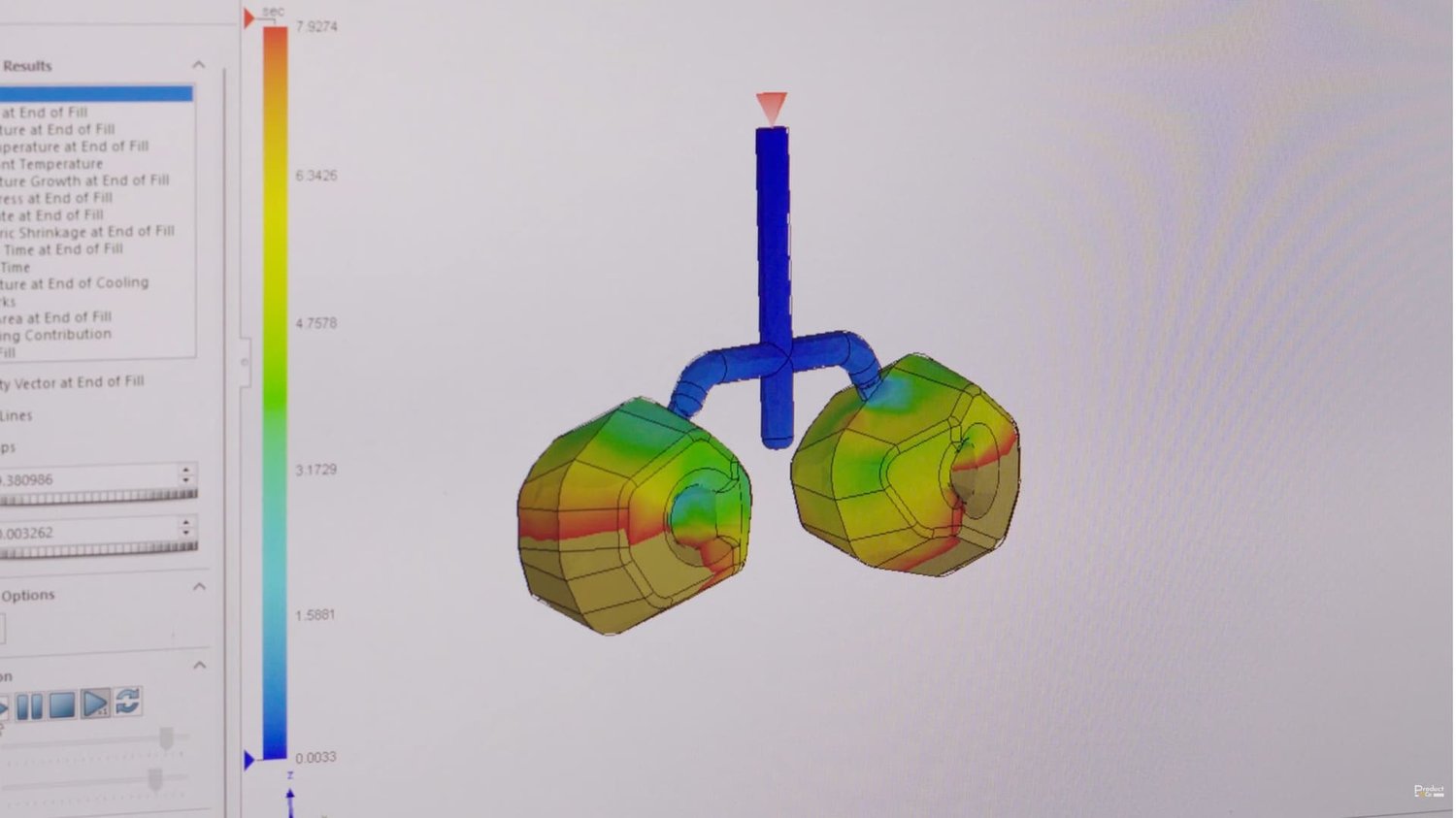

The entire workflow—from part design to mold engineering and real-world molding—has been validated through physical production, not just simulation.

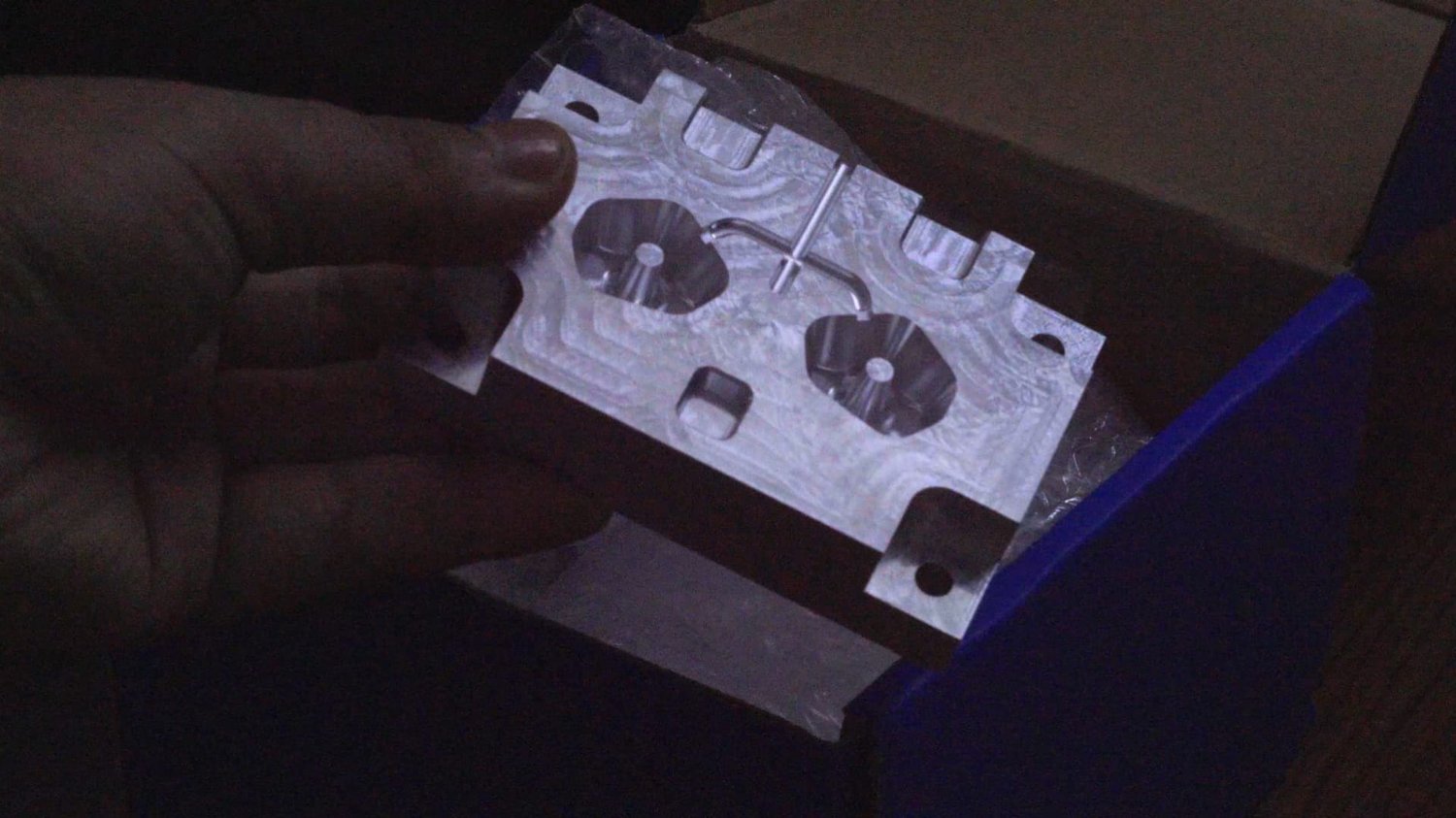

The mold is designed to be directly manufacturable through CNC machining services such as JLC-style manufacturing providers or any standard CNC shop that accepts STEP files.
This is not a conceptual model. It is a tested tooling design intended for real manufacturing use.
Video Documentation:
Detailed breakdown of the design and manufacturing process: YouTube
Usage Guide:
- Send CAD file to CNC machining service like JLCCNC

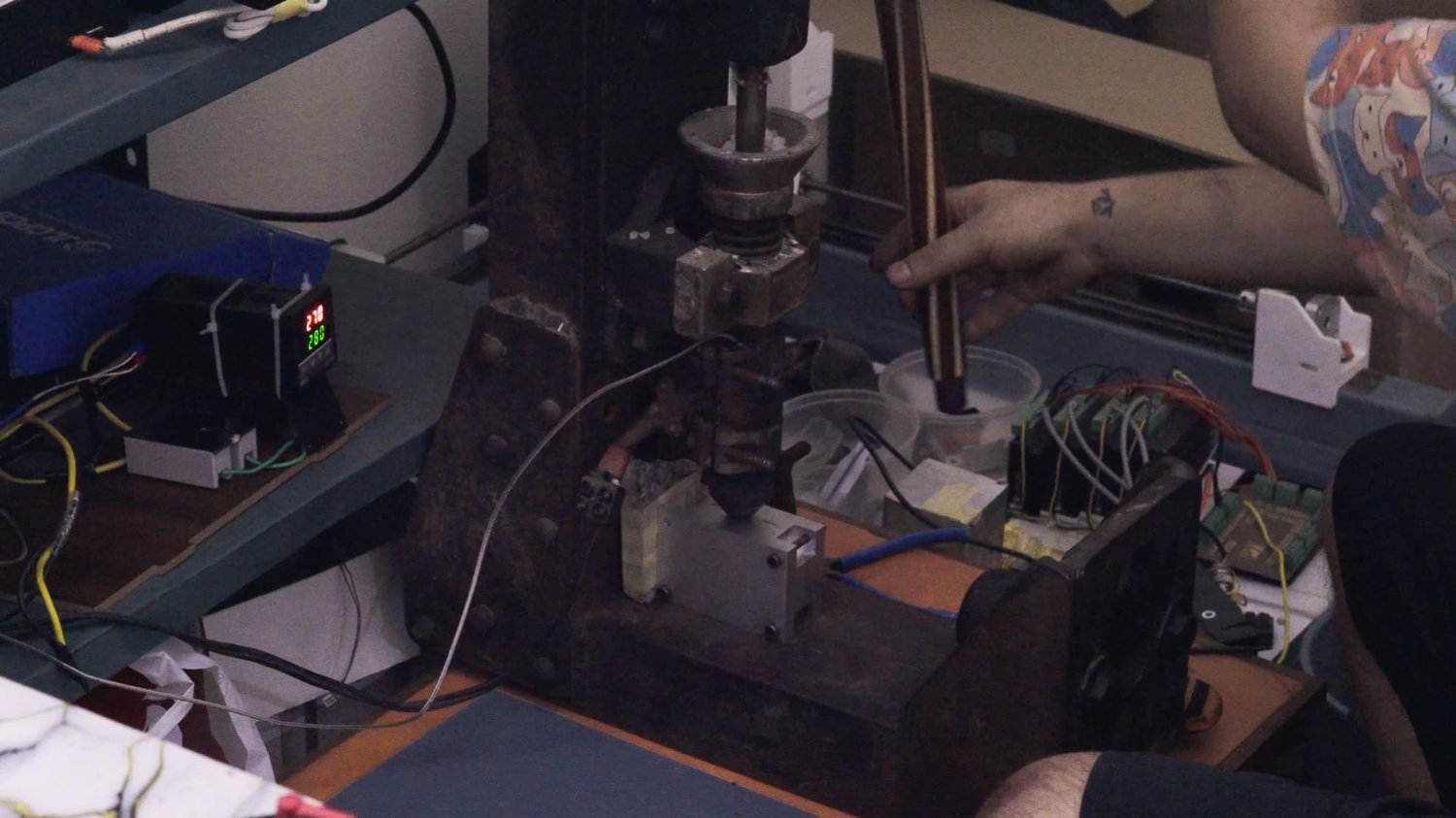

- Use small hand or benchtop injection molding setup
- Inject polypropylene (or similar thermoplastics)

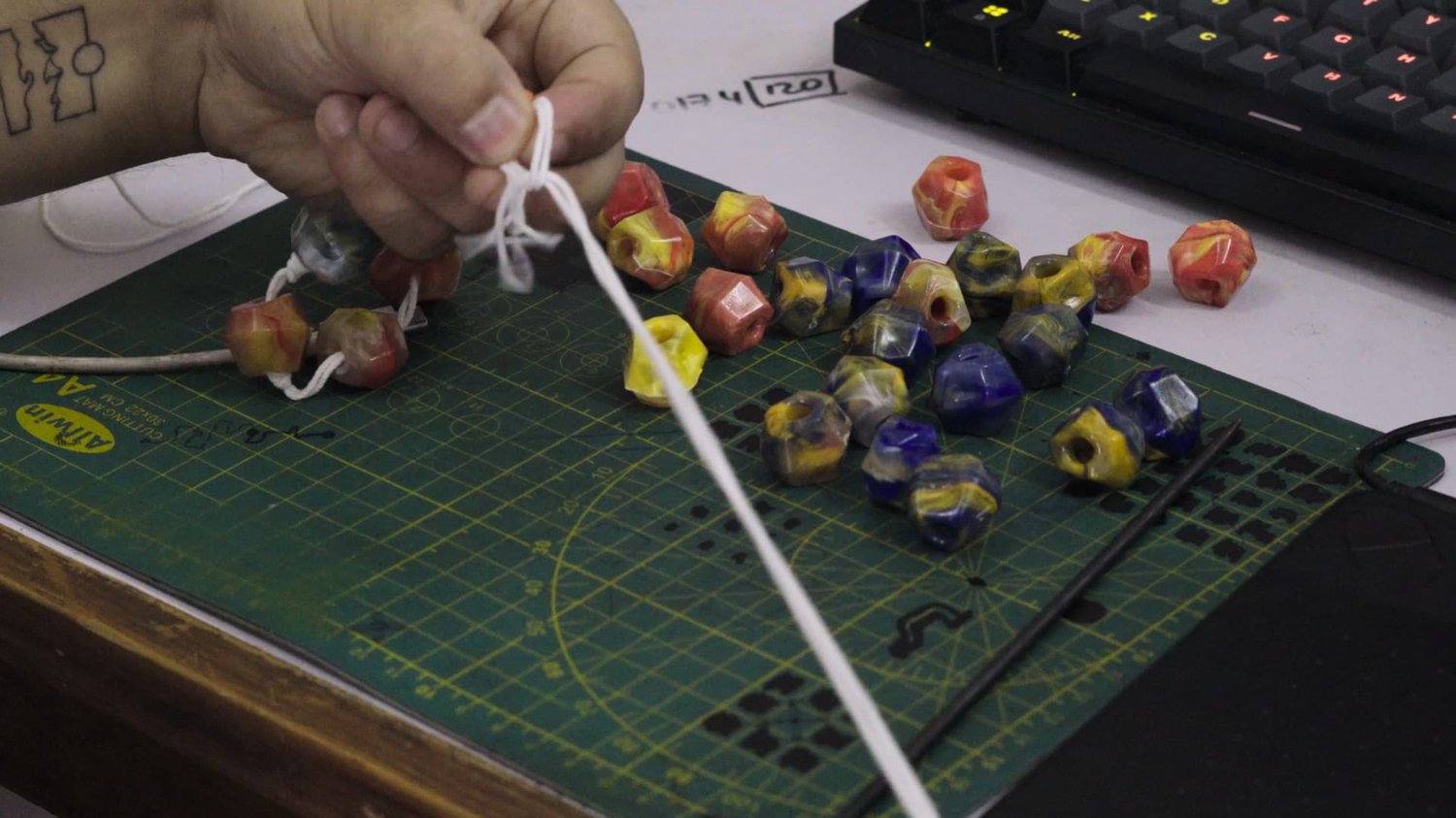

- Produce repeatable bead components
